Description

IMPORTANT NOTICE: Control arms will not fit the Raptor trim. Tire size 35 in. x 12.50 in. and rim size 17 in. x 8.5 in. with a 4.75 in. backspace and 0mm offset are recommended aftermarket sizes.

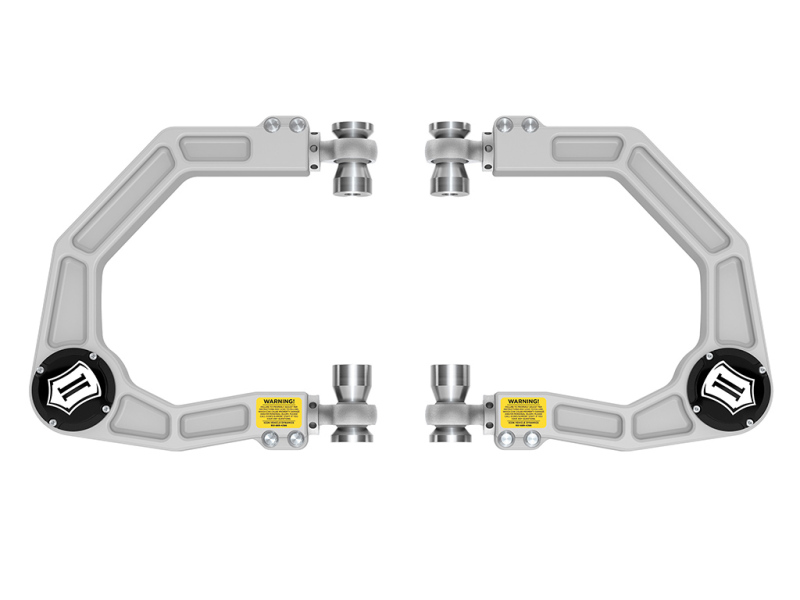

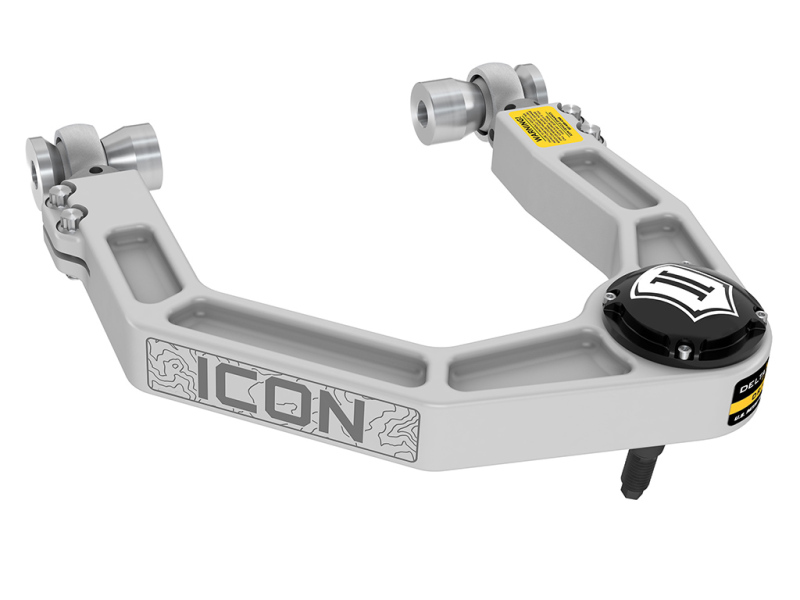

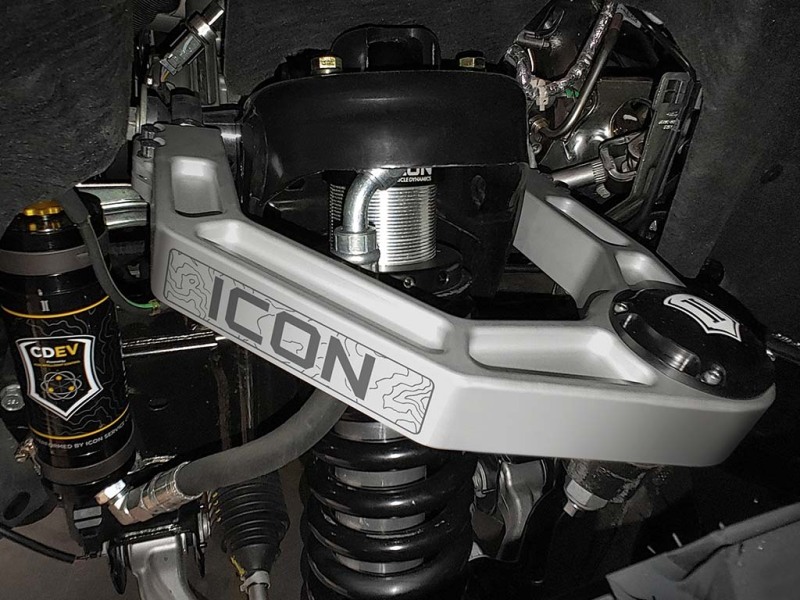

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-2026 Ford Bronco with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.

Product Overview

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

Features and Benefits

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Built in O-ring sealed dust cover cap
• Corrects suspension geometry and allows increased travel on lifted or stock height Broncos
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics

Product Details

AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	191014 - .25" COLLAR SPANNER PIN WRENCH
Adjustable Control Arm:	Yes
Adjustable:	Yes
Attachments Included:	No
Ball Joint Included:	Yes
Ball Joint Mounting Type:	Press In
Ball Joint Stud Type:	Threaded
Bushing Color:	Silver
Bushing Material:	Rod End Bearing
Bushings Included:	Yes
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color:	Silver
Construction:	Billet
Control Arm Color:	Silver
Control Arm Construction:	Billet
Control Arm Material:	Aluminum
Description:	21-UP BRONCO BILLET UCA DJ PRO KIT
Finish:	Anodized
Grade Type:	Performance
Grease Fitting Included:	yes
Material:	Aluminium
Mounting Bracket Included:	No
Mounting Hardware Included:	Yes
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico48500DJ
Pre-Assembled:	Yes
Pre-Greased:	Yes
Quantity:	Pair
Recommended Aftermarket Tires:	35" x 12.50"
Recommended Aftermarket Wheels:	ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
Reinforced:	Yes
Set:	Yes
Suspension Grade Type:	Performance
Suspension Type:	Spring
Title:	21-UP BRONCO BILLET UCA DJ PRO KIT

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

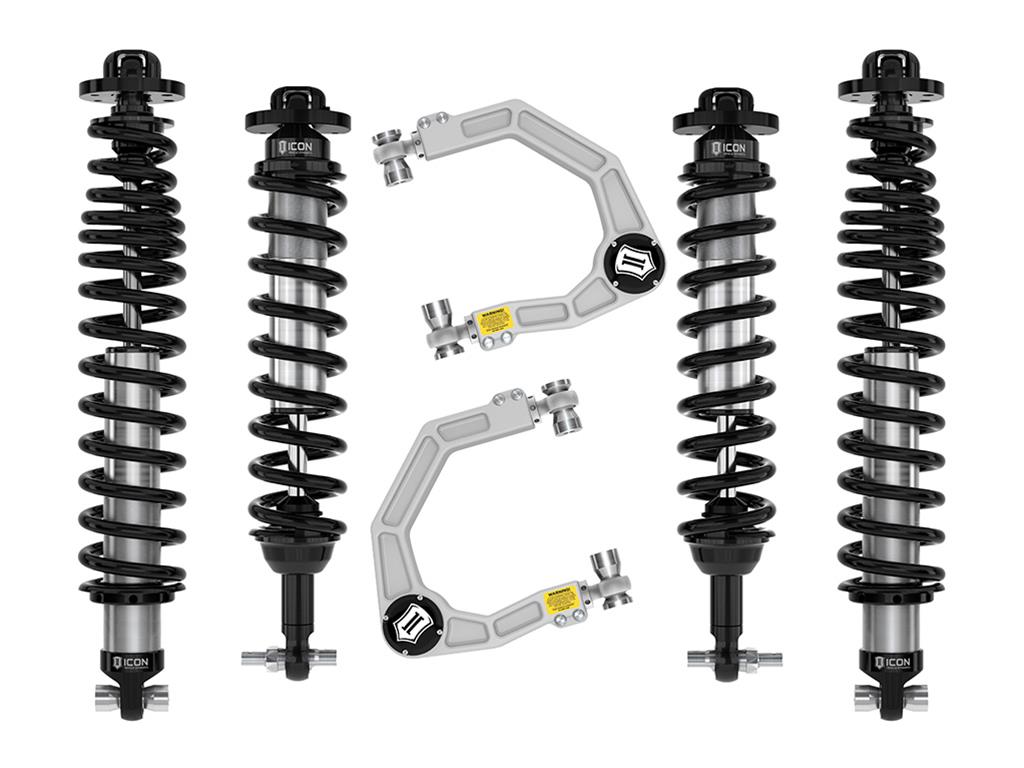

Kit option/s:

Thumb	SKU	Kit Title
	icoK40003	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM BILLET (1x ico48500DJ, 1x ico48600, 1x ico48610)
	icoK40004	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 4 SUSPENSION SYSTEM BILLET (1x ico48500DJ, 1x ico48700, 1x ico48710, 1x ico611072)
	icoK40005	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 5 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700, 1x ico48710)
	icoK40006	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 6 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48710C)
	icoK40007	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 7 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48710C)
	icoK40008	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 8 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700E, 1x ico48710E, 1x ico43501)
	icoK40013	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 3 SUSPENSION SYSTEM BILLET (1x ico48500DJ, 1x ico48600, 1x ico48610)
	icoK40014	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 4 SUSPENSION SYSTEM BILLET (1x ico48500DJ, 1x ico48700, 1x ico48710, 1x ico611072)
	icoK40015	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700, 1x ico48710)
	icoK40016	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 6 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48710C)
	icoK40017	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48710C)
	icoK40018	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 8 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700E, 1x ico48710E, 1x ico43501)
	icoK40002	2021+ Ford Bronco Hoss 1.0 Pkg Stage 2 Suspension System Billet (1.5 - 3in Lift) (1x ico48500DJ, 2x ico48601, 2x ico48611)
	icoK40012	2021+ Ford Bronco Hoss 2.0 Stage 2 Suspension System Billet UCA (2- 3in Lift) (1x ico48500DJ, 2x ico48602, 2x ico48612)
	icoK40003X	(1x ico48500DJ, 1x ico48600, 1x ico48613)
	icoK40004X	(1x ico48500DJ, 1x ico48700, 1x ico611072, 1x ico48711)
	icoK40005X	(1x ico44000, 1x ico48500DJ, 1x ico48700, 1x ico48711)
	icoK40016X	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 6 Suspension System Billet Heavy Rate (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48711C)
	icoK40017X	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 7 Suspension System Billet Heavy Rate (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48711C)
	icoK40018X	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 8 Suspension System Billet Heavy Rate (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700E, 1x ico43501, 1x ico48711E)
	icoK40007X	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48711C)
	icoK40008X	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700E, 1x ico43501, 1x ico48711E)
	icoK40014X	(1x ico48500DJ, 1x ico48700, 1x ico611072, 1x ico48711)
	icoK40015X	(1x ico44000, 1x ico48500DJ, 1x ico48700, 1x ico48711)
	icoK40007D	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700X, 1x ico48710X)
	icoK40006DX	(1x ico44000, 1x ico48500DJ, 1x ico48700X, 1x ico48711X)
	icoK40016D	(1x ico44000, 1x ico48500DJ, 1x ico48700X, 1x ico48710X)
	icoK40016DX	(1x ico44000, 1x ico48500DJ, 1x ico48700X, 1x ico48711X)
	icoK40017D	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700X, 1x ico48710X)
	icoK40017DX	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700X, 1x ico48711X)
	icoK40006D	(1x ico44000, 1x ico48500DJ, 1x ico48700X, 1x ico48710X)
	icoK40007DX	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700X, 1x ico48711X)
	icoK40006X	Icon Vehicle Dynamics Stage 6 Suspension Lift Kits for 2021-2023 BRONCO - K40006X 21-23 NON-SASQ 3-4" LIFT STAGE SUSPENSION SYSTEM BILLET HEAVY RATE
	icoK40013X	Icon Vehicle Dynamics Stage 3 Suspension Lift Kits for 2021-2023 BRONCO - K40013X 21-23 SASQUATCH 2-3" LIFT STAGE SUSPENSION SYSTEM BILLET HEAVY RATE

Data: v4.2 - Upd: 2026-10-14 01:10:59

Features

Specifications

Product Attributes - UPC

00840103412306

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Notes

Control arms will not fit the Raptor trim. Tire size 35 in. x 12.50 in. and rim size 17 in. x 8.5 in. with a 4.75 in. backspace and 0mm offset are recommended aftermarket sizes.

Product Attributes - Quantity

Sold as a pair.

Product Attributes - Part Type

Control Arms

Product Attributes - Adjustable

Yes

Product Attributes - Product Line

Icon Vehicle Dynamics Delta Joint Billet Upper Control Arms

Product Attributes - Bushing Material

Spherical bearing

Product Attributes - Bushings Included

Yes

Product Attributes - Control Arm Color

Gray/Silver

Product Attributes - Control Arm Style

Billet

Product Attributes - Hardware Included

Yes

Product Attributes - Ball Joint Included

Yes

Product Attributes - Control Arm Material

Billet aluminum

Product Attributes - Ball Joint Plate Type

Pressed-in

Product Attributes - Manufacturer's Part Number

48500DJ
