Description

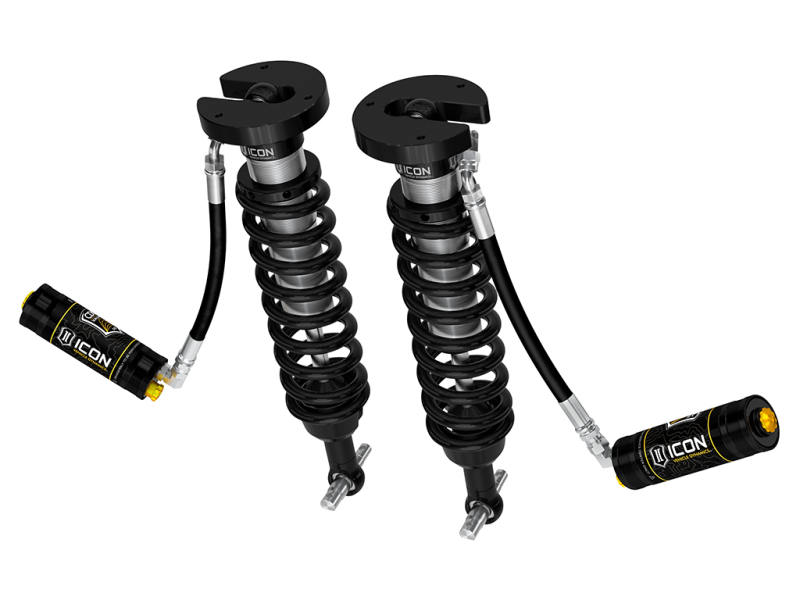

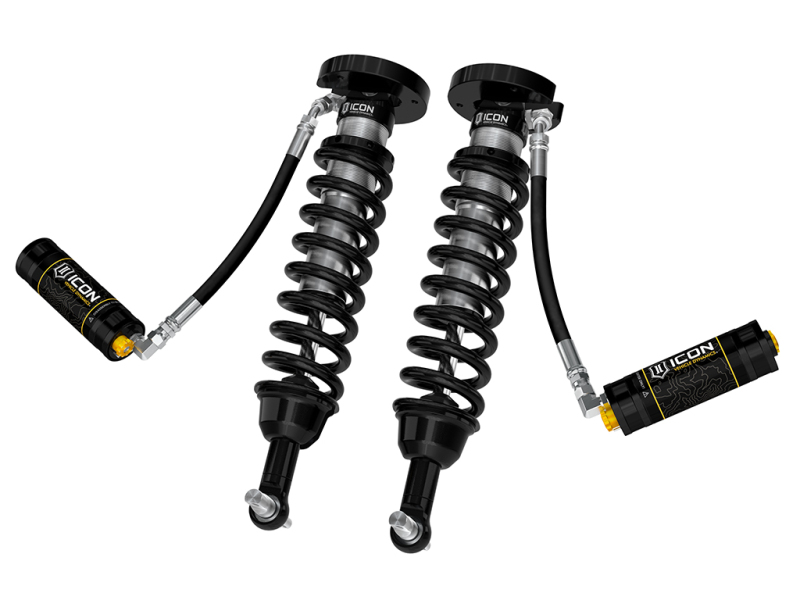

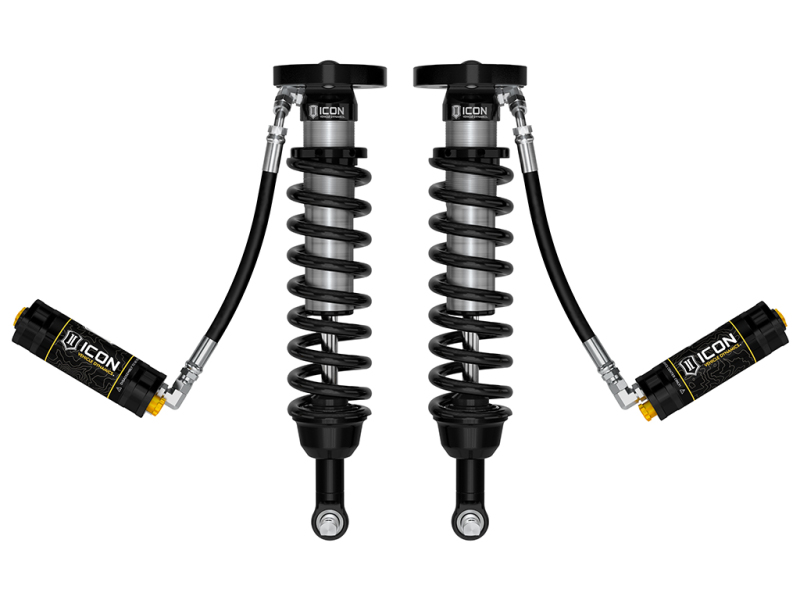

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-UP GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard.  When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.

Product Overview

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.

Features and Benefits

• 100% Bolt-on - no drilling or welding necessary for installation
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended offroad use
• ICON CDCV equipped for external tunability of your shocks
• Height-adjustable coilovers offer 1.5-3.5" of front lift height
• ICON engineered Eibach coil springs
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping:	Yes
Adjustable Height:	Yes
Amortiguación Ajustable:	SI
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Type:	Oil
Description:	19-UP GM 1500 EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Lower Mount Type:	Eyelet
Material del resorte:	Acero
Material:	Steel
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico71656C
Recommended Aftermarket Tires:	(Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir:	Yes
Service Parts:	252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Tipo de Grado:	Reparación de Banda
Title:	ICON 19-23 GM 1500, 0-3.5” Lift, Front, 2.5 VS Ext Travel RR/CDCV Coilover Kit
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK73064	ICON 2019+ GM 1500 1.5-3.5in Stage 4 Suspension System w/Billet Uca (1x ico78720DJ, 1x ico77703CP, 1x ico71656C)
	icoK73064T	ICON 2019+ GM 1500 1.5-3.5in Stage 4 Suspension System w/Tubular Uca (1x ico78620DJ, 1x ico77703CP, 1x ico71656C)

Data: v4.2 - Upd: 2026-10-13 20:37:25

Features

Specifications

Product Attributes - UPC

00840103406046

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

T-bar

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR Extended Travel Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

Yes

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

71656C

Product Attributes - Suspension Height Adjustment

1.5-3.5 in. raised

Product Attributes - Adjustable Mounting Bracket Included

No
