Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Product Overview

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits

• 100% Revalveable
• Premium Grade 5WT Shock Oil for consistent suspension damping along a wide temperature range
• Nitrogen Charged Monotube Design with Internal Reservoir
• One Piece Linear/Digressive Piston Design with Vehicle Specific Valving for Unsurpassed Performance and Ride Quality On and Off-road
• 5/8" Chrome Plated, Hardened Steel Shaft resists corrosion and pits
• 6061 Aluminum Rod End, Top Cap and internals insure Strength and Durability
• Polyurethane Bushings and zinc plated sleeves for OE factory type Fitment
• 6063 Anodized Aluminum body for Superb Heat Dissipation, Excellent Corrosion Resistance, and High TechAppearance
• Buna Top Out Bumper for noise free operation
• 100% Rebuildable

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add On Part:	614700 - Shock Boot Kit
Add-On Part:	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression:	No
Adjustable Damping:	No
Adjustable Rebound:	No
Adjustable Ride Height:	No
Adjustable:	No
Body Color:	Gray
Body Diameter:	2
Body Material:	Aluminum
Boot Included:	No
Bore Diameter:	1.75
Bushing Color:	Black
Bushing Included:	yes
Bushing Material:	Polyurethane
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	No
Coil Spring Insulator(s) Included:	No
Color:	Silver
Configuration:	Performance
Cylinder Color:	Gray
Cylinder Finish:	Anodized
Cylinder Material:	Aluminum
Cylinder Outside Diameter:	2
Damping Type:	Oil
Description:	19-UP RANGER 4WD (0-1.5") REAR 2.0 VS NR
Dust Boot Included:	No
Dust Shield Included:	No
Dust Shield:	No
External Reservoir:	No
Finish:	Anodized
Gas Charged:	Yes
Grade Type:	Performance
Hydraulic Lockout:	No
Includes Bump Stop:	No
Internal Construction Type:	Single Tube
Internal Rebound Bumper:	Yes
Internal Rebound Spring:	No
Lower Mount Type:	Eyelet
Material:	Steel
Maximum Ride Height Raising Distance:	1.5
Mounting Hardware Included:	No
Part Number:	ico96519
Quantity:	1
Remote Reservoir:	NO
Rod Diameter:	.625
Self-Leveling:	No
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter:	0.625
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Center of Eylet
Shock Absorber Bore Size:	1.75
Shock Absorber Rod End Measuring Point:	Center of Eylet
Suspension Type:	Spring
Tipo de Grado:	Reparación de Banda
Title:	ICON 2019-2023 Ford Ranger, 0-1.5” Lift, Rear 2.0 VS Shock
Upper Mount Type:	Eyelet
Valving Type:	Linear

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK93202	ICON 2019+ Ford Ranger 0-3.5in Stage 2 Suspension System w/Billet Uca (1x ico98520DJ, 1x ico91255, 2x ico96519)
	icoK93202T	ICON 2019+ Ford Ranger 0-3.5in Stage 2 Suspension System w/Tubular Uca (1x ico98510DJ, 1x ico91255, 2x ico96519)

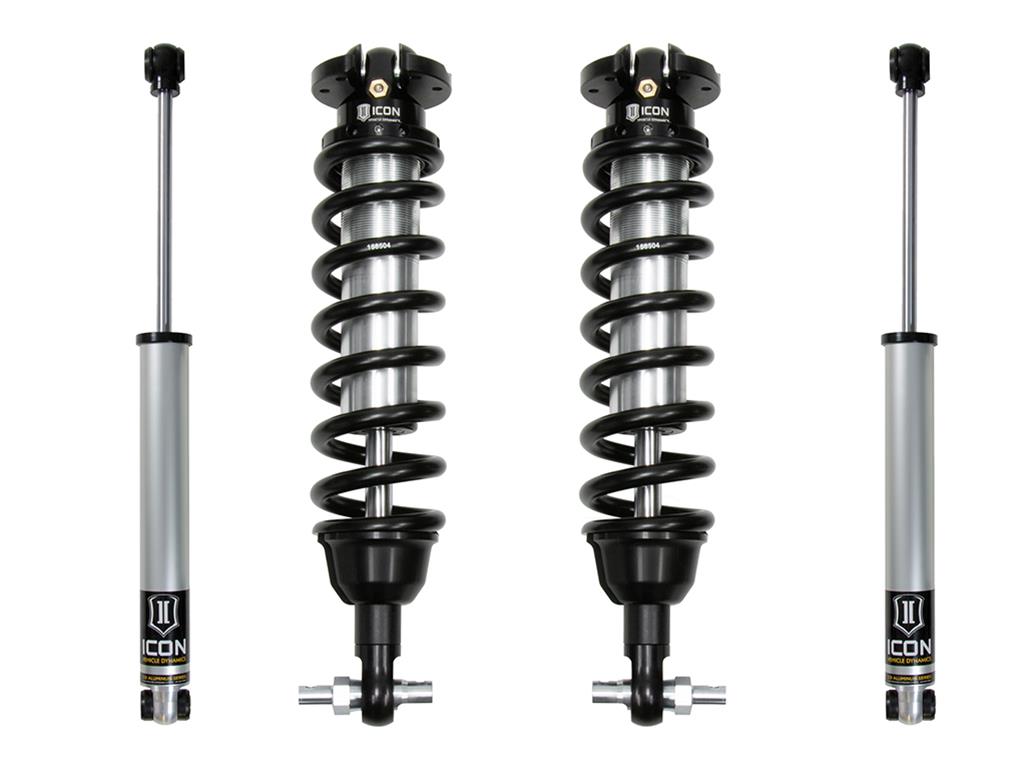

	icoK93201	ICON 2019+ Ford Ranger 0-3.5in Stage 1 Suspension System (1x ico91250, 2x ico96519)
	icoK93202TA	ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Alum Knuckle (1x ico98510DJ, 1x ico91255, 2x ico96519)
	icoK93202S	ICON 20-23 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Billet UCA Steel Knuckle (1x ico91255, 2x ico96519, 1x ico98521DJ)
	icoK93202A	ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Billet UCA Alum Knuckle (1x ico98520DJ, 1x ico91255, 2x ico96519)
	icoK93202TS	ICON 20-23 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Steel Knuckle (1x ico91255, 2x ico96519, 1x ico98511DJ)

Data: v4.2 - Upd: 2026-10-13 05:27:09

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

96519

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.0 VS NR Shocks

Product Attributes - UPC

00840103407319

Product Attributes - Ride Height

Stock/Lifted

Product Attributes - Lifted Amount Range (in.)

0.00-2.00 in.

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

Eyelet

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Bushing Color

Black

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.000

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.
