Description

To fully take advantage of ICON’s current 2017-2020 F150 Raptor offerings, ICON engineers decided to scrap the OE leaf springs and develop a replacement that addressed a couple issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Raptor setup imaginable. To increase the ride quality of the truck and gain additional droop travel, the spring rate was designed to be slightly lighter than factory, which was found to be on the stiff side for smaller, choppier terrain. While most Raptor owners will embrace the improved ride quality this provides, there are those who have outfitted their trucks with a significant amount of weight and require more load carrying capability. Understanding this, ICON engineers designed the leaf pack with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 20% or 40% spring rate that will work well for heavier vehicles.

Product Overview

To fully take advantage of ICON’s current 2017-2020 F150 Raptor offerings, ICON engineers decided to scrap the OE leaf springs and develop a replacement that addressed a couple issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Raptor setup imaginable. To increase the ride quality of the truck and gain additional droop travel, the spring rate was designed to be slightly lighter than factory, which was found to be on the stiff side for smaller, choppier terrain. While most Raptor owners will embrace the improved ride quality this provides, there are those who have outfitted their trucks with a significant amount of weight and require more load carrying capability. Understanding this, ICON engineers designed the leaf pack with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 20% or 40% spring rate that will work well for heavier vehicles.

Features and Benefits

• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 3 user-adjustable spring rates for unique vehicle setups
• Triple military wrap front eyelet and rear half wrap for increased durability
• Rebound leaf reduces severe axle wrap
• Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
• Direct bolt-in to OEM spring location makes for an easy install

Product Details

AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT
Axle Modification Needed:	No
Axle Orientation:	Rear
Bushing Color:	Black
Bushings Included:	Yes
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color:	Black
Description:	17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
Helper Spring:	No
Leaf Quantity:	8
Leaf Width:	3
Material:	Steel
Maximum Lift:	3
Mounting Hardware Included:	Yes
Part Number:	ico198510
Pernos en "U" incluidos:	no
Suspension Grade Type:	Performance
Title:	17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
U Bolts Included:	No

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

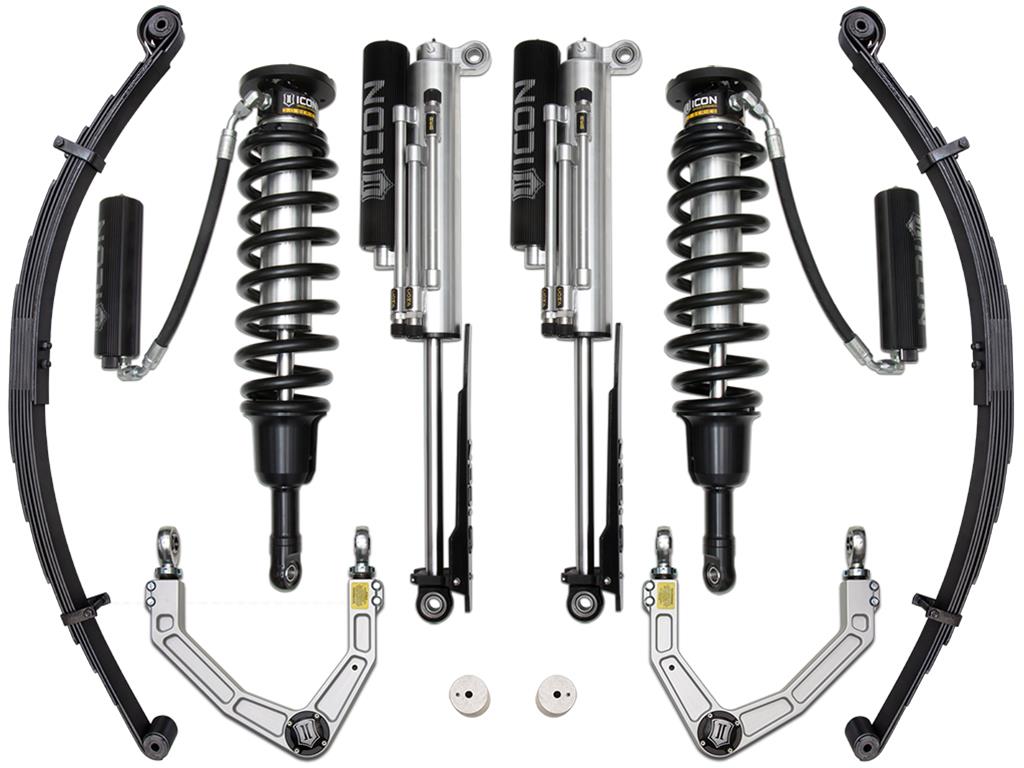

	icoK93153	ICON 2017+ Ford Raptor Stage 3 Suspension System (2x ico198510, 1x ico95002, 1x ico95205, 1x ico95225H, 1x ico95226, 1x ico98562DJ)
	icoK93154	ICON 2017+ Ford Raptor Stage 4 Suspension System (2x ico198510, 1x ico95002, 1x ico95121, 1x ico95205, 1x ico95225H, 1x ico98562DJ)
	ico95225	ICON 2017+ Ford Raptor Multi Rate Leaf Spring Kit (2x ico198510, 1x ico95225H)

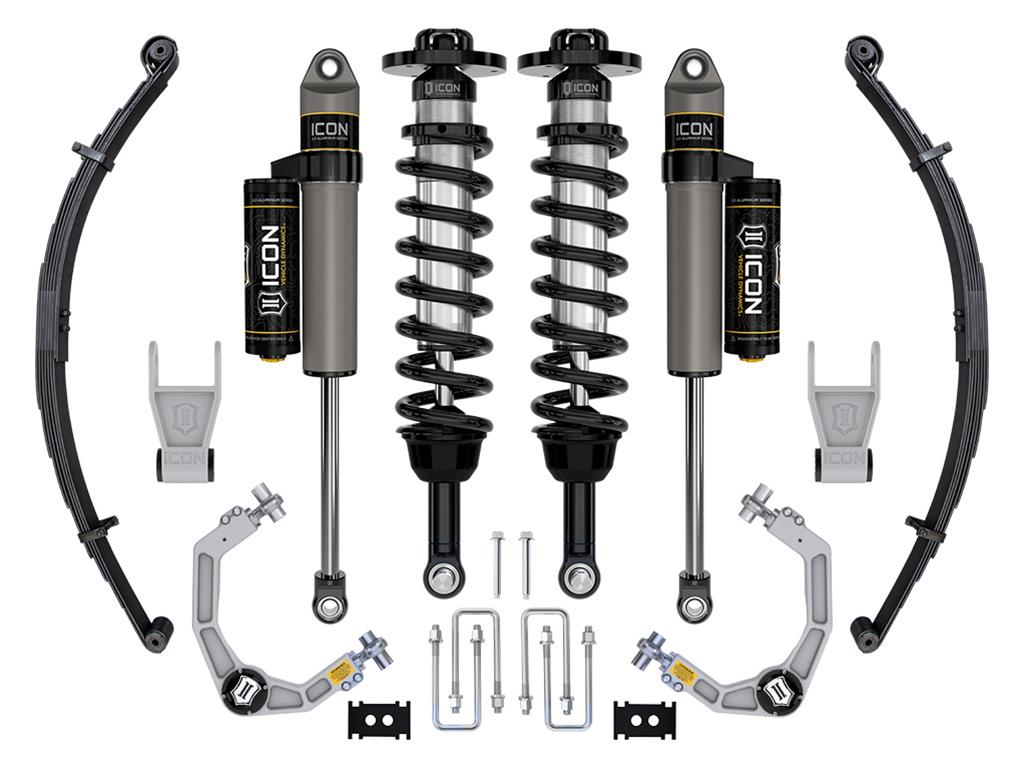

	icoK93162L	21-23 Ford F150 Tremor 4WD 2.5-3" Stage 2 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91723, 1x ico97721P, 1x ico98523DJ, 1x ico91001)

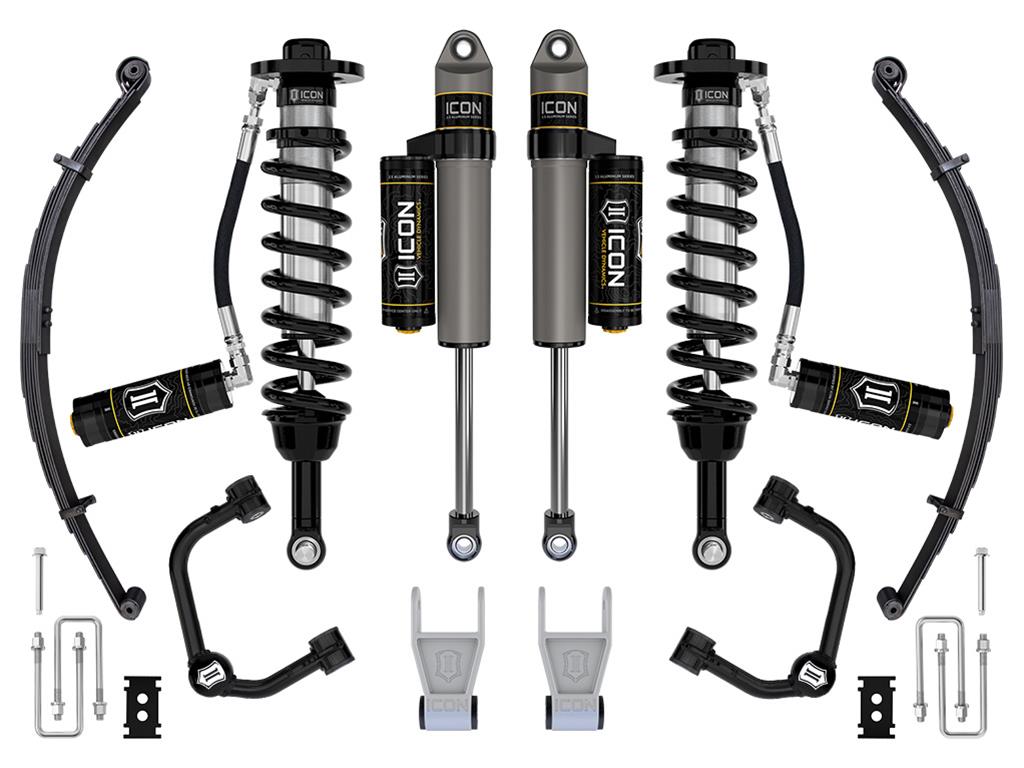

	icoK93163TL	21-23 Ford F150 Tremor 4WD 2.5-3" Stage 3 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824, 1x ico97721P, 1x ico91001)

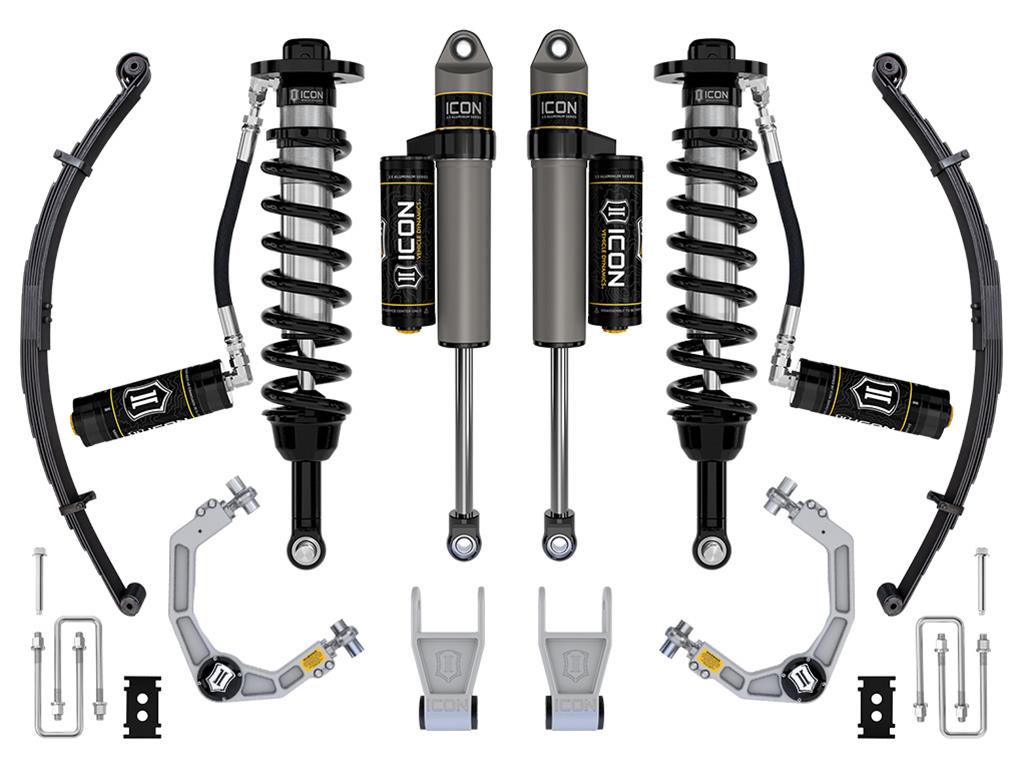

	icoK93163L	21-23 Ford F150 Tremor 4WD 2.5-3" Stage 3 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91824, 1x ico97721P, 1x ico98523DJ, 1x ico91001)

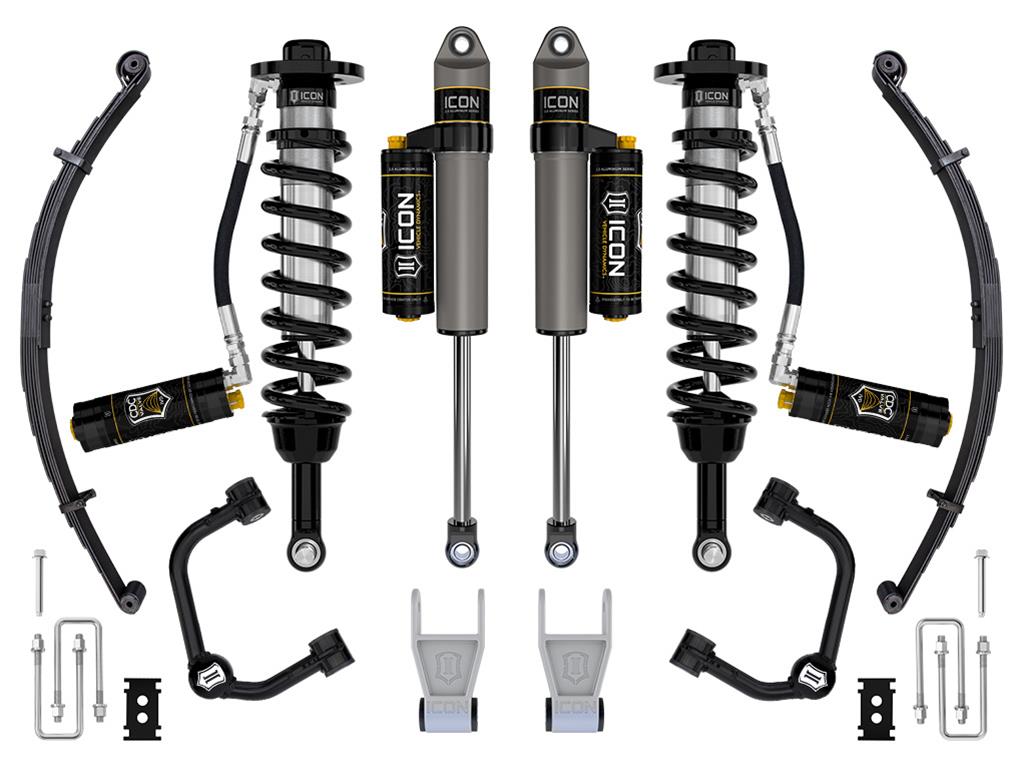

	icoK93164TL	21-23 Ford F150 Tremor 4WD 2.5-3" Stage 4 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824C, 1x ico97721CP, 1x ico91001)

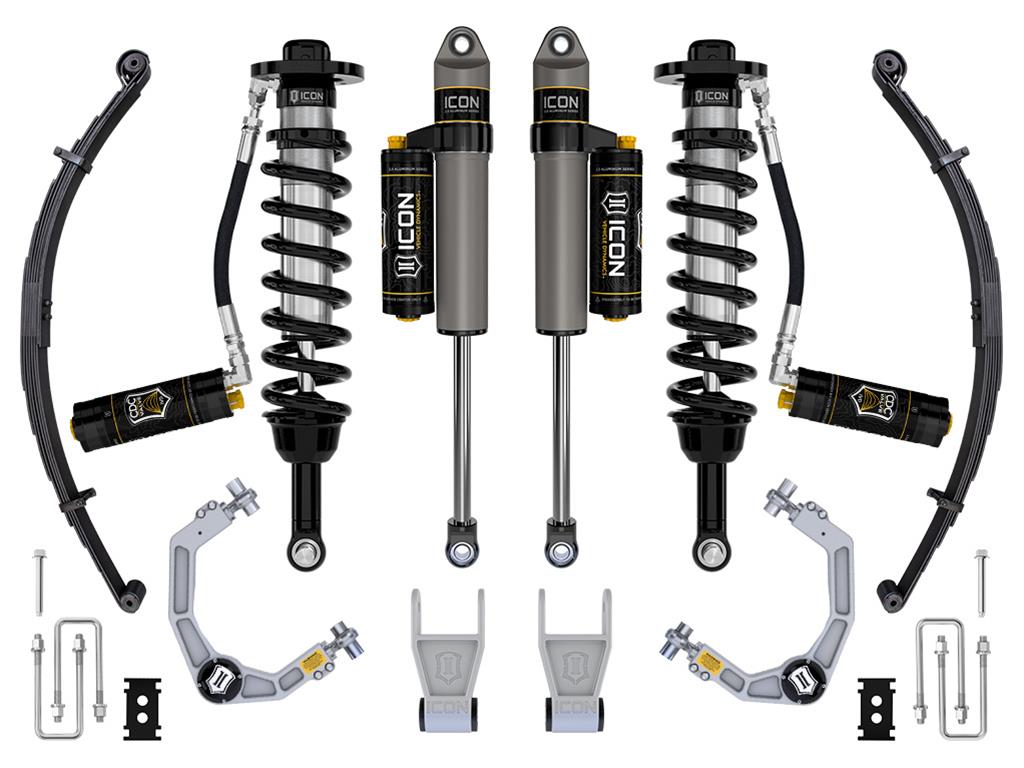

	icoK93164L	21-23 Ford F150 Tremor 4WD 2.5-3" Stage 4 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91824C, 1x ico97721CP, 1x ico98523DJ, 1x ico91001)

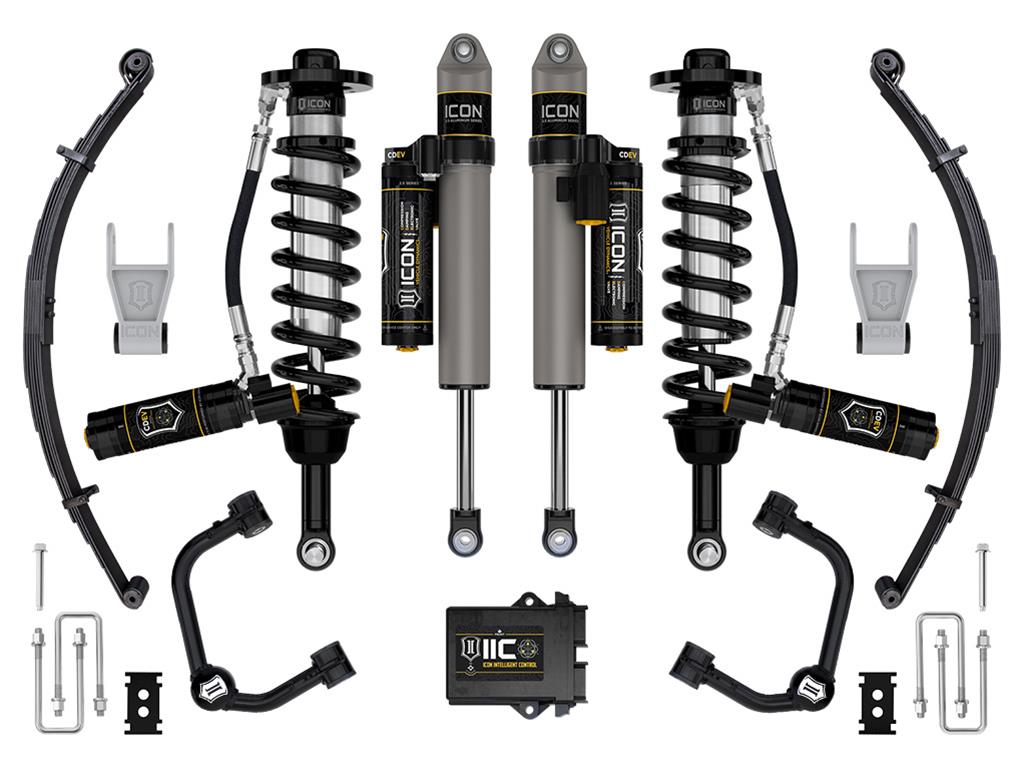

	icoK93165TL	21-23 Ford F150 Tremor 4WD 2.5-3in Stage 5 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico98522DJ, 1x ico91824E, 1x ico97721EP, 1x ico91001)

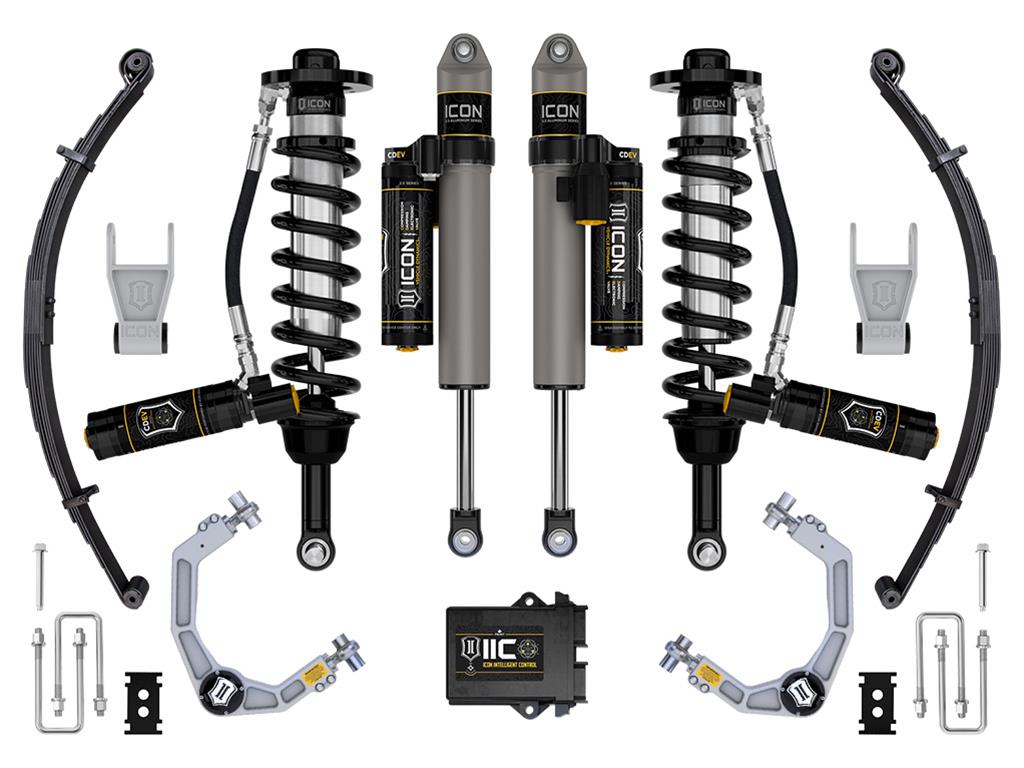

	icoK93165L	21-23 Ford F150 Tremor 4WD 2.5-3in Stage 5 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico91824E, 1x ico97721EP, 1x ico98523DJ, 1x ico91001)

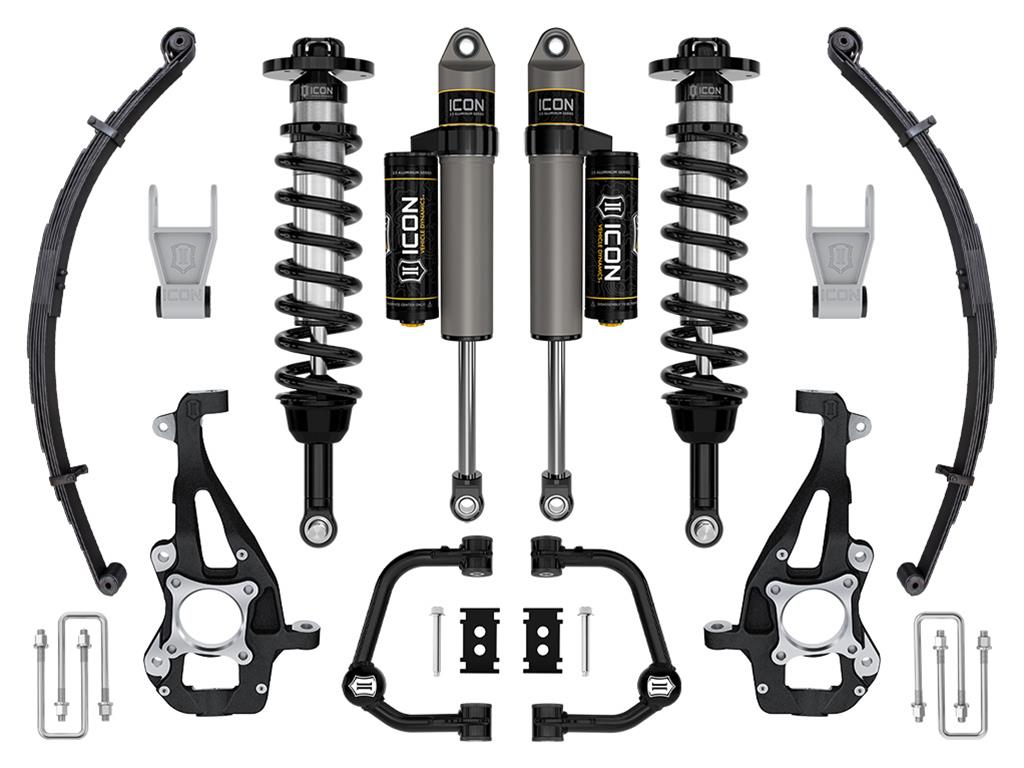

	icoK93142TL	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 2 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91723, 1x ico97721P, 1x ico94000, 1x ico91001)

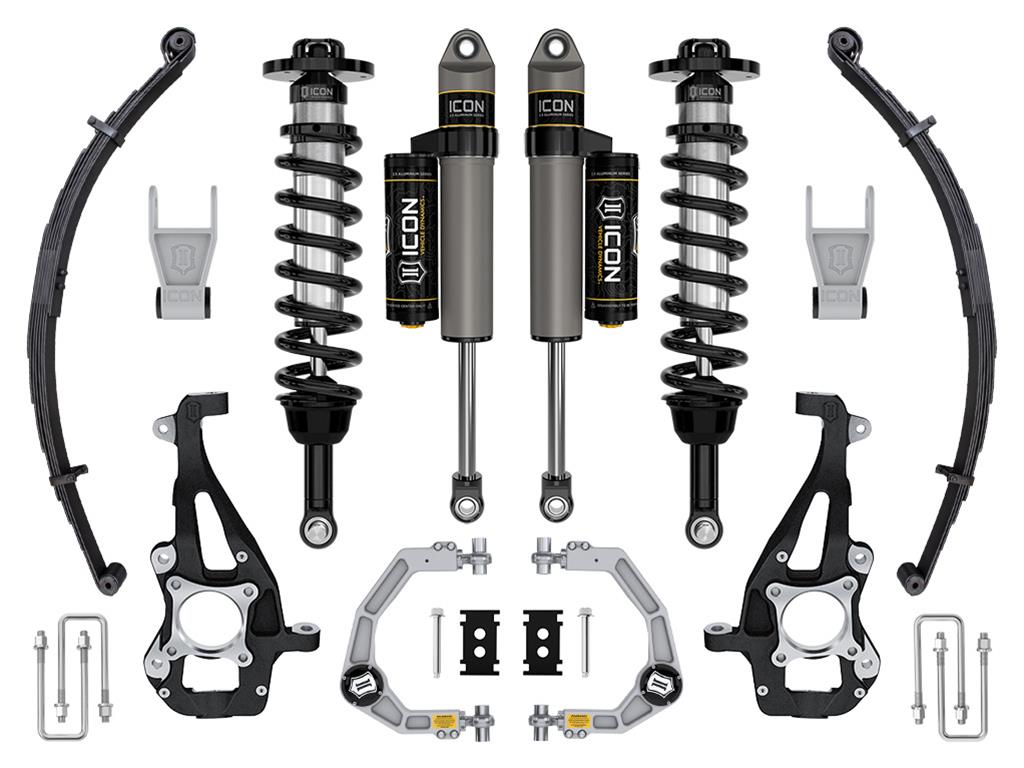

	icoK93142L	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 2 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91723, 1x ico97721P, 1x ico98523DJ, 1x ico94000, 1x ico91001)

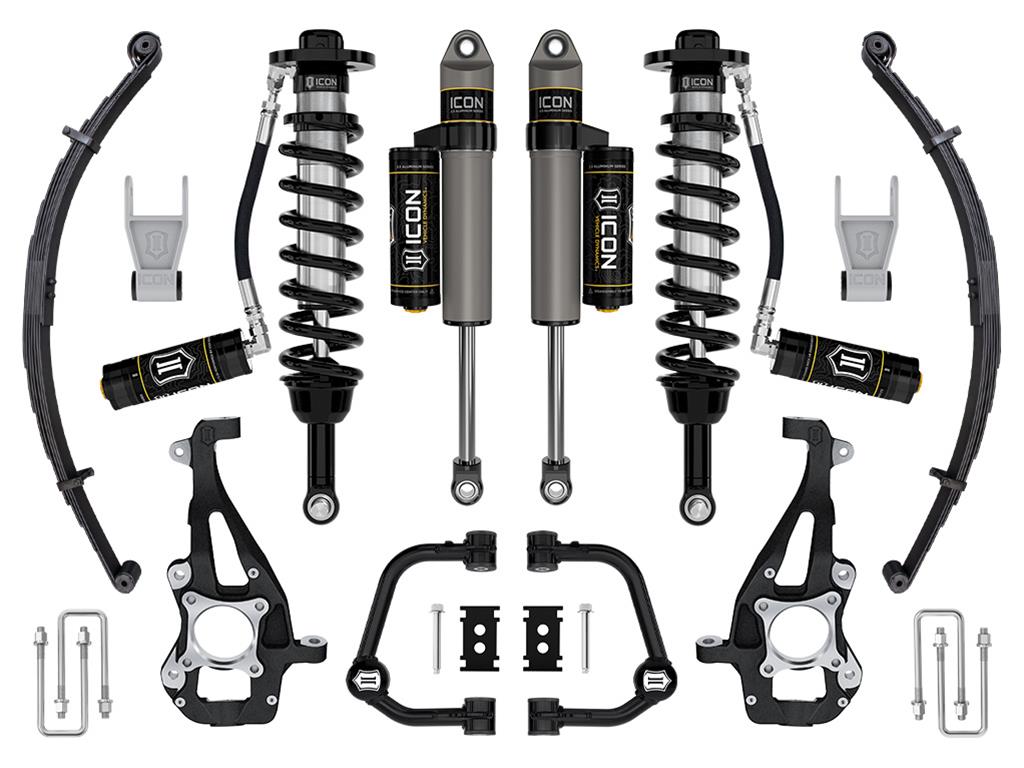

	icoK93143TL	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 3 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824, 1x ico97721P, 1x ico94000, 1x ico91001)
	icoK93143L	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 3 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91824, 1x ico97721P, 1x ico98523DJ, 1x ico94000, 1x ico91001)

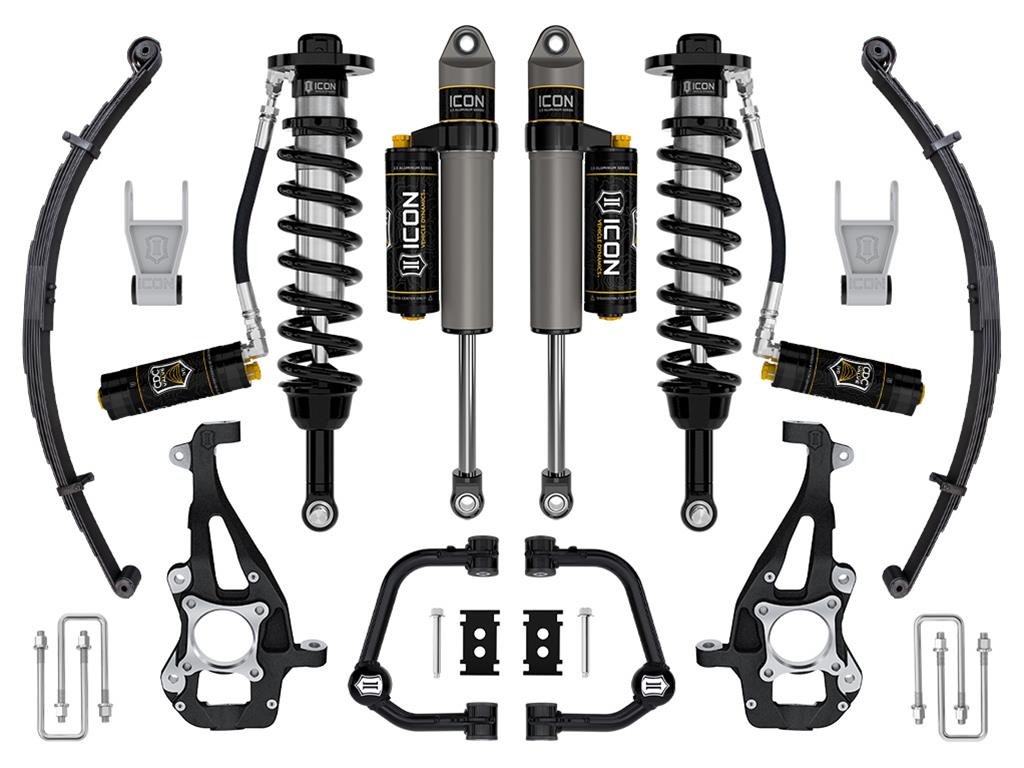

	icoK93144TL	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 4 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824C, 1x ico97721CP, 1x ico94000, 1x ico91001)

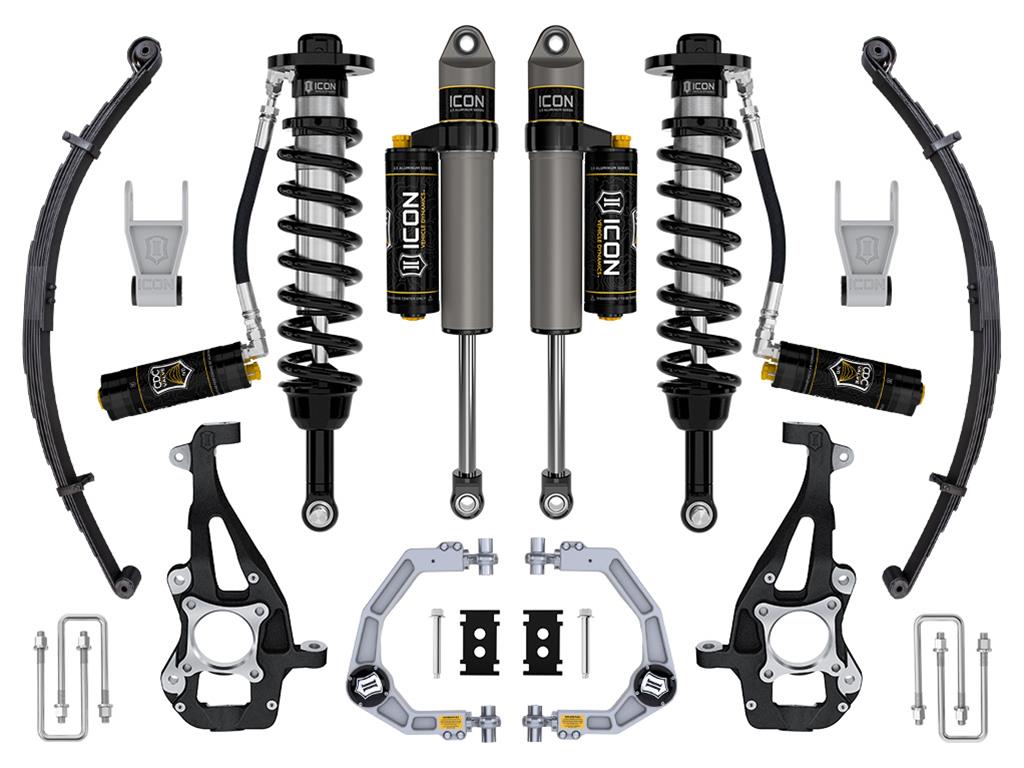

	icoK93144L	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 4 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico91824C, 1x ico97721CP, 1x ico98523DJ, 1x ico94000, 1x ico91001)

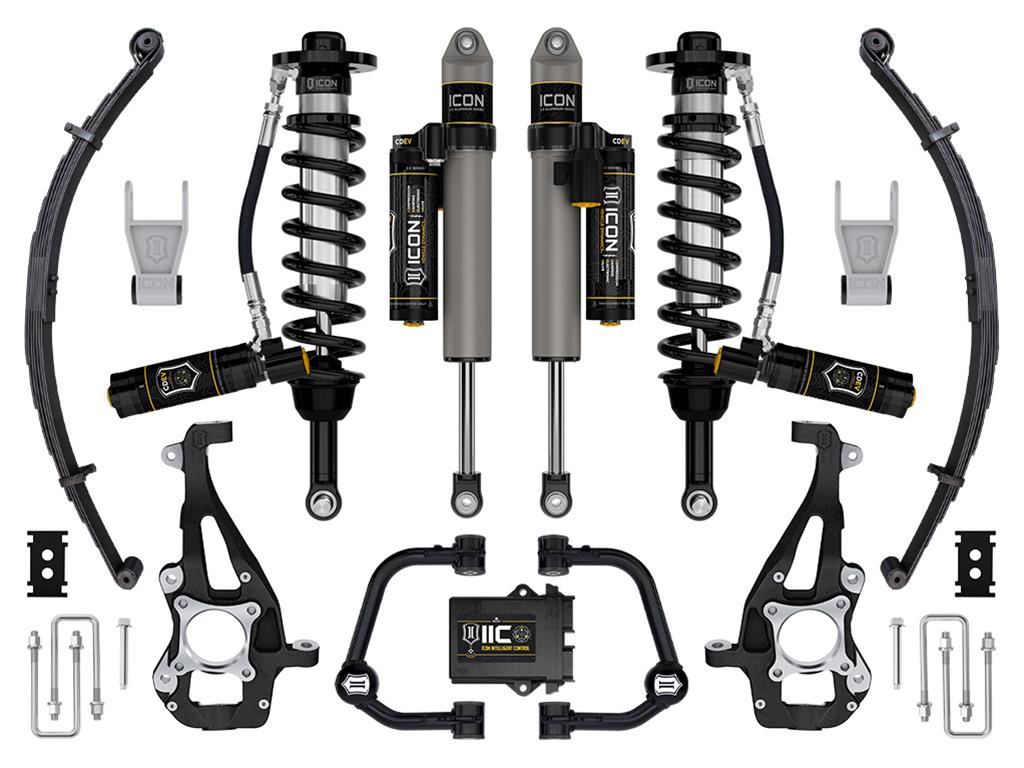

	icoK93145TL	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 5 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico98522DJ, 1x ico91824E, 1x ico97721EP, 1x ico94000, 1x ico91001)
	icoK93145L	21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 5 Suspension Sys Billet UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico91824E, 1x ico97721EP, 1x ico98523DJ, 1x ico94000, 1x ico91001)

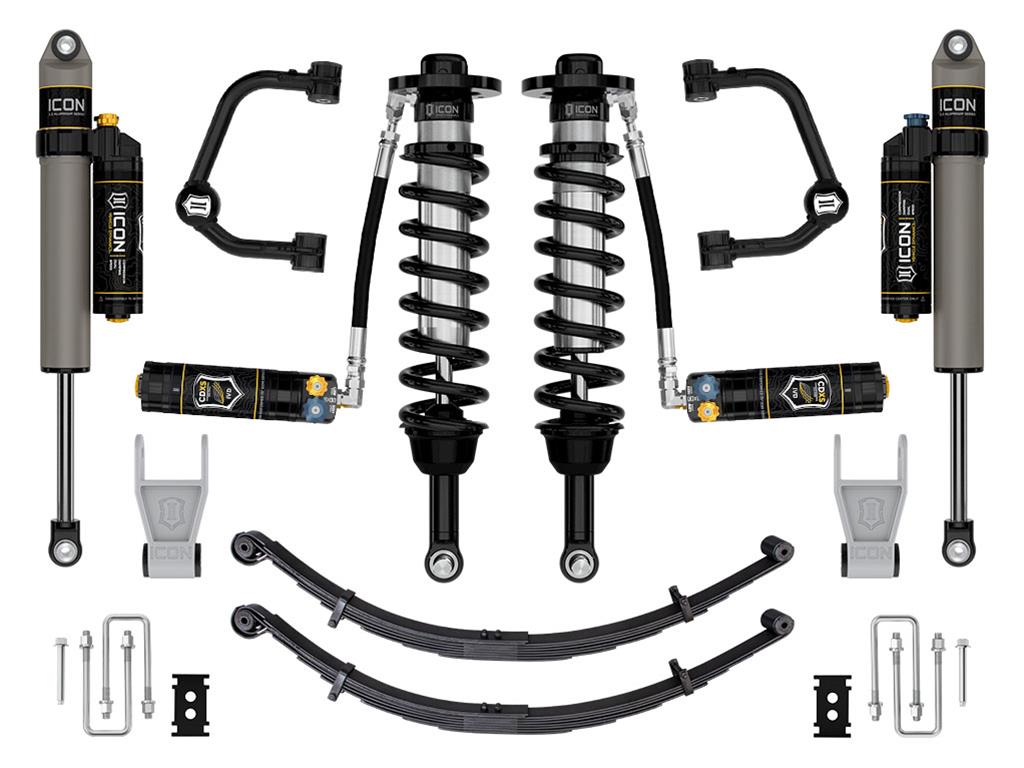

	icoK93164TLD	ICON 21-24 Ford F-150 Tremor Stage 4 Tubular CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91001, 1x ico91824X, 1x ico97721XP)

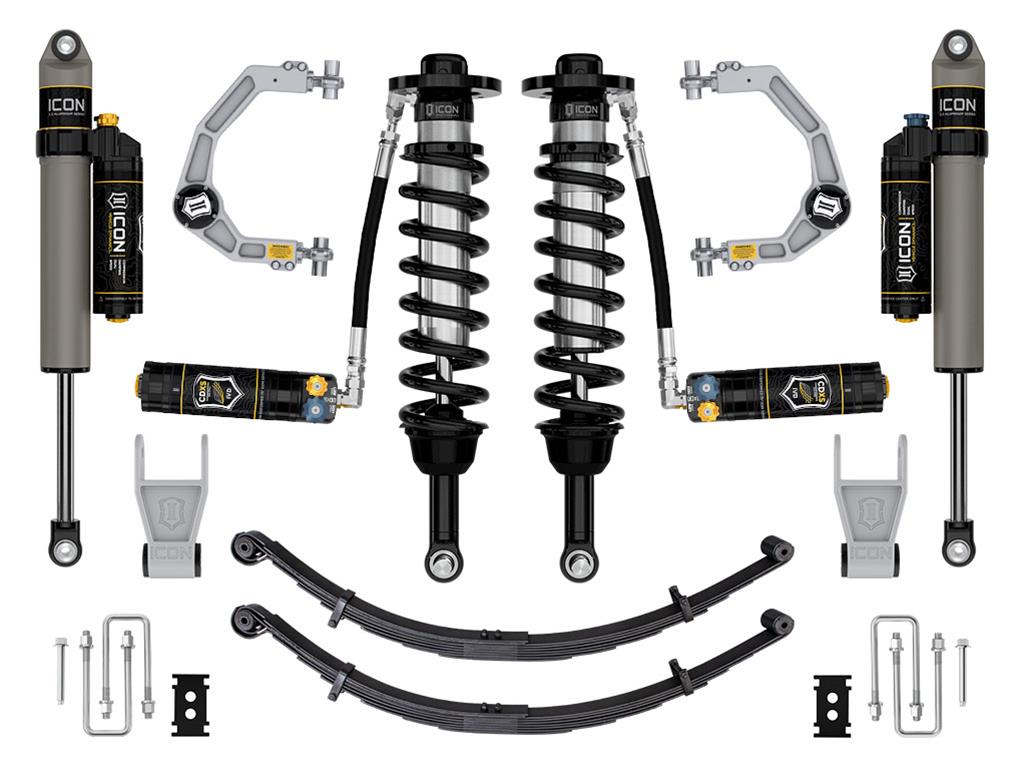

	icoK93164LD	ICON 21-24 Ford F-150 Tremor 2.5 Series Billet CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98523DJ, 1x ico91001, 1x ico91824X, 1x ico97721XP)

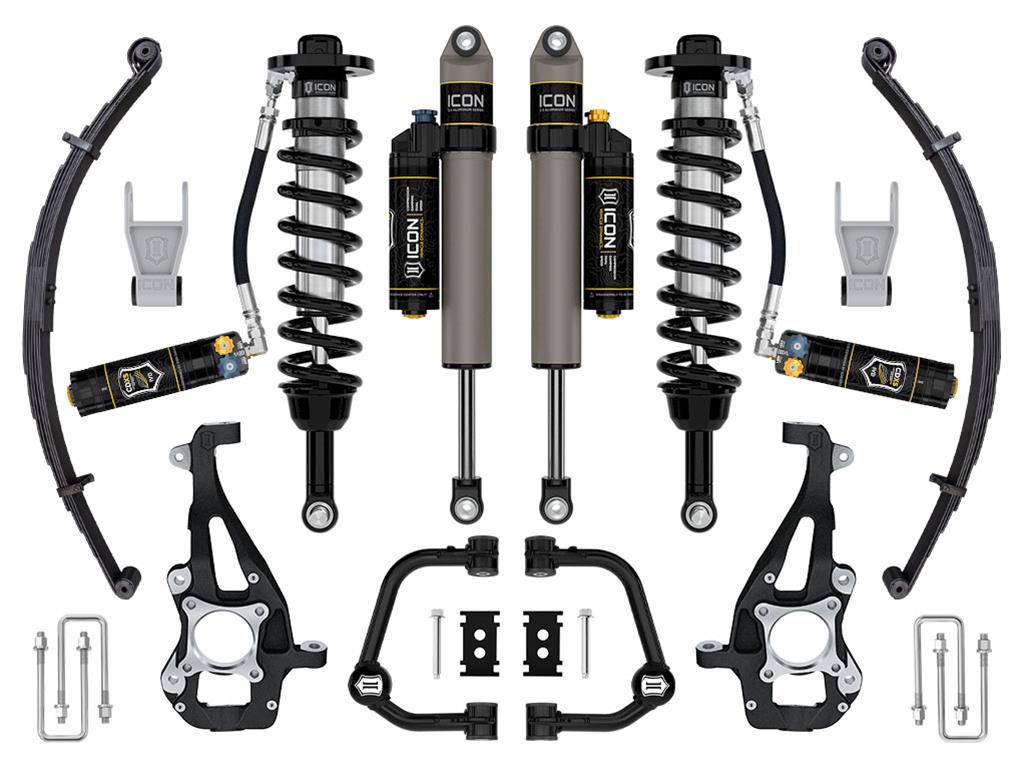

	icoK93144TLD	ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Tubular CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico94000, 1x ico91001, 1x ico91824X, 1x ico97721XP)

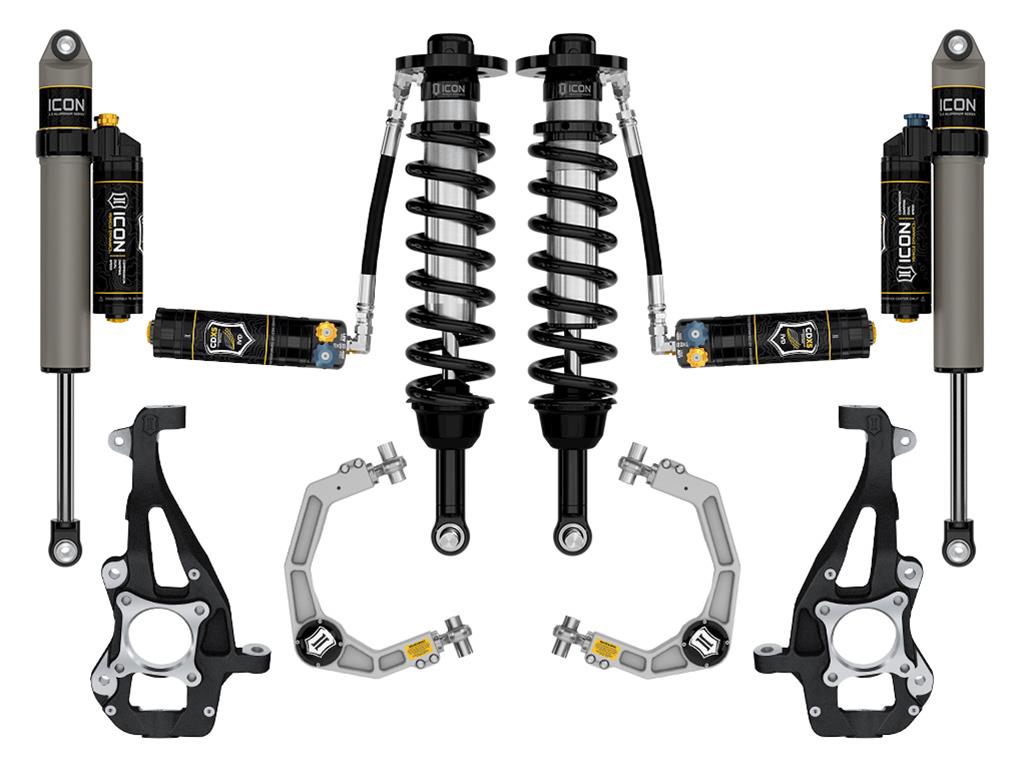

	icoK93144LD	ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Billet CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98523DJ, 1x ico94000, 1x ico91001, 1x ico91824X, 1x ico97721XP)

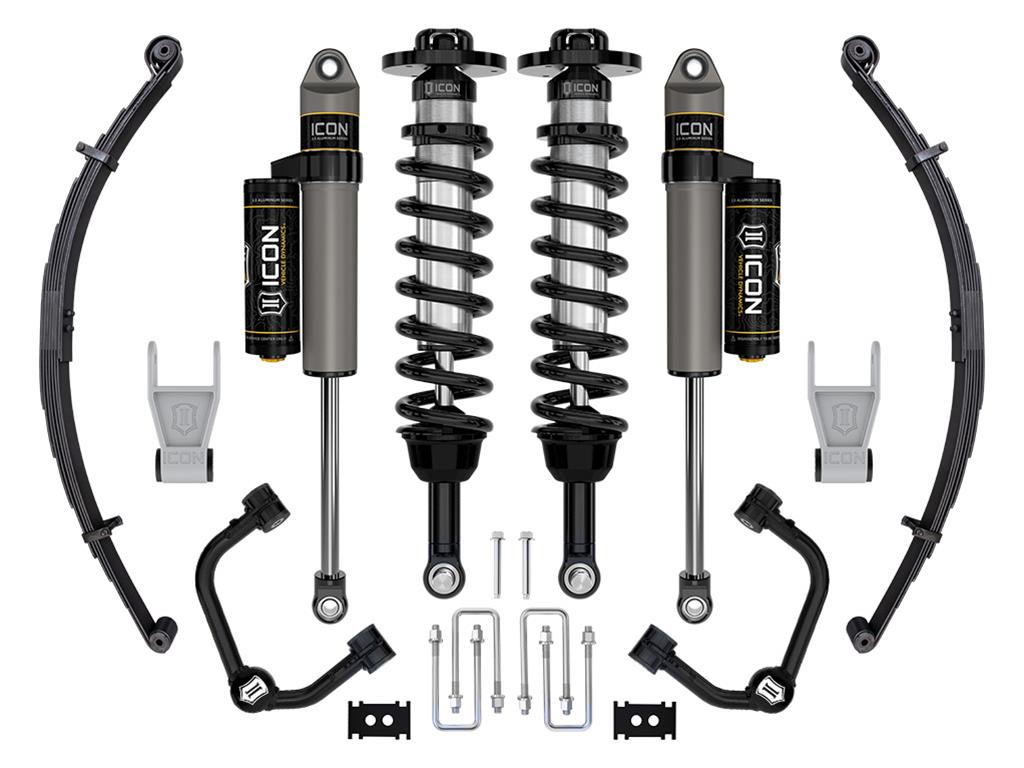

	icoK93162TL	Icon 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 2 Suspension Sys. - Tubular UCA (1x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91723, 1x ico97721P, 1x ico91001)

Data: v4.2 - Upd: 2026-09-29 03:52:24

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

198510

Product Attributes - Part Type

Leaf Springs

Product Attributes - Product Line

Icon Vehicle Dynamics Multi-Rate Leaf Spring Packs

Product Attributes - UPC

00840103408880

Product Attributes - Ride Height

Lifted

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Spring Positioning

Rear

Product Attributes - Rear Spring Raised Amount Range (in.)

1.00 in.

Product Attributes - Progressive Rate Spring

No

Product Attributes - Bushings Included

Yes

Product Attributes - Spring Finish

Black

Product Attributes - Quantity

Sold individually.

Product Attributes - Notes

Raised ride height is based on standard truck with 400 pound constant load. Not compatible with models equipped with Continuously Controlled Damping suspension.
