Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Product Overview

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits

• 100% revalveable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with internal reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression:	No
Adjustable Damping:	No
Adjustable Rebound:	No
Adjustable Ride Height:	No
Adjustable:	No
Body Color:	Gray
Body Diameter:	2
Body Material:	Aluminum
Boot Included:	No
Bore Diameter:	1.75
Bushing Color:	Black
Bushing Included:	yes
Bushing Material:	Polyurethane
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cantidad:	Bi-Color
Coil Over Springs Included:	No
Coil Spring Insulator(s) Included:	No
Color:	Black
Configuration:	Performance
Cylinder Color:	Gray
Cylinder Finish:	Anodized
Cylinder Material:	Aluminum
Cylinder Outside Diameter:	2
Damping Type:	Oil
Description:	17-UP FSD REAR 0-2" 2.0 VS IR
Dust Boot Included:	No
Dust Shield Included:	No
Dust Shield:	No
External Reservoir:	No
Finish:	Anodized
Gas Charged:	Yes
Grade Type:	Performance
Herraje de montaje incluido:	no
Hydraulic Lockout:	No
Includes Bump Stop:	No
Internal Construction Type:	Single Tube
Internal Rebound Bumper:	Yes
Internal Rebound Spring:	No
Lower Mount Type:	Eyelet
Material:	Aluminum
Maximum Ride Height Raising Distance:	2
Mounting Hardware Included:	No
Part Number:	ico66516
Quantity:	1
Remote Reservoir:	No
Reservoir Type:	Internal
Rod Diameter:	.625
Self-Leveling:	No
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter:	0.625
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Center of Eylet
Shock Absorber Bore Size:	1.75
Shock Absorber Rod End Measuring Point:	Center of Eylet
Suspension Type:	Spring
Tipo de Grado:	Reparación de Banda
Title:	ICON 2017-2024 Ford Super Duty, 0-2” Lift, Rear, V.S. 2.0 Aluminum Series Shock, Internal Reservoir
Upper Mount Type:	Eyelet
Valving Type:	Linear

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK64511	ICON 2017+ Ford F-250/F-350 4.5in Stage 1 Suspension System (1x ico195275, 1x ico64010, 1x ico64038, 1x ico64050, 1x ico64055, 1x ico67003, 2x ico66513, 2x ico66516)
	icoK62511	ICON 2017+ Ford F-250/F-350 2.5in Stage 1 Suspension System (2x ico66512, 2x ico66516, 1x ico62510)
	icoK63141	ICON 2017+ Ford F-250/F-350 2.5-3in Stage 1 Coilover Conversion System (2x ico66516, 1x ico61720)
	icoK62521	ICON 20+ Ford F250/F350 2.5in Stage 1 Suspension System (2x ico66512, 2x ico66516, 1x ico62511)
	icoK64521	ICON 2020+ Ford F250/F350 4.5in Stage 1 Suspension System (1x ico195275, 1x ico64038, 1x ico64050, 1x ico64055, 1x ico67003, 2x ico66513, 2x ico66516, 1x ico64011)
	icoK62561	(2x ico66512, 2x ico66516, 1x ico62512)
	icoK64541	ICON 2023 Ford F-250/F-350 Super Duty 4WD Diesel 4.5in Lift Stage 1 Suspension System (1x ico195275, 1x ico67003, 2x ico66516, 1x ico64039, 1x ico64012, 1x ico64051, 1x ico64046, 2x ico66518)
	icoK62561L	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K62561L 23 FORD F250/F350 DIESEL 2.5" STAGE 1 SUSPENSION SYSTEM W EXPANSION PACK

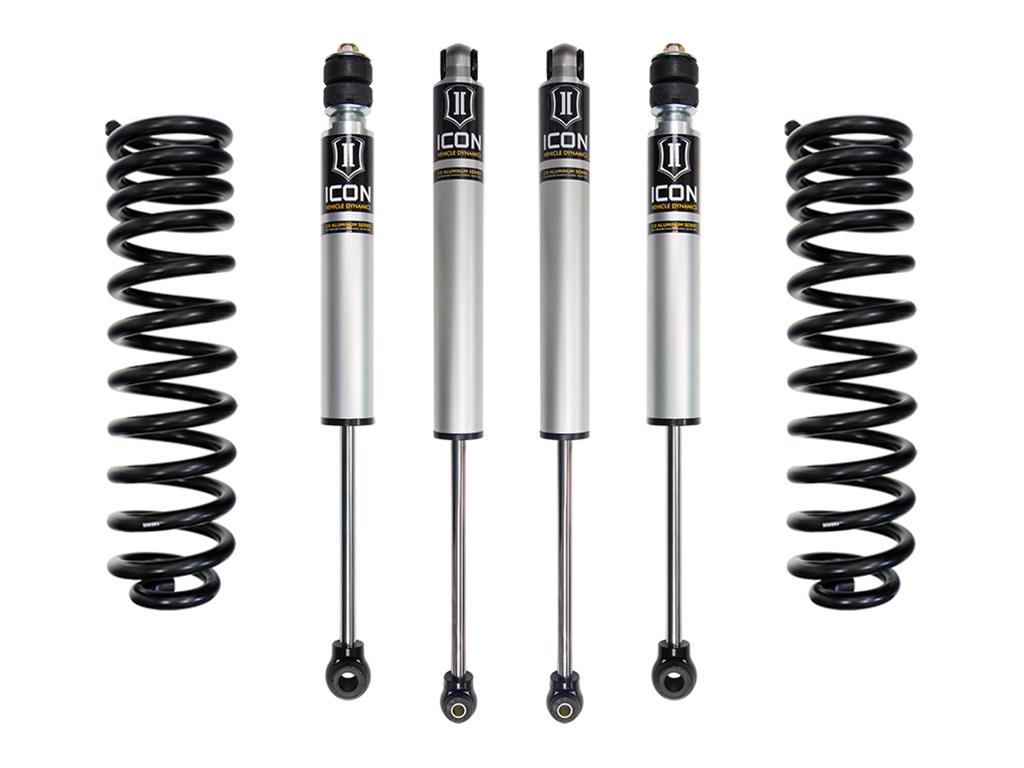

	icoK62591	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K62591 23 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM

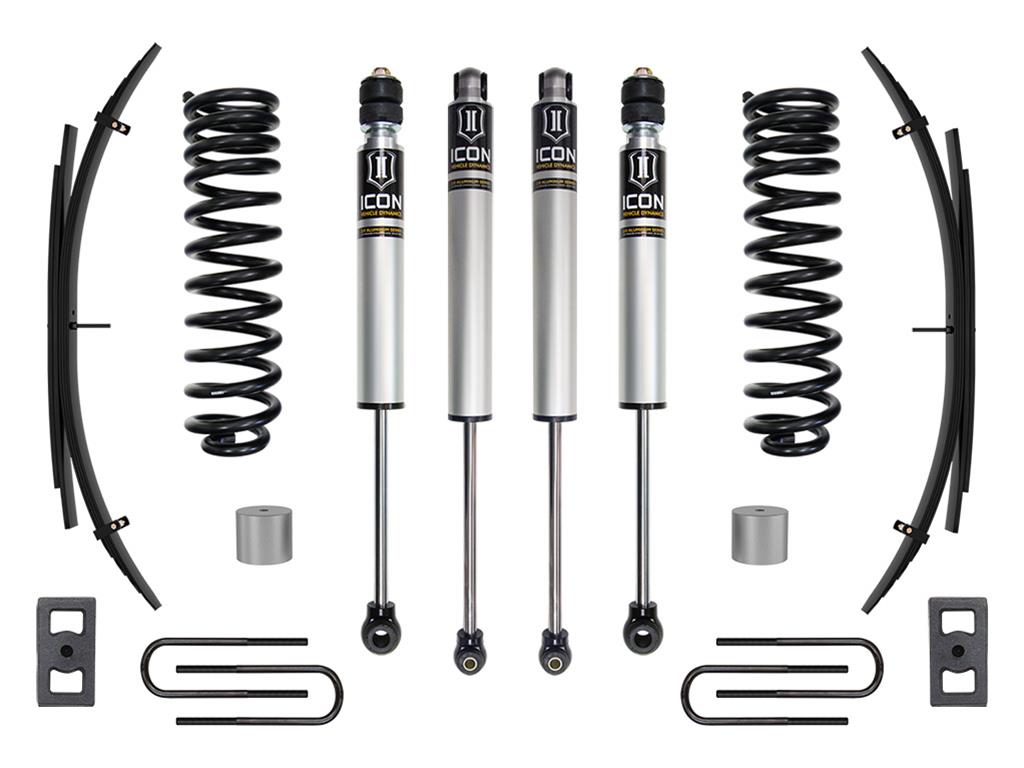

	icoK62591L	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K62591L 23 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM W/ EXPANSION PACK

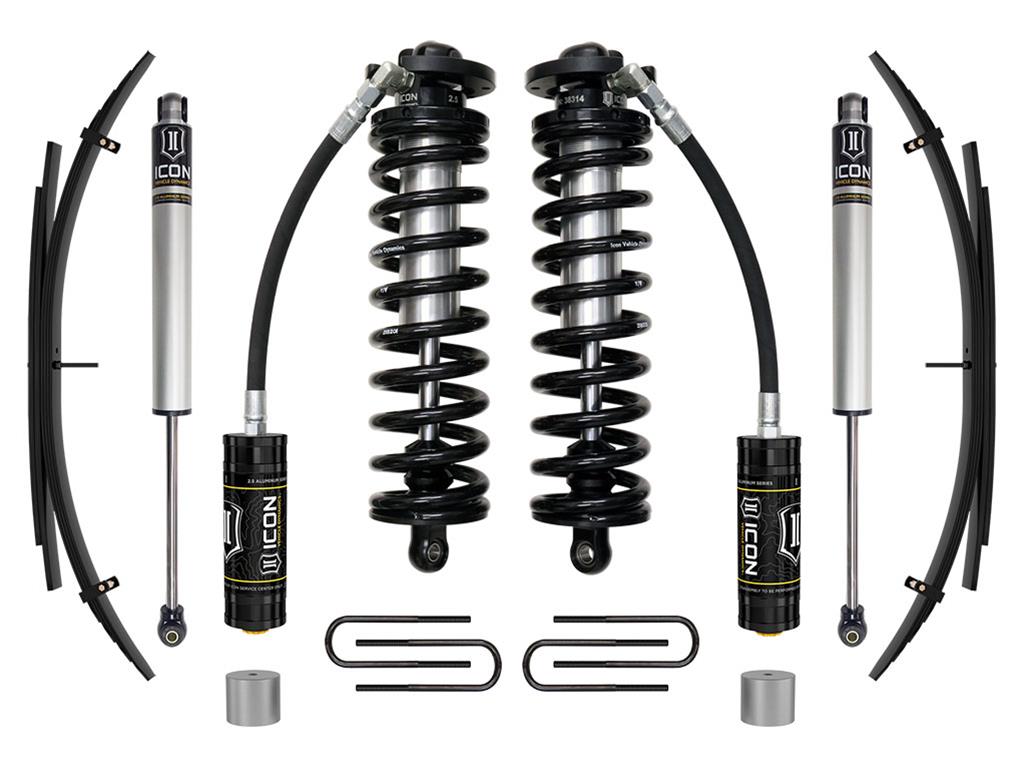

	icoK63141L	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2017-2023 F-250 SUPER DUTY, F-350 DUTY K63141L 17-23 FORD F250/F350 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM W/ EXPANSION PACK
	icoK63171	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63171 COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 1 SYSTEM
	icoK63171L	ICON Vehicle Dynamics - Coilover Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K63171L COILOVER CONVERSION 23 FORD F250/F350 4-5.5" STAGE 1 SYSTEM W/ EXPANSION PACKS
	icoK64531	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K64531 SUSPENSION SYSTEM 23 FORD F250/F350 4.5" STAGE 1 GAS
	icoK64531L	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K64531L SUSPENSION SYSTEM 23 FORD F250/F350 4.5" STAGE 1 GAS W/ EXPANSION PACKS
	icoK64541L	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023 F-250 SUPER DUTY, F-350 DUTY K64541L SUSPENSION SYSTEM 23 FORD F250/F350 4.5" STAGE 1 DIESEL W/ EXPANSION PACKS
	icoK65890R	Icon 23-25 Ford F250/F350 DIesel 2.5in Stage 1 Suspension System w/ Radius Arms (2x ico66512, 2x ico66516, 1x ico62516, 1x ico64043)
	icoK63201R	Icon 23-25 Ford F-250/F-350 Super Duty 4WD 2.5-3in Lift Kit - Stage 1 Coilover Conv. w/ Rad. Arms (2x ico66516, 1x ico61723, 1x ico64043)
	icoK62521L	ICON 20-22 Ford F250/F350 2.5in Stage 1 Suspension System w/ Expansion Packs (1x ico191201, 2x ico66512, 1x ico67004, 2x ico66516, 1x ico62511, 2x ico168507, 1x ico61002)
	icoK62511L	ICON 17-19 Ford F250/F350 2.5in Stage 1 Suspension System w/ Expansion Packs (1x ico191201, 2x ico66512, 1x ico67004, 2x ico66516, 1x ico62510, 2x ico168507, 1x ico61002)

Data: v4.2 - Upd: 2026-10-14 01:11:05

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

66516

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.0 VS IR Shocks

Product Attributes - UPC

00840103405704

Product Attributes - Ride Height

Stock/Lifted

Product Attributes - Lifted Amount Range (in.)

0.00-2.00 in.

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

Eyelet

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Bushing Color

Black

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.000

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.

Compatibility
