Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Product Overview

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits

• 100% revalveable
• Nitrogen charged monotube design with internal reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable

Product Details

110:	NO
71059:	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 15.600 IN; Fully Open Length: 25.05 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add On Part:	614700 - Shock Boot Kit
Add-On Part:	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression:	No
Adjustable Damping:	No
Adjustable Rebound:	No
Adjustable Ride Height:	No
Adjustable:	NO
Attributed Description:	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 15.600 IN; Fully Open Length: 25.05 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN
Body Color:	Gray
Body Diameter:	2
Body Material:	Aluminum
Boot Included:	NO
Bore Diameter:	1.75
Bushing Color:	Black
Bushing Included:	yes
Bushing Material:	Polyurethane
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	NO
Coil Spring Insulator(s) Included:	No
Color:	Silver
Configuration:	Performance
Cylinder Color:	Gray
Cylinder Finish:	Anodized
Cylinder Material:	Aluminum
Cylinder Outside Diameter:	2
Damping Type:	Oil
Description:	15-UP COLORADO 0-2" REAR 2.0 VS IR
Dust Boot Included:	No
Dust Shield Included:	No
Dust Shield:	NO
External Reservoir:	No
Finish:	Anodized
Gas Charged:	Yes
Grade Type:	Performance
Hydraulic Lockout:	No
Includes Bump Stop:	No
Internal Construction Type:	Single Tube
Internal Rebound Bumper:	Yes
Internal Rebound Spring:	No
Lower Mount Type:	EYELET
Material:	Aluminum
Maximum Ride Height Raising Distance:	2
Mounting Hardware Included:	No
Part Number:	ico76550
Quantity:	1
Remote Reservoir:	NO
Rod Diameter:	.625
Self-Leveling:	No
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter:	0.625
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	CENTER OF EYELET
Shock Absorber Bore Size:	1.75
Shock Absorber Rod End Measuring Point:	CENTER OF EYELET
Suspension Type:	Spring
Tipo de Grado:	Reparación de Banda
Title:	ICON 2015-2024 Chevrolet Colorado/GMC Canyon, 0-2” Lift, Rear 2.0 Aluminum Series Internal Reservoir Shock
Upper Mount Type:	EYELET
Valving Type:	Linear

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK73052	ICON 2015+ Chevrolet Colorado 1.75-3in Stage 2 Suspension System (1x ico78650DJ, 1x ico71010, 2x ico76550)
	icoK73051	ICON 2015+ Chevrolet Colorado 1.75-3in Stage 1 Suspension System (1x ico71010, 2x ico76550)

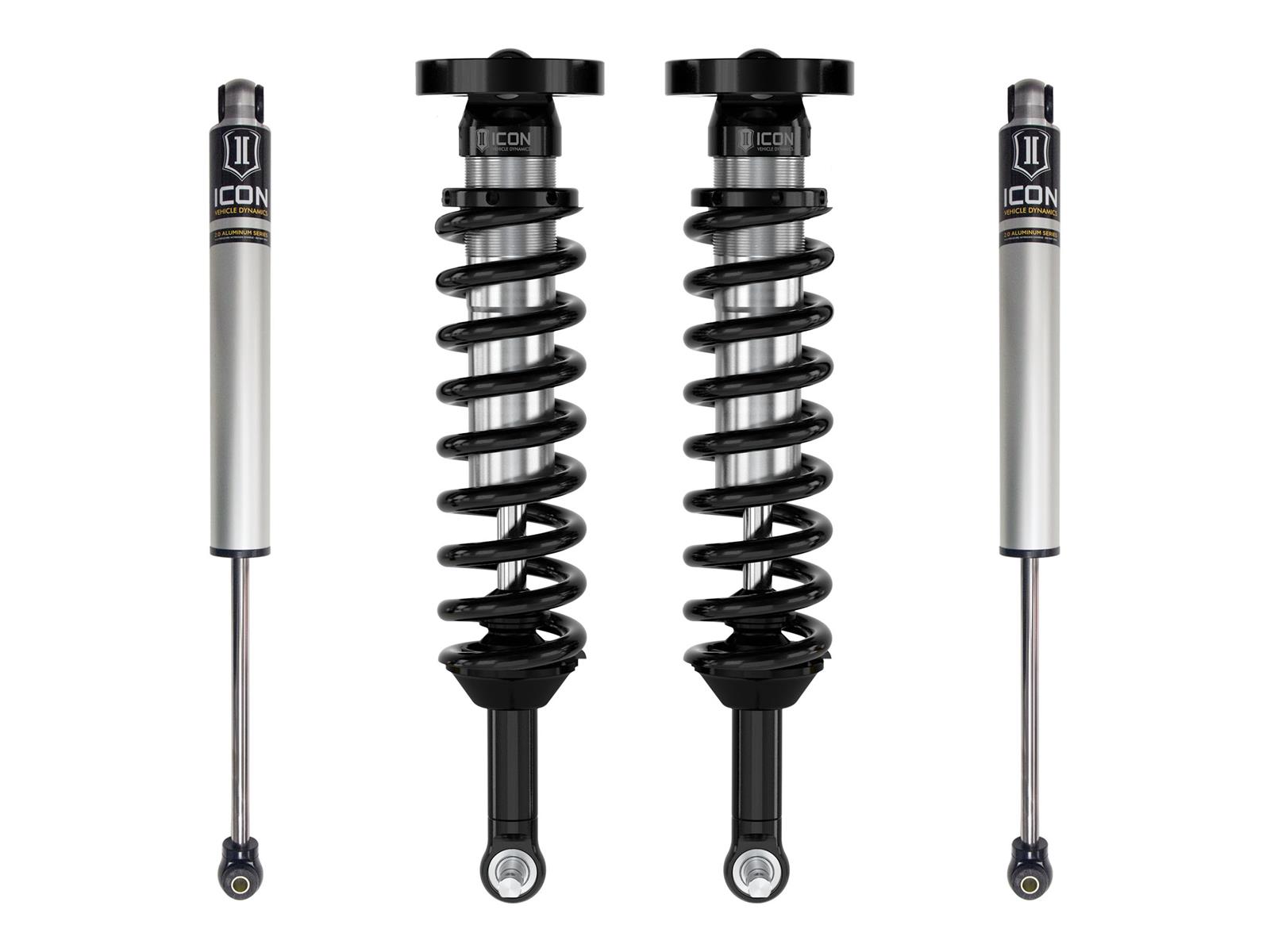

	icoK73081	Icon 2023+ GM Canyon/Colorado 1.75in-2.5in Stage 1 Suspension System (2x ico76550, 1x ico71615)
	icoK73082T	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 2 Suspension System (2x ico76550, 1x ico78660DJ, 1x ico71615)
	icoK73082	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 2 Suspension System w/ Tubular UCA (2x ico76550, 1x ico71615, 1x ico78760DJ)
	icoK73091	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 1 Suspension System (2x ico76550, 1x ico71616)

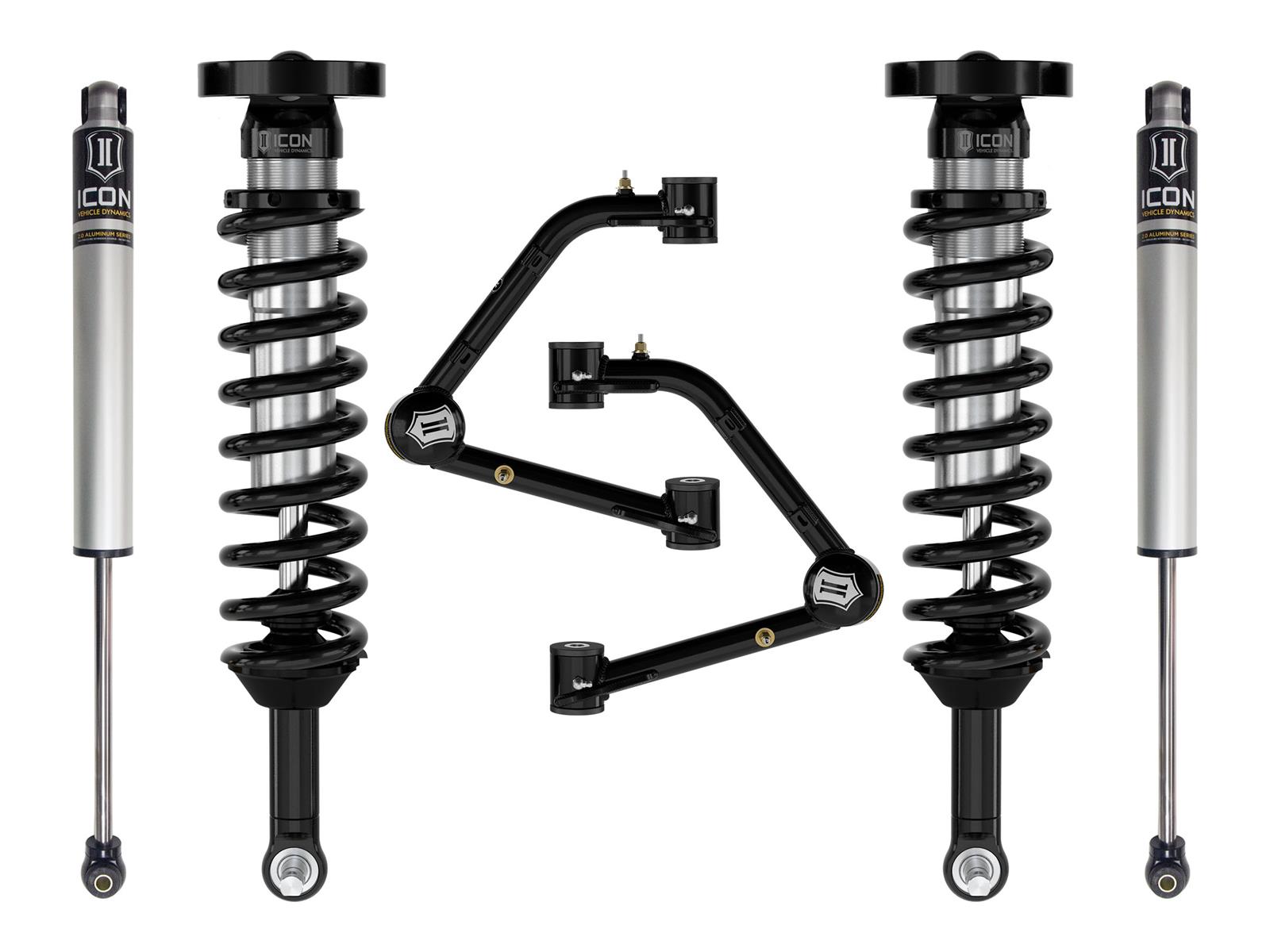

	icoK73092T	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 2 Suspension System W Tubular UCA (2x ico76550, 1x ico71616, 1x ico78661DJ)

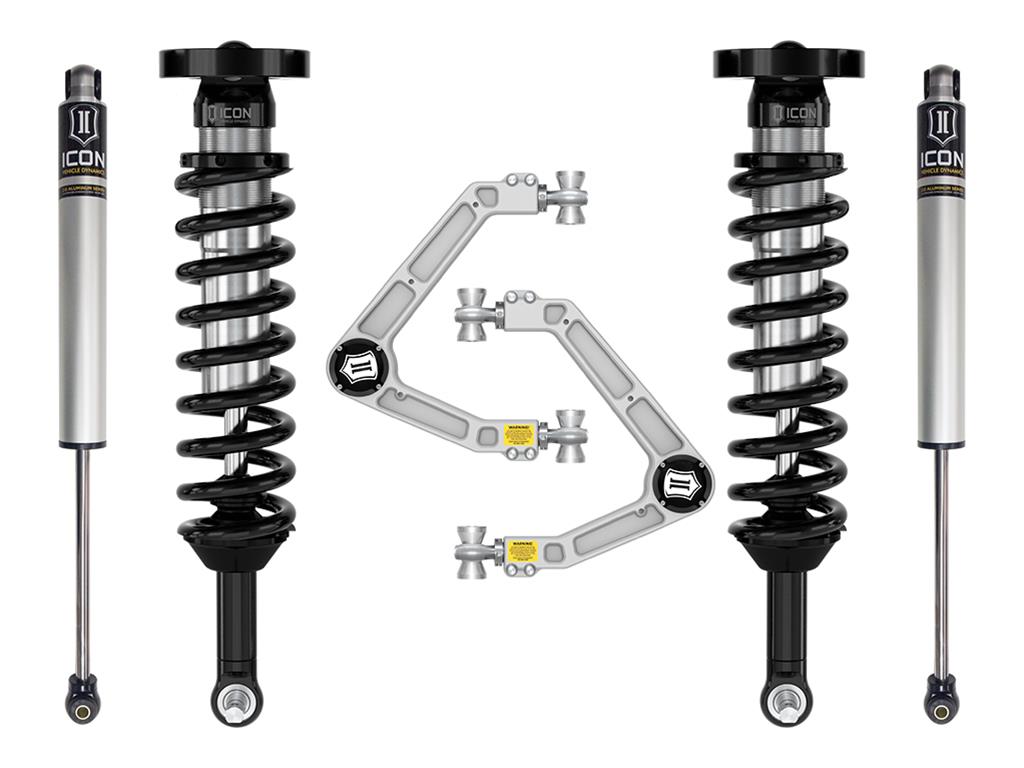

	icoK73092	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 2 Suspension System W Billet UCA (2x ico76550, 1x ico71616, 1x ico78761DJ)

Data: v4.2 - Upd: 2026-09-29 03:53:41

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

76550

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.0 VS IR Shocks

Product Attributes - UPC

00840103406169

Product Attributes - Ride Height

Stock/Lifted

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Lifted Amount Range (in.)

0.00-2.00 in.

Product Attributes - Internal Design

Monotube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Eyelet

Product Attributes - Lower Mount

Eyelet

Product Attributes - Bushing Material

Spherical bearing/PTFE

Product Attributes - Boot Included

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.
