Description

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra.

Product Overview

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia.

Features and Benefits

• FK Rod End bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• Fully rebuildable and re-tunable
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping:	Yes
Adjustable Height:	yes
Amortiguación Ajustable:	SI
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Adjustment Type:	Manual
Damping Type:	Oil
Description:	07-21 TUNDRA 2.5 VS RR CDCV COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	yes
Grade Type:	Performance
Lower Mount Type:	Eyelet
Material del resorte:	Acero
Material:	Steel
Maximum Lift:	3
Minimum Lift:	1
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58750C
Recommended Aftermarket Tires:	35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir:	Yes
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Spring Rate:	600
Tipo de Grado:	Reparación de Banda
Title:	ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

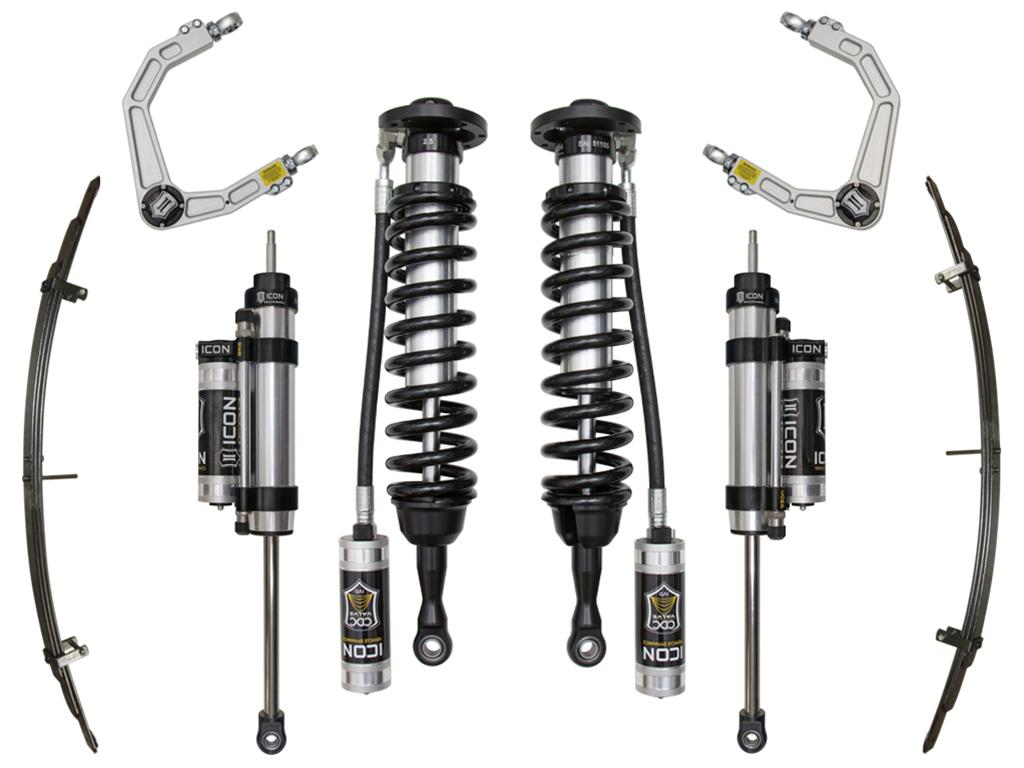

	icoK53030	ICON 2007+ Toyota Tundra 1-3in Stage 10 Suspension System w/Billet Uca (2x ico158509, 1x ico52050, 1x ico58560DJ, 1x ico59923P, 1x ico58750C)

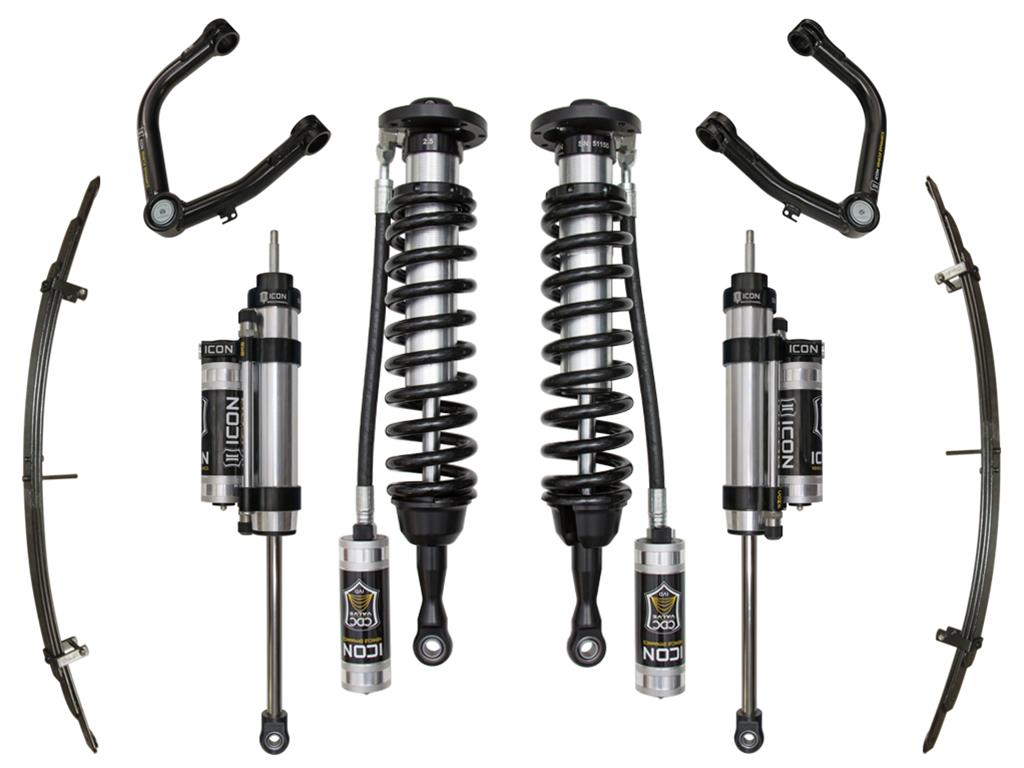

	icoK53030T	ICON 2007+ Toyota Tundra 1-3in Stage 10 Suspension System w/Tubular Uca (2x ico158509, 1x ico52050, 1x ico58460DJ, 1x ico59923P, 1x ico58750C)
	icoK53029	ICON 2007+ Toyota Tundra 1-3in Stage 9 Suspension System w/Billet Uca (2x ico158509, 1x ico52050, 1x ico58560DJ, 1x ico57823CP, 1x ico58750C)
	icoK53029T	ICON 2007+ Toyota Tundra 1-3in Stage 9 Suspension System w/Tubular Uca (2x ico158509, 1x ico52050, 1x ico58460DJ, 1x ico57823CP, 1x ico58750C)
	icoK53027	ICON 2007+ Toyota Tundra 1-3in Stage 7 Suspension System w/Billet Uca (1x ico51200, 1x ico58560DJ, 1x ico59920P, 1x ico58750C)
	icoK53027T	ICON 2007+ Toyota Tundra 1-3in Stage 7 Suspension System w/Tubular Uca (1x ico51200, 1x ico58460DJ, 1x ico59920P, 1x ico58750C)
	icoK53026	ICON 2007+ Toyota Tundra 1-3in Stage 6 Suspension System w/Billet Uca (1x ico51200, 1x ico58560DJ, 1x ico57720CP, 1x ico58750C)
	icoK53026T	ICON 2007+ Toyota Tundra 1-3in Stage 6 Suspension System w/Tubular Uca (1x ico51200, 1x ico58460DJ, 1x ico57720CP, 1x ico58750C)

Data: v4.2 - Upd: 2026-10-13 05:24:55

Features

Specifications

Product Attributes - UPC

00840103404486

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

Yes

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

58750C

Product Attributes - Suspension Height Adjustment

1.0-3.0 in. raised

Product Attributes - Adjustable Mounting Bracket Included

No
