Description

When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.

Product Overview

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Adjustable coilovers yield 0-3.5" of front lift height
• Bolt-in design makes for an easy install into OEM shock location
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• External reservoir to attain cooler operating temperatures during extended off-road use
• High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
• Corrosion resistant CAD plated shock body with 7/8" shaft
• FK Rod End bearings provide extended longevity and minimal deflection
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping:	NO
Adjustable Height:	yes
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Type:	Oil
Description:	07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL RR COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield:	No
Gas Charged:	yes
Grade Type:	Performance
Lower Mount Type:	Eyelet
Material del resorte:	Acero
Material:	Aluminum
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58745
Recommended Aftermarket Tires:	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir:	Yes
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate:	650
Tipo de Grado:	Reparación de Banda
Title:	07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL RR COILOVER KIT
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53056T	ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 6 Suspension System w/Tubular Uca (1x ico52700, 1x ico54000T, 1x ico54100T, 1x ico54200, 1x ico58451DJ, 1x ico58745, 1x ico57810P)
	icoK53056	ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 6 Suspension System w/Billet Uca (1x ico52700, 1x ico54000, 1x ico54100, 1x ico54200, 1x ico58551DJ, 1x ico58745, 1x ico57810P)
	icoK53055T	ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 5 Suspension System w/Tubular Uca (1x ico52700, 1x ico54000T, 1x ico58451DJ, 1x ico58745, 1x ico57810P)
	icoK53055	ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 5 Suspension System w/Billet Uca (1x ico52700, 1x ico54000, 1x ico58551DJ, 1x ico58745, 1x ico57810P)
	icoK53175T	ICON 03-09 Lexus GX470 0-3.5in Stage 5 Suspension System w/Tubular UCA (1x ico52700, 1x ico54000T, 1x ico58451DJ, 1x ico58745, 1x ico57810P, 1x ico56110)
	icoK53175	ICON 03-09 Lexus GX470 0-3.5in Stage 5 Suspension System w/Billet UCA (1x ico52700, 1x ico54000, 1x ico58551DJ, 1x ico58745, 1x ico57810P, 1x ico56110)

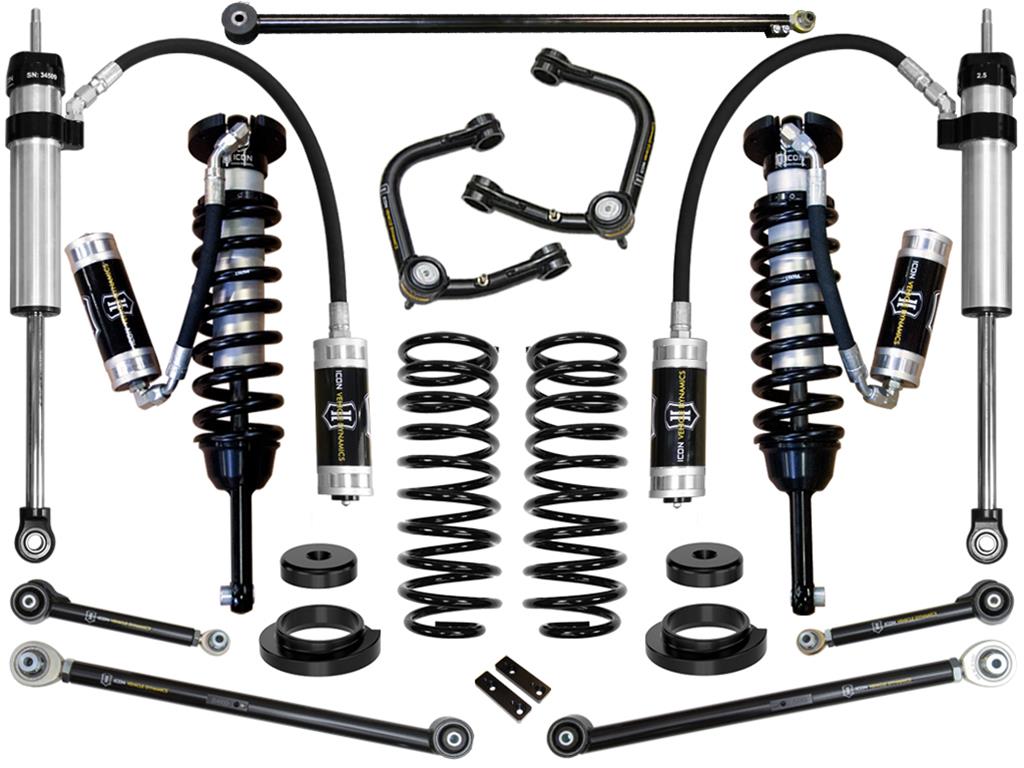

	icoK53176	ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53176 03-09 GX470 0-3.5" STAGE 6 SUSPENSION SYSTEM W BILLET UCA
	icoK53176T	ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53176T 03-09 GX470 0-3.5" STAGE 6 SUSPENSION SYSTEM W TUBULAR UCA

Data: v4.2 - Upd: 2026-10-11 13:50:41

Features

Specifications

Product Attributes - UPC

00840103404370

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR Extended Travel Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

58745

Product Attributes - Suspension Height Adjustment

0.0-3.5 in. raised

Product Attributes - Adjustable Mounting Bracket Included

No
