ICON 04-20 Ford F-150 / 2014+ Ford Expedition Tubular Upper Control Arm Delta Joint Kit
ICON 04-20 Ford F-150 / 2014+ Ford Expedition Tubular Upper Control Arm Delta Joint Kit
A$1,772.22
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Product Overview
Take the performance of your 2004-2020 Ford F150 to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2004-2020 Ford F150. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features and Benefits
- Black Semi-Gloss Powder Coat Finish
- 1026 DOM Steel Construction
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Accesorios de engrase incluidos: | SI |
| Add-On Part: | 191011 - TUBULAR UCA BILLET CAP SET |
| Adjustable: | NO |
| Ball Joint Included: | Yes |
| Ball Joint Mounting Type: | Press In |
| Ball Joint Stud Type: | Threaded |
| Bushing Color: | Black |
| Bushing Material: | Polyurethane |
| Bushings Included: | Yes |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color: | Black |
| Construction: | Tubular |
| Control Arm Construction: | Upper |
| Description: | 04-20 F150 TUBULAR UCA DJ KIT |
| Finish: | Powdercoat |
| Grade Type: | Performance |
| Greasable: | yes |
| Grease Fitting Included: | yes |
| Grease Fittings Included: | Yes |
| Greaseable: | yes |
| Material: | DOM Steel |
| Mounting Hardware Included: | Yes |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico98500DJ |
| Pre-Greased: | NO |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Service Parts: | 614554 - 04-UP F150/09-UP RAM 1500 DELTA JOINT KIT |
| Title: | 04-20 F150 TUBULAR UCA DJ KIT |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK93082T | ICON 2015+ Ford F-150 4WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91711, 2x ico96518) |
 |
icoK93062T | ICON 2014 Ford F-150 4WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91710, 2x ico96518) |
 |
icoK93002T | ICON 09-13 Ford F-150 4WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91700, 2x ico96518) |
 |
icoK93092T | ICON 2015+ Ford F-150 2WD 0-3in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91616, 2x ico96518) |
 |

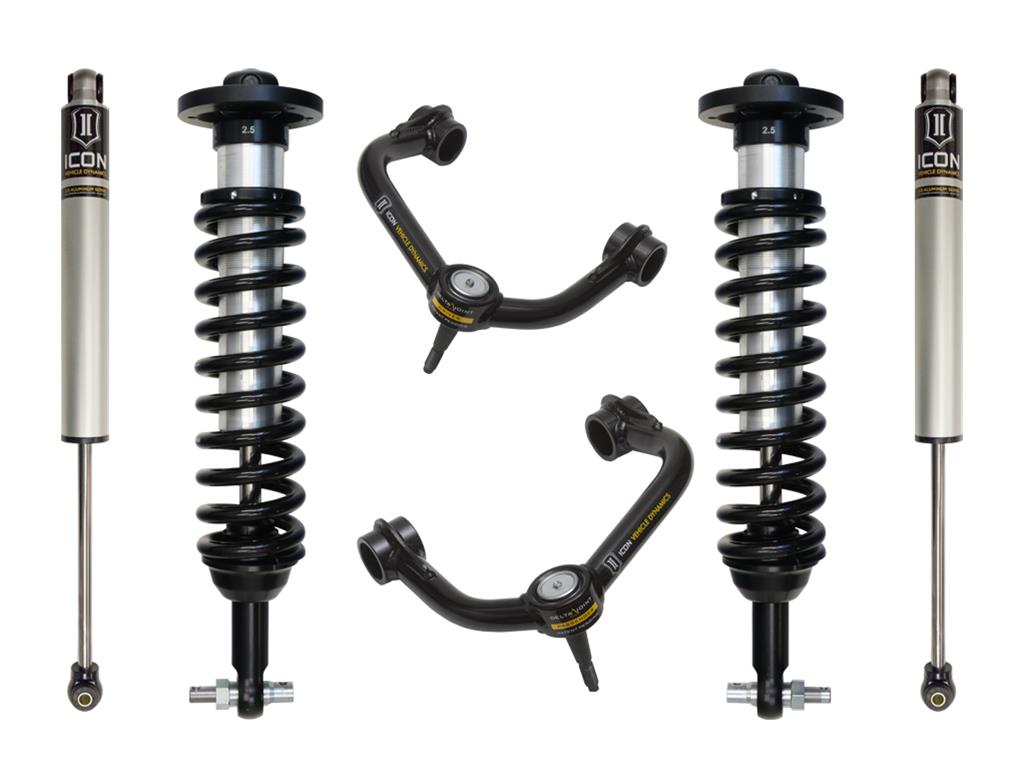

icoK93072T | ICON 2014 Ford F-150 2WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91615, 2x ico96518) |
 |

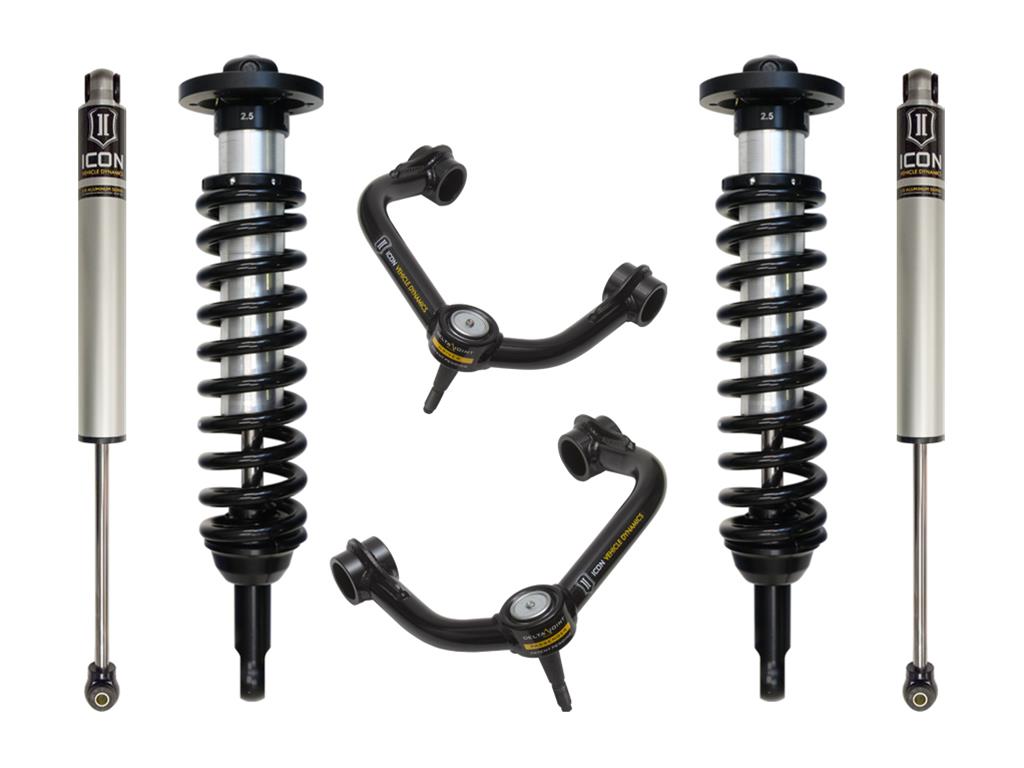

icoK93011T | ICON 09-13 Ford F-150 2WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91600, 2x ico96518) |
 |

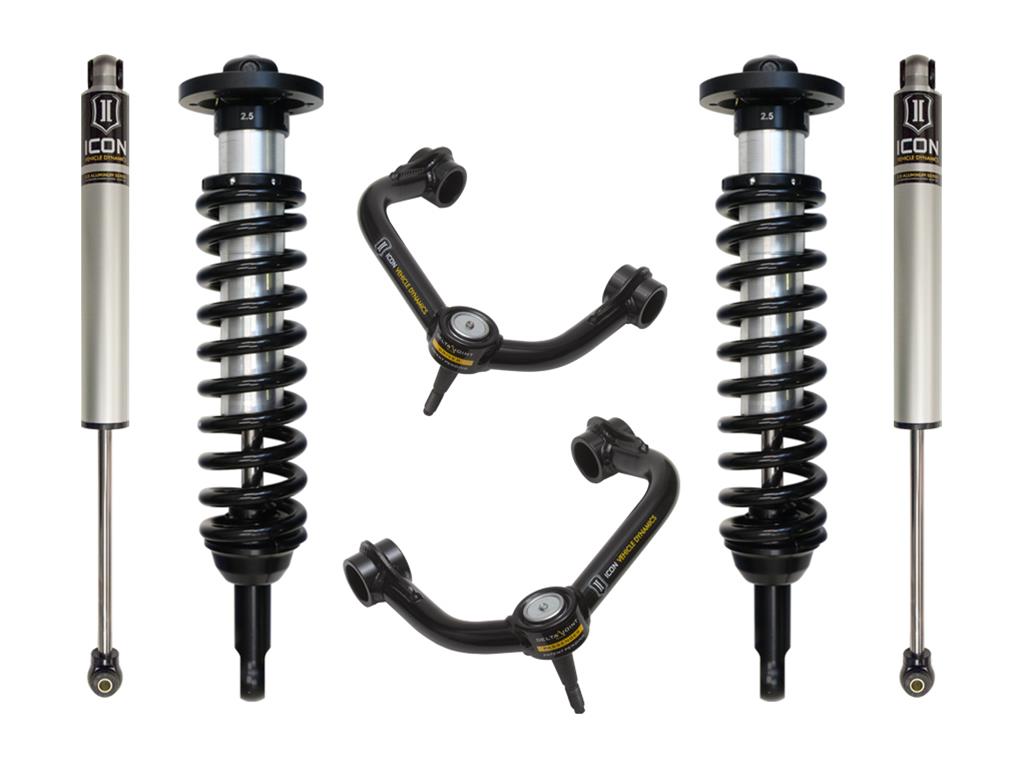

icoK93021T | ICON 04-08 Ford F-150 4WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91000, 2x ico96518) |
 |

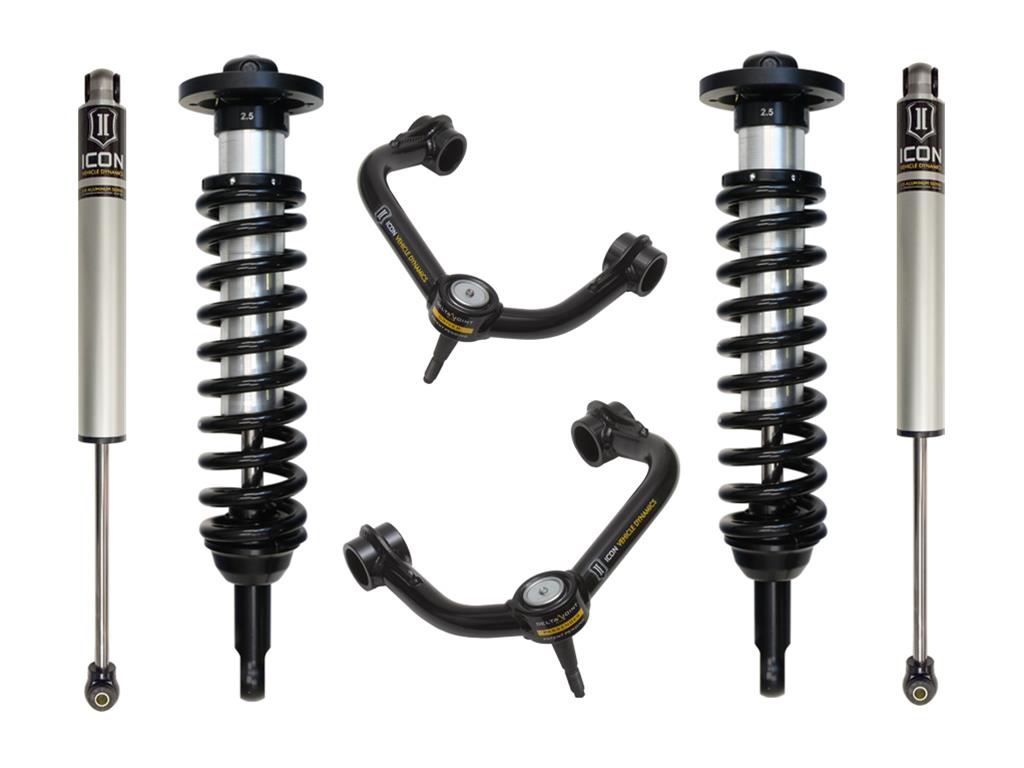

icoK93031T | ICON 04-08 Ford F-150 2WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91500, 2x ico96516) |
 |
icoK93302T | ICON 2014+ Ford ExpeditioICON 4WD .75-2.25in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91820C, 1x ico91821C) |
 |

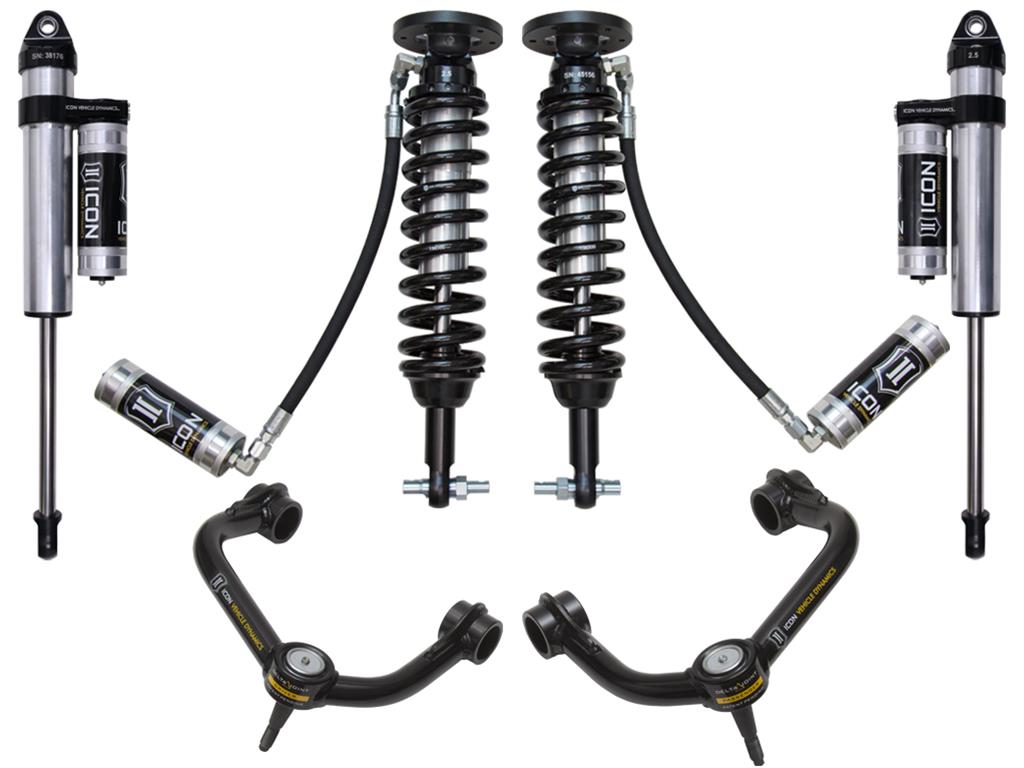

icoK93094T | ICON 2015+ Ford F-150 2WD 1.75-3in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91816) |
 |

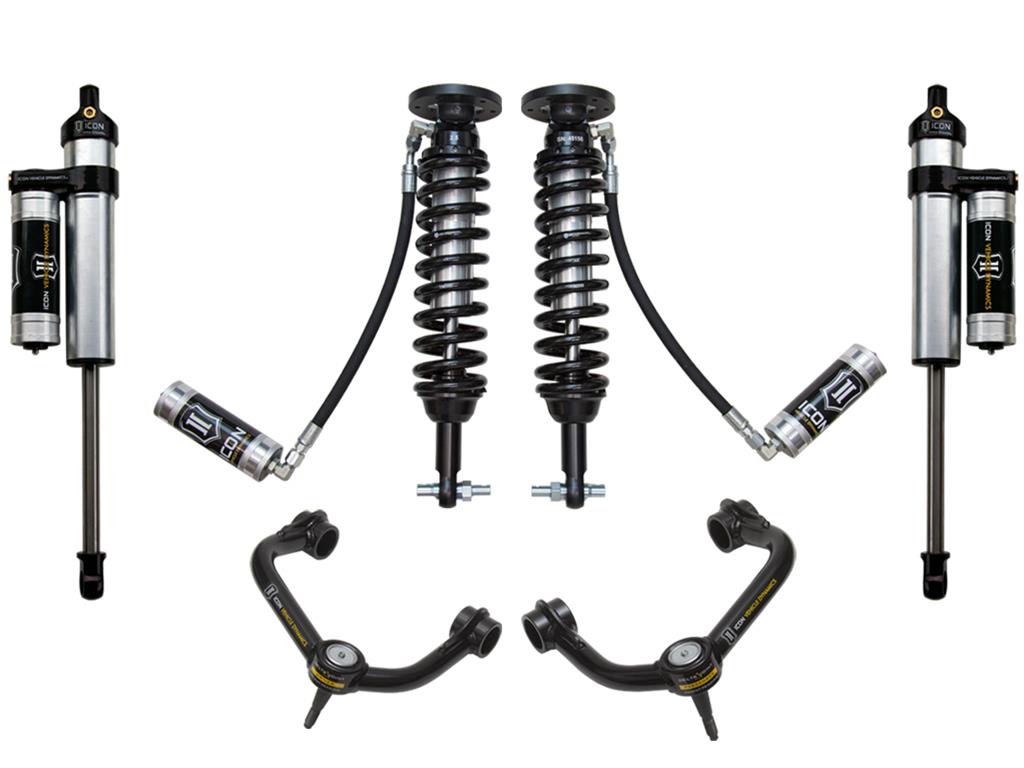

icoK93074T | ICON 2014 Ford F-150 2WD 1.75-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91815) |
 |
icoK93084T | ICON 2015+ Ford F-150 4WD 2-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91811) |
 |

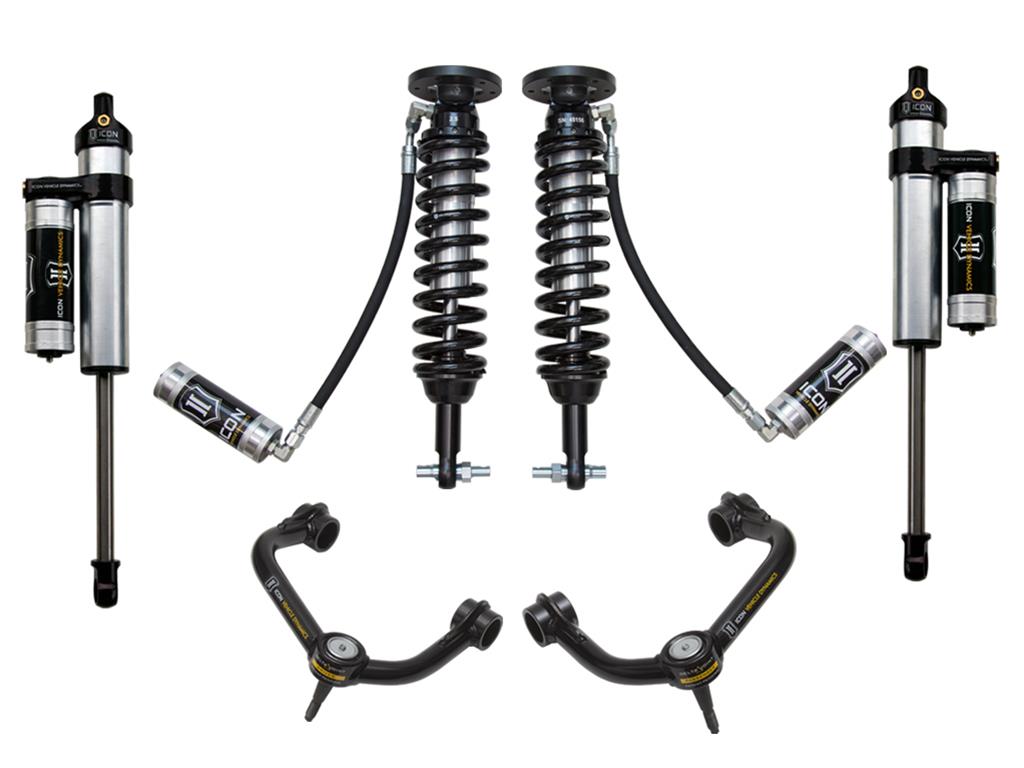

icoK93064T | ICON 2014 Ford F-150 4WD 1.75-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91810) |
 |

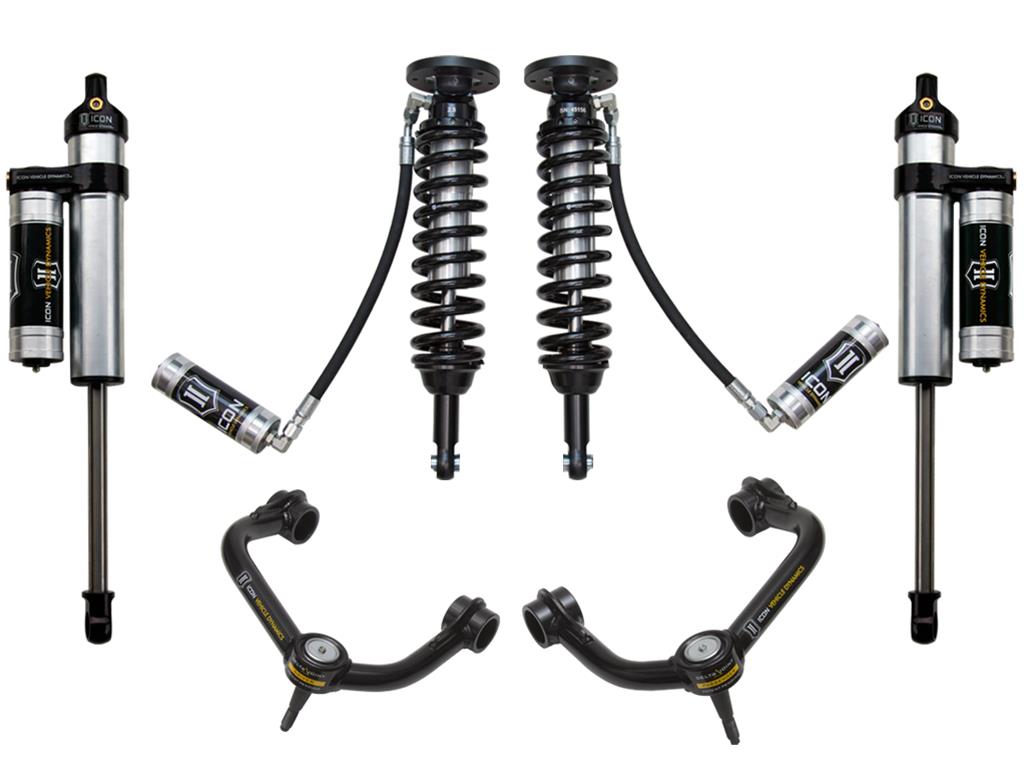

icoK93012T | ICON 09-13 Ford F-150 2WD 1.75-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91805) |
 |

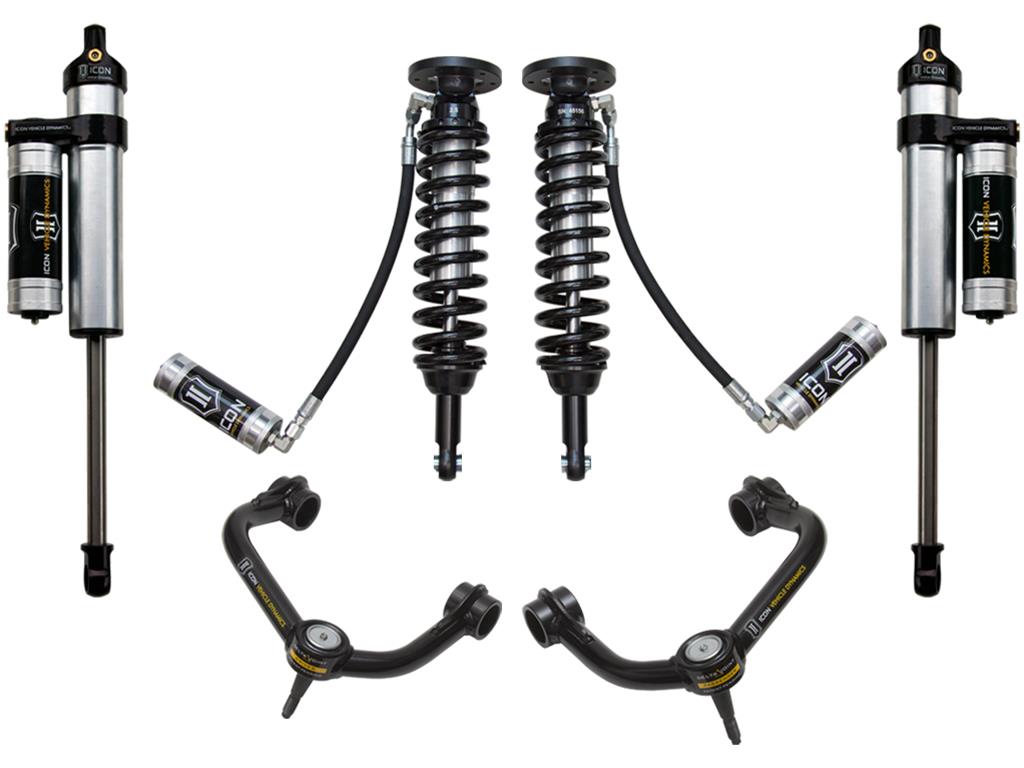

icoK93004T | ICON 09-13 Ford F-150 4WD 1.75-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91800) |
 |
icoK93083T | ICON 2015+ Ford F-150 4WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91711) |
 |
icoK93063T | ICON 2014 Ford F-150 4WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91710) |
 |
icoK93003T | ICON 09-13 Ford F-150 4WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91700) |
 |
icoK93093T | ICON 2015+ Ford F-150 2WD 0-3in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91616) |
 |

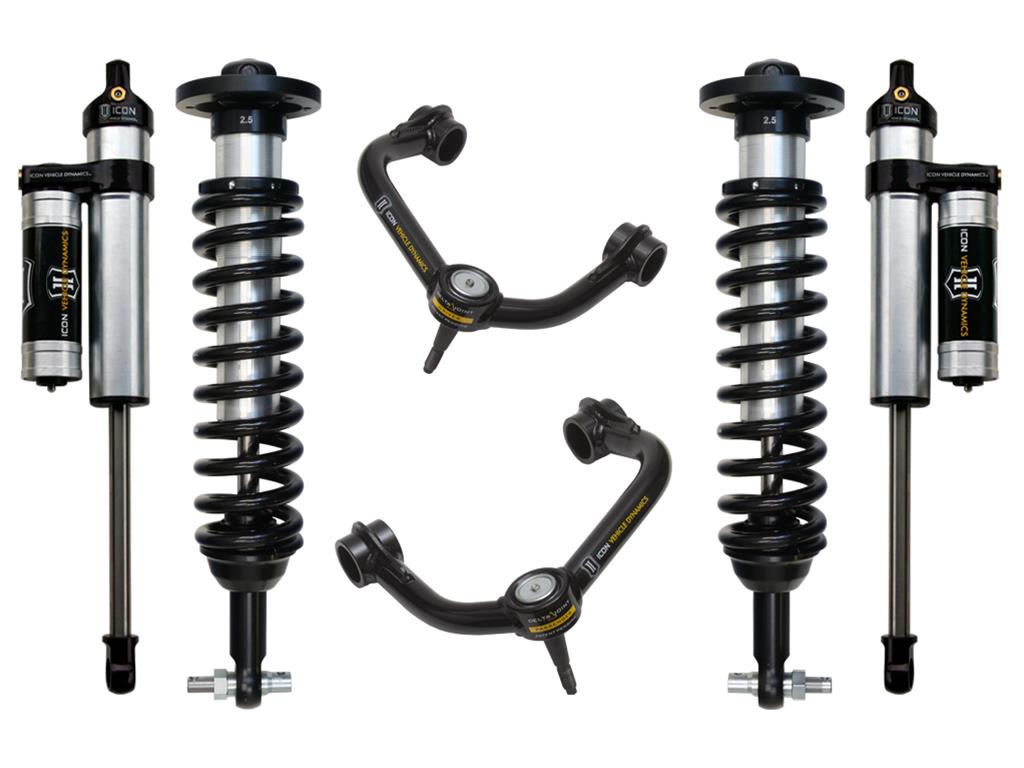

icoK93073T | ICON 2014 Ford F-150 2WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91615) |
 |

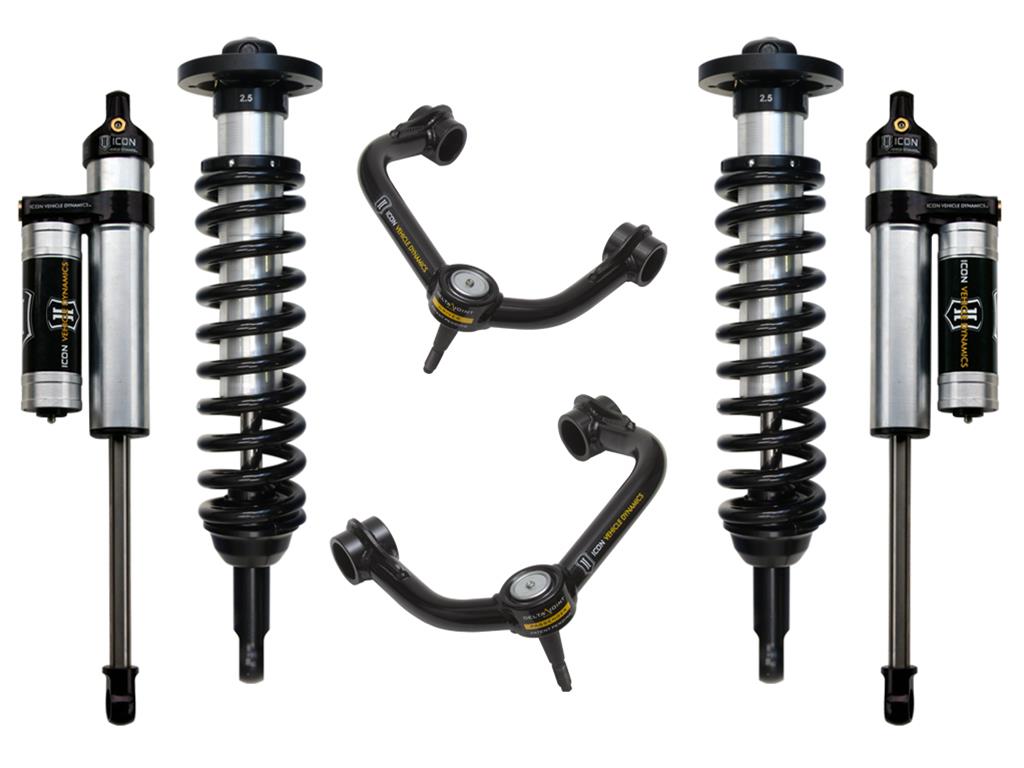

icoK93022T | ICON 04-08 Ford F-150 4WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91000) |
 |

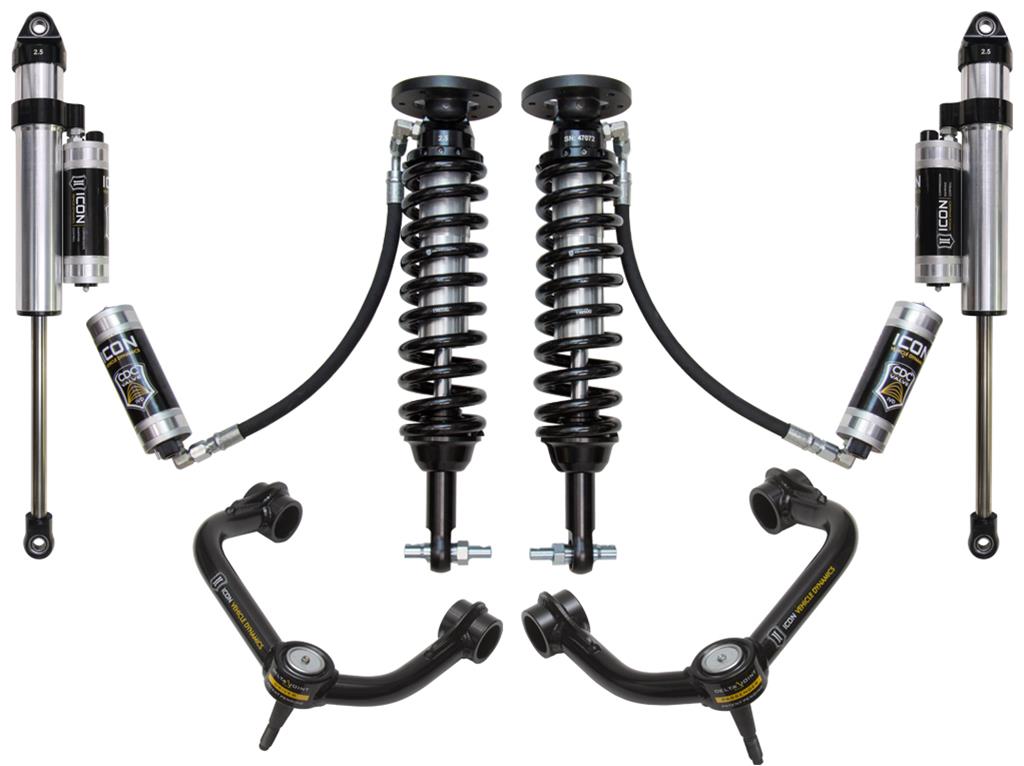

icoK93095T | ICON 2015+ Ford F-150 2WD 1.75-3in Stage 5 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91816C) |
 |

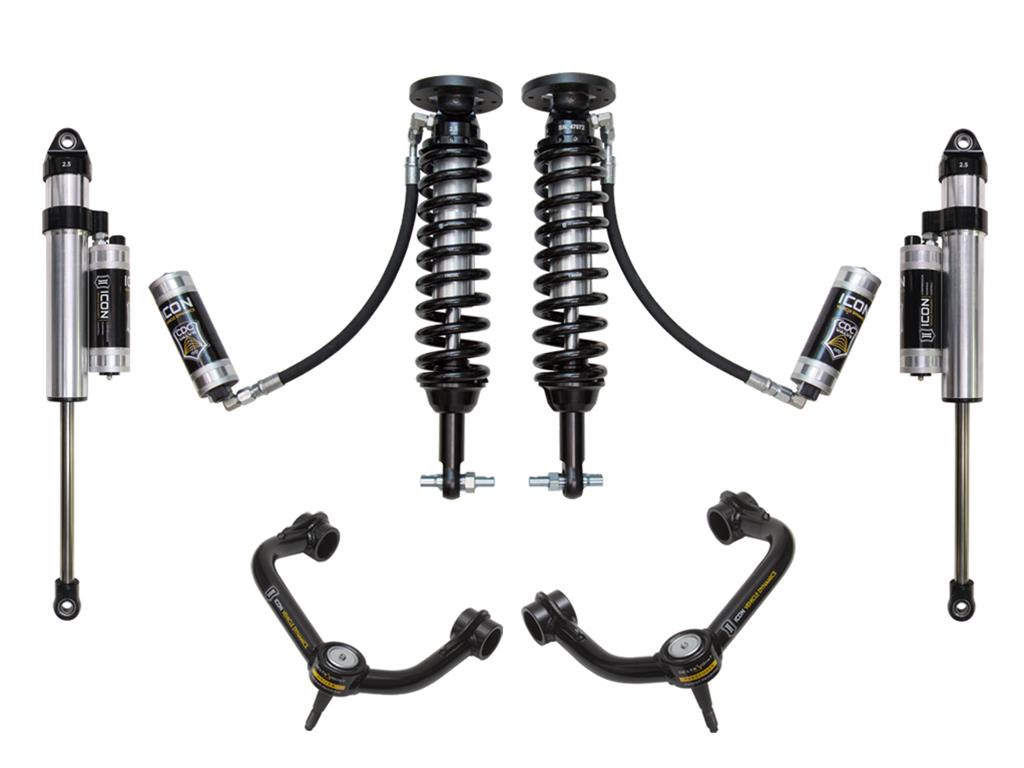

icoK93075T | ICON 2014 Ford F-150 2WD 1.75-2.63in Stage 5 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91815C) |
 |
icoK93085T | ICON 2015+ Ford F-150 4WD 2-2.63in Stage 5 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91811C) |
 |

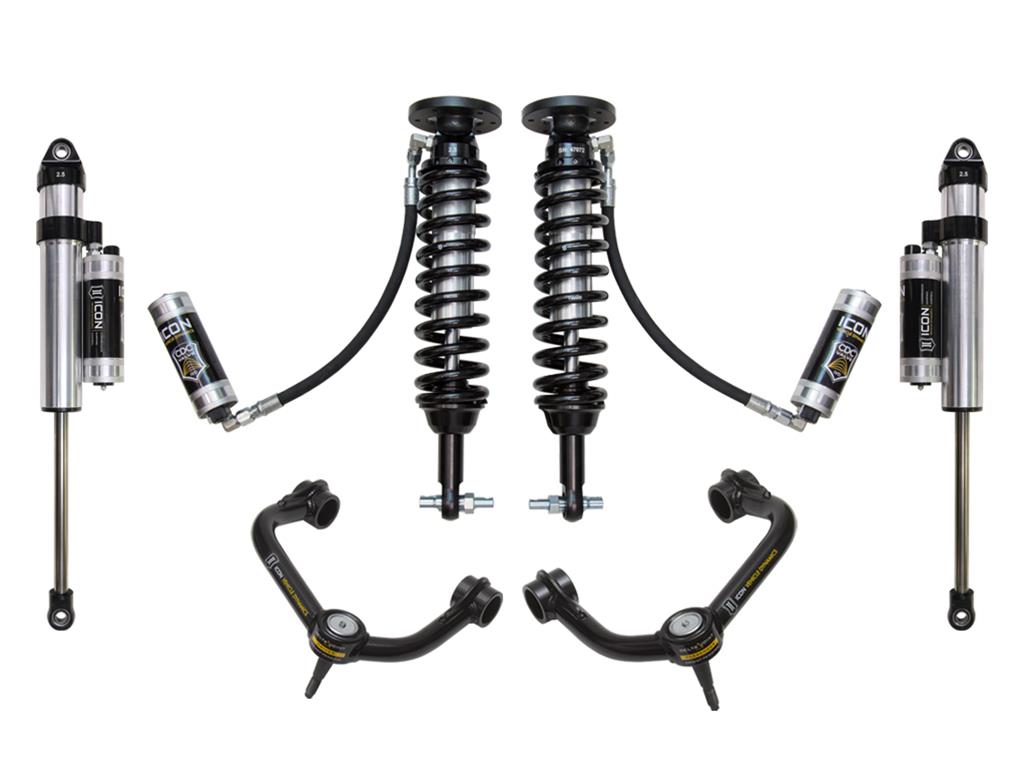

icoK93065T | ICON 2014 Ford F-150 4WD 1.75-2.63in Stage 5 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91810C) |
 |

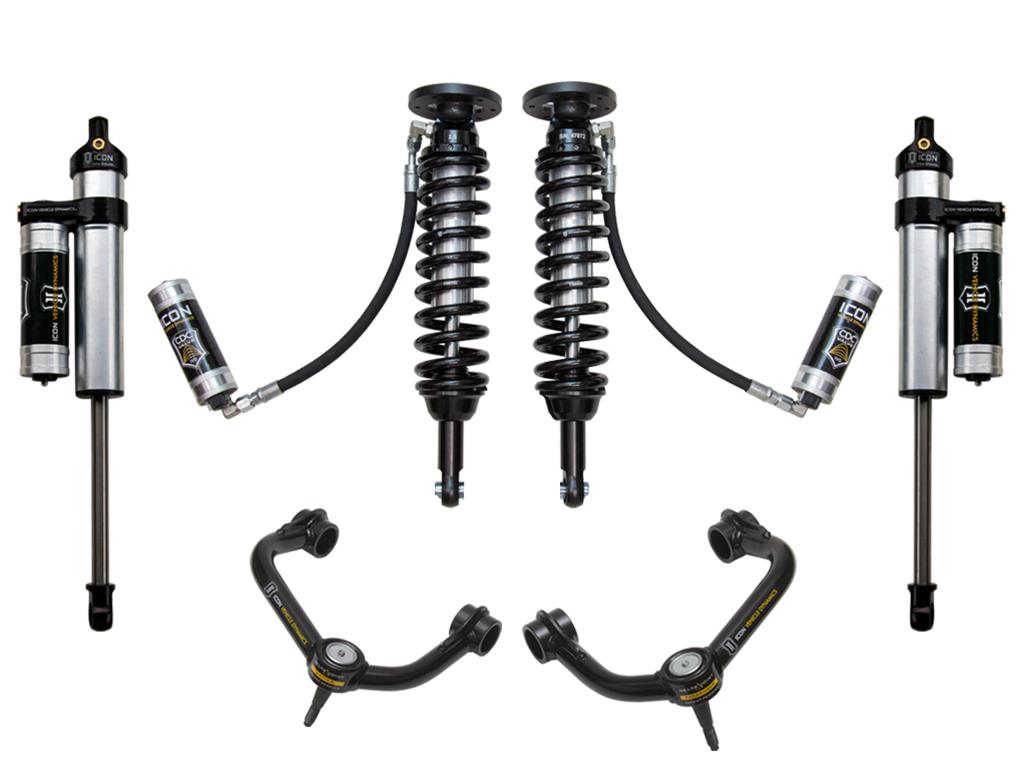

icoK93013T | ICON 09-13 Ford F-150 2WD 1.75-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91805C) |
 |

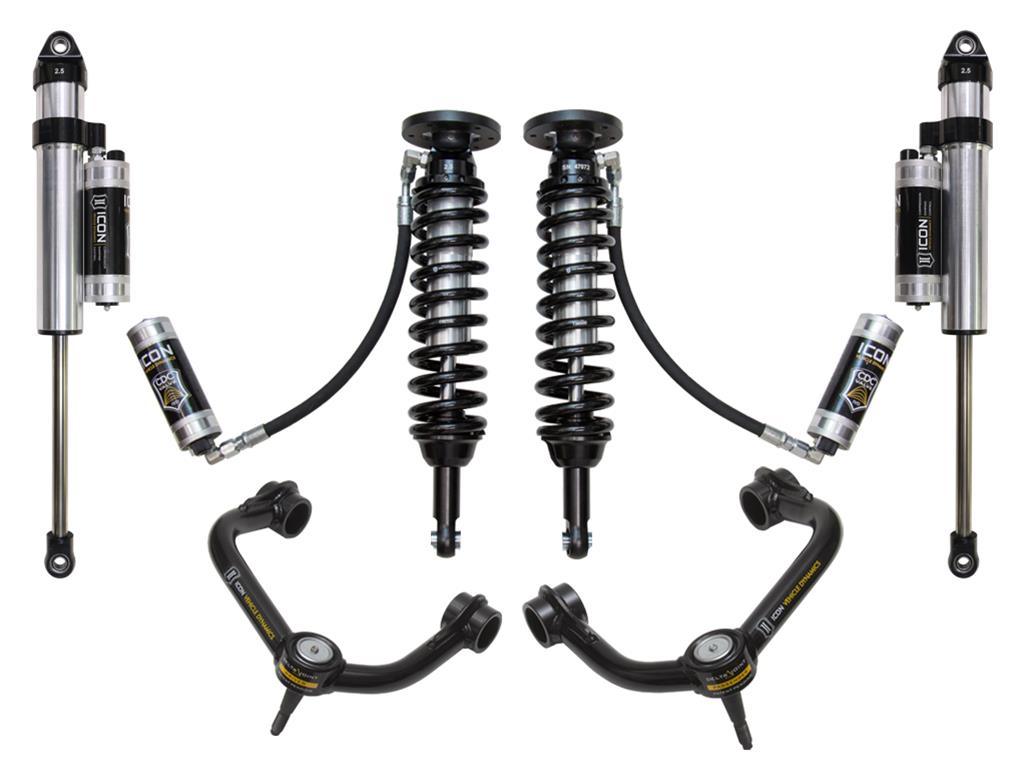

icoK93005T | ICON 09-13 Ford F-150 4WD 1.75-2.63in Stage 5 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91800C) |
 |
icoK93023T | ICON 04-08 Ford F-150 4WD 0-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720CP, 1x ico91000) |
 |

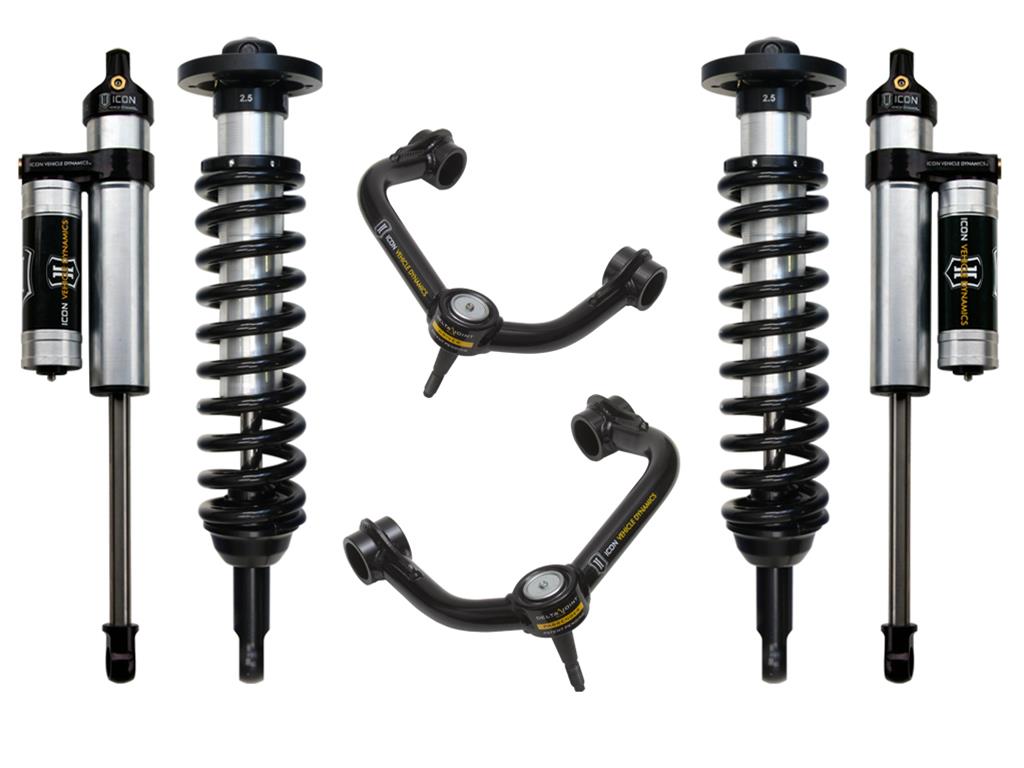

icoK93032T | ICON 04-08 Ford F-150 2WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97710P, 1x ico91500) |
 |

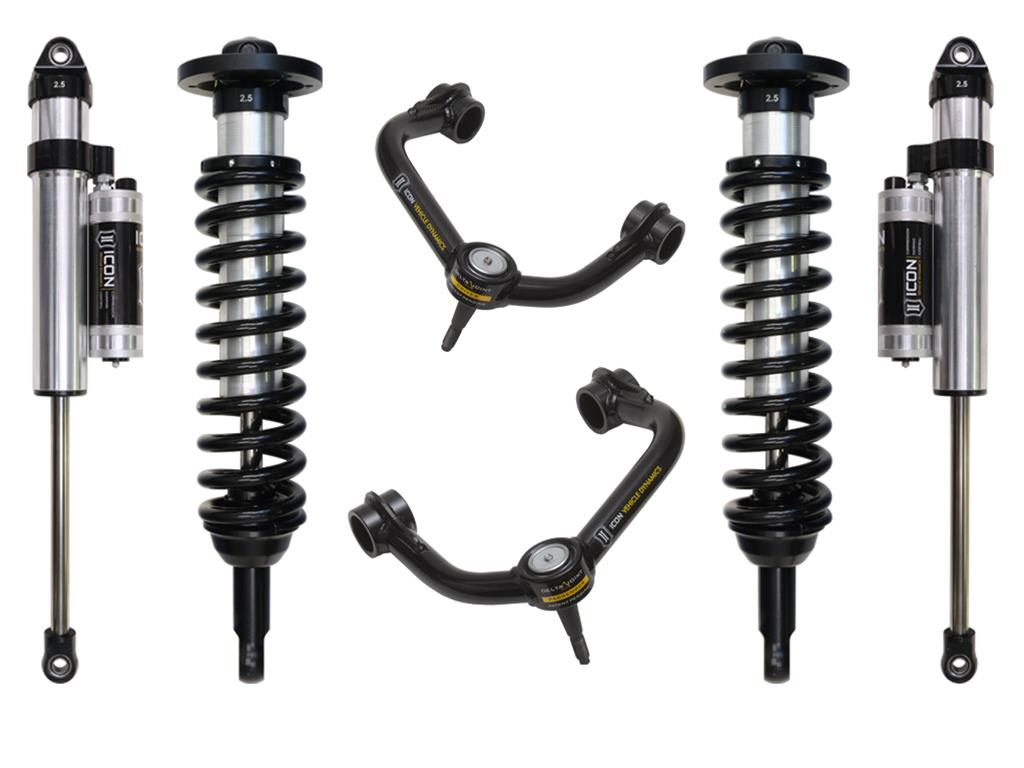

icoK93033T | ICON 04-08 Ford F-150 2WD 0-2.63in Stage 4 Suspension System w/Tubular Uca (1x ico97710CP, 1x ico98500DJ, 1x ico91500) |
Application Summary
ICON 04-20 F150/14-UP EXPEDITION TUBULAR UCA DJ KIT
Part Type
Suspension Control Arm Kit
Features
- 1026 DOM Steel Construction
- Black Semi-Gloss Powder Coat Finish
- Built-In Caster Correction
- CNC Bent Tubing
- CNC Machined Bushing Housings and Sleeves
- Serviceable Dual Stage Bushings
Specifications
- Product Attributes - UPC
- 00840103407418
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Part Type
- Control Arms
- Product Attributes - Adjustable
- No
- Product Attributes - Product Line
- Icon Vehicle Dynamics Delta Joint Tubular Upper Control Arms
- Product Attributes - Bushings Included
- Yes
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Hardware Included
- No
- Product Attributes - Ball Joint Included
- Yes
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Manufacturer's Part Number
- 98500DJ
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico98500DJ |
| SFX Item ID | 4140885 |
| Supplier Item Code | 4140885 |
| Manufacturer SKU | 98500DJ |
| Manufacturer UPC | 840103407418 |
| Alternative References | IVD98500DJ, F-150 |
Brochures
Compatibility
ICON 04-20 F150/14-UP EXPEDITION TUBULAR UCA DJ KIT
