These tubular steel upper control arms free up your 2021-2026 Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2021-2026 Ford F-150.
Product Overview
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Features and Benefits
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- Serviceable dual stage polyurethane pivot bushings
- CNC machined housings for bushings and Delta Joint PRO
- 1026 DOM tube construction with black powder coat finish
- Includes billet dust caps for Delta Joint PRO
Product Details
| Year | Make |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable: | NO |
| Attachments Included: | No |
| Ball Joint Included: | Yes |
| Ball Joint Mounting Type: | Press In |
| Ball Joint Stud Type: | Threaded |
| Bushing Color: | Black |
| Bushing Material: | Polyurethane |
| Bushing(s) Included: | Yes |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Castle Nut Included: | Yes |
| Color: | Black |
| Construction: | Tubular |
| Control Arm Color: | Black |
| Control Arm Construction: | Tubular |
| Control Arm Material: | Steel |
| Description: | ICON 21-23 Ford F150 Tubular UCA DJ Pro Kit |
| Finish: | Powdercoat |
| Grade Type: | Performance |
| Grease Fitting Included: | yes |
| Grease Fittings Included: | Yes |
| Greaseable: | yes |
| Material: | DOM Steel |
| Mounting Bracket Included: | No |
| Mounting Hardware Included: | Yes |
| OEM Wheels & Tires Fitment: | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Part Number: | ico98522DJ |
| Pre-Assembled: | Yes |
| Pre-Greased: | NO |
| Prop 65 - Long Label: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Recommended Aftermarket Tires: | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Reinforced: | Yes |
| Service Parts: | 614533 - 98522DJ REPLACEMENT BUSHING AND SLEEVE KIT |
| Suspension Grade Type: | Performance |
| Suspension Type: | Spring |
| Title: | ICON 2021-2026 Ford F-150, Front, Tubular Upper Control Arms w/ Delta Joint Pro |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |

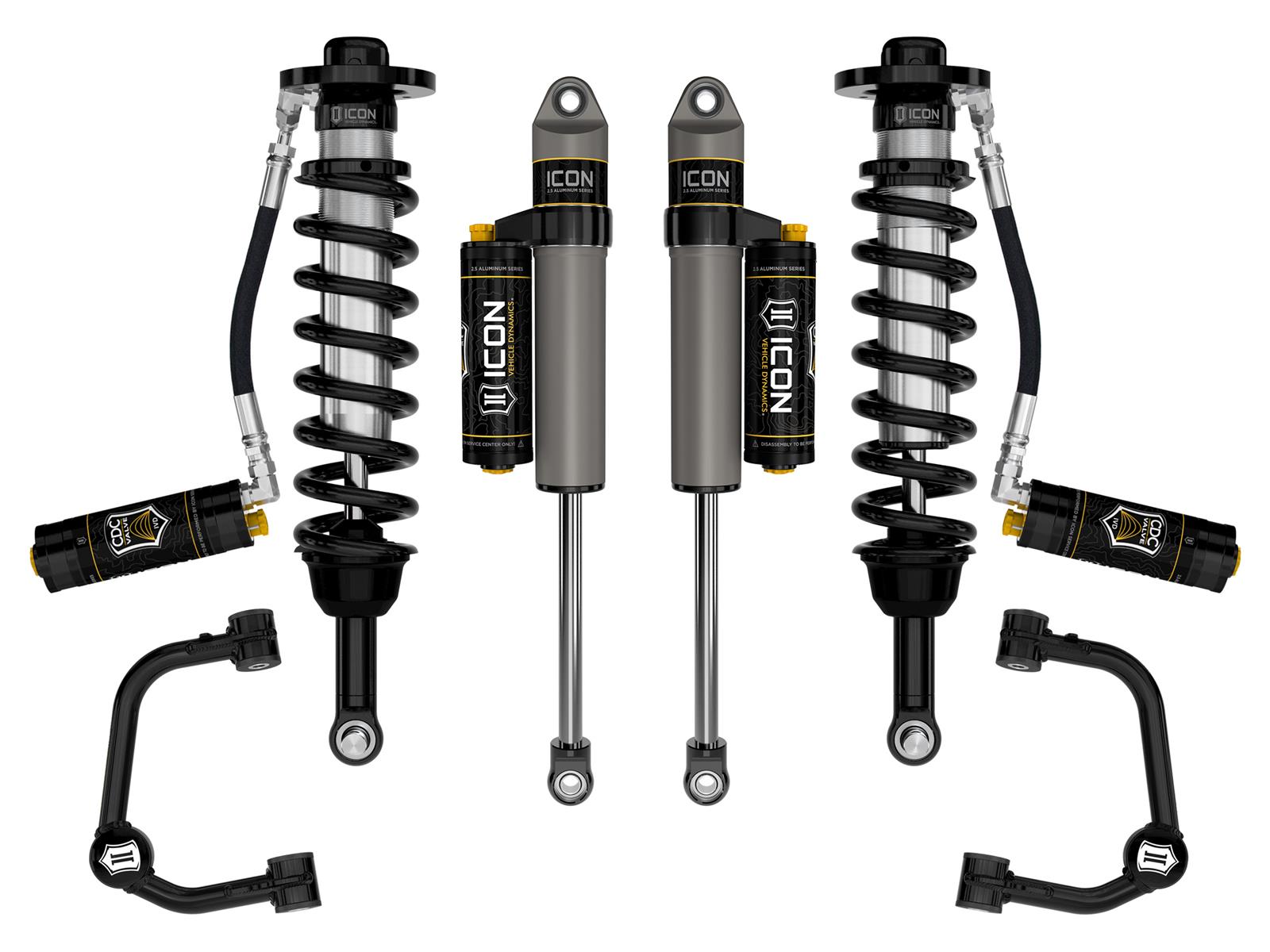

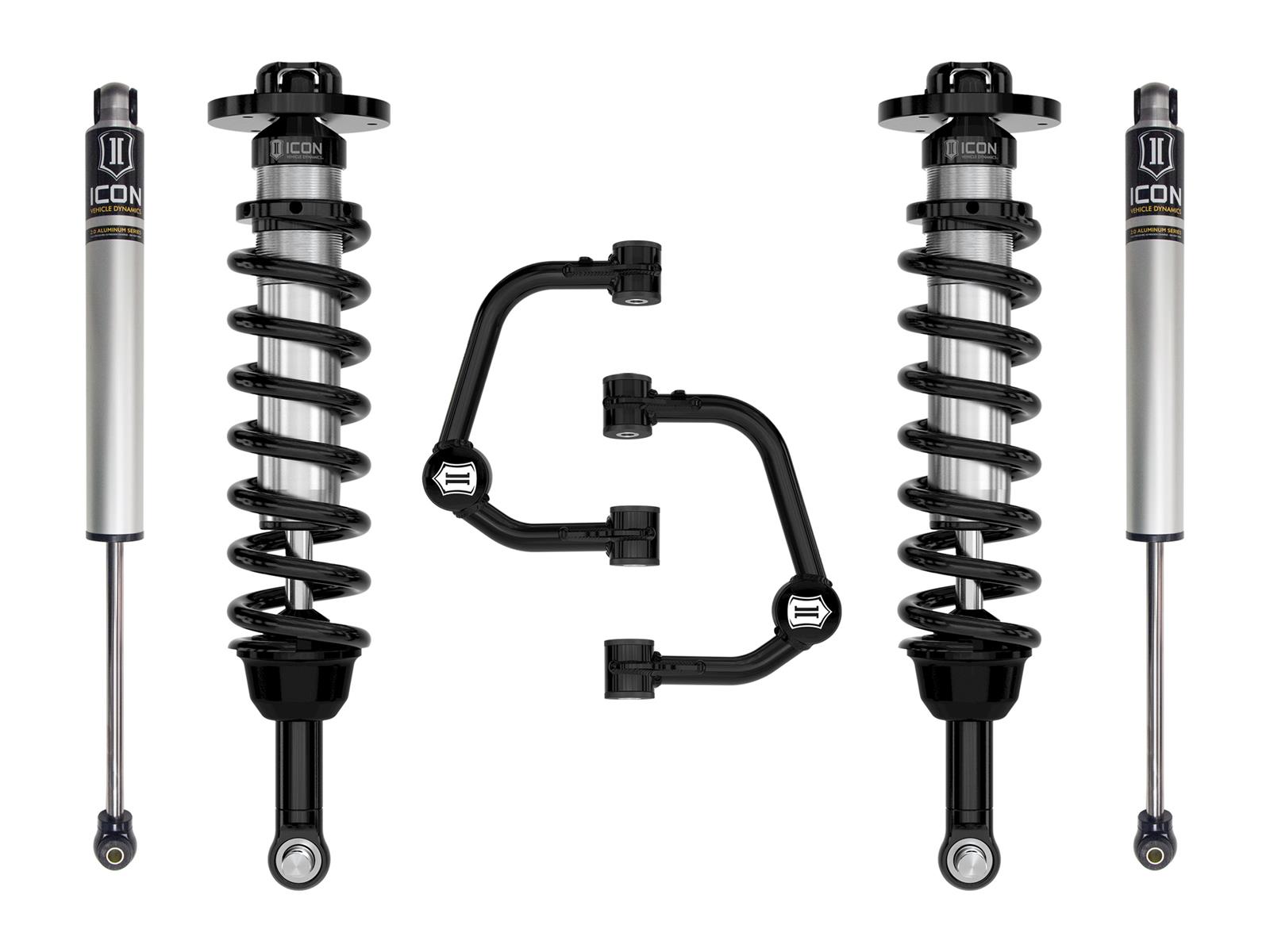

icoK93161T | ICON 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 1 Suspension System w/ Tubular UCA (2x ico96518, 1x ico98522DJ, 1x ico91723) |
 |
icoK93162T | ICON 21-23 Ford F150 Tremor 4wd 2.5-3in Stage 2 Suspension System w/ Tubular UCA (1x ico98522DJ, 1x ico91723, 1x ico97721P) |
 |

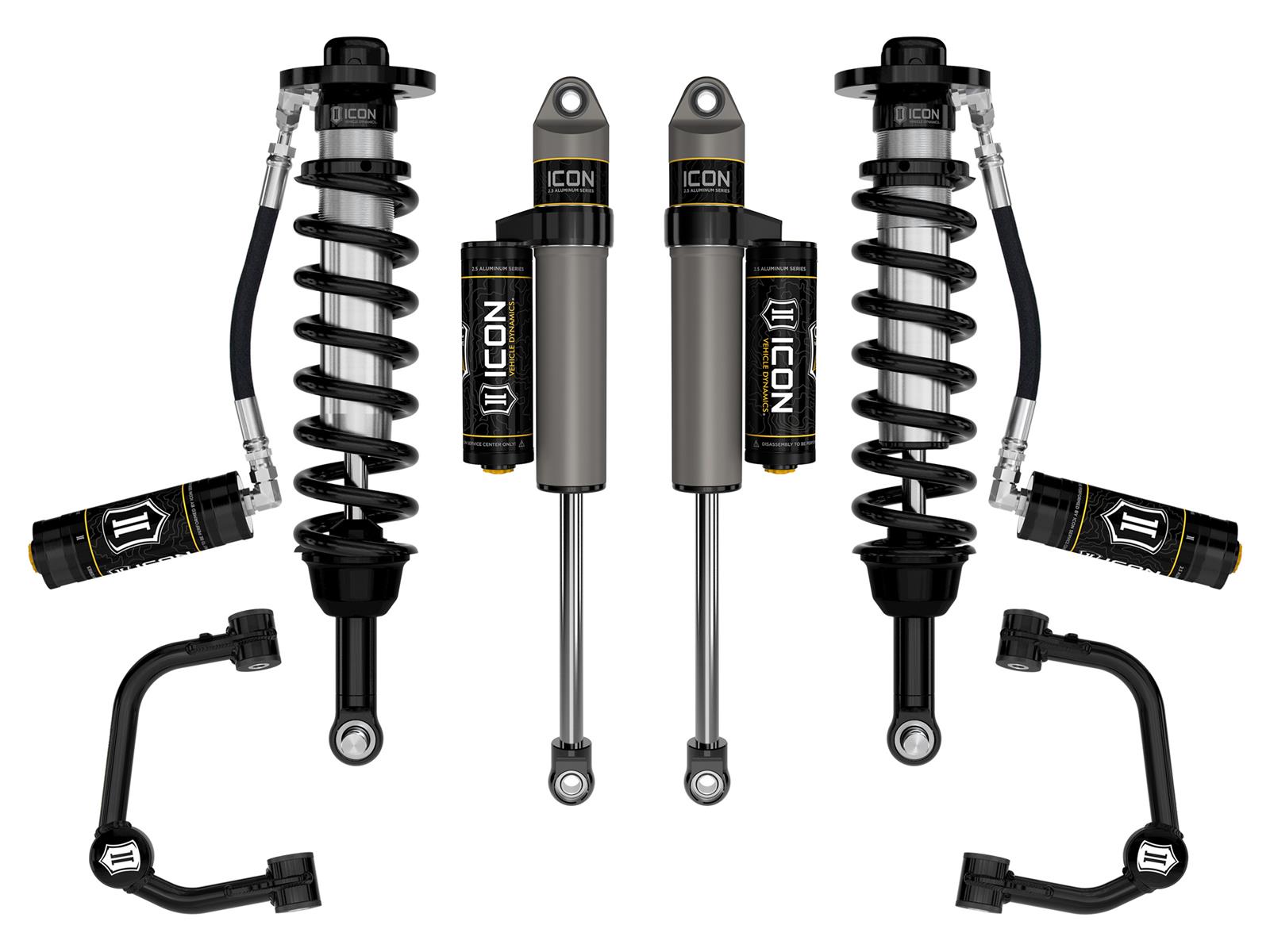

icoK93163T | ICON 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 3 Suspension System w/ Tubular UCA (1x ico98522DJ, 1x ico91824, 1x ico97721P) |
 |
icoK93164T | ICON 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 4 Suspension System w/ Tubular UCA (1x ico98522DJ, 1x ico91824C, 1x ico97721CP) |
 |

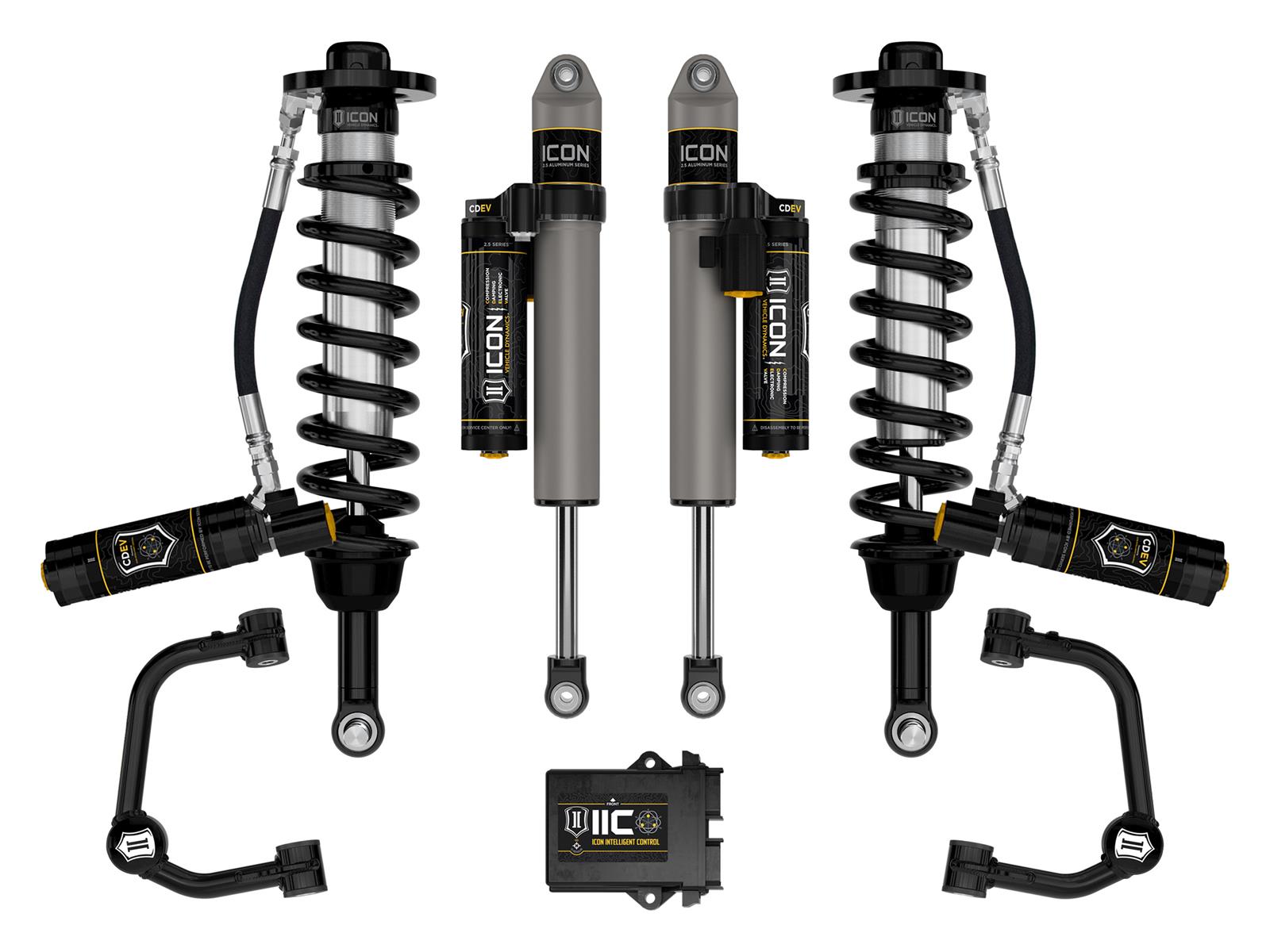

icoK93165T | ICON 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 5 Suspension System w/ Tubular UCA (1x ico93500, 1x ico98522DJ, 1x ico91824E, 1x ico97721EP) |
 |

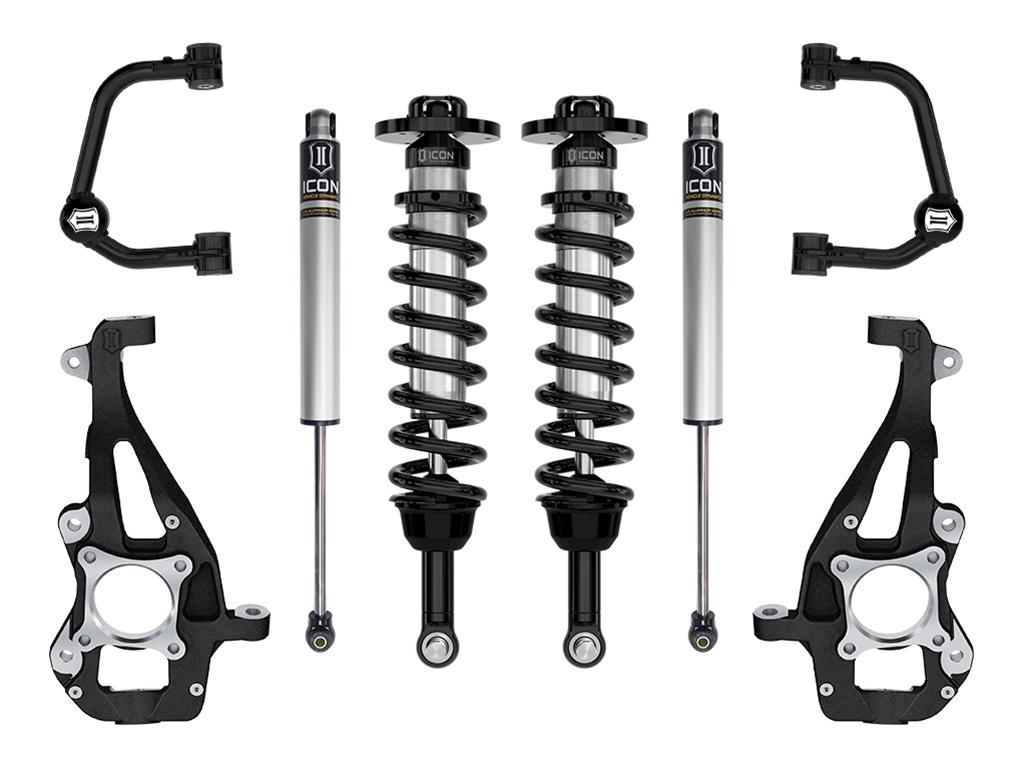

icoK93141T | ICON 21-23 Ford F150 4WD 3.5-4.5in Stage 1 Suspension System With Tubular Upper Control Arms (2x ico96518, 1x ico98522DJ, 1x ico91723, 1x ico94000) |
 |

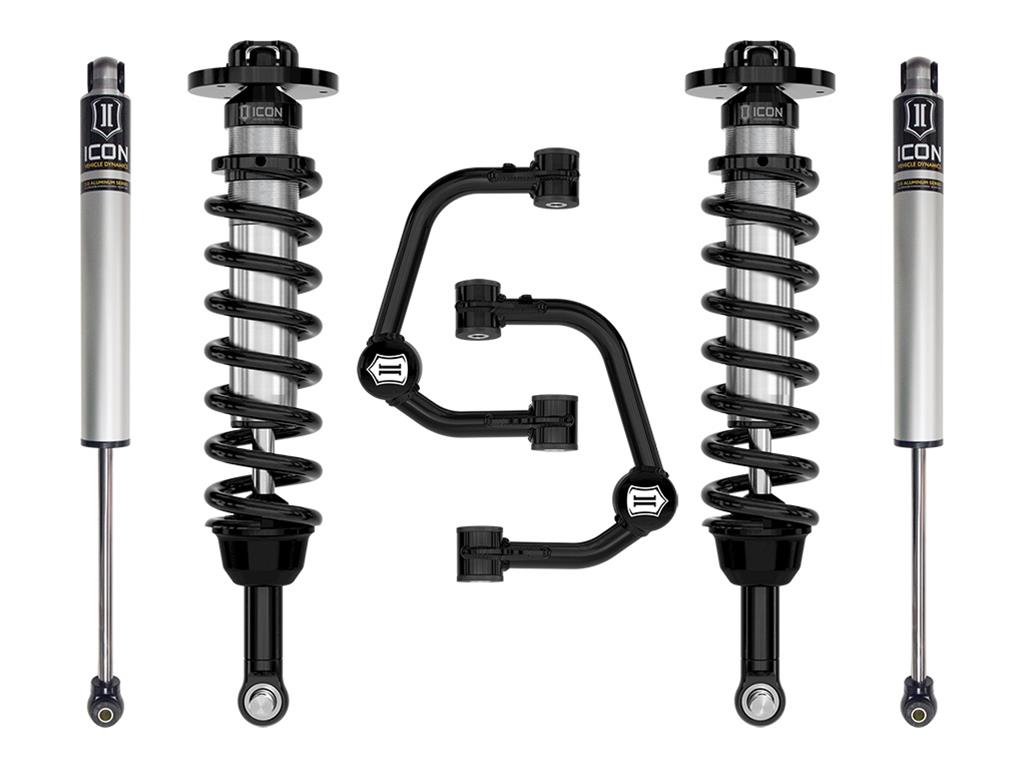

icoK93131T | ICON 21-23 Ford F150 4WD 2.7in To 3.5in Stage 1 Suspension System (2x ico96518, 1x ico91724, 1x ico98522DJ) |
 |
icoK93163TL | 21-23 Ford F150 Tremor 4WD 2.5-3" Stage 3 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824, 1x ico97721P, 1x ico91001) |
 |
icoK93164TL | 21-23 Ford F150 Tremor 4WD 2.5-3" Stage 4 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824C, 1x ico97721CP, 1x ico91001) |
 |
icoK93165TL | 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 5 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico98522DJ, 1x ico91824E, 1x ico97721EP, 1x ico91001) |
 |
icoK93142TL | 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 2 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91723, 1x ico97721P, 1x ico94000, 1x ico91001) |
 |
icoK93143TL | 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 3 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824, 1x ico97721P, 1x ico94000, 1x ico91001) |
 |
icoK93144TL | 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 4 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91824C, 1x ico97721CP, 1x ico94000, 1x ico91001) |
 |
icoK93145TL | 21-23 Ford F150 Tremor 4WD 3.5-4.5in Stage 5 Suspension Sys Tubular UCA / Leaf Pack (2x ico198510, 1x ico95225H, 1x ico93500, 1x ico98522DJ, 1x ico91824E, 1x ico97721EP, 1x ico94000, 1x ico91001) |
 |

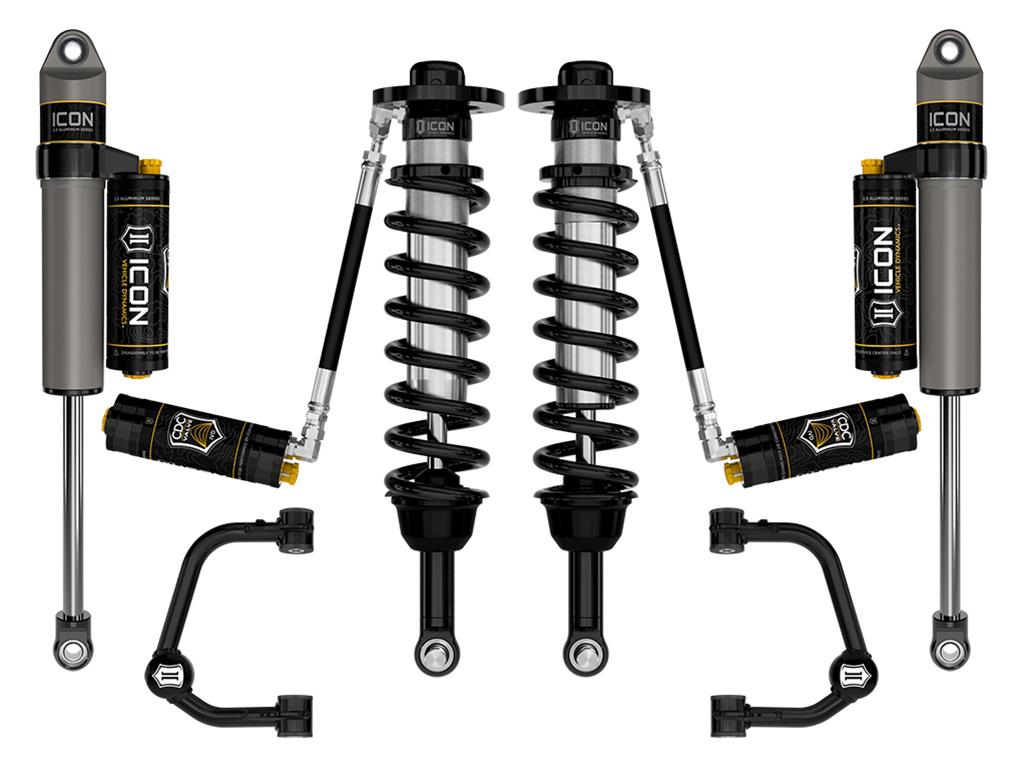

icoK93134T | ICON 21-23 Ford F-150 4WD 2.75-3.5in Stage 4 Suspension System w/ Tubular UCA (1x ico97720CP, 1x ico91825C, 1x ico98522DJ) |
 |

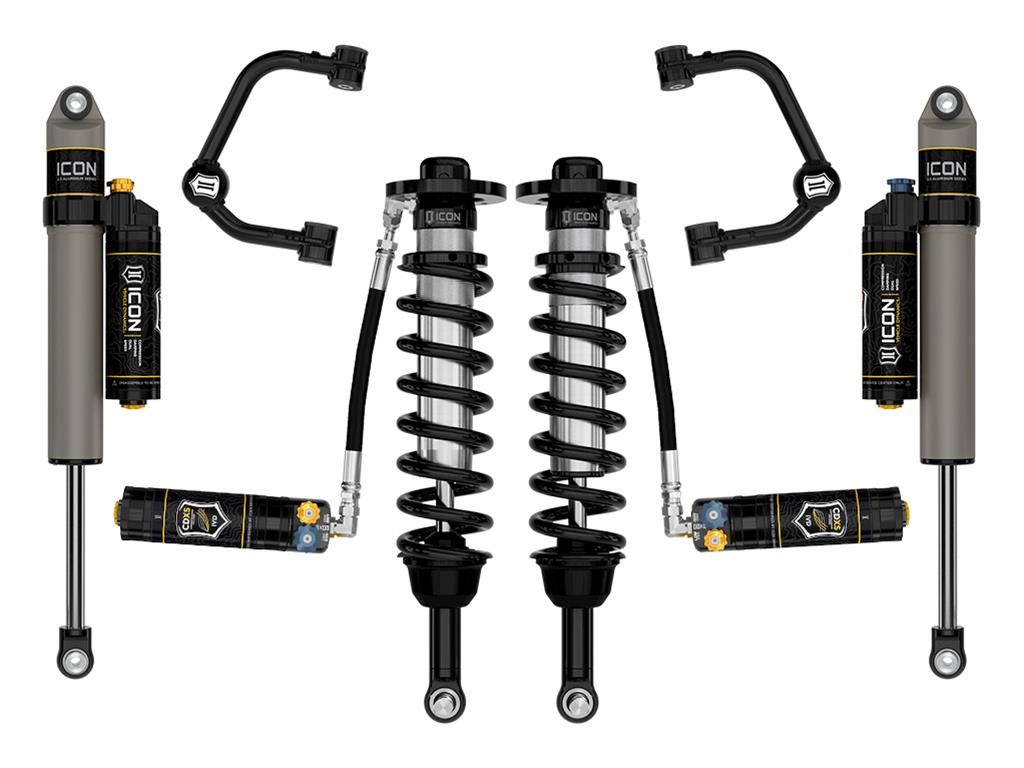

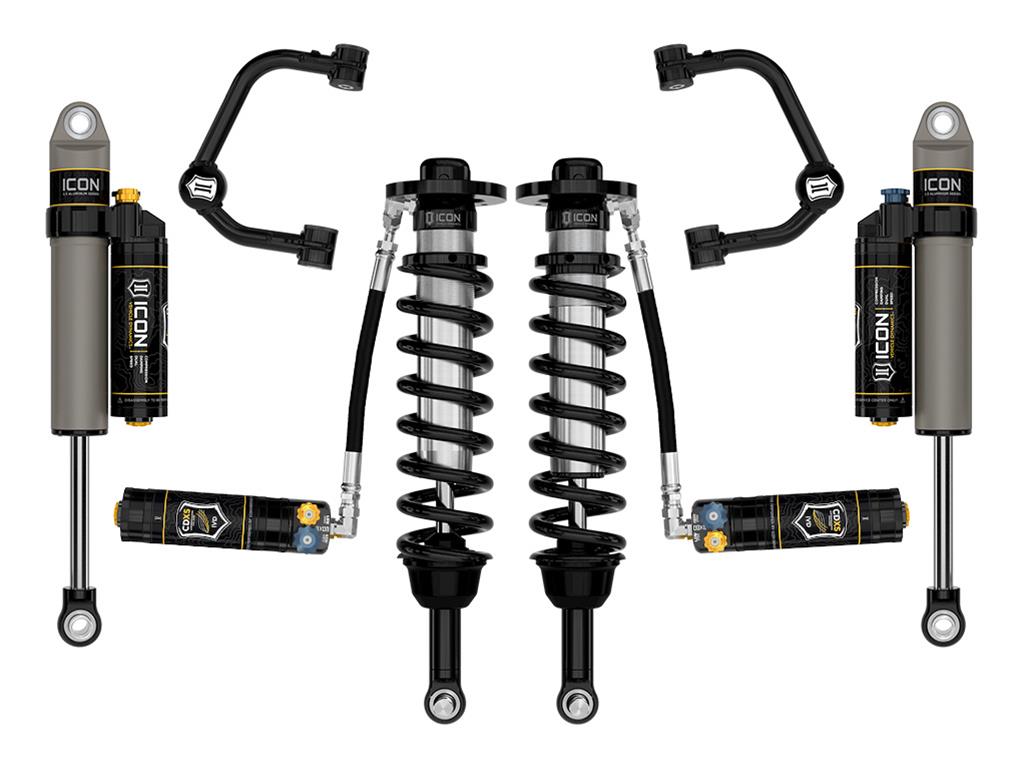

icoK93134TD | ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Tubular CDXS Suspension System (1x ico98522DJ, 1x ico91825X, 1x ico97720XP) |
 |
icoK93164TD | ICON 21-24 Ford F-150 Tremor 2.5 Series Stage 4 Tubular CDXS Suspension System (1x ico98522DJ, 1x ico91824X, 1x ico97721XP) |
 |
icoK93164TLD | ICON 21-24 Ford F-150 Tremor Stage 4 Tubular CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91001, 1x ico91824X, 1x ico97721XP) |
 |

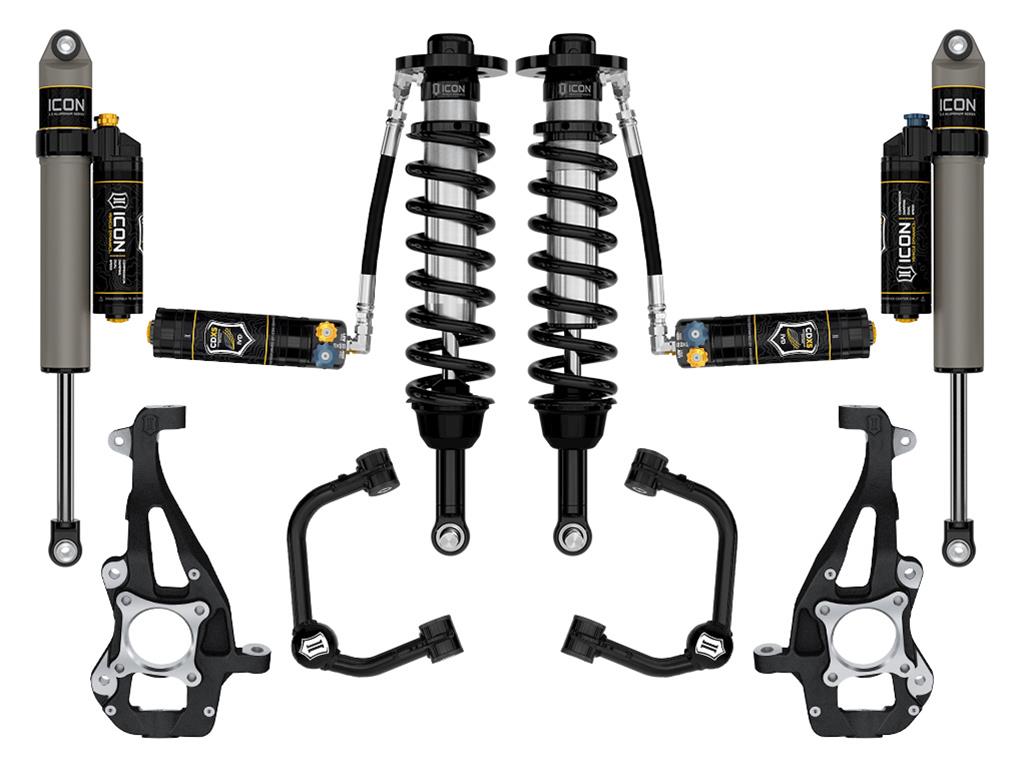

icoK93144TD | ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Tubular CDXS Suspension System (1x ico98522DJ, 1x ico94000, 1x ico91824X, 1x ico97721XP) |
 |
icoK93144TLD | ICON 21-24 Ford F-150 4WD 2.5 Series Stage 4 Tubular CDXS Suspension System w/ Leaf Pack (2x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico94000, 1x ico91001, 1x ico91824X, 1x ico97721XP) |
 |
icoK93162TL | Icon 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 2 Suspension Sys. - Tubular UCA (1x ico198510, 1x ico95225H, 1x ico98522DJ, 1x ico91723, 1x ico97721P, 1x ico91001) |
 |

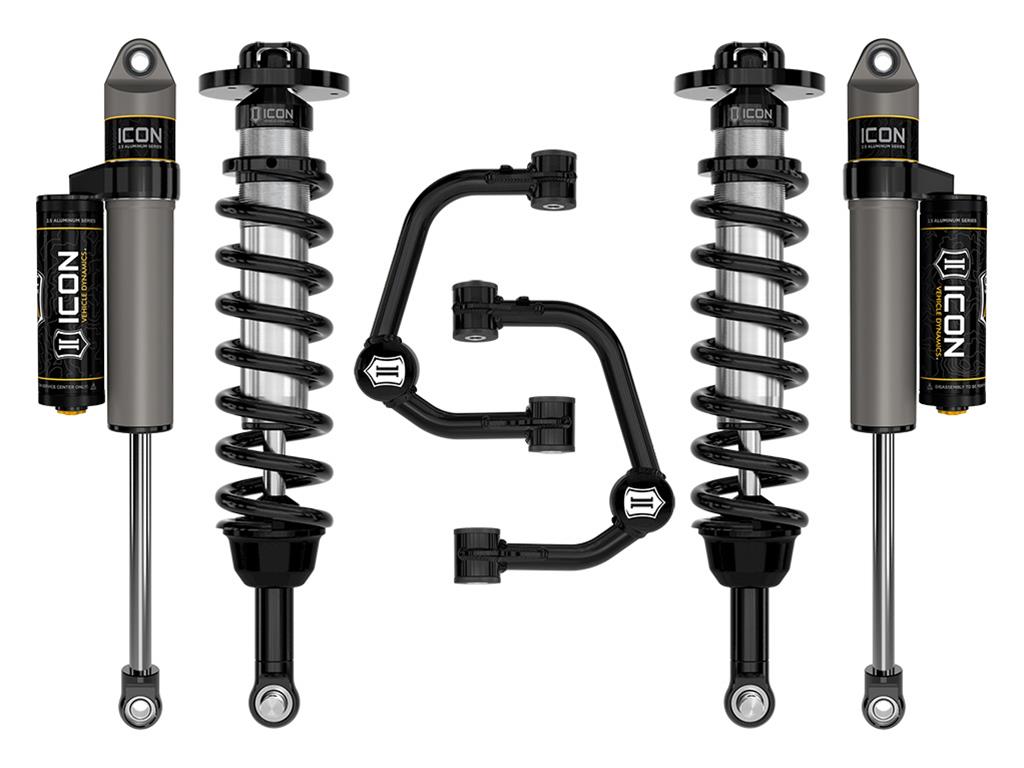

icoK93132T | ICON Vehicle Dynamics - Shocks and Struts for 2021-2024 F-150 K93132T 21-23 FORD F150 4WD 2.75-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA |
 |
icoK93133T | ICON Vehicle Dynamics - Shocks and Struts for 2021-2024 F-150 K93133T 21-23 FORD F150 4WD 2.75-3.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA |
 |
icoK93135T | ICON Vehicle Dynamics - Shocks and Struts for 2021-2024 F-150 K93135T 21-23 FORD F150 4WD 2.75-3.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA |
 |

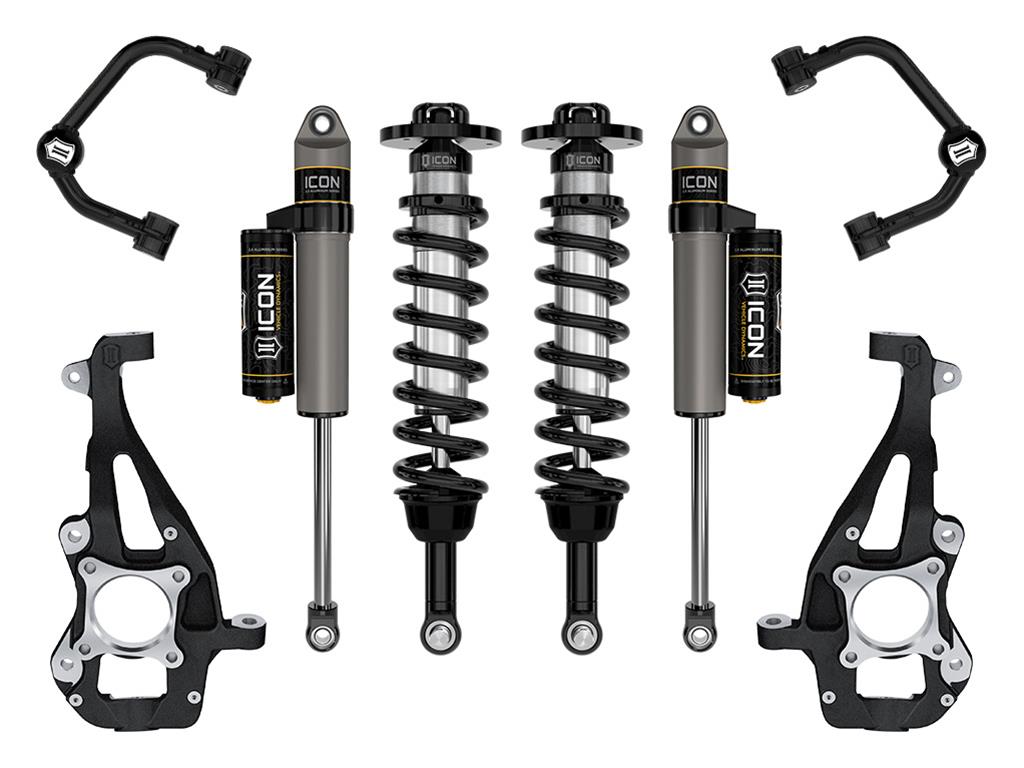

icoK93142T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93142T LIFT KIT W TUBULAR UCA 21-23 FORD F150 4WD 3.5-4.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA |
 |

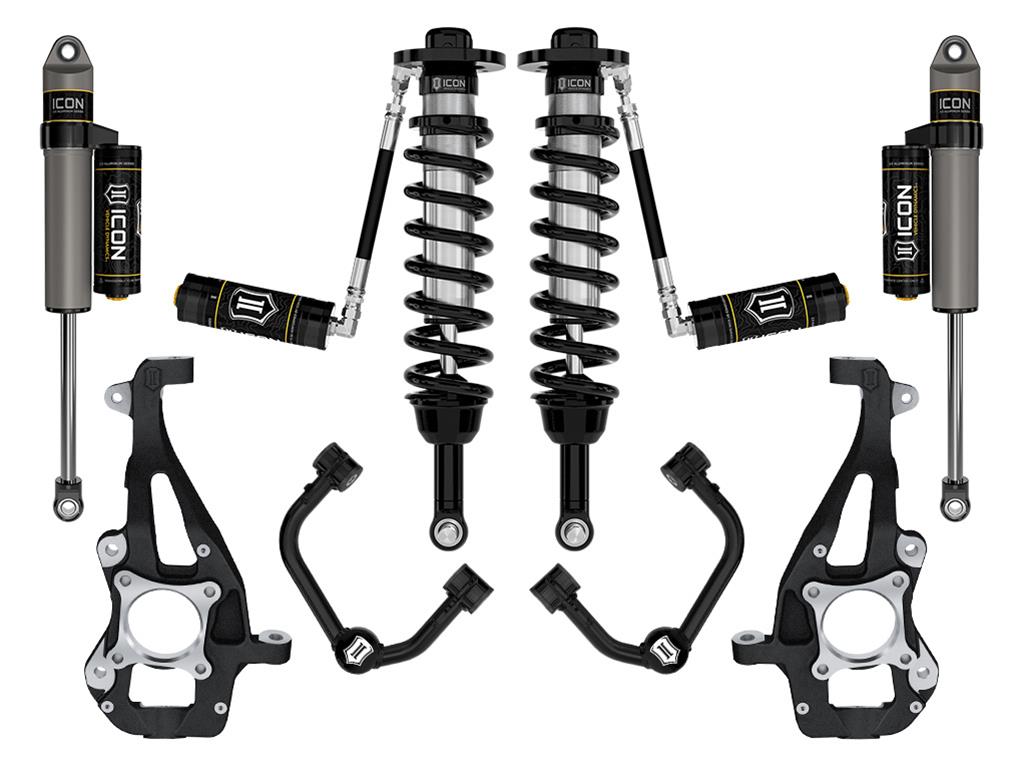

icoK93143T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93143T LIFT KIT W TUBULAR UCA 21-23 FORD F150 4WD 3.5-4.5" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA |
 |

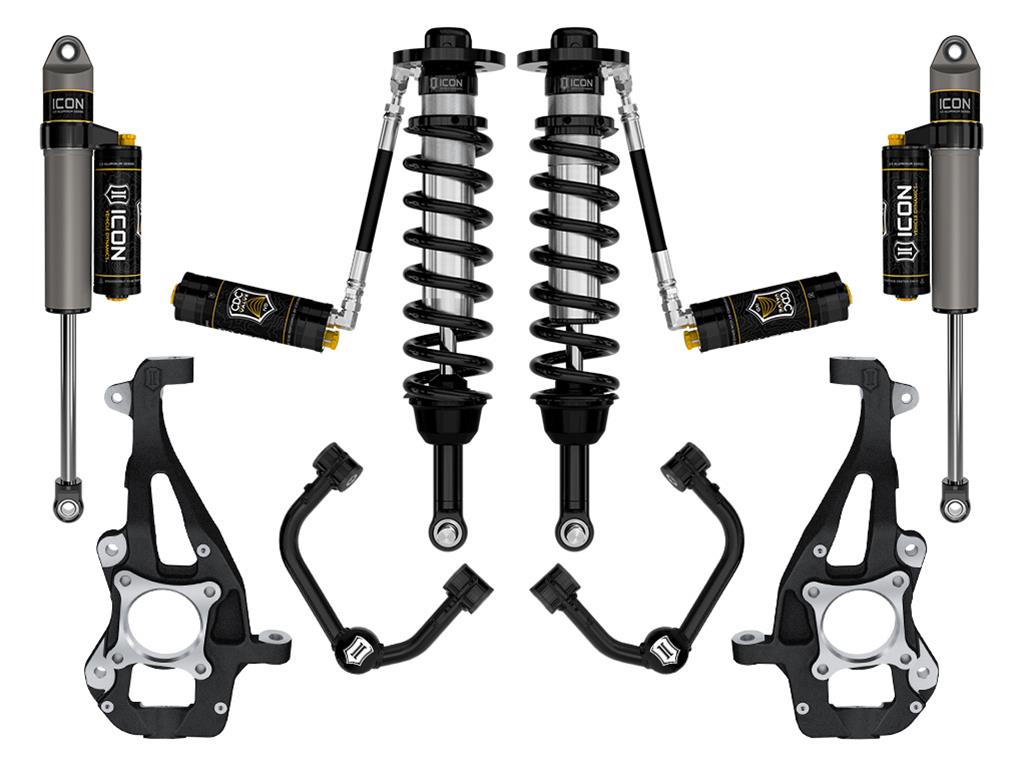

icoK93144T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93144T LIFT KIT W TUBULAR UCA 21-23 FORD F150 4WD 3.5-4.5"STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA |
 |

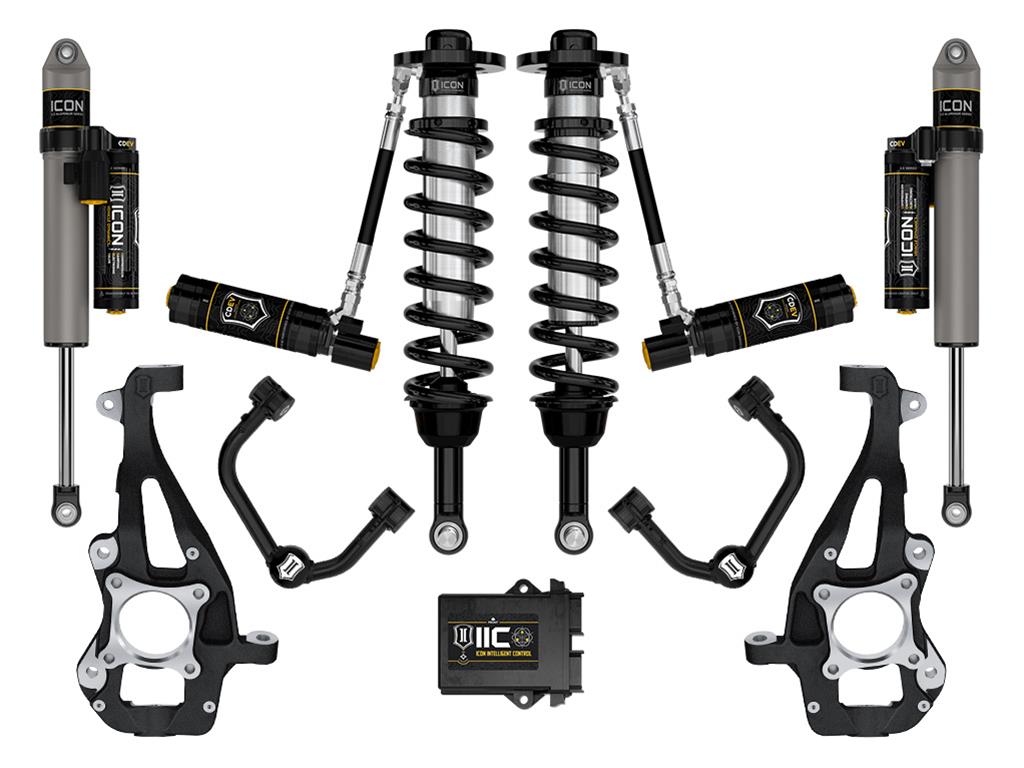

icoK93145T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93145T LIFT KIT W TUBULAR UCA 21-23 FORD F150 4WD 3.5-4.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA |
