ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 0-1in 2.5 Series Shocks VS PB - Pair
ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 0-1in 2.5 Series Shocks VS PB - Pair
A$2,612.95
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV.
Product Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features and Benefits
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Adjustable Damping: | No |
| Adjustable: | NO |
| Boot Included: | NO |
| Bore Diameter: | 2.25 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Grey |
| Cylinder Material: | Aluminum |
| Damping Type: | Oil |
| Description: | ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 0-1in 2.5 Series Shocks VS PB - Pair |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | EYELET |
| Mounting Hardware Included: | Yes |
| Part Number: | ico77751P |
| Service Parts: | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter: | 0.875 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | Center of Eylet |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Title: | ICON 2023-2024 GMC Canyon/Chevrolet Colorado, 0-1†Lift, Rear 2.5 VS Piggyback Reservoir Shocks, Pair |
| Tube Outside Diameter: | 2.5 |
| Upper Mount Type: | EYELET |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK73084T | Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 4 Suspension System w/ Tubular UCA (1x ico78660DJ, 1x ico71670, 1x ico77751P) |
 |
icoK73084 | Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage X Suspension System w/ Billet UCA (1x ico71670, 1x ico77751P, 1x ico78760DJ) |
 |

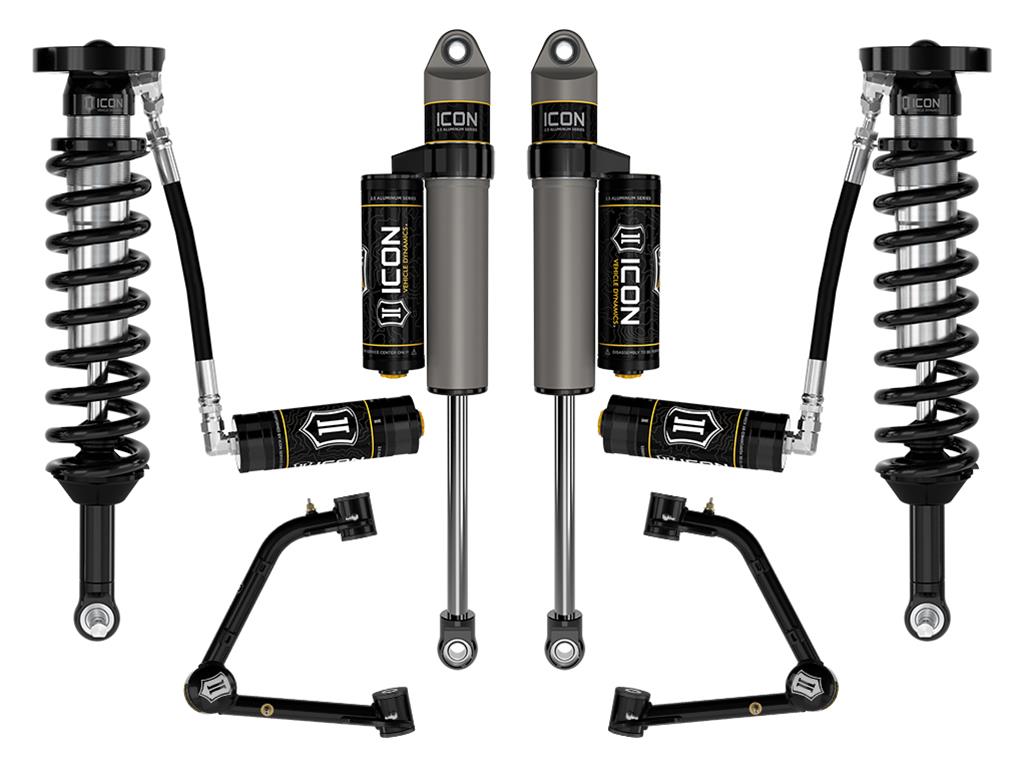

icoK73094T | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 4 Suspension System w/ Tubular UCA (1x ico71671, 1x ico78661DJ, 1x ico77751P) |
 |

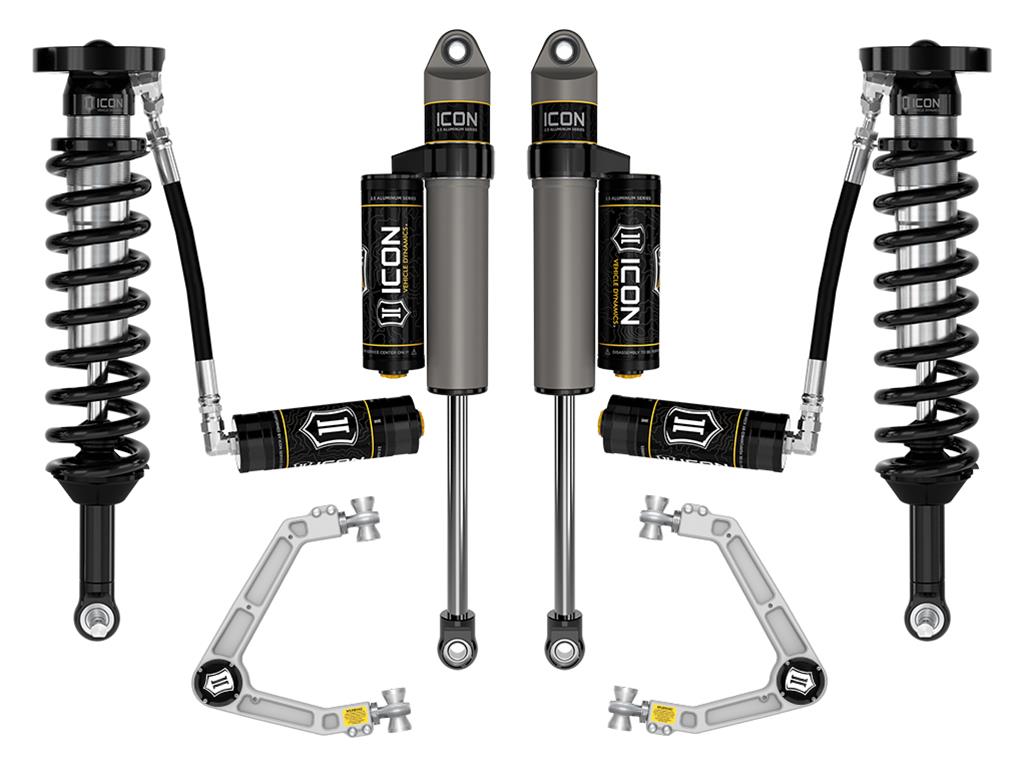

icoK73094 | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 4 Suspension System w/ Billet UCA (1x ico78761DJ, 1x ico71671, 1x ico77751P) |
Part Type
Suspension Shock Absorber Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 aircraft grade aluminum CNC machined components
- 7/8” diameter induction hardened, chrome plated shock shaft
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 77751P
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - UPC
- 00840103427201
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico77751P |
| SFX Item ID | 4141744 |
| Supplier Item Code | 4141744 |
| Manufacturer SKU | 77751P |
| Manufacturer UPC | 840103427201 |
| Alternative References | IVD77751P, 0-1in |
