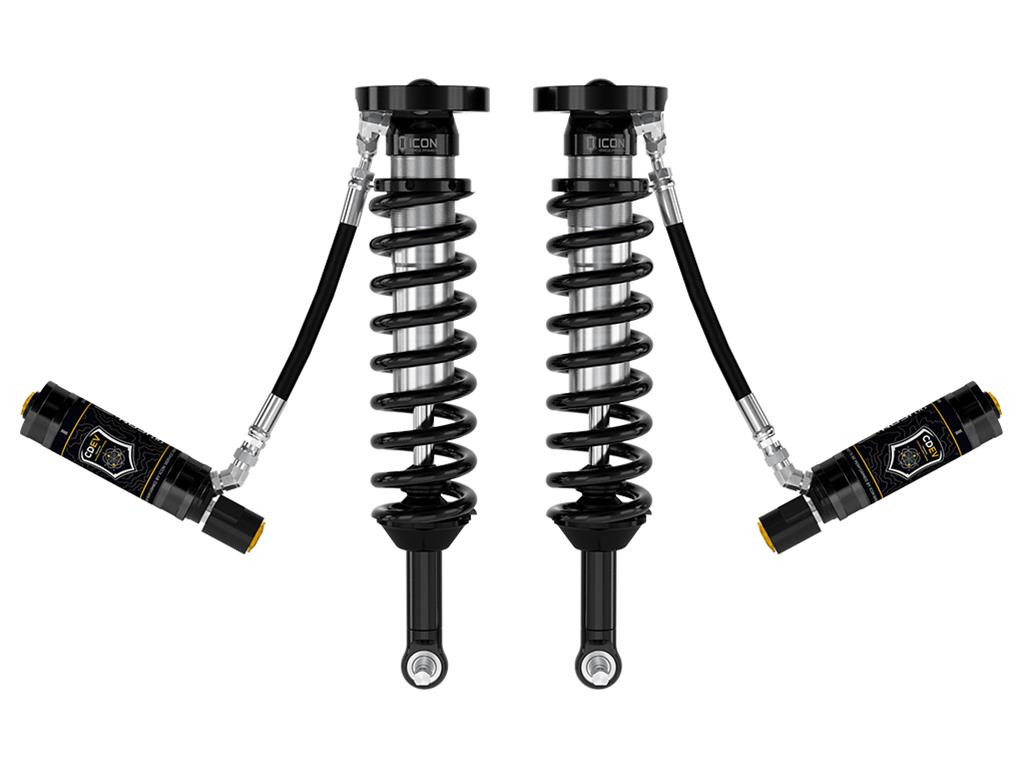

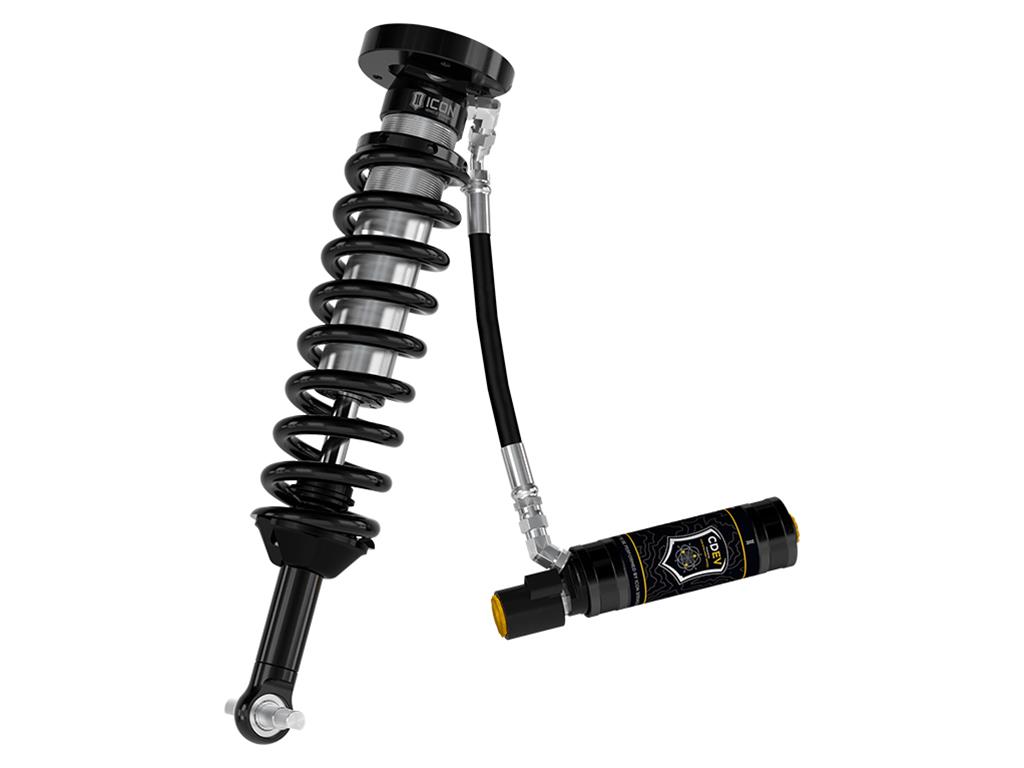

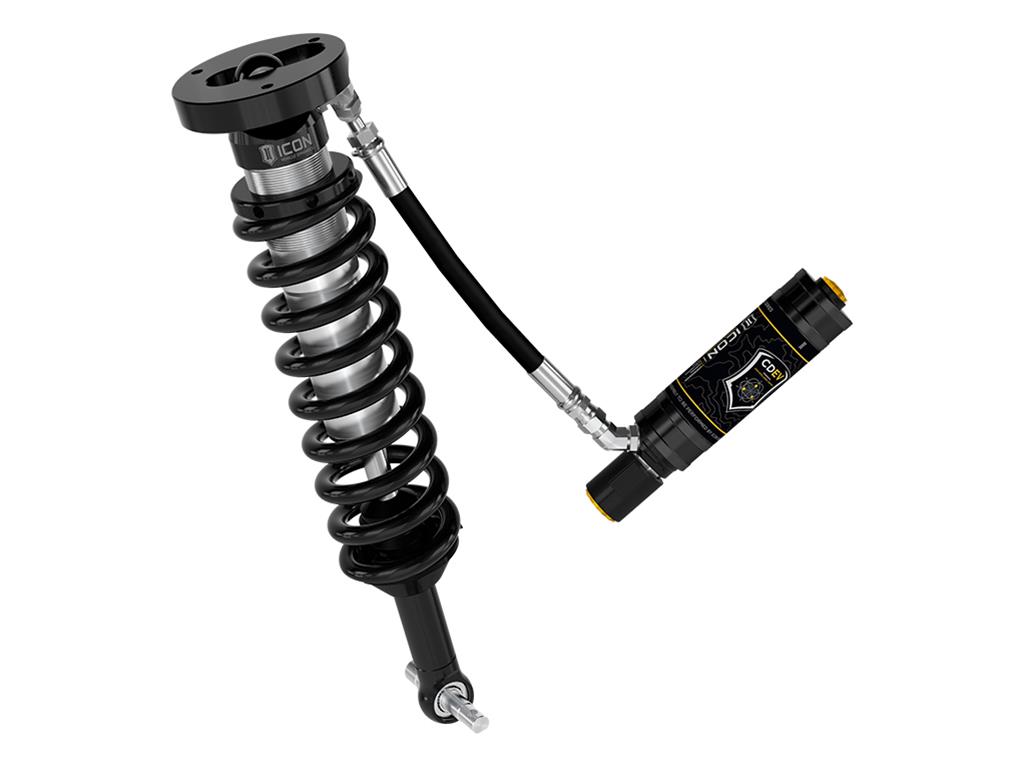

ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDEV Coilover Kit
ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDEV Coilover Kit
A$4,682.17
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2026 Chevrolet Colorado WT, LT, and Z71.
Product Overview
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.
Features and Benefits
- 20% increase in front wheel travel and improved ride quality over stock
- PTFE lined spherical bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Damping: | Yes |
| Adjustable Height: | Yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado 2.5 Series Ext Travel VS RR CDEV Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Bar Pin |
| Material: | Steel |
| Maximum Lift: | 2.5 |
| Minimum Lift: | 1.75 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico71671E |
| Recommended Aftermarket Tires: | 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | 17x8.5" w/ 5.46†Backspace / 18mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Flat on Bar Pin |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2023-2024 Chevrolet Colorado WT, LT, & Z71, 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV |
| Upper Mount Type: | Mounting Plate |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK73096T | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 6 Suspension System w/ Tubular UCA (1x ico78661DJ, 1x ico77751EP, 1x ico71671E, 1x ico73000) |
 |
icoK73096 | ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 6 Suspension System w/ Billet UCA (1x ico78761DJ, 1x ico77751EP, 1x ico71671E, 1x ico73000) |
Part Type
Coilover Set
Features
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- 20% increase in front wheel travel and improved ride quality over stock
- 6061 Aircraft grade aluminum CNC machined components
- 7/8" diameter hardened chrome plated shafts
- Adjustable for 1.75-2.5" of front lift height over stock
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- Fully rebuildable and re-tunable
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- ICON engineered coil springs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 71671E
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103427560
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico71671E |
| SFX Item ID | 4141748 |
| Supplier Item Code | 4141748 |
| Manufacturer SKU | 71671E |
| Manufacturer UPC | 840103427560 |
| Alternative References | IVD71671E |
