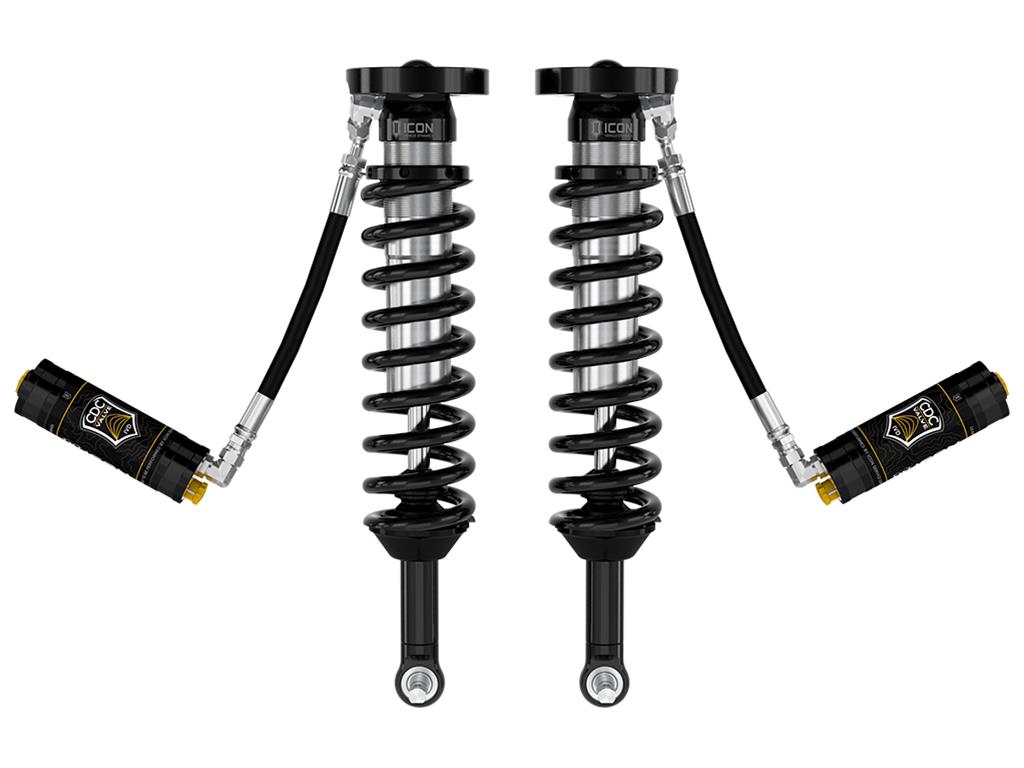

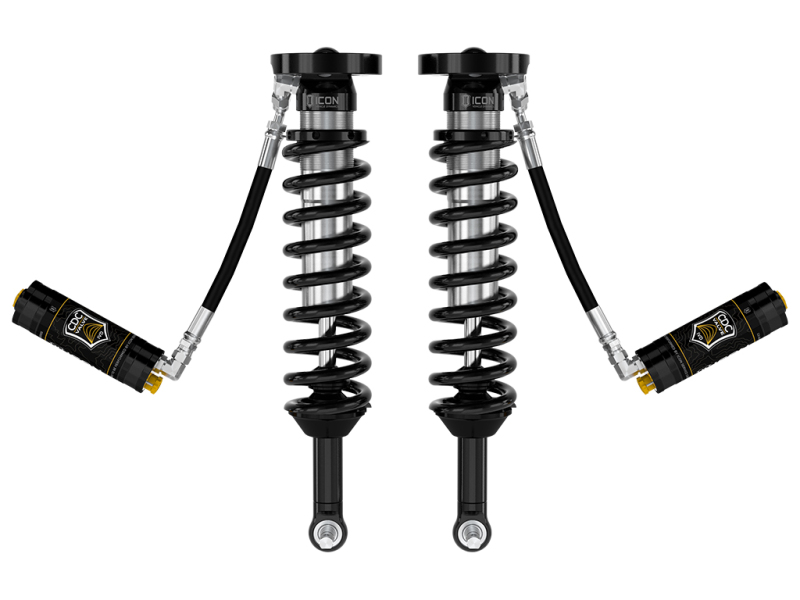

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 9.5” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2026 Chevrolet Colorado WT, LT, and Z71.

Additional Information

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Part Type

Coilover Set

Features and Benefits

• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Adjustable for 1.75-2.5" of front lift height over stock
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Fully rebuildable and re-tunable
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle specific tuned for superior shock damping and control

Product Details

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

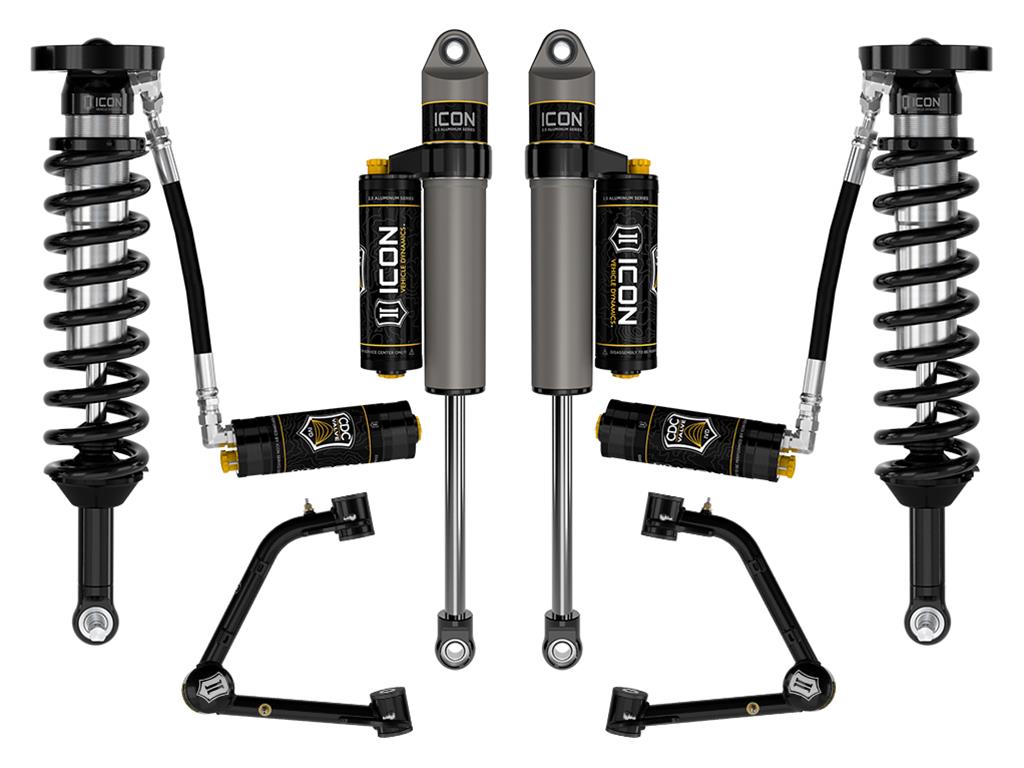

	icoK73095T	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 5 Suspension System w/ Tubular UCA (1x ico78661DJ, 1x ico71671C, 1x ico77751CP)

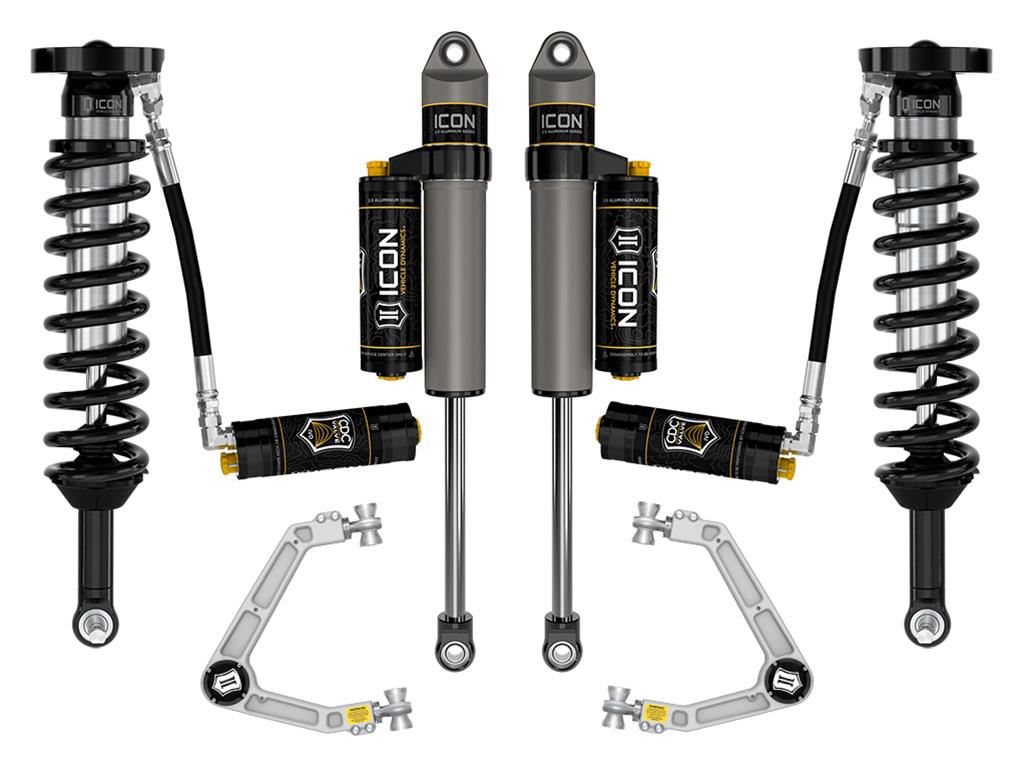

	icoK73095	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 5 Suspension System w/ Billet UCA (1x ico78761DJ, 1x ico71671C, 1x ico77751CP)

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK73095T	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 5 Suspension System w/ Tubular UCA (1x ico78661DJ, 1x ico71671C, 1x ico77751CP)
	icoK73095	ICON 2023 Chevrolet Colorado 1.75-2.5in Stage 5 Suspension System w/ Billet UCA (1x ico78761DJ, 1x ico71671C, 1x ico77751CP)

• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Adjustable for 1.75-2.5" of front lift height over stock
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Fully rebuildable and re-tunable
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle specific tuned for superior shock damping and control

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
