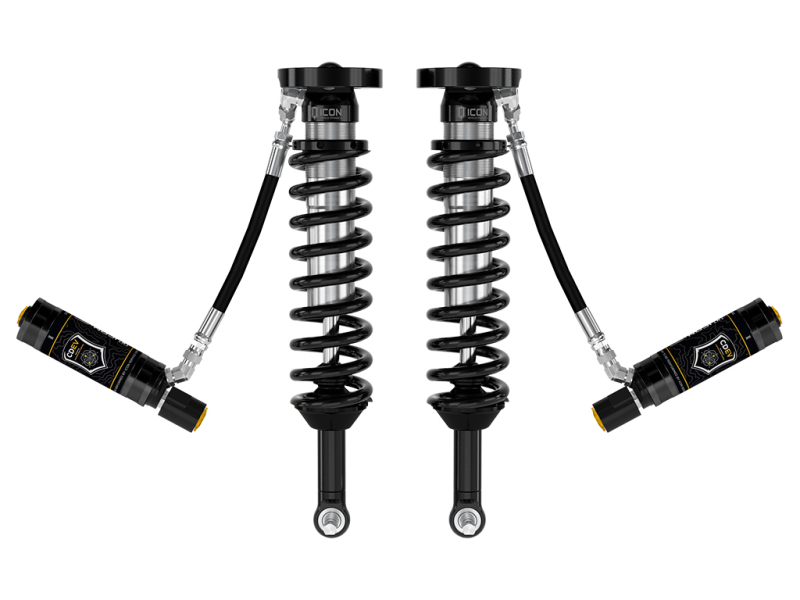

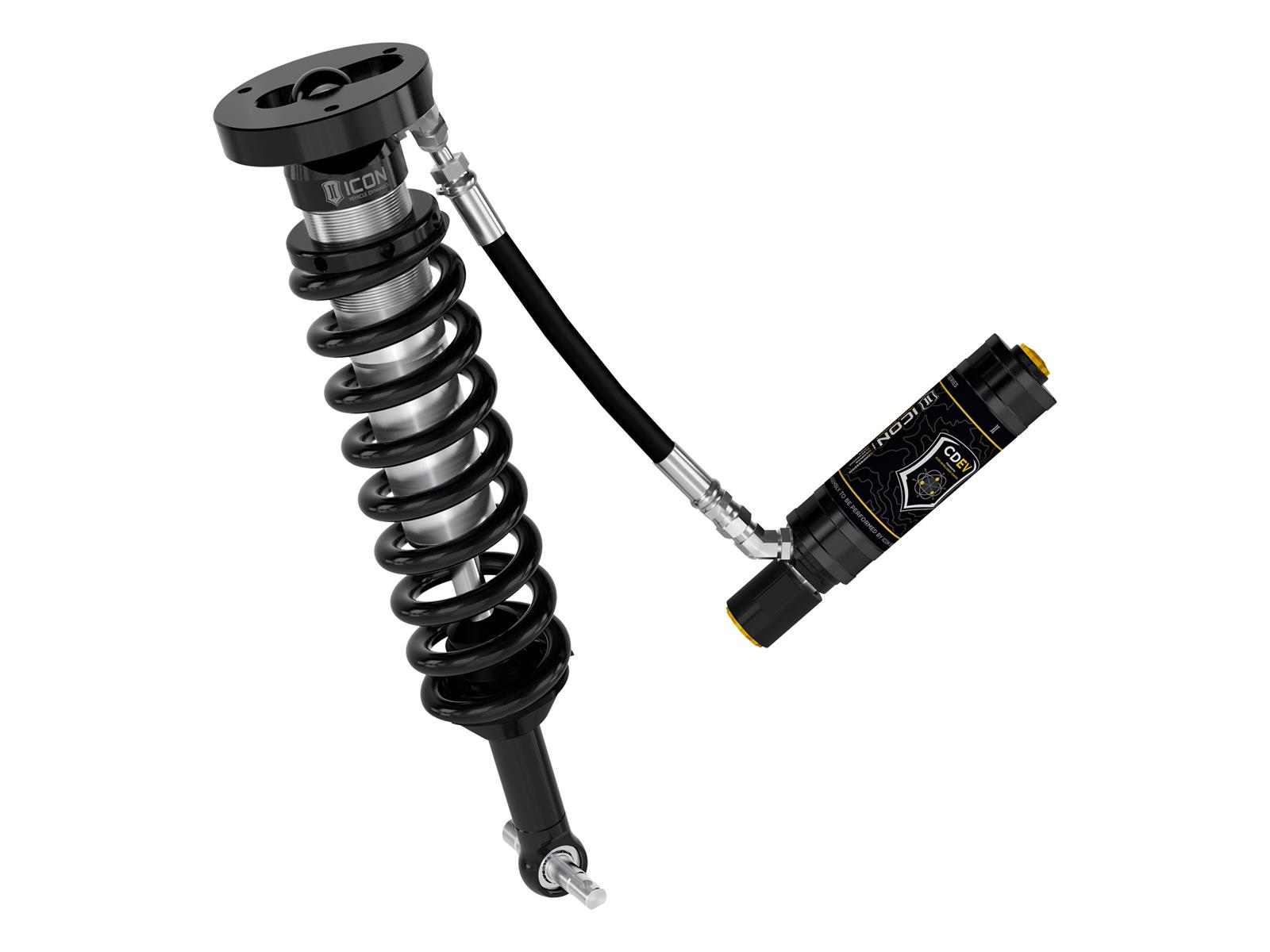

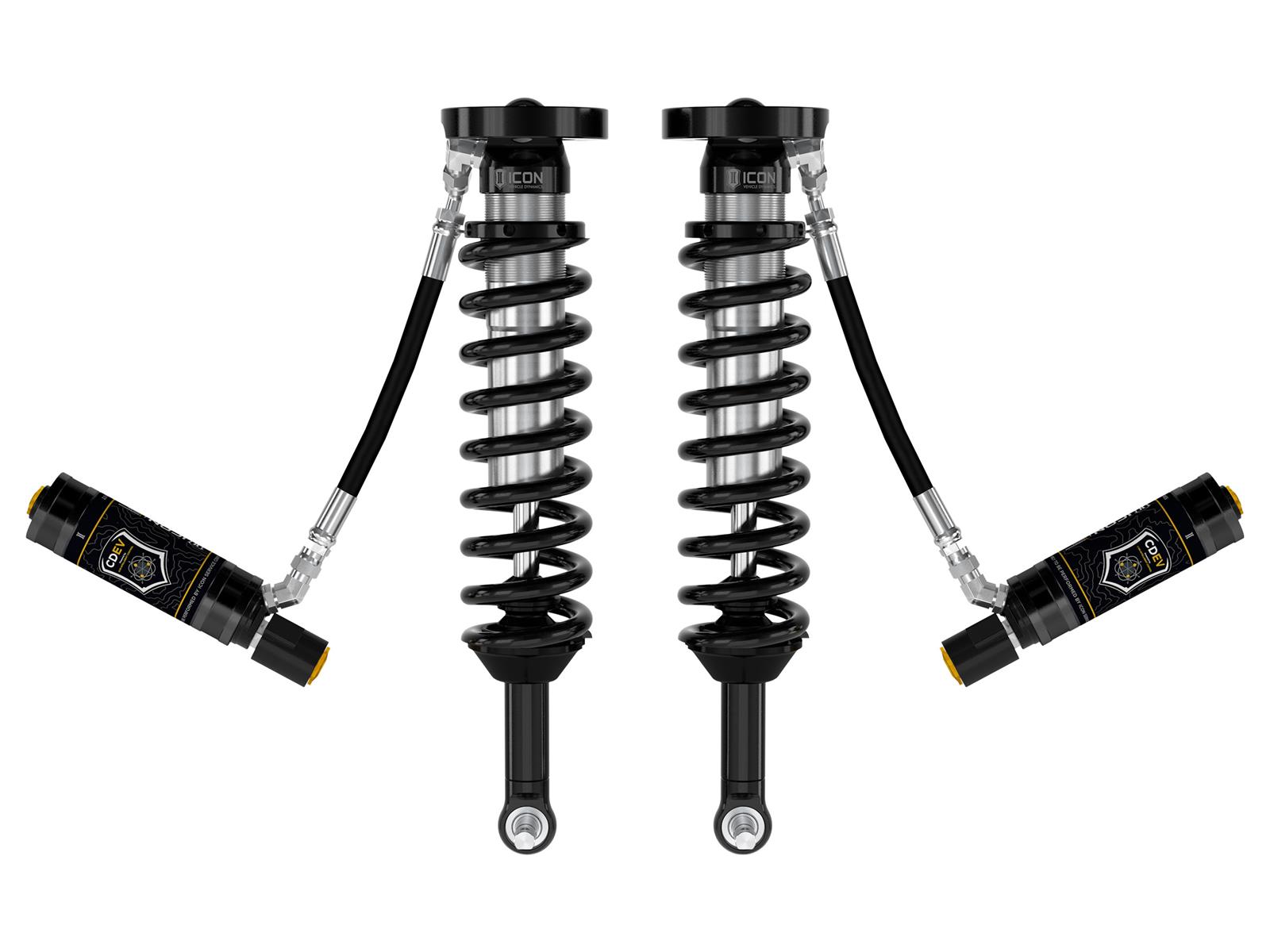

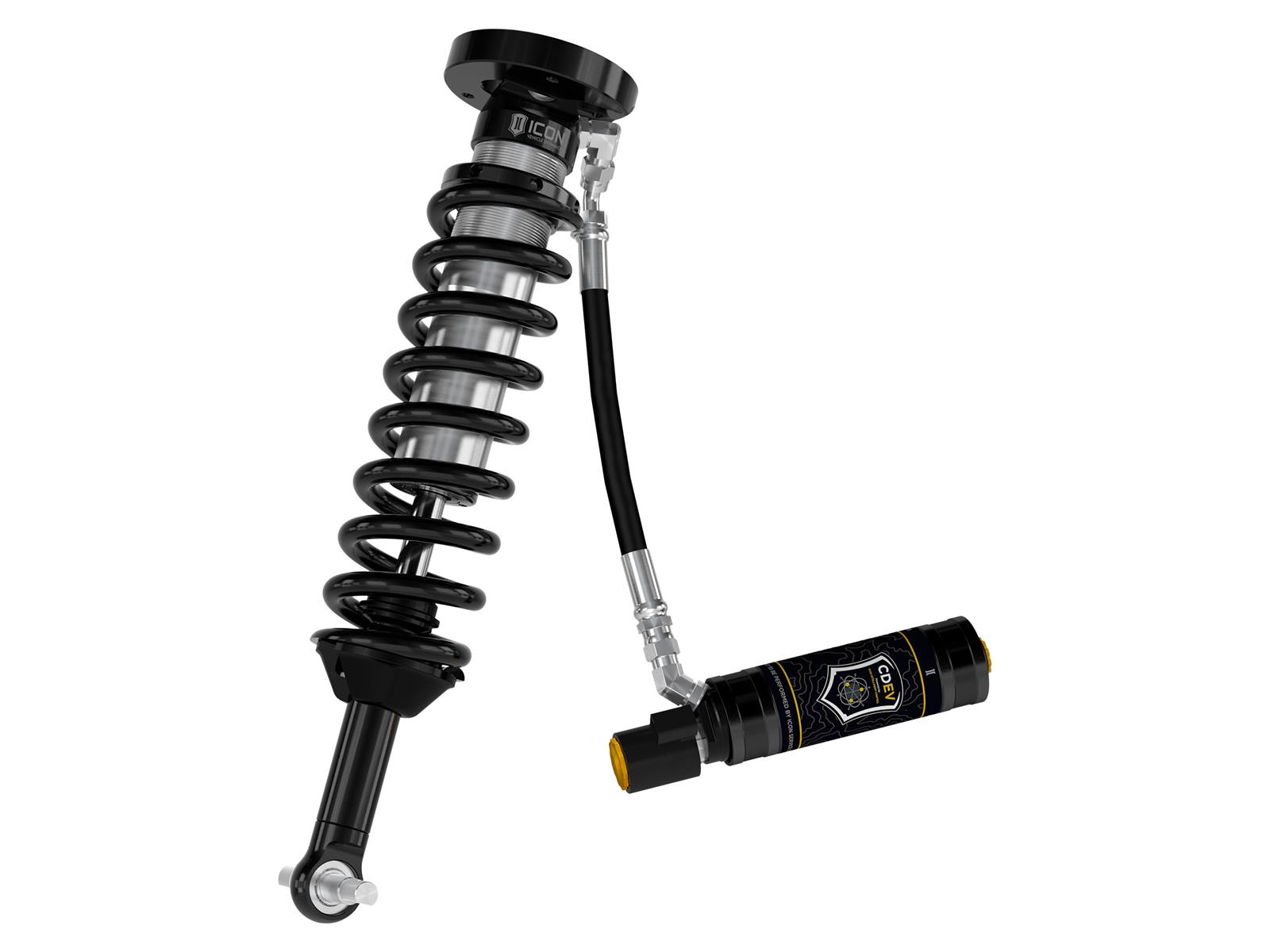

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 GMC Canyon and 2023-2026 Chevrolet Colorado Trail Boss trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss.

Additional Information

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Part Type

Coilover Set

Features and Benefits

• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Adjustable for 1.75-2.5" of front lift height over stock
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Fully rebuildable and re-tunable
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• ICON engineered coil springs
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle specific tuned for superior shock damping and control

Product Details

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK73086T	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 6 Suspension System (1x ico78660DJ, 1x ico77751EP, 1x ico73000, 1x ico71670E)
	icoK73086	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 6 Suspension System w/ Billet UCA (1x ico77751EP, 1x ico73000, 1x ico78760DJ, 1x ico71670E)

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK73086T	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 6 Suspension System (1x ico78660DJ, 1x ico77751EP, 1x ico73000, 1x ico71670E)
	icoK73086	Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 6 Suspension System w/ Billet UCA (1x ico77751EP, 1x ico73000, 1x ico78760DJ, 1x ico71670E)

• 100% Bolt-on - no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8" diameter hardened chrome plated shafts
• Adjustable for 1.75-2.5" of front lift height over stock
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Fully rebuildable and re-tunable
• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• ICON engineered coil springs
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Vehicle specific tuned for superior shock damping and control

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
