ICON 2023+ GM Canyon/Colorado EXT Travel 2.5 Series Shocks VS RR Coilover Kit
ICON 2023+ GM Canyon/Colorado EXT Travel 2.5 Series Shocks VS RR Coilover Kit
A$3,607.51
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2026 GMC Canyon and 2023-2026 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.
Product Overview
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.
Features and Benefits
- 20% increase in front wheel travel and improved ride quality over stock
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings for extended longevity and minimal deflection
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | No |
| Adjustable Height: | Yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | ICON 2023+ GM Canyon/Colorado EXT Travel 2.5 Series Shocks VS RR Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Bar Pin |
| Material: | Aluminum |
| Maximum Lift: | 2.5 |
| Minimum Lift: | 1.75 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico71670 |
| Recommended Aftermarket Tires: | 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | 17x8.5" w/ 5.46†Backspace / 18mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Flat on Bar Pin |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss & ZR2, 2.5 Series Coilover Kit, Remote Reservoir |
| Upper Mount Type: | Mounting Plate |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |

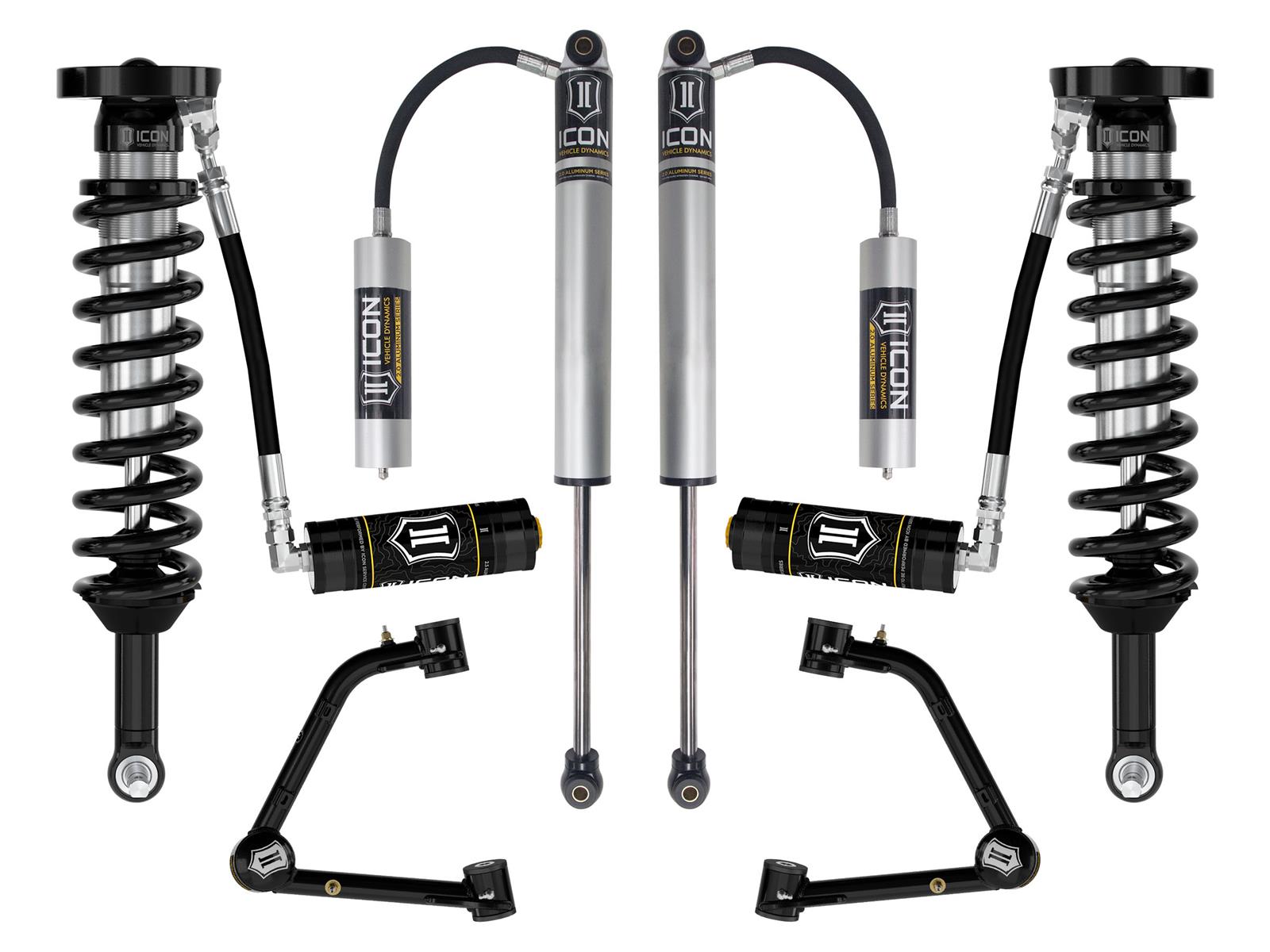

icoK73083T | Icon 2023+ GM Canyon/Colorado 1.75in-2.5in Stage 3 Suspension System w/ Tubular UCA (1x ico78660DJ, 1x ico71670, 2x ico76550R) |
 |

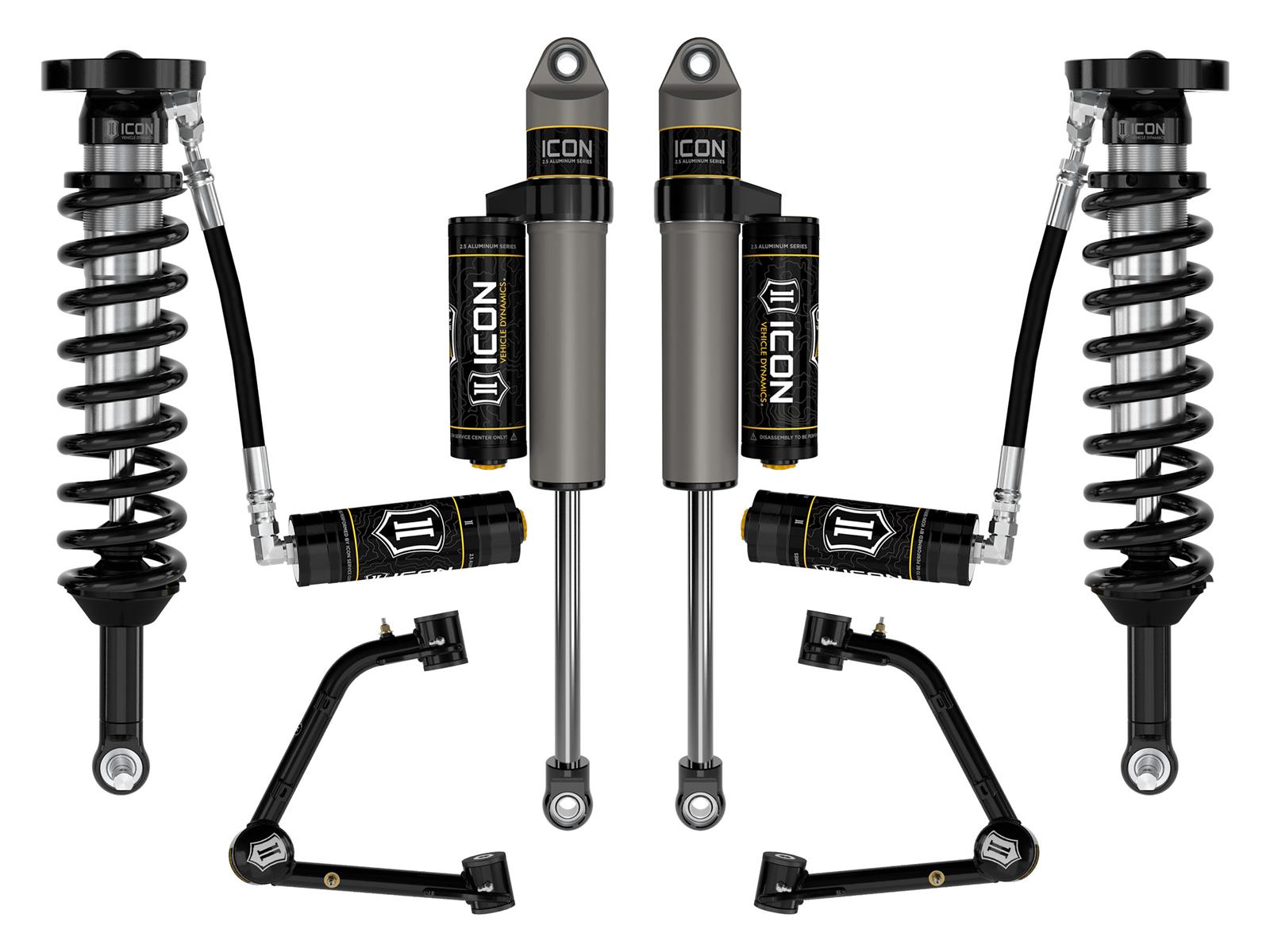

icoK73084T | Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage 4 Suspension System w/ Tubular UCA (1x ico78660DJ, 1x ico71670, 1x ico77751P) |
 |
icoK73084 | Icon 2023+ GM Canyon/Colorado 1.75-2.5in Stage X Suspension System w/ Billet UCA (1x ico71670, 1x ico77751P, 1x ico78760DJ) |
Part Type
Coilover Set
Features
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- 20% increase in front wheel travel and improved ride quality over stock
- 6061 Aircraft grade aluminum CNC machined components
- 7/8" diameter hardened chrome plated shafts
- Adjustable for 1.75-2.5" of front lift height over stock
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- Fully rebuildable and re-tunable
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- ICON engineered coil springs
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 71670
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - UPC
- 00840103427133
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico71670 |
| SFX Item ID | 4141711 |
| Supplier Item Code | 4141711 |
| Manufacturer SKU | 71670 |
| Manufacturer UPC | 840103427133 |
| Alternative References | IVD71670 |
