ICON 07-18 GM 1500 1-2.5in 2.5 Series Shocks VS RR CDCV Coilover Kit
ICON 07-18 GM 1500 1-2.5in 2.5 Series Shocks VS RR CDCV Coilover Kit
A$3,912.72
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

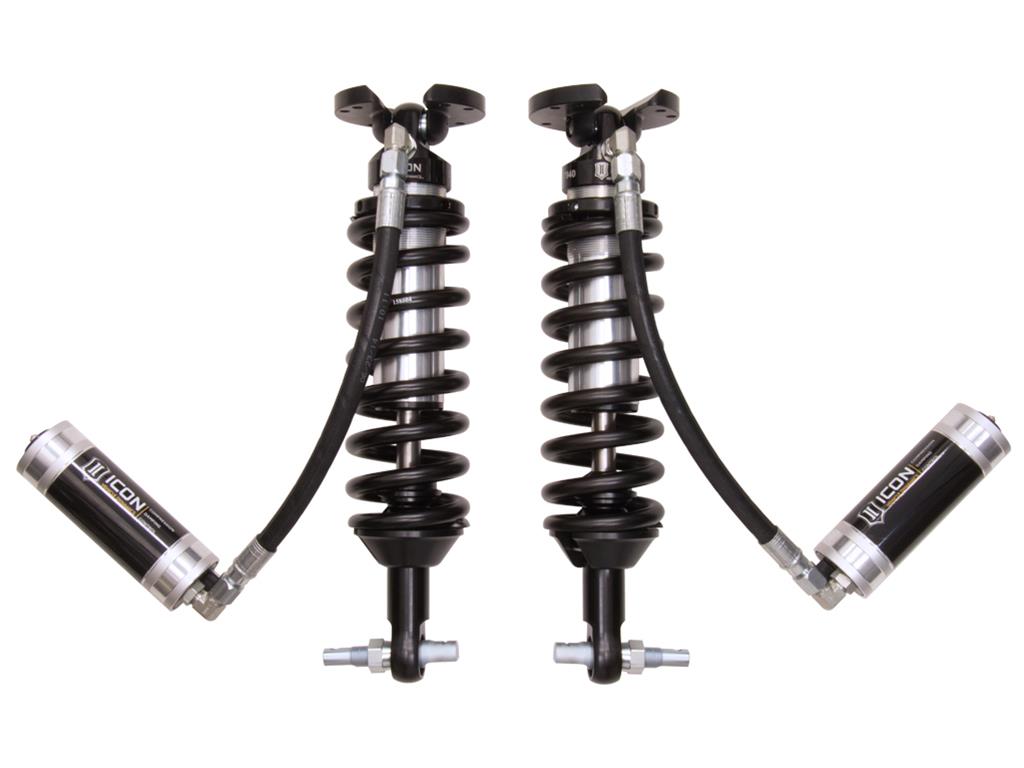

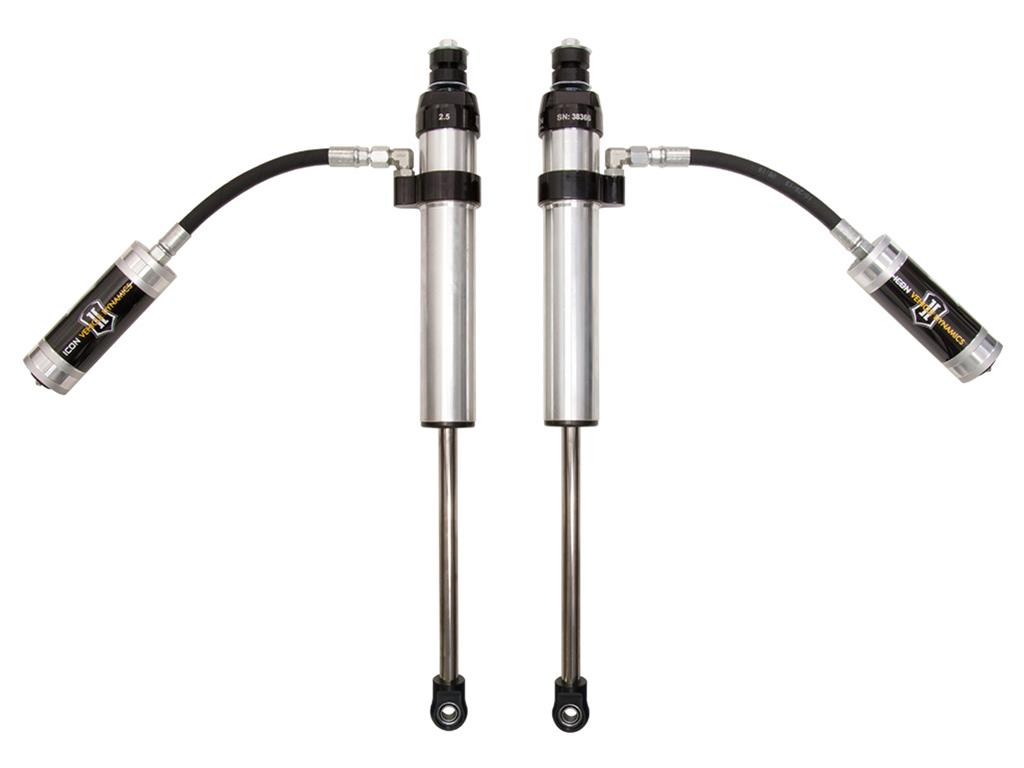

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2007-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-2.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.
Product Overview
TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping: | Yes |
| Adjustable Height: | yes |
| Amortiguación Ajustable: | SI |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | BAR PIN |
| Material del resorte: | Acero |
| Material: | Steel |
| Muelles helicoidales incluidos: | SI |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico71555C |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 17x8.5" w/ 4.75†Backspace / 0mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Flat on Bar Pin |
| Spring Color: | Black |
| Spring Material: | Steel |
| Tipo de Grado: | Reparación de Banda |
| Title: | 07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT |
| Upper Mount Type: | Mounting Plate |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK73005A | ICON 14-18 GM 1500 1-3in Stage 5 Suspension System (Large Taper) (1x ico78601DJ, 1x ico77700CP, 1x ico71555C) |
|
icoK73005 | ICON 07-18 GM 1500 1-3in Stage 5 Suspension System (Small Taper) (1x ico78600DJ, 1x ico77700CP, 1x ico71555C) |
Part Type
Coilover Set
Features
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- External reservoir to attain cooler operating temperatures during extended offroad use
- FK Rod End bearings for extended longevity and minimal deflection
- Height-adjustable coilovers offer 1-2.5" of front lift height
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 71555C
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 RR Coilover Kits
- Product Attributes - UPC
- 00840103406008
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 1.0-2.5 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- T-bar
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico71555C |
| SFX Item ID | 4141064 |
| Supplier Item Code | 4141064 |
| Manufacturer SKU | 71555C |
| Manufacturer UPC | 840103406008 |
| Alternative References | IVD71555C, 1-2.5in |
