Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2026 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.

Product Overview

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.

Features and Benefits

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use

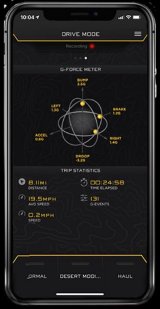

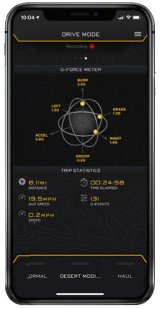

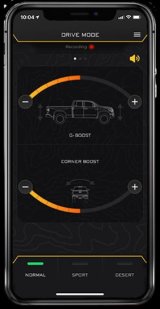

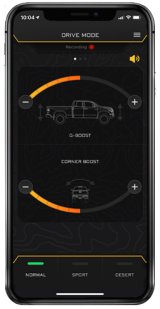

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Product Details

Active or Passive Suspension:	Active
Add-On Part:	55156 - 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT
Adjustable Compression:	Yes
Adjustable Damping:	Yes
Adjustable Height:	Yes
Adjustable Rebound:	No
Adjustable:	Yes
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Adjustment Type:	Electronic
Damping Type:	Oil
Description:	Icon 2024 Lexus GX550 2.5 Series Coilover Kit w/Remote Reservoir CDEV
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	Eyelet
Material:	Steel
Maximum Lift:	3
Minimum Lift:	1.25
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58790E
Recommended Aftermarket Tires:	34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels:	ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
Remote Reservoir:	Yes
Reservoir Style:	Remote
Self-Leveling:	No
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eyelet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	ICON 2024 Lexus GX550, 1.25-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Pair
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53360	(1x ico54102, 1x ico54202, 1x ico55156, 1x ico58552DJ, 1x ico57870EP, 1x ico55161, 1x ico54003, 1x ico52752, 1x ico53512, 1x ico58790E)
	icoK53355	ICON 2024+ Lexus GX550 1.25-3in Lift Stage 5 Billet Suspension System (1x ico55156, 1x ico58552DJ, 1x ico57870P, 1x ico52752, 1x ico58790E)
	icoK53360T	Icon 2024 GX550 1.25-3in Stage 10 Tubular Suspension System (1x ico54202, 1x ico55156, 1x ico54102T, 1x ico58452DJ, 1x ico57870EP, 1x ico55161, 1x ico54003T, 1x ico52752, 1x ico53512, 1x ico58790E)

Data: v4.2 - Upd: 2026-10-08 19:33:02

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

58790E

Product Attributes - Part Type

Coilover Kits

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR CDEV Coilover Kits

Product Attributes - UPC

00840103430829

Product Attributes - Coilover Kit Position

Front

Product Attributes - Adjustable Valving

No

Product Attributes - Shocks Included

Yes

Product Attributes - Internal Design

Monotube

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Suspension Height Adjustment

1.2-3.0 in. raised

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Bracket

Product Attributes - Lower Mount

Eyelet

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Shock Body Finish

Silver

Product Attributes - Spring Finish

Black

Product Attributes - Crossmember Included

No

Product Attributes - Adjustable Mounting Bracket Included

No

Product Attributes - Hardware Included

No

Product Attributes - Welding Required

No

Product Attributes - Quantity

Sold as a kit.
