ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDEV Coilover Kit
ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDEV Coilover Kit
A$4,673.45
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

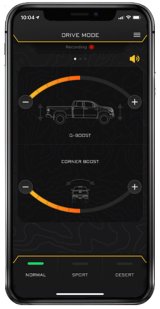

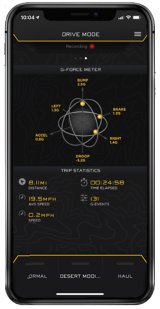

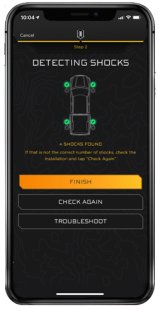

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Product Overview
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.
Features and Benefits
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Active |
| Add-On Part: | 55156 - 22-24 TUNDRA/23-24 SEQUOIA/24 GX550 DIFF DROP KIT |
| Adjustable Compression: | Yes |
| Adjustable Damping: | NO |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDEV Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | Eyelet |
| Material: | Steel |
| Maximum Lift: | 2.5 |
| Minimum Lift: | 1 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58772E |
| Recommended Aftermarket Tires: | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels: | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 2023-2024 Sequoia TRD Pro, 1-2.5" Lift, Front, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK53398 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53398 23-24 TRD PRO 2.5" STAGE 8 SUSPENSION SYSTEM |
 |
icoK53399 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53399 23-24 TRD PRO 2.5" STAGE 9 SUSPENSION SYSTEM BILLET |
 |
icoK53399T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53399T 23-24 TRD PRO 2.5" STAGE 9 SUSPENSION SYSTEM TUBULAR |
 |
icoK53400 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53400 23-24 TRD PRO 2.5" STAGE 10 SUSPENSION SYSTEM BILLET |
 |
icoK53400T | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2023-2024 SEQUOIA K53400T 23-24 TRD PRO 2.5" STAGE 10 SUSPENSION SYSTEM TUBULAR |
Part Type
Coilover Set
Features
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- ICON engineered coil springs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Increased wheel travel and improved ride quality over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58772E
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103432168
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58772E |
| SFX Item ID | 4141884 |
| Supplier Item Code | 4141884 |
| Manufacturer SKU | 58772E |
| Manufacturer UPC | 840103432168 |
| Alternative References | IVD58772E |
