ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53136 05-11 HILUX 0-3" STAGE 1 SUSPENSION SYSTEM
icoK53136
A$3,609.80
ICON 2010+ Toyota 4Runner 2.5 Series Ext Travel VS RR CDEV Coilover Kit
ICON 2010+ Toyota 4Runner 2.5 Series Ext Travel VS RR CDEV Coilover Kit
A$4,683.44
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Product Overview
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features and Benefits
- 100% Revalveable

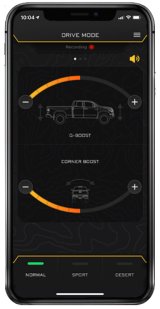

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Bolt-on kit - no cutting or welding necessary for installation
- 100% Rebuildable
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 0-3.5" of lift height over stock
- ICON engineered Eibach Springs
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Damping: | Yes |
| Adjustable Height: | yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | 10-UP 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material: | Steel |
| Maximum Lift: | 3.5 |
| Minimum Lift: | 0 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58747E |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 20x9" w/ 5†Backspace / 0mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Spring Rate: | 650 |
| Title: | ICON 2010-2024 Toyota 4Runner, 0-3.5" Lift, V.S. 2.5 Series Extended Travel Coilover Kit, Remote Reservoir w/ CDEV |
| Upper Mount Type: | Mounting Plate |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK53069T | ICON 10-24 Toyota 4Runner 0-3.5in Stage 9 Suspension System w/ Tubular UCA (1x ico52700, 1x ico54000T, 1x ico54100T, 1x ico54200, 1x ico58451DJ, 1x ico58747E, 1x ico57810EP, 1x ico53504) |
 |
icoK53069 | ICON 10-24 4RUNNER 0-3.5in Stage 9 Suspension System - Billet UCA (1x ico52700, 1x ico54000, 1x ico54100, 1x ico54200, 1x ico58551DJ, 1x ico58747E, 1x ico57810EP, 1x ico53504) |
Part Type
Coilover Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable for 0-3.5" of lift height over stock
- Bolt-on kit - no cutting or welding necessary for installation
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- External reservoirs to attain cooler operating temperatures during extended off-road use
- FK rod end bearings for extended longevity and minimal deflection
- ICON engineered Eibach Springs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58747E
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103411712
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58747E |
| SFX Item ID | 4141395 |
| Supplier Item Code | 4141395 |
| Manufacturer SKU | 58747E |
| Manufacturer UPC | 840103411712 |
| Alternative References | IVD58747E, 4Runner |
