ICON 2016+ Toyota Tacoma 2.5 Series Ext Travel VS RR CDEV Coilover Kit
ICON 2016+ Toyota Tacoma 2.5 Series Ext Travel VS RR CDEV Coilover Kit
A$4,659.99
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

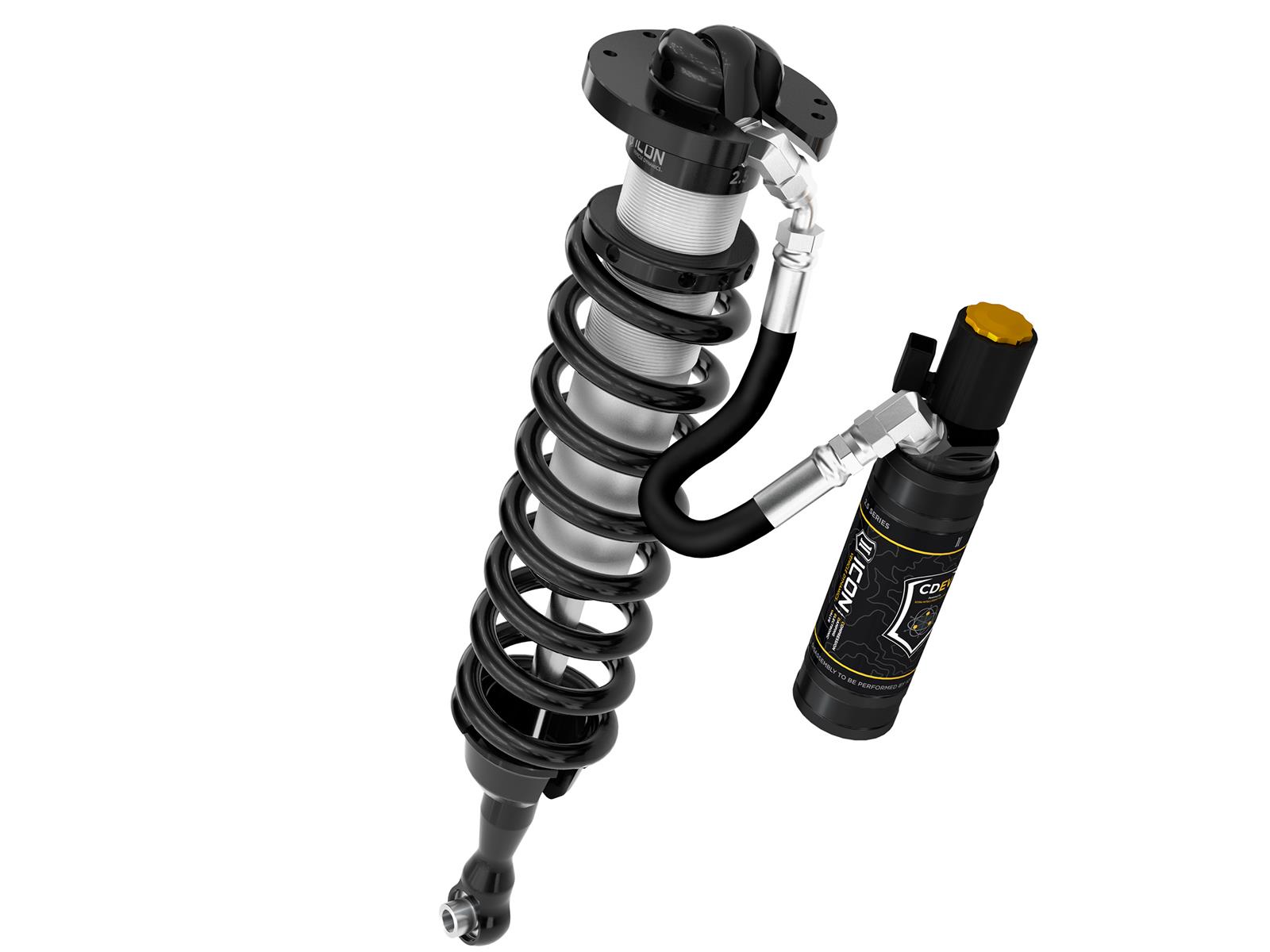

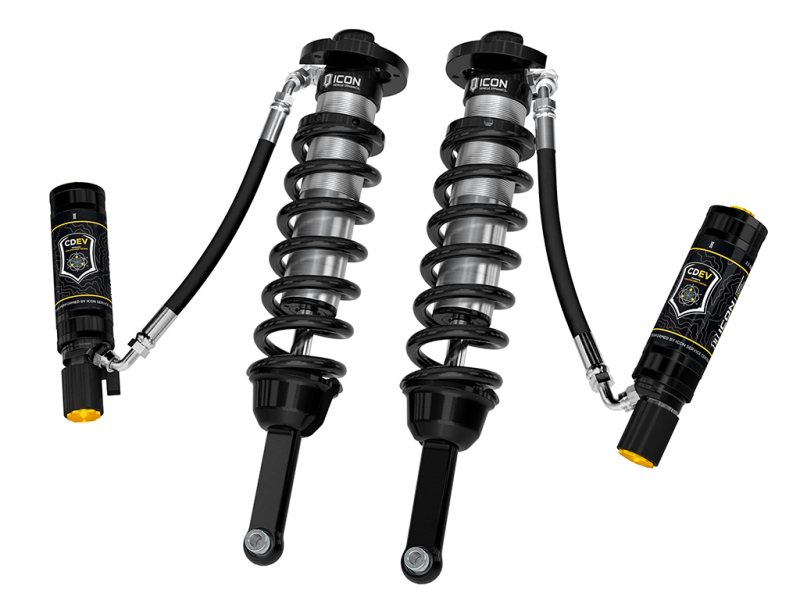

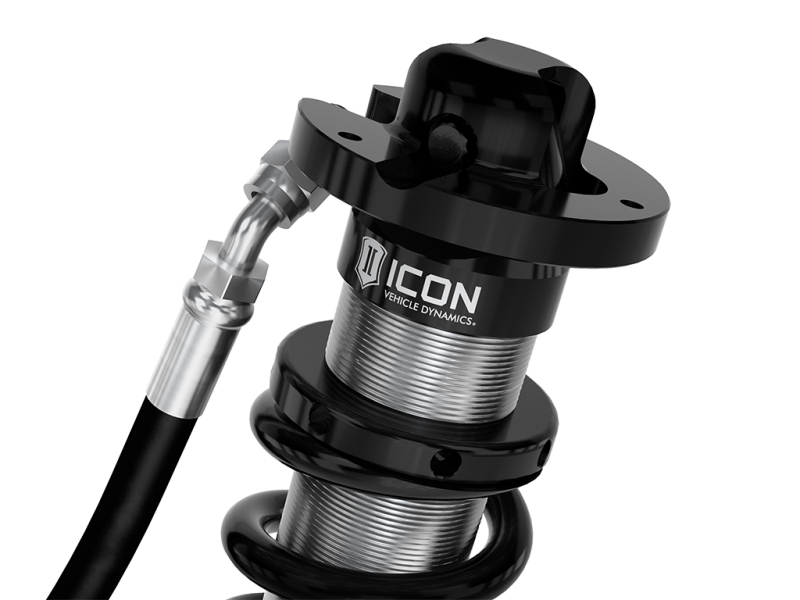

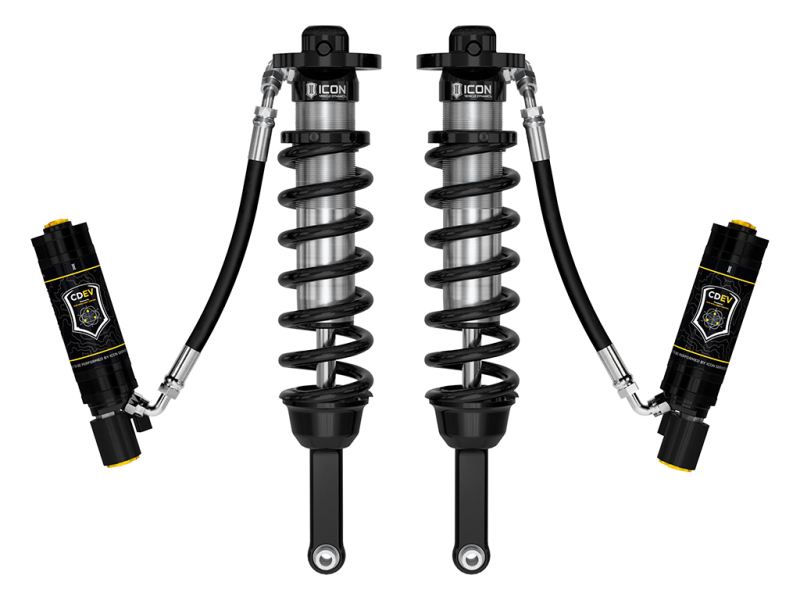

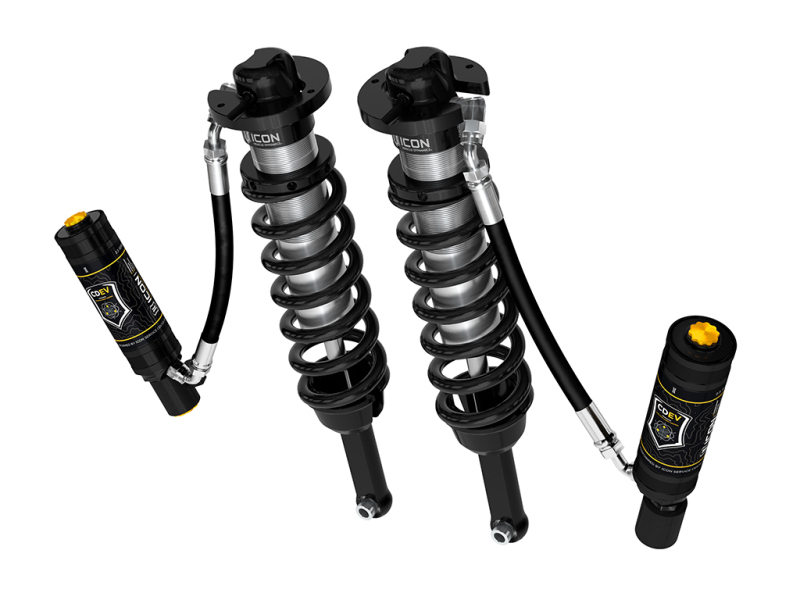

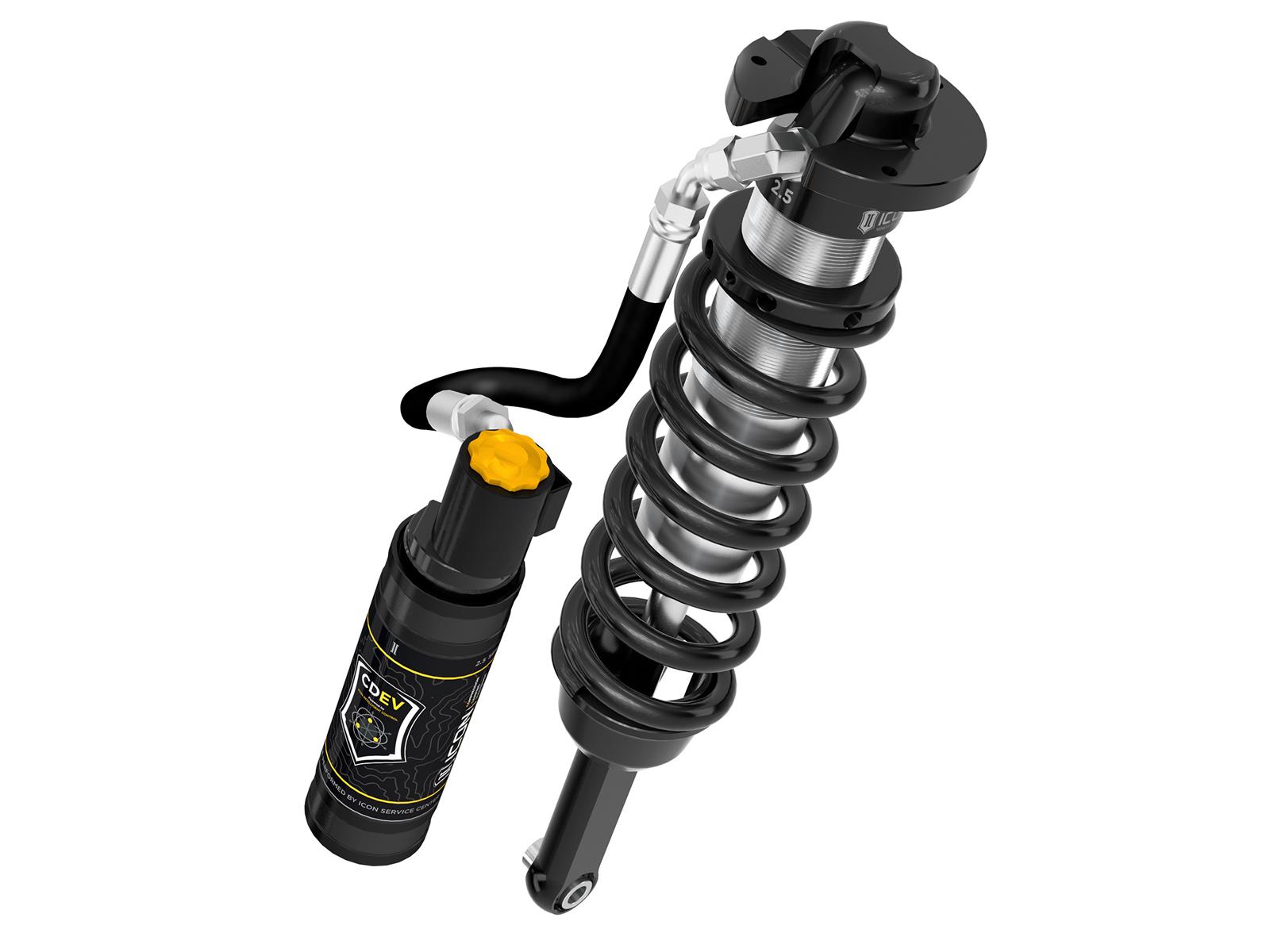

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Product Overview
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on 2005-2015 Tacomas or 0-2.75” of lift height adjustment on 2016-2023 models for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Features and Benefits
- 100% Revalveable
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-UP models) of lift height over stock
- ICON engineered Eibach Springs
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
- Bolt-on kit - no cutting or welding necessary for installation
- 100% Rebuildable
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | Yes |
| Adjustable Height: | yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Adjustment Type: | Electronic |
| Damping Type: | Oil |
| Description: | 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material: | Steel |
| Maximum Lift: | 3.5 |
| Minimum Lift: | 0 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58735E |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 17x8.5" w/ 4.75†Backspace / 0mm Offset |
| Remote Reservoir: | Yes |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Spring Rate: | 650 |
| Title: | ICON 2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir w/ CDEV Coilover Kit |
| Upper Mount Type: | Mounting Plate |
Part Type
Coilover Set
Features
- 100% Rebuildable
- 100% Revalveable
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable for 0-3.5" (2005-2015 models) or 0-2.75" (2016-UP models) of lift height over stock
- Bolt-on kit - no cutting or welding necessary for installation
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- External reservoirs to attain cooler operating temperatures during extended off-road use
- FK rod end bearings for extended longevity and minimal deflection
- ICON engineered Eibach Springs
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58735E
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103411682
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58735E |
| SFX Item ID | 4141392 |
| Supplier Item Code | 4141392 |
| Manufacturer SKU | 58735E |
| Manufacturer UPC | 840103411682 |
| Alternative References | IVD58735E |
