Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Overview

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Features and Benefits

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• External Reservoirs Ensures Maximum Cooling
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil springs
• Vehicle specific tuned for superior shock damping and control
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• CAD-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping:	Yes
Adjustable Height:	yes
Amortiguación Ajustable:	SI
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Adjustment Type:	Manual
Damping Type:	Oil
Description:	05-UP TACOMA 2.5 VS RR CDCV COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	yes
Grade Type:	Performance
Lower Mount Type:	Eyelet
Material del resorte:	Acero
Material:	Steel
Maximum Lift:	3.5
Minimum Lift:	0
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58730C
Recommended Aftermarket Tires:	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir:	Yes
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Spring Rate:	650
Tipo de Grado:	Reparación de Banda
Title:	ICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir w/ CDCV Coilover Kit
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

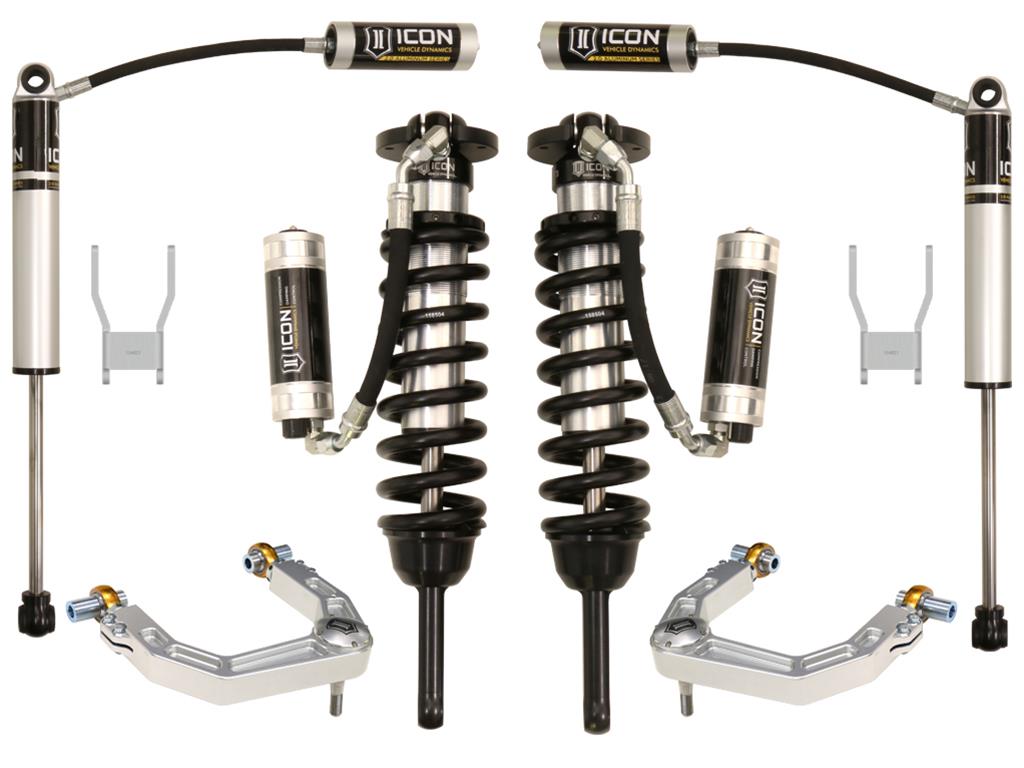

	icoK53145	ICON 12-15 Toyota Hilux 0-3in Stage 5 Suspension System w/Billet Uca (1x ico51002, 1x ico58550DJ, 2x ico56513R, 1x ico58730C)

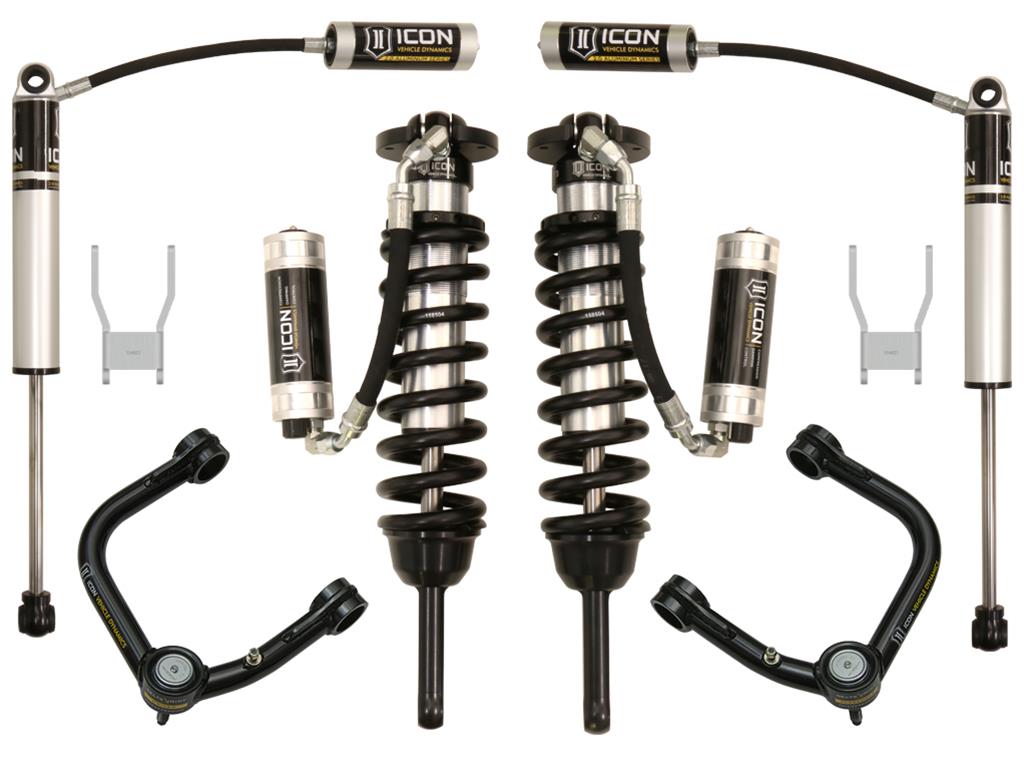

	icoK53145T	ICON 12-15 Toyota Hilux 0-3in Stage 5 Suspension System w/Tubular Uca (1x ico51002, 1x ico58450DJ, 2x ico56513R, 1x ico58730C)

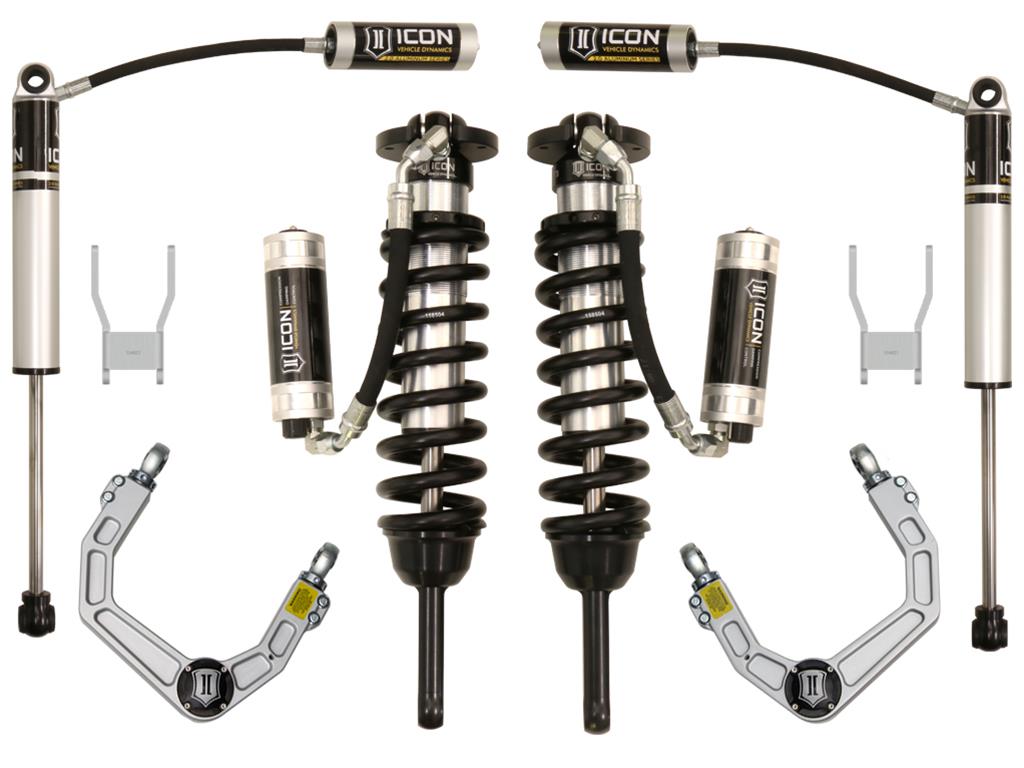

	icoK53140	ICON 05-11 Toyota Hilux 0-3in Stage 5 Suspension System w/Billet Uca (1x ico51002, 1x ico58550DJ, 2x ico56502R, 1x ico58730C)

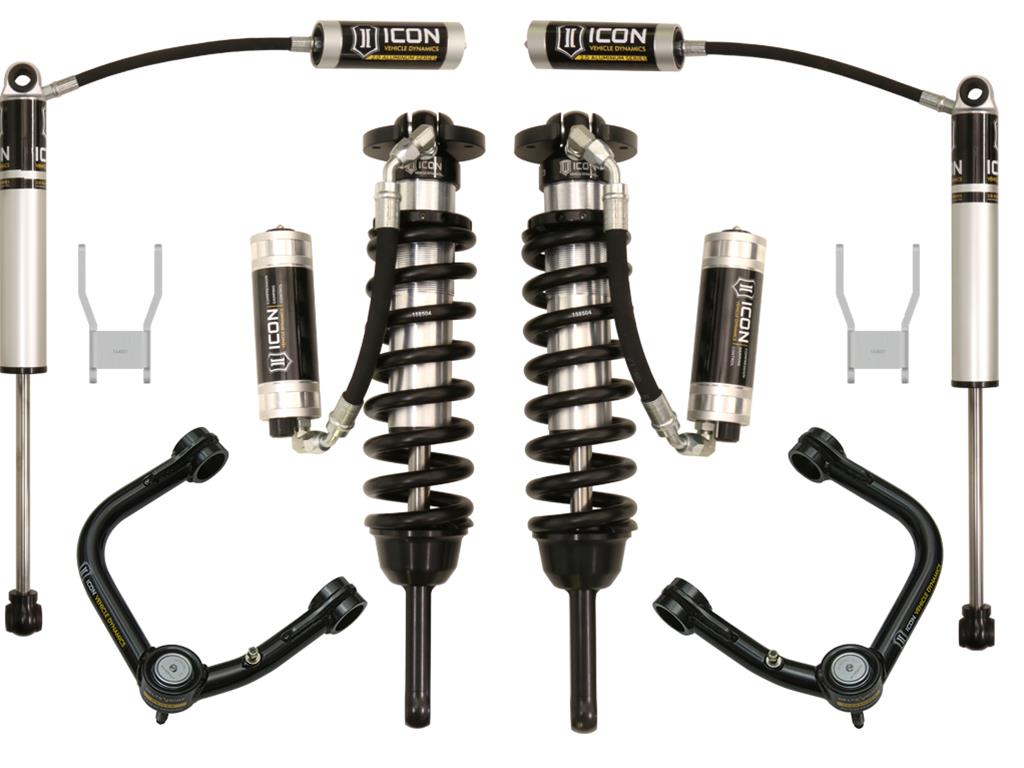

	icoK53140T	ICON 05-11 Toyota Hilux 0-3in Stage 5 Suspension System w/Tubular Uca (1x ico51002, 1x ico58450DJ, 2x ico56502R, 1x ico58730C)

Data: v4.2 - Upd: 2026-10-13 20:37:29

Features

Specifications

Product Attributes - UPC

00840103404233

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

Yes

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

58730C

Product Attributes - Suspension Height Adjustment

0.0-3.5 in. raised

Product Attributes - Adjustable Mounting Bracket Included

No
