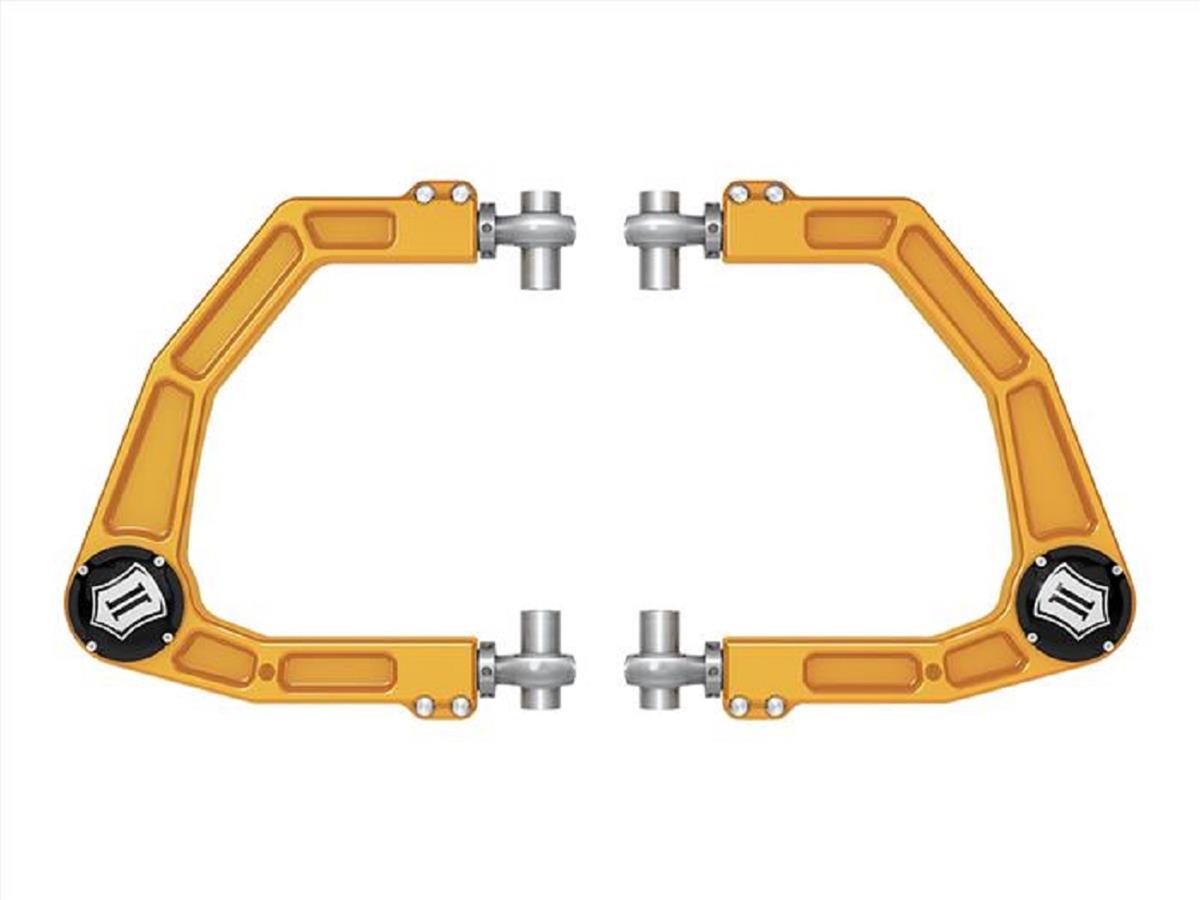

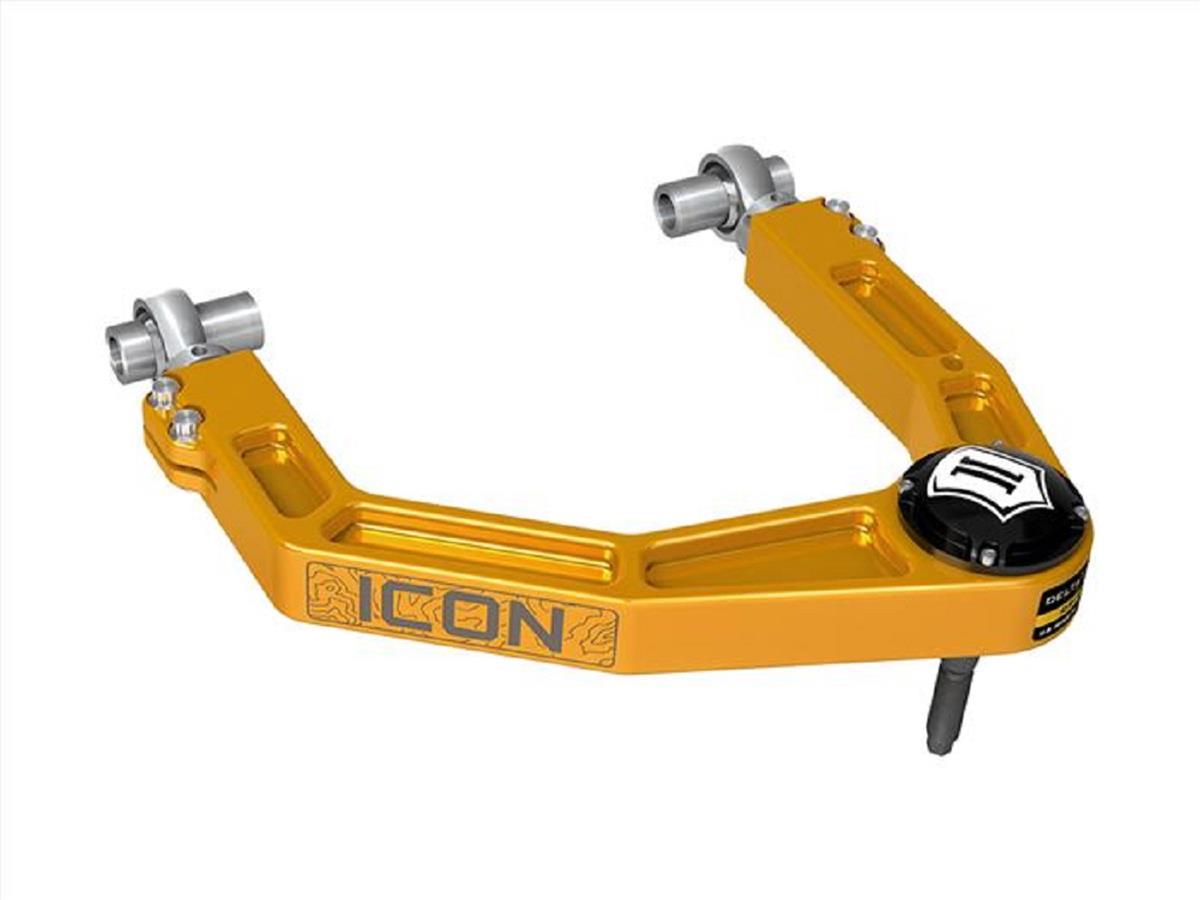

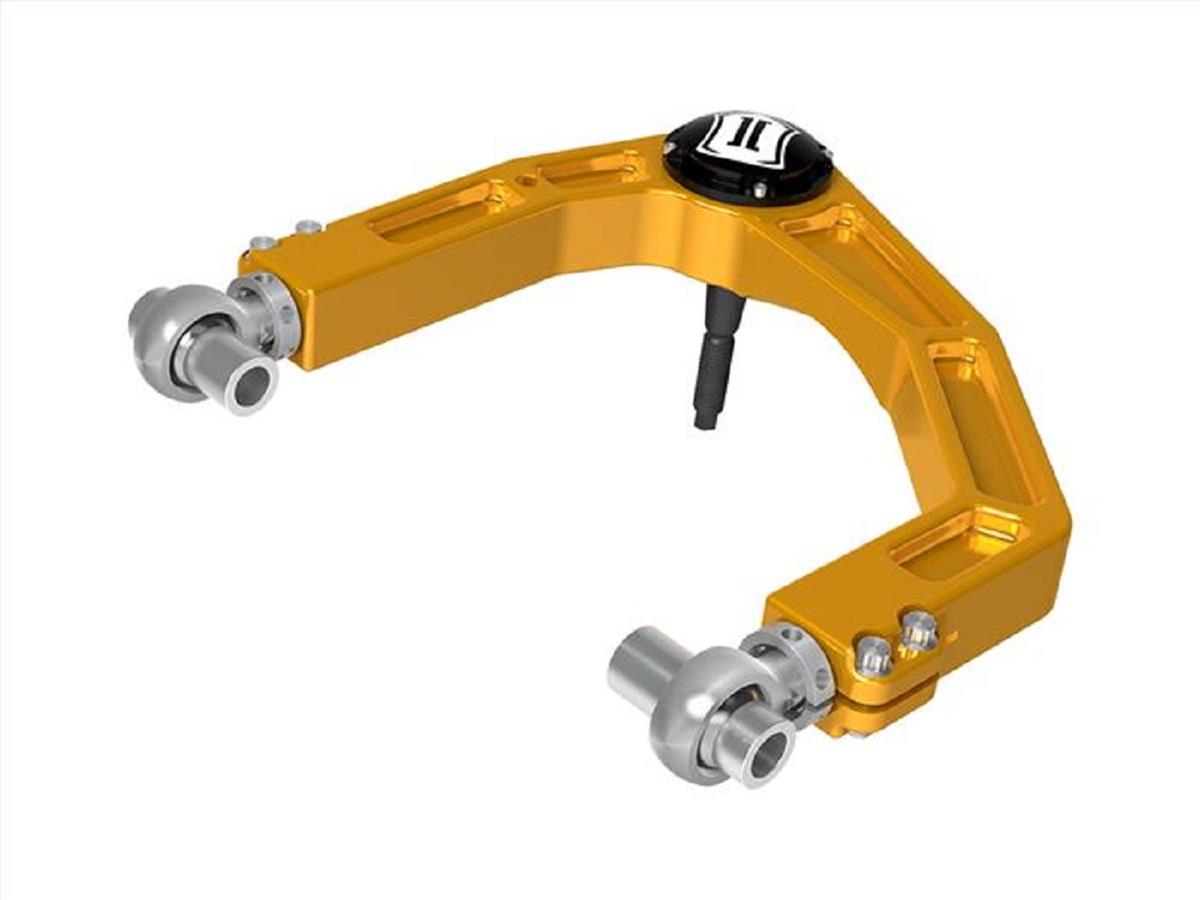

ICON 2024 Toyota Tacoma Billet Upper Control Arm w/ Delta Joint Pro - Gold Anodized
ICON 2024 Toyota Tacoma Billet Upper Control Arm w/ Delta Joint Pro - Gold Anodized
A$2,627.57
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024-2026 Toyota Tacoma, 2024-2026 Toyota Land Cruiser 250 Series, 2025-2026 Toyota 4Runner, and the 2024-2026 Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for your Toyota Tacoma, Toyota Land Cruiser, Toyota 4Runner, or Lexus GX550.
Product Overview
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Features and Benefits
- CNC machined 6061 billet aluminum construction
- Gold anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable Control Arm: | yes |
| Adjustable: | Yes |
| Attachments Included: | No |
| Ball Joint Included: | Yes |
| Ball Joint Mounting Type: | Press In |
| Ball Joint Stud Type: | Threaded |
| Bushing Color: | Silver |
| Bushing Material: | Rod End Bearing |
| Bushings Included: | Yes |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color: | Gold |
| Construction: | Billet |
| Control Arm Color: | Gold |
| Control Arm Construction: | Billet |
| Control Arm Material: | Aluminum |
| Description: | ICON 2024 Toyota Tacoma Billet Upper Control Arm w/ Delta Joint Pro - Gold Anodized |
| End 1 Type: | Rod End Bearing |
| End 2 Type: | BALL JOINT |
| Finish: | Anodized |
| Grade Type: | Performance |
| Grease Fitting Included: | Yes |
| Material: | Aluminum |
| Mounting Bracket Included: | No |
| Mounting Hardware Included: | Yes |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico58552GDJ |
| Pre-Assembled: | Yes |
| Pre-Greased: | Yes |
| Quantity: | Pair |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels: | ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset |
| Reinforced: | Yes |
| Set: | Yes |
| Suspension Grade Type: | Performance |
| Suspension Type: | Spring |
| Title: | ICON 2024 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series, Front, Billet Upper Control Arms w/ Delta Joint Pro, Gold Anodizing |
Part Type
Suspension Control Arm Kit
Features
- Built in O-ring sealed dust cover cap
- CNC machined 6061 billet aluminum construction
- Corrects suspension geometry and allows for proper wheel alignment on vehicles with up to 3” of lift
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Gold anodized finish
- Quick, precise, on-vehicle adjustment for both caster and camber
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 58552GDJ
- Product Attributes - Part Type
- Control Arms
- Product Attributes - Product Line
- Icon Vehicle Dynamics Delta Joint Tubular Upper Control Arms
- Product Attributes - UPC
- 00840103429861
- Product Attributes - Control Arm Style
- Billet
- Product Attributes - Control Arm Material
- Aluminum
- Product Attributes - Ball Joint Included
- Yes
- Product Attributes - Bushings Included
- Yes
- Product Attributes - Control Arm Color
- Gold
- Product Attributes - Adjustable
- Yes
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico58552GDJ |
| SFX Item ID | 4141798 |
| Supplier Item Code | 4141798 |
| Manufacturer SKU | 58552GDJ |
| Manufacturer UPC | N/A |
| Alternative References | IVD58552GDJ |
