Description

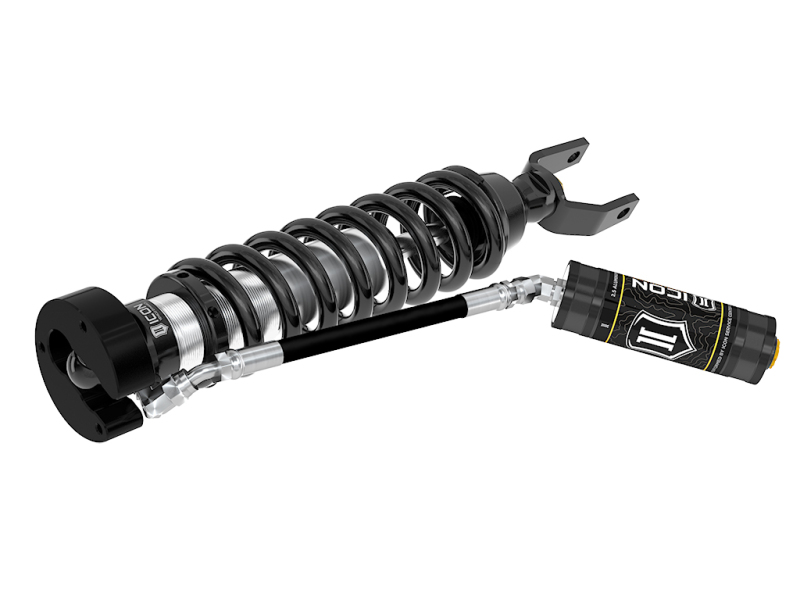

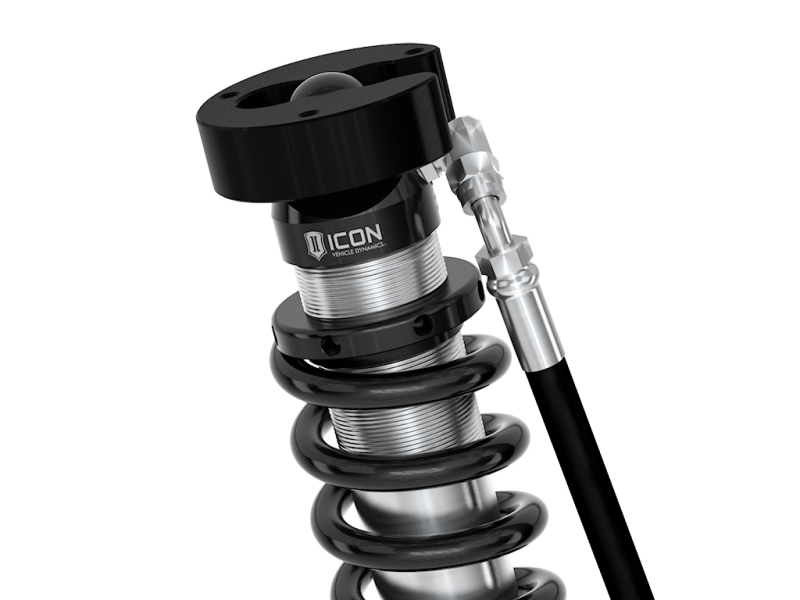

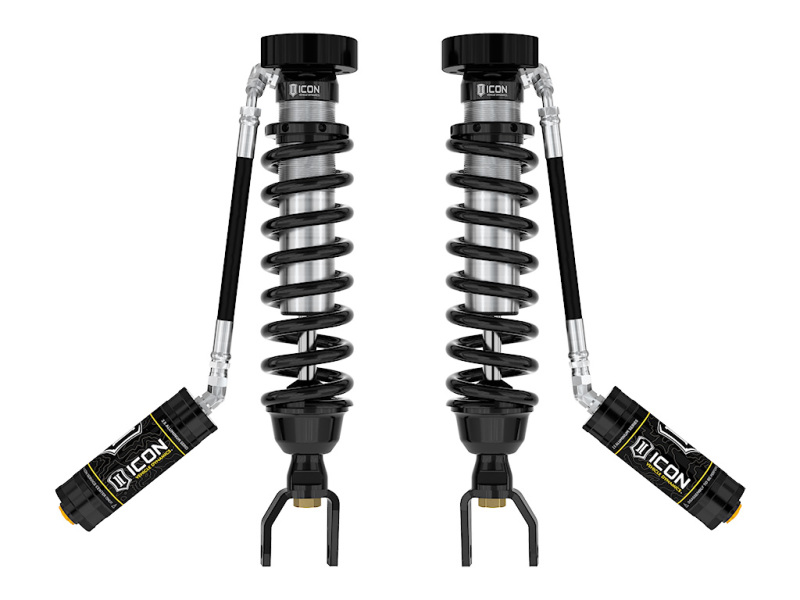

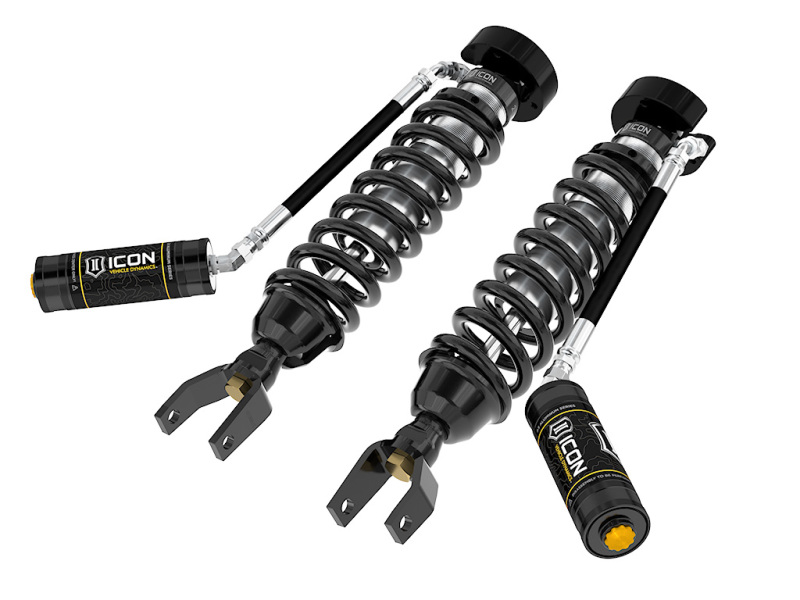

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Product Overview

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Features and Benefits

• Increased wheel travel and ride quality over stock
• High strength alloy CNC machined lower mounting clevis
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
• Vehicle specific tuned for superior shock damping and control
• Adjustable from 2-3" of front lift height over stock
• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression:	No
Adjustable Damping:	NO
Adjustable Height:	Yes
Adjustable Rebound:	No
Adjustable:	No
Body Diameter:	2,5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Type:	Oil
Description:	19-UP RAM 1500 2-3" 2.5 VS RR COILOVER KIT
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	Clevis
Material:	Steel
Maximum Lift:	3
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico211015
Recommended Aftermarket Tires:	35" x 12.50" (fender trimming and modifications will be required.)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir:	Yes
Self-Leveling:	No
Service Parts:	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Clevis Holes
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	19-UP RAM 1500 2-3" 2.5 VS RR COILOVER KIT
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK213113T	2019+ Ram 1500 2-3in. Stage 3 Suspension System w/ Tubular Upper Control Arm (1x ico212150, 1x ico218550DJ, 1x ico217716P, 1x ico211015)
	icoK213113	2019+ Ram 1500 2-3in. Stage 3 Suspension System w/ Billet Upper Control Arms (1x ico212150, 1x ico217716P, 1x ico218560DJ, 1x ico211015)
	icoK213116T	ICON 19-23 RAM 1500 2-3in Stage 6 Suspension System - Tubular (1x ico212150, 1x ico218550DJ, 1x ico217716P, 1x ico22063T, 1x ico22068, 1x ico211015)
	icoK213116	ICON 19-23 RAM 1500 2-3in Stage 6 Suspension System - Billet (1x ico212150, 1x ico217716P, 1x ico22068, 1x ico22063, 1x ico218560DJ, 1x ico211015)

Data: v4.2 - Upd: 2026-10-13 15:39:35

Features

Specifications

110:

No

AAP_UDA_12:

EA

AAP_UDA_22:

1

AAP_UDA_4:

55

Active or Passive Suspension:

Passive

Add-On Part:

252012 - -4 TO -10 HOSE SHIELD KIT

Adjustable Compression:

No

Adjustable Damping:

NO

Adjustable Height:

Yes

Adjustable Rebound:

No

Adjustable:

No

Body Diameter:

2,5

Boot Included:

No

California Prop 65 Warning:

Yes

California Proposition 65:

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Coil Over Springs Included:

Yes

Cylinder Color:

Silver

Cylinder Finish:

Cadmium Plated

Cylinder Material:

Steel

Damping Type:

Oil

Description:

19-UP RAM 1500 2-3" 2.5 VS RR COILOVER KIT

Dust Shield:

No

Gas Charged:

Yes

Grade Type:

Performance

Internal Construction Type:

Single Tube

Lower Mount Type:

Clevis

Material:

Steel

Maximum Lift:

3

OEM Wheels & Tires Fitment:

Yes

Part Number:

ico211015

Recommended Aftermarket Tires:

35" x 12.50" (fender trimming and modifications will be required.)

Recommended Aftermarket Wheels:

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Remote Reservoir:

Yes

Self-Leveling:

No

Service Parts:

254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL

Shaft Diameter:

0.875

Shock Absorber Body End Measuring Point:

Top of Upper Mount Plate

Shock Absorber Rod End Measuring Point:

Center of Clevis Holes

Spring Color:

Black

Spring Material:

Steel

Spring Rate Type:

Linear

Title:

19-UP RAM 1500 2-3" 2.5 VS RR COILOVER KIT

Upper Mount Type:

Mounting Plate

Valving Type:

Digressive

Compatibility
