Description

Install the Hotchkis Sport Suspension geometry corrected Tubular Lower A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on have re positioned ball joints for increased caster and improved camber curve resulting in improved stability and traction. Adjustable shims offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport suspension geometry corrected Tubular Upper A-Arms. New Lower Prices Features: Geometry corrected design. Built in - 0.6 deg of Camber 2 deg of Caster 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims and polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo Gloss black powder coat finish Made In USA Benefits: CAD designed and analyzed by FEA software for ultimate strength and efficiency. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

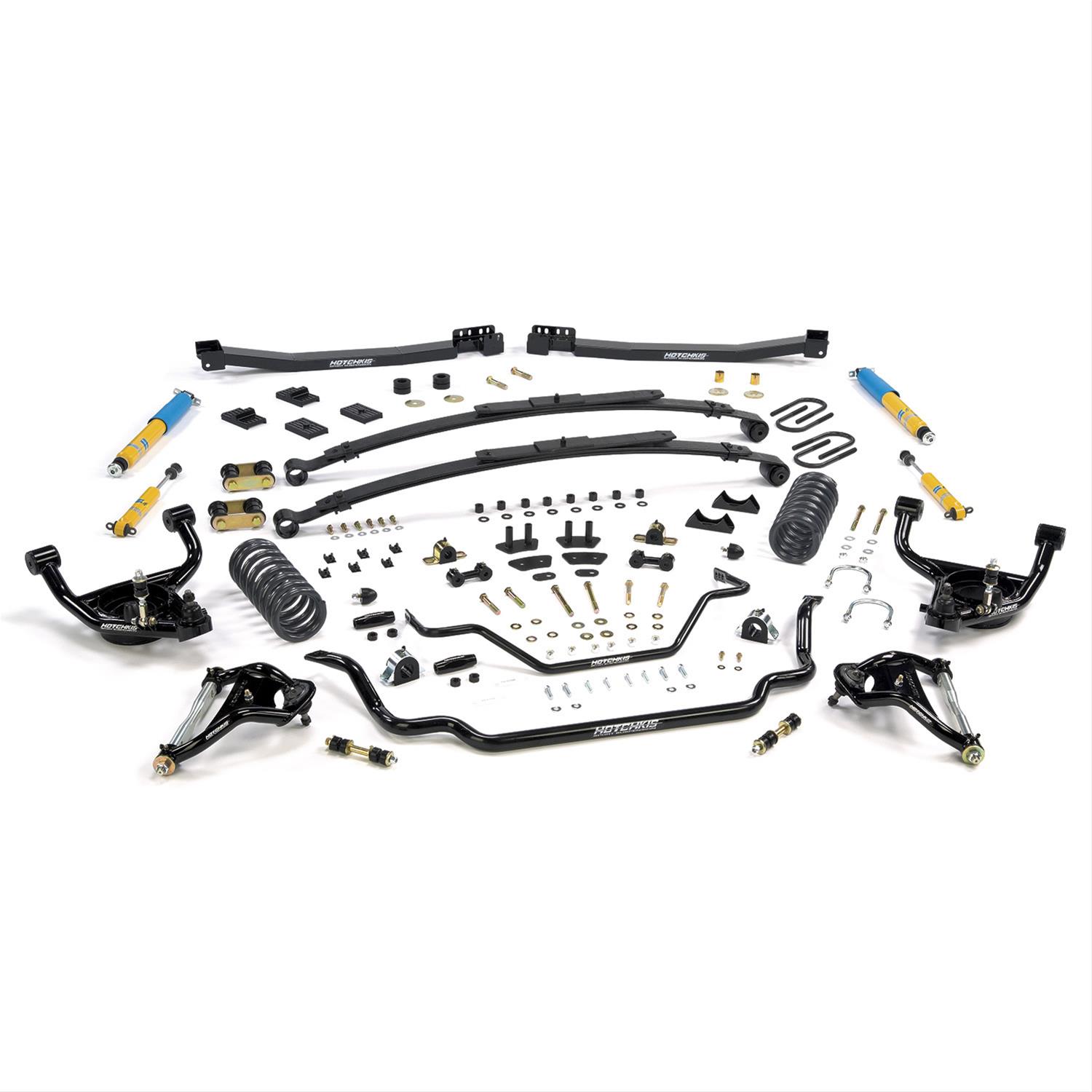

	hot80017-27	Hotchkis 77-81 Camaro Small Block 2in Drop Stage 2 Total Vehicle System (1x hot1908F, 1x hot2408C, 1x hot4013, 1x hot1612, 1x hot1106, 1x hot1108, 1x hot2236, 1x hot79020004)
	hot801734-2F	Hotchkis 70-81 Chevorlet Camero F-Body Small Block Front Total Vehicle System Kit (1x hot1908F, 1x hot1612, 1x hot1106, 1x hot2236F, 1x hot1108, 2x hot70020012)
	hot801634-2F	Hotchkis 70-81 Chevrolet Camero F-Body Big Block Total Vehicle System Kit (1x hot1612, 1x hot1106, 1x hot2236F, 1x hot1108, 2x hot70020012, 1x hot1909F)
	hot80017-2	Hotchkis 70-73 Camaro Firebird Coupe Small Block 2in Drop Stage 2 Total Vehicle System (1x hot1908F, 1x hot2408C, 1x hot4012, 1x hot1612, 1x hot1106, 1x hot1108, 1x hot2236, 1x hot79020004)

Data: v4.2 - Upd: 2026-10-09 19:32:50

Features

Specifications

Product Attributes - Brand

Hotchkis Sport Suspension

Product Attributes - Manufacturer's Part Number

1108

Product Attributes - Part Type

Control Arms

Product Attributes - Product Line

Hotchkis Sport Suspension Tubular A-Arms

Product Attributes - UPC

00810361030178

Product Attributes - Control Arm Style

Tubular

Product Attributes - Control Arm Material

Steel

Product Attributes - Ball Joint Included

Yes

Product Attributes - Bushings Included

Yes

Product Attributes - Control Arm Color

Black

Product Attributes - Adjustable

No

Product Attributes - Hardware Included

Yes

Product Attributes - Bushing Material

Delrin®

Product Attributes - Quantity

Sold as a pair.
