On sale

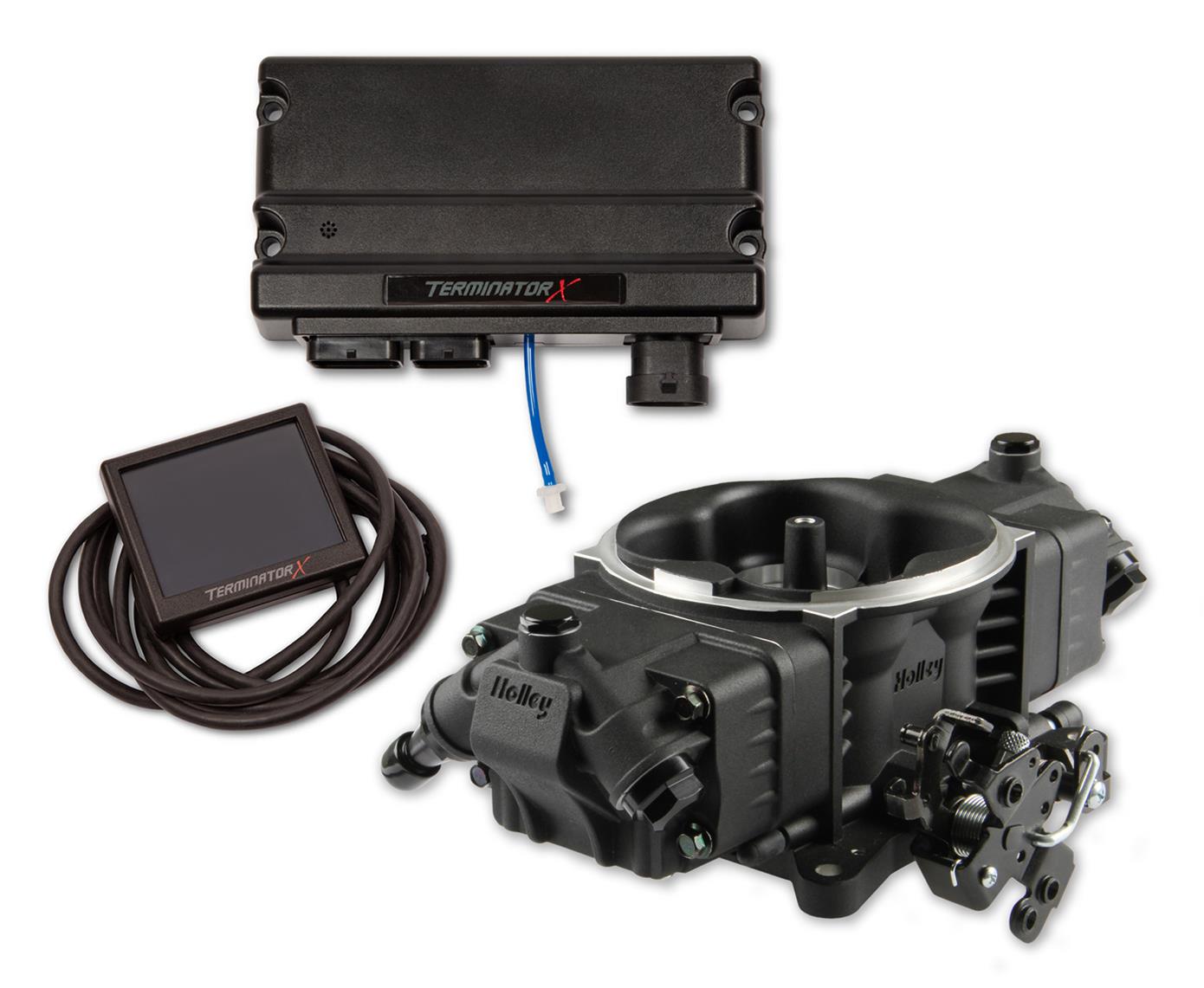

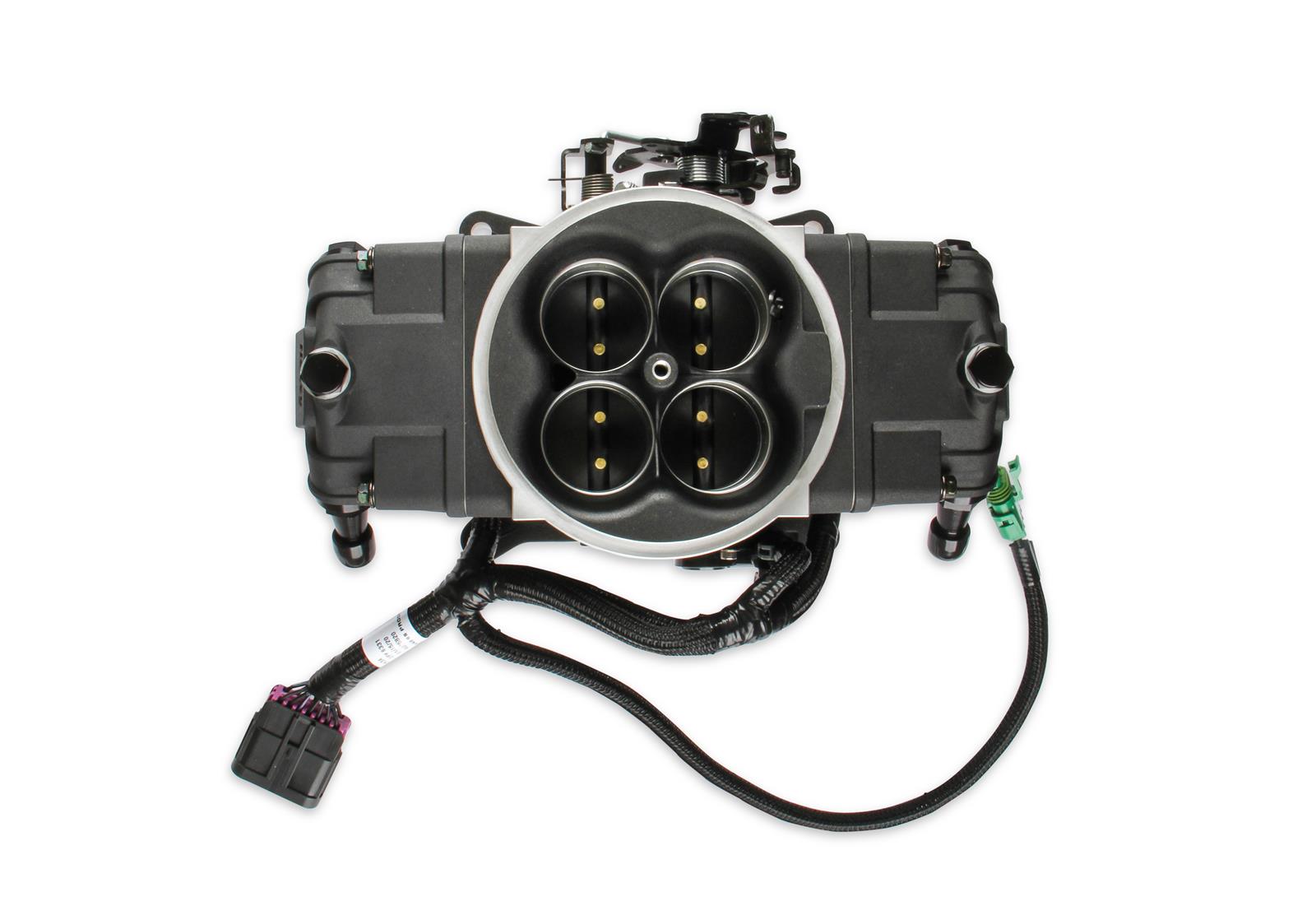

Holley Terminator X Stealth 4150 EFI Fuel Injection Systems 550-1005 Systems, X, EFI, Eight Injectors, Throttle Body, Speed Density, Aluminum, Black, Tunable, Kit
Holley Terminator X Stealth 4150 EFI Fuel Injection Systems 550-1005 Systems, X, EFI, Eight Injectors, Throttle Body, Speed Density, Aluminum, Black, Tunable, Kit
A$5,269.64
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Holley Terminator X Stealth 4150 EFI systems feature 4 or 8, 100 lb. fuel injectors capable of supporting up to 650 hp naturally aspirated, and 600 or 1250 hp on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! The throttle body has the standard 4150 carburetor flange so it will bolt down where your square bore carburetor was. Holley Terminator X Stealth 4150 systems also include transmission kick-down provisions for GM TH350, TH400, 200R4, 700R4, and Ford's C4 and C6 applications!
Part Type
Terminator X Stealth EFI Kit 8-Injectors
Specifications
- Product Attributes - Brand
- Holley
- Product Attributes - Manufacturer's Part Number
- 550-1005
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- Holley Terminator X Stealth 4150 EFI Fuel Injection Systems
- Product Attributes - UPC
- 090127093016
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 1,250
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- None
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 3.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 8
- Product Attributes - Venturi Diameter (mm)
- 44.45mm
- Product Attributes - Airflow Rate (cfm)
- 950 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 100 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- No
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- External fuel pressure regulator required, set to a base pressure of 58.5 psi.
Reference Information
| Brand Name/s | Holley |
|---|---|
| StreetFX SKU | hly550-1005 |
| SFX Item ID | 4784206 |
| Supplier Item Code | 4784206 |
| Manufacturer SKU | 550-1005 |
| Manufacturer UPC | 90127093016 |
| Alternative References | HOL550-1005 |
