Description

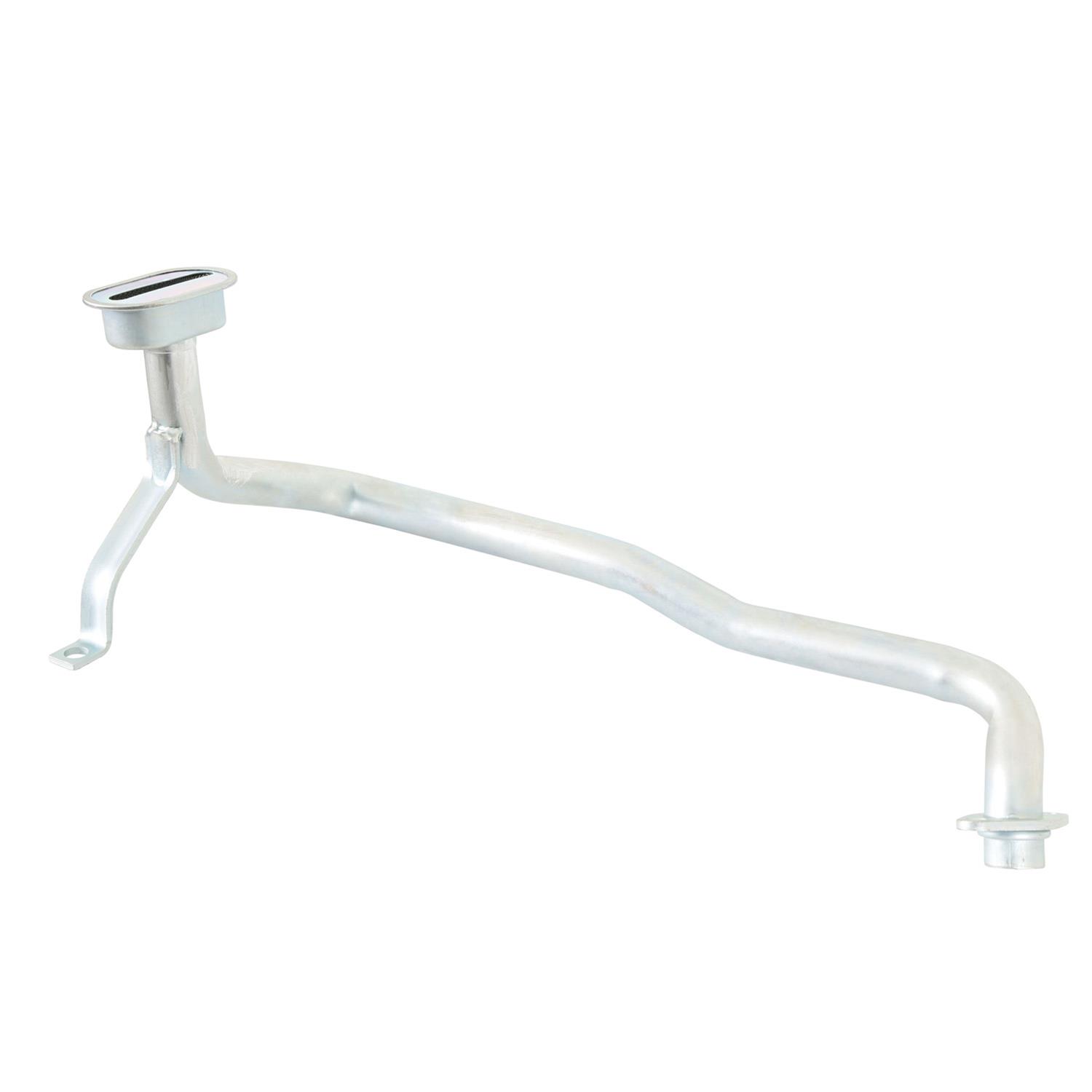

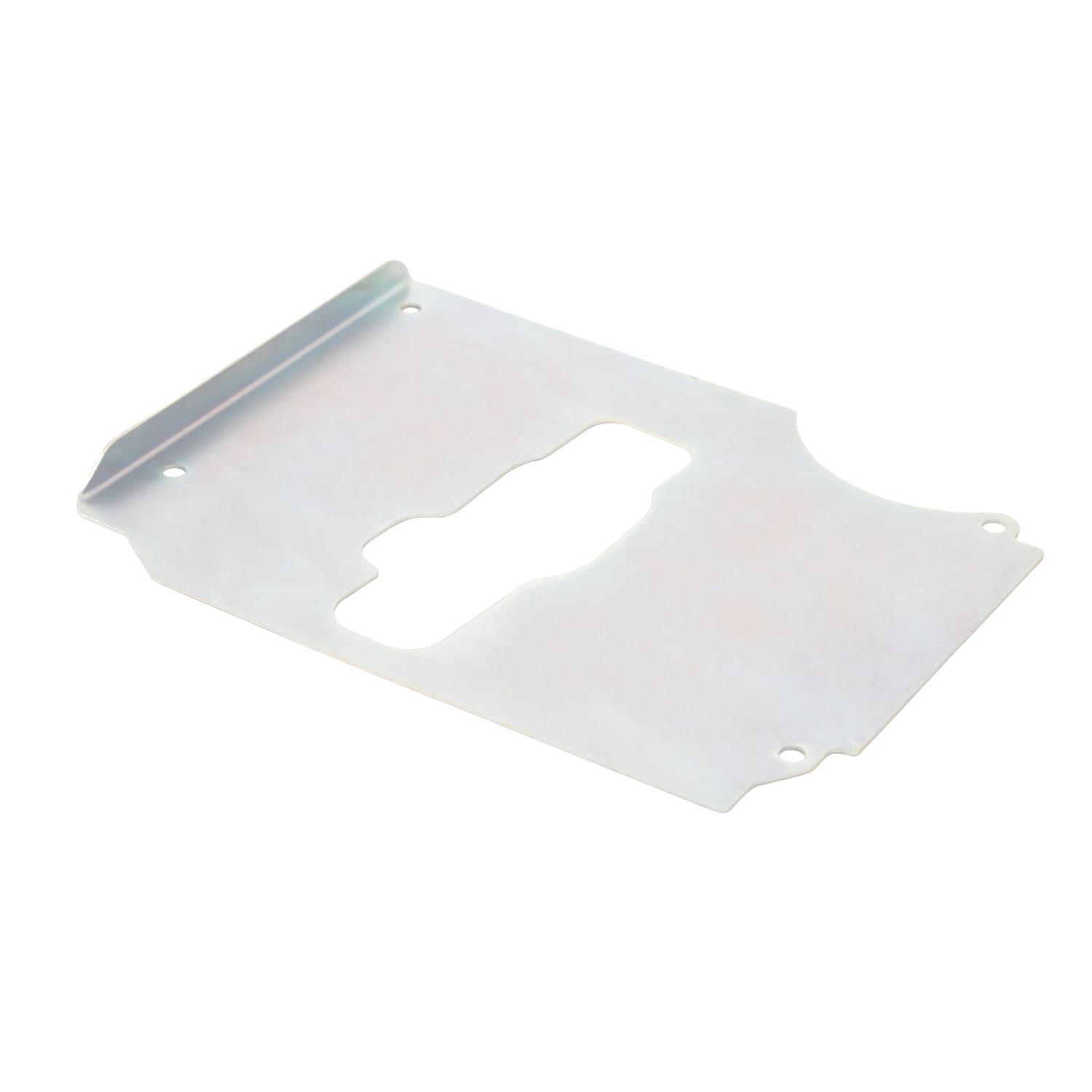

Holley retrofit engine oil pans for GM LS engines are designed to install an LS engine in a variety of GM muscle car and truck chassis. They provide OEM fitment, OEM oil filter mounting, OEM oil cooler port provision, OEM engine NVH suppression, OEM flange gasket and sealing, proper structural rigidity, and OEM bellhousing attachments. The oil pans are manufactured from traditional high-quality cast aluminum and include a sump baffle, oil pump pickup tube, sump plug, oil filter stud, and oil passage cover.

Part Type

Off-Road 4x4 Truck Oil Pan GM LS Engine Swap

Data: v4.2 - Upd: 2026-10-14 03:44:36

Specifications

Product Attributes - Brand: Holley
Product Attributes - Manufacturer's Part Number: 302-4BK
Product Attributes - Part Type: Oil Pans
Product Attributes - Product Line: Holley Retrofit Engine Oil Pans for GM LS Engines
Product Attributes - UPC: 090127616451
Product Attributes - Sump Style: Wet
Product Attributes - Oil Pan Style: Off-Road
Product Attributes - Rear Main Seal Style: 1-piece
Product Attributes - Sump Location: Rear
Product Attributes - Oil Pan Capacity: 5.60 quarts
Product Attributes - Stroker Clearanced: Yes
Product Attributes - Maximum Stroke with OE Rod: 4.000 in.
Product Attributes - Dipstick Provision: No
Product Attributes - Dipstick Included: No
Product Attributes - Oil Pan Material: Aluminum
Product Attributes - Oil Pan Color: Black
Product Attributes - Baffled: Yes
Product Attributes - Kicked Out: No
Product Attributes - Windage Tray Included: No
Product Attributes - Pickup Included: Yes
Product Attributes - Oil Pump Included: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - Crank Scraper Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Hardware Included: Yes
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Holley
StreetFX SKU	hly302-4BK
SFX Item ID	4783149
Supplier Item Code	4783149
Manufacturer SKU	302-4BK
Manufacturer UPC	90127616451
Alternative References	HOL302-4BK, 4.8L, 5.3L, 5.7L, 6.0L, 6.2L

Compatibility

Application Data

Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 7.0L/427
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 4.8L/294
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 5.3L/325
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 5.7L/350
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 6.0L/364
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 6.2L/376
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 7.0L/427
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 4.8L/294
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 5.3L/325
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 5.7L/350
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V1500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 6.0L/364
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1975
Ending Year 1978
Engine Type V8
Engine Size 6.2L/376
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1979
Ending Year 1974
Engine Type V8
Engine Size 7.0L/427
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1979
Ending Year 1974
Engine Type V8
Engine Size 4.8L/294
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1979
Ending Year 1974
Engine Type V8
Engine Size 5.3L/325
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 5.7L/350
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V2500 SUBURBAN
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 6.0L/364
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 6.2L/376
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 7.0L/427
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 4.8L/294
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 5.3L/325
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 5.7L/350
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model V3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 6.0L/364
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K3500
Beginning Year 1979
Ending Year 1978
Engine Type V8
Engine Size 6.2L/376
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
Make GMC
Model K35
Beginning Year 1977
Ending Year 1978
Engine Type V8
Engine Size 7.0L/427
Drivetrain 4WD
Engine Family Chevy small block Gen III/IV (LS-based engines)
