Hella Universal High-Tone Disc Horn 12V 400Hz (002952013 = 002952011)
Hella Universal High-Tone Disc Horn 12V 400Hz (002952013 = 002952011)
A$66.25
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The HELLA M26 Series Disc Horn stands out in vehicle safety. It delivers a high-quality, rich tone with exceptional reach. This horn features a black diaphragm and robust galvanized metal construction, ensuring durability and long service life even under harsh conditions. Its penetrating, long-range tone significantly enhances safety by providing a clear and powerful sound that can be heard from a distance, making it ideal for alerting other road users effectively. The M26 Series upholds HELLA's commitment to enhanced quality. It is a wise choice for drivers looking for performance they can trust.
Product Overview
The HELLA M26 Series Disc Horn stands out in vehicle safety. It delivers a high-quality, rich tone with exceptional reach. This horn features a black diaphragm and robust galvanized metal construction, ensuring durability and long service life even under harsh conditions. Its penetrating, long-range tone significantly enhances safety by providing a clear and powerful sound that can be heard from a distance, making it ideal for alerting other road users effectively. The M26 Series upholds HELLA's commitment to enhanced quality. It is a wise choice for drivers looking for performance they can trust.
Features and Benefits
- Black diaphragm and galvanized metal
- Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
- Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
- Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
- Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
- Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Product Details
| Assy./disassy. by qualified personnel required!: | . |
|---|---|
| Assy/Disassy by Qualified Personnel Required!: | . |
| California Proposition 65 Required: | No |
| Color: | Black / Gray |
| Connector Quantity: | 1 |
| Decibel Rating: | 105.00 |

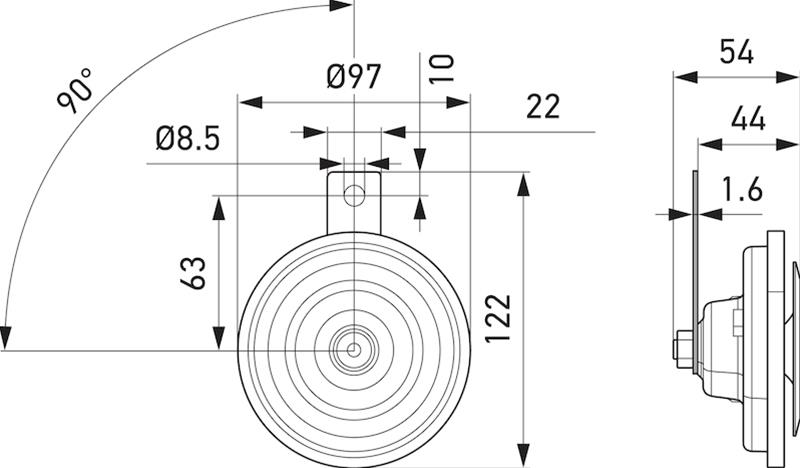

| Depth [in]: | 2.13 |
| Depth [mm]: | 54 |
| Description: | HORN DISC 12V 400HZ HTONE (M26) MB |
| Diameter [in]: | 3.82 |
| Diameter [mm]: | 97 |
| ECE Regulation: | R28 |
| Frequency Range [Hz]: | 400 |
| Frequency range to [Hz]: | 400 |
| Grade Type: | Standard Replacement |
| Homologation: | ECE-R28 |
| Housing Color: | Gray |
| Housing Colour: | Grey |
| IP Rating: | IPX9K |
| Includes: | (1) Universal Mounting Bracket |
| Inspection Tag: | E1 20011 |
| Mount Type: | Bracket Mounting |
| Mounting Bracket Included: | Yes |
| Mounting Hardware Included: | Yes |
| Mounting Type: | Flat Plug-in Connector |
| Operating Mode: | Electric |
| Overall Height [in]: | 4.8 |
| Overall Height [mm]: | 122 |
| Part Number: | hella002952811 |
| Power Consumption [W]: | 66 |
| Power consumption [A]: | 5.5 |
| Protection Type (IP Code): | 5K4K |
| Protection: | IP54 |
| Quantity: | 1 |
| Rated Voltage [V]: | 12 |
| Registration Type: | ECE Approved |
| Signal: | High Tone |
| Sound Level [dB(A)]: | 105 |
| Supplementary Article/Info 2: | with E quality seal |
| Supplementary Article/Supplementary Info 2: | with E Quality Seal |
| Temperature range from [°C]: | -40 |
| Temperature range from [°F]: | -40 |
| Temperature range to [°C]: | 60 |
| Temperature range to [°F]: | 140 |
| Terminal Quantity: | 2 |
| Terminal Type: | Blade |
| Test Mark: | ECE-R28 |
| Voltage [VDC]: | 12 |
| Voltage [V]: | 12 |
| Voltage: | 12.00 |
| Wattage [W]: | 66 |
Part Type
Operator controlled auditory alerting device
Features
- Black diaphragm and galvanized metal
- Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
- Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
- Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
- Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
- Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
Specifications
- Product Attributes - Brand
- Hella
- Product Attributes - Manufacturer's Part Number
- 002952811
- Product Attributes - Part Type
- Horns
- Product Attributes - Product Line
- Hella Single Disc Horns
- Product Attributes - UPC
- 002952811
- Product Attributes - Voltage Compatibility
- 12
- Product Attributes - Sound Level (dB)
- 115 dB
- Product Attributes - Power Consumption (Watts)
- 66 watts
- Product Attributes - Frequency Low Tone (Hz)
- 335 Hz
- Product Attributes - Frequency High Tone (Hz)
- 400 Hz
- Product Attributes - Horn Diameter (in.)
- 3.818 in.
- Product Attributes - Horn Depth (in.)
- 2.126 in.
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Hella |
|---|---|
| StreetFX SKU | hella002952811 |
| SFX Item ID | 4520623 |
| Supplier Item Code | 4520623 |
| Manufacturer SKU | 002952811 |
| Manufacturer UPC | 4082300279375 |
| Alternative References | hla-002952811, 12V, 400Hz |
