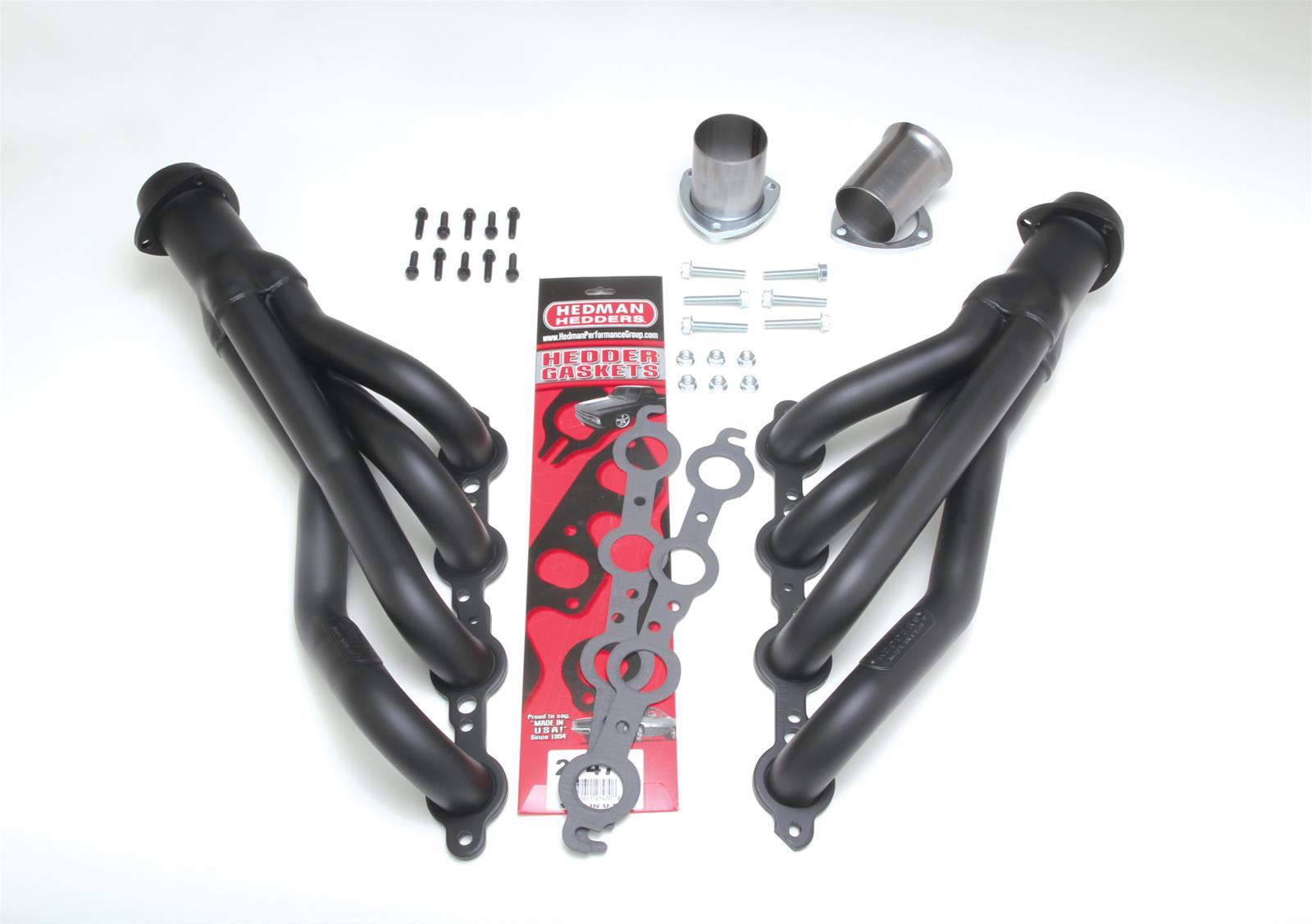

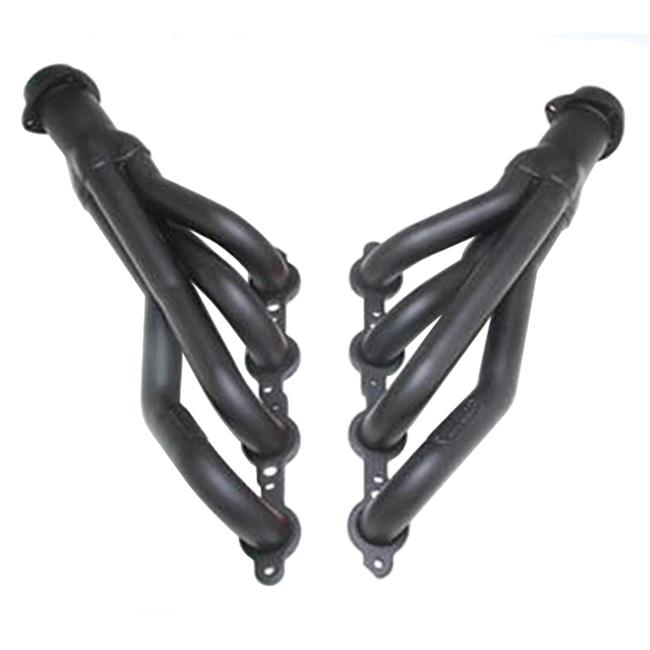

Hedman Specialty and Engine Swap Headers 69713 Headers, Swap, Mid-Length, Steel, Black Ceramic Coated, Chevrolet, GMC, Isuzu, Pair
Hedman Specialty and Engine Swap Headers 69713 Headers, Swap, Mid-Length, Steel, Black Ceramic Coated, Chevrolet, GMC, Isuzu, Pair
A$2,030.50
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Headers are widely believed to be one of the best performance values available today--so why put stock manifolds on your trick ride? After dropping a different engine into your project vehicle, help it produce more horsepower and fuel economy with these specialty and engine swap headers from Hedman. They feature durable 18-gauge steel construction and have thick 1/4 in. flanges for a long-lasting, leak-proof seal. Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom altered parts, then it is the installer's responsibility to verify fitment.
Special warning regarding Hedman painted headers only. The paint on these headers is not designed as a final finish; it is designed to protect the headers after the manufacturing process and during shipping. This paint will not withstand the high heat associated with engine break-in, nor will it withstand the heat cycles associated with any type of driving. It is recommended that this protective coating be stripped, and a high heat paint or coating designed for use on headers be applied.
Part Type
Headers
Specifications
- Product Attributes - Brand
- Hedman Hedders
- Product Attributes - Manufacturer's Part Number
- 69713
- Product Attributes - Part Type
- Headers
- Product Attributes - Product Line
- Hedman Specialty and Engine Swap Headers
- Product Attributes - UPC
- 732611697132
- Product Attributes - Header Style
- Mid-length
- Product Attributes - Header Material
- Steel
- Product Attributes - Primary Tube Outside Diameter (in.)
- 1 3/4 in.
- Product Attributes - Header Color
- Black ceramic coated
- Product Attributes - Flange Style
- Standard
- Product Attributes - Weld-Up
- No
- Product Attributes - Cylinder Head Port Shape
- Round
- Product Attributes - Collector Attachment
- Ball and socket flange
- Product Attributes - Collector Diameter (in.)
- 3.00
- Product Attributes - Collector Reducers Included
- Yes
- Product Attributes - Collector Reducer Exit Diameter
- 3.000 in.
- Product Attributes - Tuned
- No
- Product Attributes - Primary Tube Gauge
- 16-gauge
- Product Attributes - Flange Thickness (in.)
- 0.38 in.
- Product Attributes - Bolts/Studs Included
- Yes
- Product Attributes - Gaskets Included
- Yes
- Product Attributes - Crossover Pipe Included
- No
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Motor Mounts Included
- No
- Product Attributes - Transmission Mount Included
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Applications with a 4L80 transmission require modification or trimming to the bellhousing ears.
- Product Attributes - Special Attention
- 4L80E transmissions require removing the bellhousing ears for proper fitment and clearance.
Reference Information
| Brand Name/s | Hedman Hedders |
|---|---|
| StreetFX SKU | hed69713 |
| SFX Item ID | 5070438 |
| Supplier Item Code | 5070438 |
| Manufacturer SKU | 69713 |
| Manufacturer UPC | 732611697132 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
