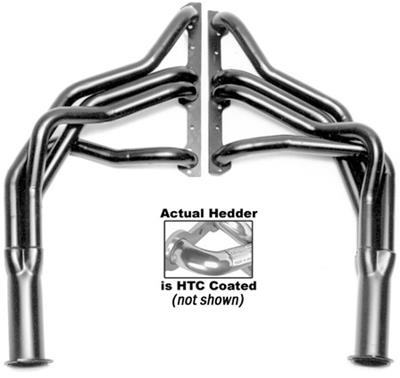

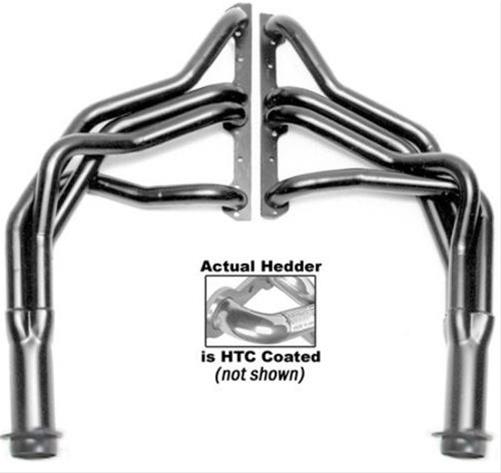

Hedman Street Headers 69066 Headers, Street, Long Tube, Steel, Silver Ceramic Coated, Chevy, Small Block, Pair
Hedman Street Headers 69066 Headers, Street, Long Tube, Steel, Silver Ceramic Coated, Chevy, Small Block, Pair
Description
IMPORTANT NOTICE: Note for Australian and European MarketsUnless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.(keyword: headers)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Hedman Hedders, HEDMAN StreetFX SKU hed69066 SFX Item ID 5069909 Accounting SKU hed-69066 Manufacturer SKU 69066 Manufacturer UPC 732611690669 Alternative References 69066, HED-69066
Data: v2 - Desc: v4.2 - Upd: 2026-10-14 03:22:54
Part Type
Headers
Specifications
Headers, Street, Long Tube, Steel, Silver Ceramic Coated, Chevy, Small Block, Pair
For the price, no other part can give you the horsepower and fuel economy improvements of Hedman headers. They make Hedman Street headers so well that they guarantee them to be free from defects--including cracks in the tubes and welds--for the life of the headers. Hedman Street headers are available uncoated or in Black Maxx or their polished HTC thermal ceramic coated finishes and, as an added bonus, they also come with all necessary gaskets and mounting hardware. Unless otherwise noted, these headers are designed to fit the vehicle as it came from the manufacturer. This includes components like cylinder heads, chassis, steering, motor mounts, body mounts, and bushings, etc. If your vehicle is using aftermarket components, parts from other applications, or custom-altered parts, then it is the installer's responsibility to verify fitment.
Special warning regarding Hedman painted headers only. The paint on these headers is not designed as a final finish; it is designed to protect the headers after the manufacturing process and during shipping. This paint will not withstand the high heat associated with engine break-in, nor will it withstand the heat cycles associated with any type of driving. It is recommended that this protective coating be stripped, and a high heat paint or coating designed for use on headers be applied.
| Product Attributes | |
|---|---|
| Brand | Hedman Hedders |
| Manufacturer's Part Number | 69066 |
| Part Type | Headers |
| Product Line | Hedman Street Headers |
| UPC | 732611690669 |
| Header Style | Long tube one-piece |
| Header Material | Steel |
| Primary Tube Outside Diameter (in.) | 1 5/8 in. |
| Header Color | Silver ceramic coated |
| Flange Style | Standard |
| Weld-Up | No |
| Cylinder Head Port Shape | Round |
| Collector Attachment | Ball and socket flange |
| Collector Diameter (in.) | 3.00 |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2.500 in. |
| Tuned | No |
| Primary Tube Gauge | 16-gauge |
| Spark Plug Position | Angle/Straight |
| Flange Thickness (in.) | 0.31 in. |
| Bolts/Studs Included | Yes |
| Gaskets Included | Yes |
| Crossover Pipe Included | No |
| Catalytic Converter(s) Included | No |
| Motor Mounts Included | No |
| Transmission Mount Included | No |
| Quantity | Sold as a pair. |
| Notes | Fits Chevy Class C (converted vans) mini motorhomes. |
Reference Information
| Brand Name/s | Hedman Hedders |
|---|---|
| StreetFX SKU | hed69066 |
| SFX Item ID | 5069909 |
| Supplier Item Code | 5069909 |
| Manufacturer SKU | 69066 |
| Manufacturer UPC | 732611690669 |
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Make | CHEVROLET |
| Model | G10 |
| Submodel | BASE |
| Beginning Year | 1983 |
| Ending Year | 1983 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.3L/262 |
| Drivetrain | RWD |
| Power Steering | Yes |
| Power Brakes (application) | Yes |
| Air Conditioning | Yes |
| Standard Transmission Column Shift | Yes |
| Standard Transmission Floor Shift | Yes |
| Automatic Transmission Column Shift | Yes |
| Automatic Transmission Floor Shift | Yes |
| Make | CHEVROLET |
| Model | G10 |
| Submodel | BASE |
| Beginning Year | 1983 |
| Ending Year | 1983 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.3L/265 |
| Drivetrain | RWD |
| Power Steering | Yes |
| Power Brakes (application) | Yes |
| Air Conditioning | Yes |
| Standard Transmission Column Shift | Yes |
| Standard Transmission Floor Shift | Yes |
| Automatic Transmission Column Shift | Yes |
| Automatic Transmission Floor Shift | Yes |
| Make | CHEVROLET |
| Model | G10 |
| Submodel | BASE |
| Beginning Year | 1983 |
| Ending Year | 1983 |
| Engine Type | V8 |
| Engine Family | Chevy small block Gen I |
| Engine Size | 4.4L/267 |
| Drivetrain | RWD |
| Power Steering | Yes |
| Power Brakes (application) | Yes |
| Air Conditioning | Yes |
| Standard Transmission Column Shift | Yes |
| Standard Transmission Floor Shift | Yes |
| Automatic Transmission Column Shift | Yes |
| Automatic Transmission Floor Shift | Yes |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
