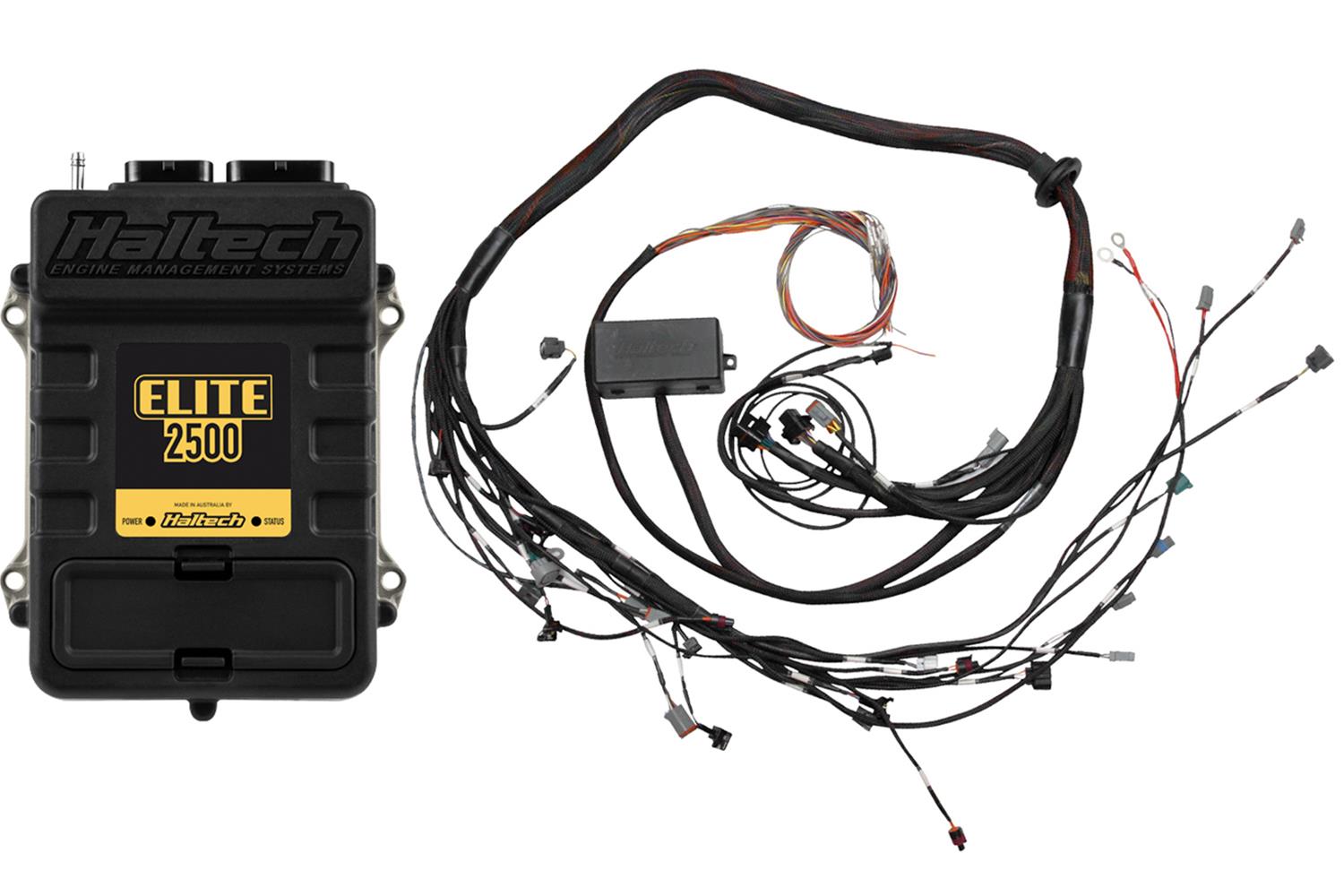

HalTech Elite 2500 ECU with Plug'n'Play Harness HT-151353 Engine Management Systems, Harness, Does Not Include Ignition Sub-harness, Toyota, 3.0L, Kit
HalTech Elite 2500 ECU with Plug'n'Play Harness HT-151353 Engine Management Systems, Harness, Does Not Include Ignition Sub-harness, Toyota, 3.0L, Kit
A$6,315.46
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
HalTech's Elite 2500 ECU with Plug'n'Play harness provides the fastest and most cost-effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires, and this plug-and-play product allows you to be up and running in just a few hours. The quick-start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle. The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
ECU Overview:
Elite 2500 is a two-connector, stand-alone ECU ideal for popular late model performance and racing applications. Recommended for 4, 6, and 8-cylinder, drive-by-wire (DBW) or 2, 3, 4 rotor engines, EFI conversions, and engines with multiple variable camshafts. The ECU features a robust environmentally sealed water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and much more, providing engine calibrators with the tools they need to get the job done right. The Elite 2500 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to both tuners and performance enthusiasts worldwide.
* Supports 1 to 12-cylinder engines
* 2 to 4 rotor engines
* Normally aspirated or forced induction
* Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
* Staged, sequential, semi-sequential, batch or multipoint injection patterns
* Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
* Connect to a wide range of display dashes and expansion devices via CAN.
* Waterproof Case (with pocket cover fitted)
* 8 x fuel injection outputs
* 8 x ignition outputs
* 12 x digital outputs
* 10 x analogue voltage inputs
* 4 x synchronized pulsed inputs
* 4 x dedicated inputs (dual knock, ignition switch and onboard MAP Sensor)
* 2 x dedicated engine position inputs with extensive trigger type support
* Up to 45 channels of input and output (I/O) expansion (via CAN)
* USB Laptop communication (Windows)
* Now using the new NSP Calibration Software
Harness features:
* An efficient Haltech Plug'n'Play product that allows you to be up and running in just a few hours
* The quick-start guide will walk you through installation of the Haltech Plug'n'Play harness into your vehicle
* The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration
Notes: Please confirm your alternator connector (see the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040091) ignition coils and harnesses are not included, Please order 8 x HT-020102 and/or HT-045657 if required.
Part Type
Engine Management Systems
Specifications
- Product Attributes - Brand
- Haltech
- Product Attributes - Manufacturer's Part Number
- HT-151353
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- HalTech Elite 2500 ECU with Plug'n'Play Harness
- Product Attributes - UPC
- 9356450012881
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- Yes
- Product Attributes - High Impedence Injectors
- Up to 8
- Product Attributes - Low Impedence Injectors
- Up to 8
- Product Attributes - Fuel Injector Connector Style
- Jetronic/Minitimer/EV1
- Product Attributes - Coils
- Up to 8
- Product Attributes - Digital Inputs
- 4
- Product Attributes - Analog Inputs
- 10
- Product Attributes - VR/Mag Inputs
- Up to 5
- Product Attributes - Wideband Controller
- No
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 2
- Product Attributes - Knock Control
- Yes
- Product Attributes - Knock Channels
- 2
- Product Attributes - Drive-By-Wire Capable
- Yes
- Product Attributes - Drive-By-Wire Channels
- 1
- Product Attributes - VVT Control
- Yes
- Product Attributes - VVT Channels
- 4
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- Yes
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- Yes
- Product Attributes - Multi-fuel Capable
- Yes
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- No
- Product Attributes - Display Included
- No
- Product Attributes - Handheld Controller Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Does not include ignition sub-harness.
Reference Information
| Brand Name/s | Haltech |
|---|---|
| StreetFX SKU | halHT-151353 |
| SFX Item ID | 5016797 |
| Supplier Item Code | 5016797 |
| Manufacturer SKU | HT-151353 |
| Manufacturer UPC | 9356450012881 |
| Alternative References | HTH-HT-151353, 3.0L |
