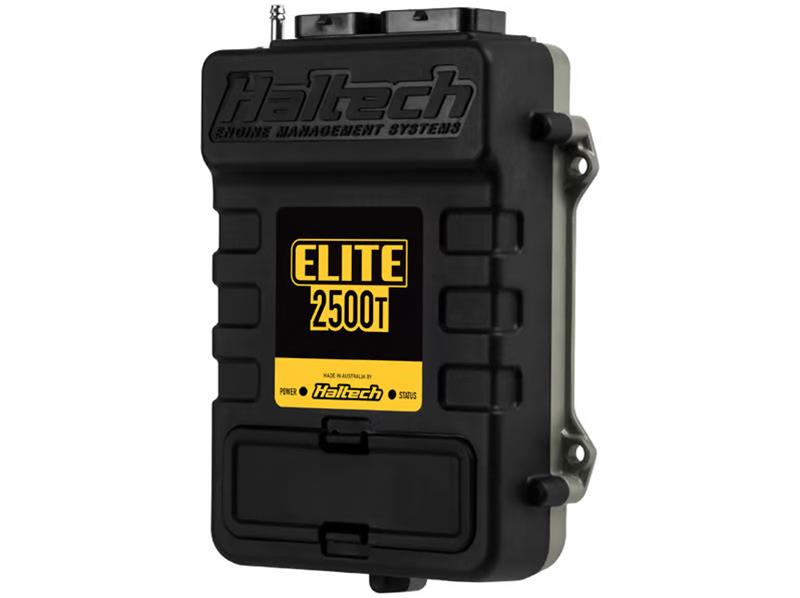

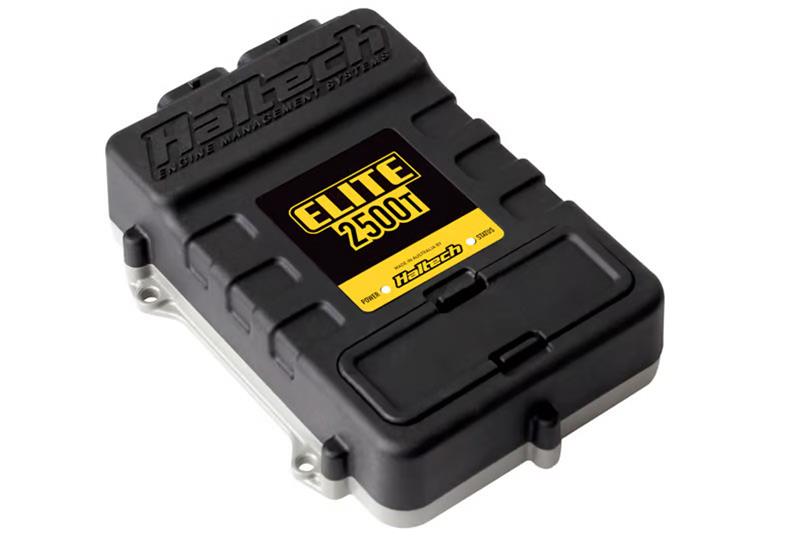

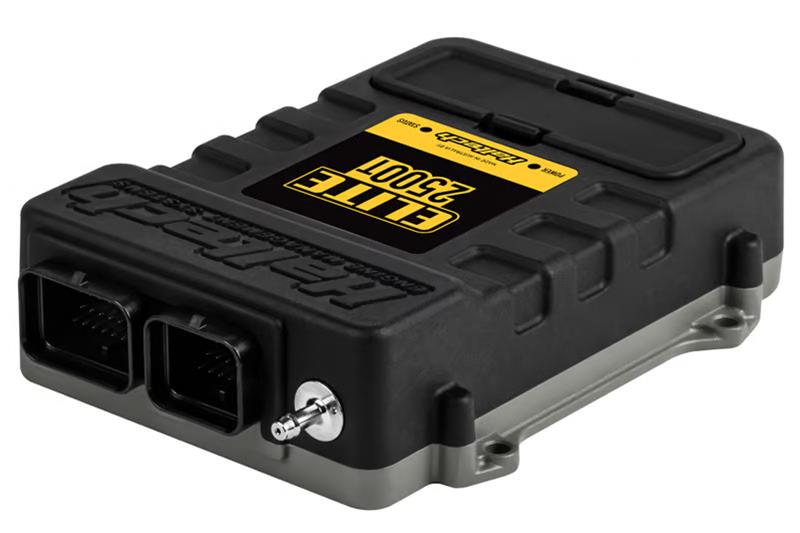

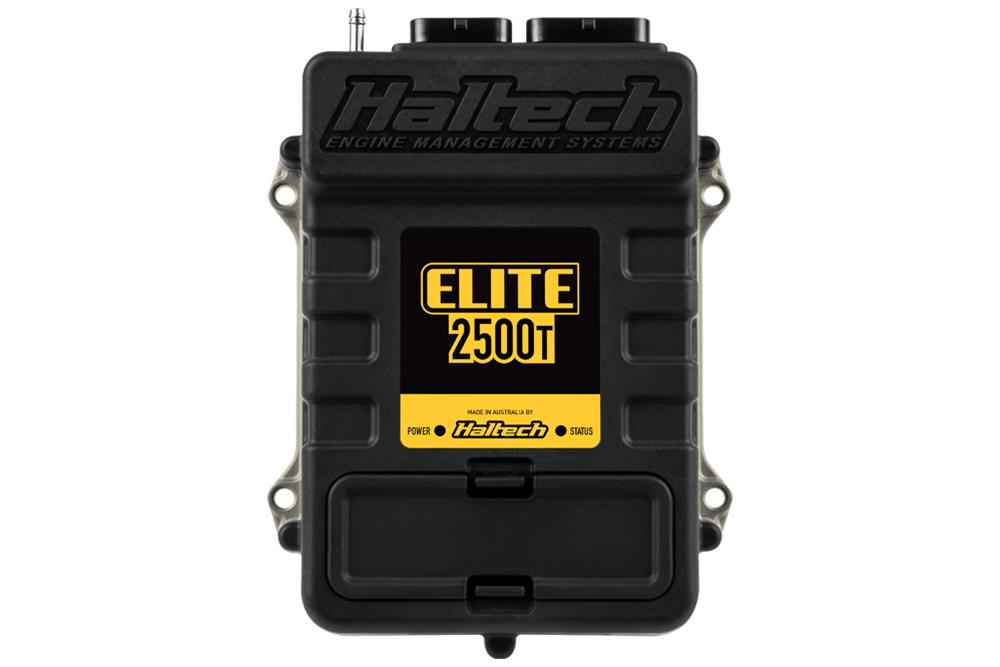

Haltech Elite 2500 T ECU
Haltech Elite 2500 T ECU
A$6,977.99
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The Haltech Elite 2500T ECU takes the art of engine calibration to a whole new level. Featuring a robust environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, dual channel knock control, and much more, the Elite 2500T provides engine calibrators the tools they need to get the job done right. Alongside this Elite 2500T ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide. At the forefront of today's cutting edge engine management technology, HalTech is well-known for high horsepower engine management, which complements their harnesses and add-ons.
Product Overview:
* Includes: Elite 2500 T ECU with DBW, Advanced Torque Management and Race Functions, and USB programming cable
* Elite 2500T ECU is a top of the range, two-connector ECU with Advanced Torque Management (ATM)
* Ideal for popular late model performance and racing applications
* Supports 1 to 12-cylinder engines and 2 to 4 rotor engines
* Normally aspirated or forced induction
* Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
* Staged, Sequential, semi-sequential, batch or multipoint injection patterns
* Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
* Connect to a wide range of display dashes and expansion devices via CAN
* Waterproof case (with pocket cover fitted)
* 8 x fuel injection outputs
* 8 x ignition outputs
* 12 x digital outputs
* 10 x analogue voltage inputs
* 4 x synchronized pulsed inputs
* 4 x dedicated inputs (dual knock, ignition switch and onboard MAP Sensor)
* 2 x dedicated engine position inputs with extensive trigger type support
* Up to 45 channels of input and output (I/O) expansion (via CAN)
* USB Laptop communication (Windows)
* ESP Calibration Software—intuitive and easy to use
Part Type
Engine Management Systems
Specifications
- Product Attributes - Brand
- Haltech
- Product Attributes - Manufacturer's Part Number
- HT-151310
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- HalTech Elite 2500T ECU
- Product Attributes - UPC
- 9356450007429
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- Yes
- Product Attributes - High Impedence Injectors
- Up to 8
- Product Attributes - Low Impedence Injectors
- Up to 8
- Product Attributes - Coils
- Up to 8
- Product Attributes - Digital Inputs
- 4
- Product Attributes - Analog Inputs
- 10
- Product Attributes - VR/Mag Inputs
- Up to 5
- Product Attributes - Wideband Controller
- No
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 2
- Product Attributes - Knock Control
- Yes
- Product Attributes - Knock Channels
- 2
- Product Attributes - Drive-By-Wire Capable
- Yes
- Product Attributes - Drive-By-Wire Channels
- 1
- Product Attributes - VVT Control
- Yes
- Product Attributes - VVT Channels
- 4
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- Yes
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- Yes
- Product Attributes - Multi-fuel Capable
- Yes
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- No
- Product Attributes - Display Included
- No
- Product Attributes - Handheld Controller Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for drag race applications. Features Advanced Torque Management.
Reference Information
| Brand Name/s | Haltech |
|---|---|
| StreetFX SKU | halHT-151310 |
| SFX Item ID | 4401350 |
| Supplier Item Code | 4401350 |
| Manufacturer SKU | HT-151310 |
| Manufacturer UPC | 9356450007429 |
| Alternative References | HTH-HT-151310 |
