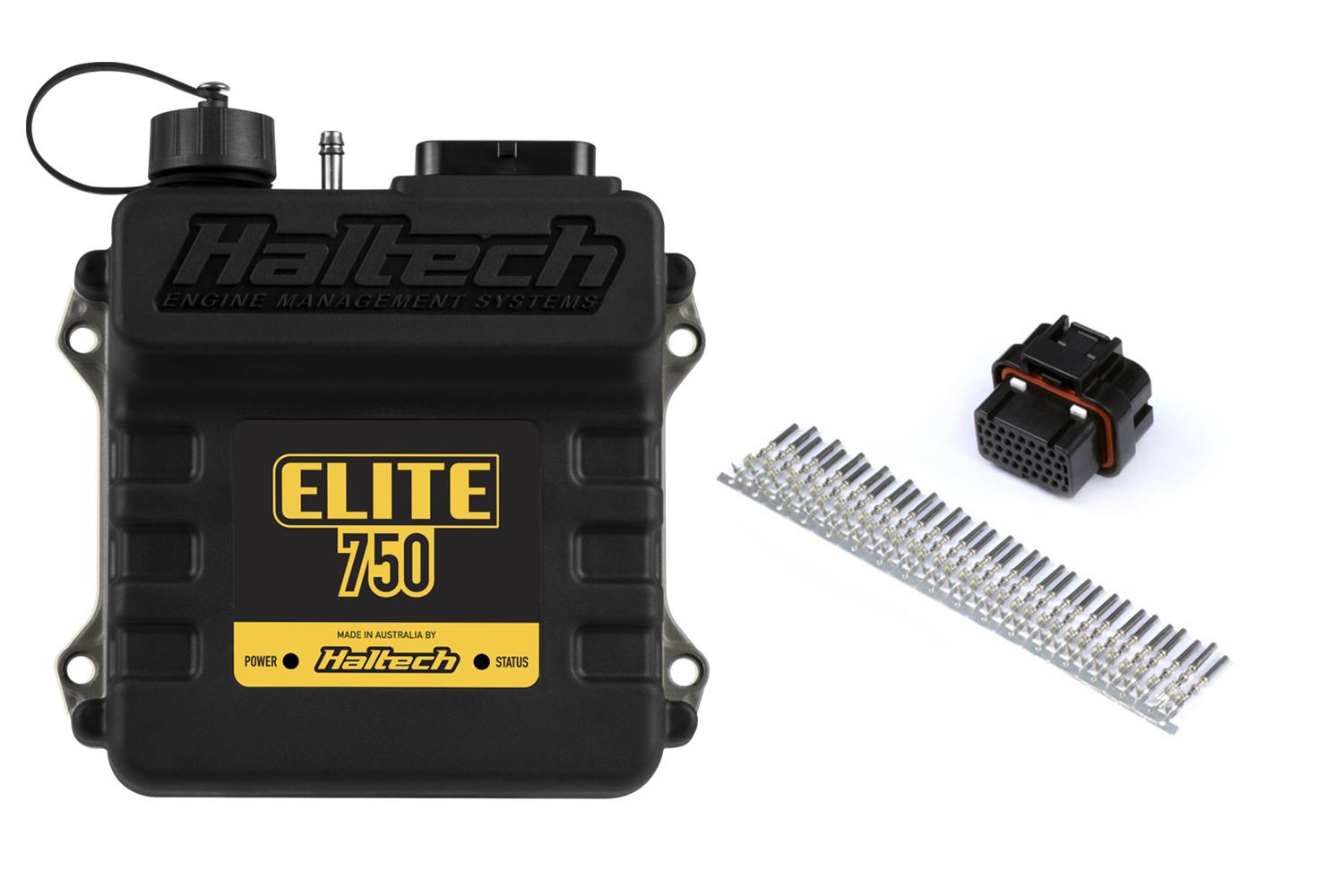

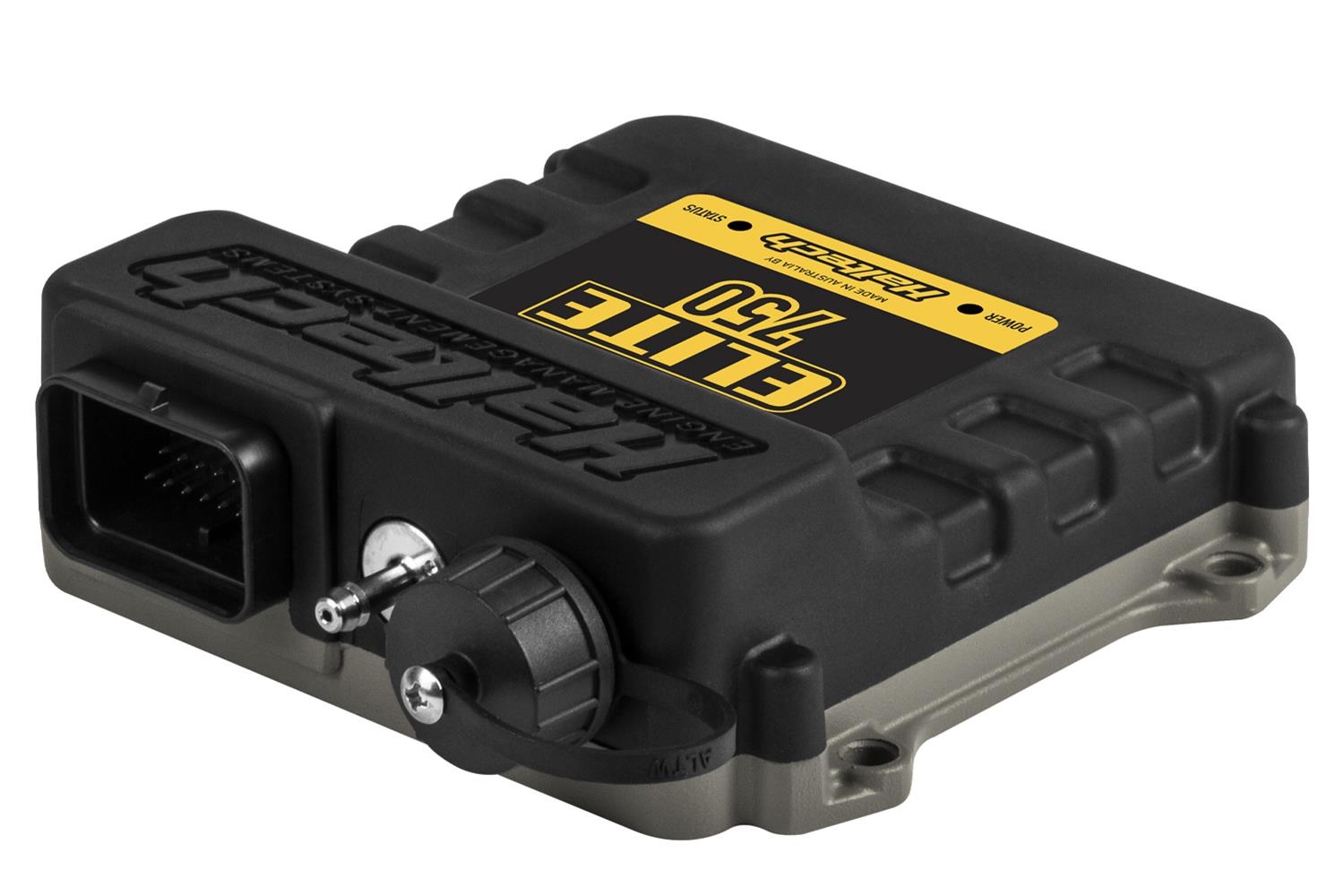

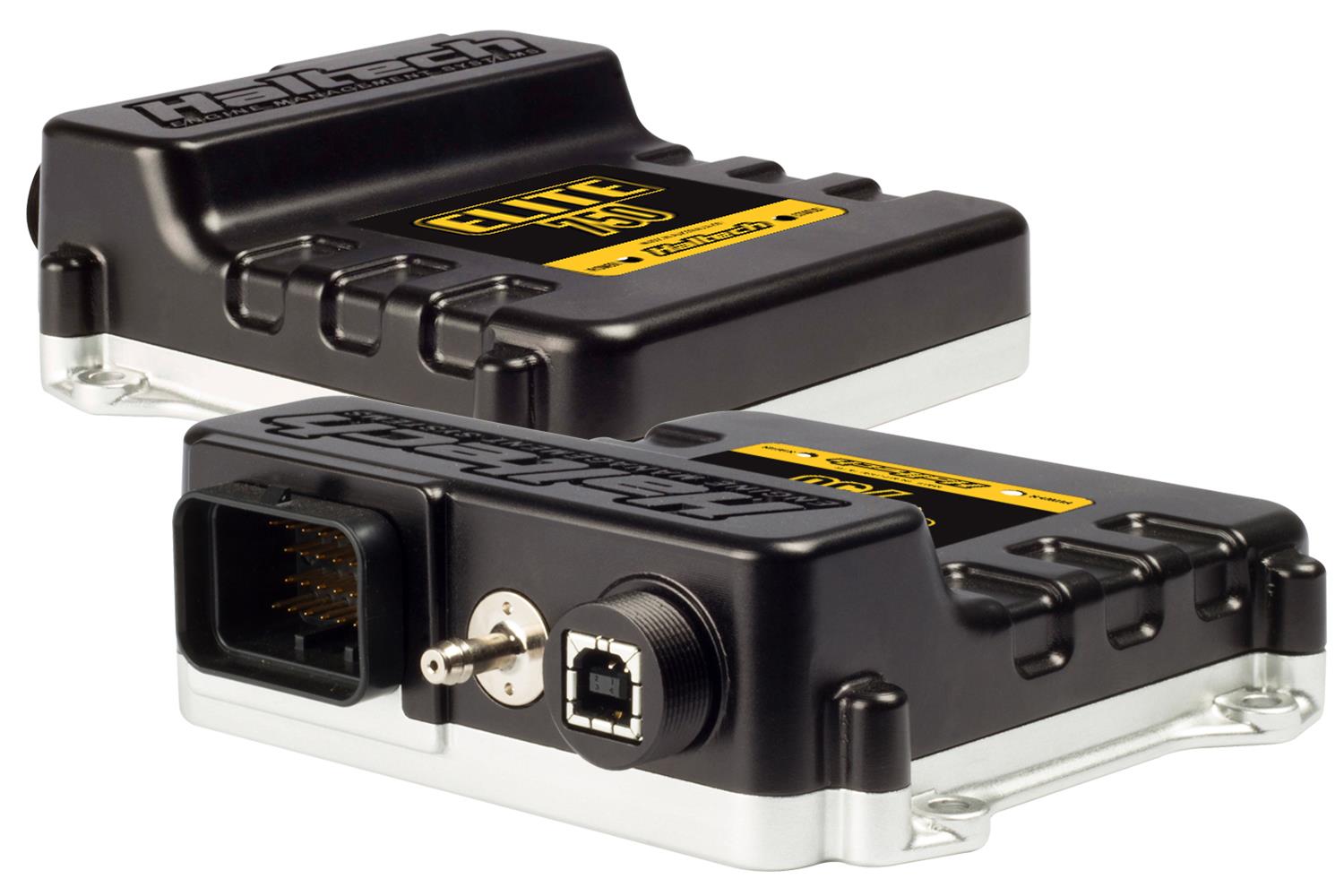

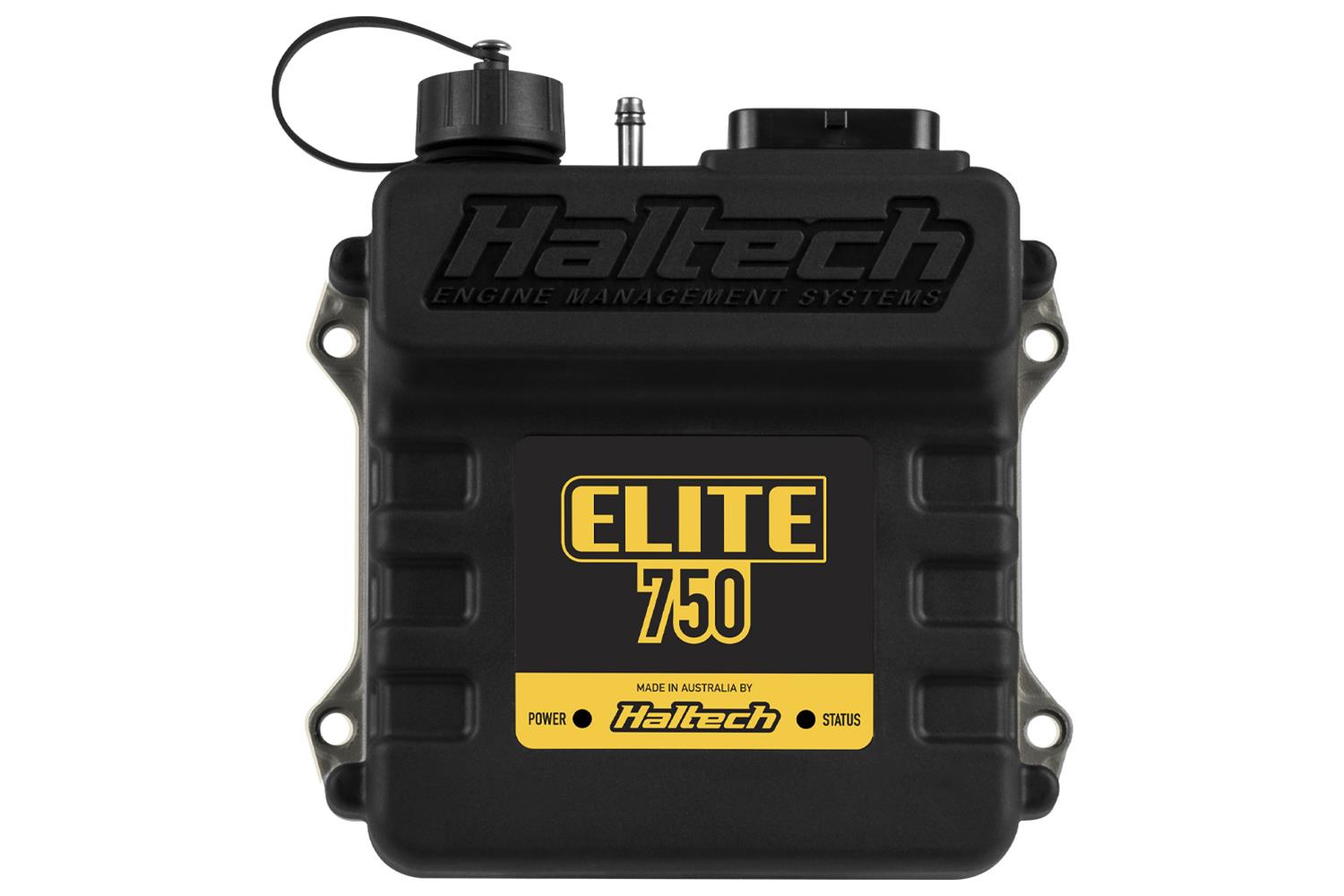

Haltech Elite 750 ECU Plug & Pin Set
Haltech Elite 750 ECU Plug & Pin Set
A$2,827.86
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Introducing the Elite 750 ECU with plug and pin sets from HalTech, an entry-level ECU offering many features that are available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, six fuel and six ignition channels, on-board data logging, and flex fuel tuning, the Elite 750 Series is a powerful, compact ECU. Like all HalTech Elite Series ECUs, the HalTech Elite 750 now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to many tuners and performance enthusiasts worldwide.
Product Overview:
* Includes: Elite 750 ECU with plug and pin set

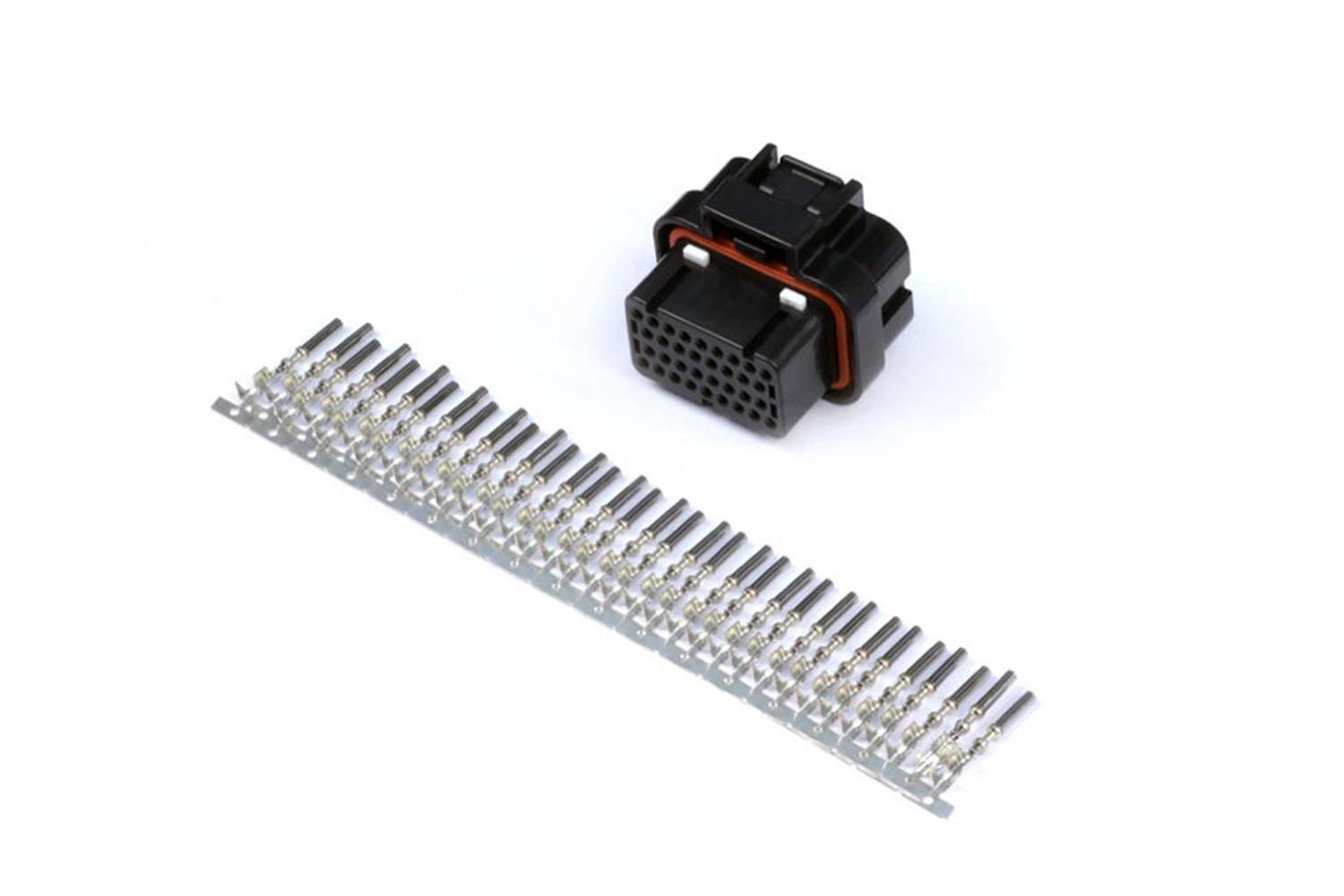

* Plug and pins only amp 34-pin, 4-row, 3-key Superseal
* Supports 1 to 6-cylinder engines, and 1 to 3-rotor engines
* Normally aspirated or forced induction
* Load sensing by Throttle Position (TPS), Manifold
* Absolute Pressure (MAP) or Mass Air Flow (MAF)
* Staged, Sequential, semi-sequential, batch or multipoint injection patterns
* Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
* Connect to a wide range of display dashes and expansion devices via CAN
* Waterproof case (IP67) with USB cover fitted
* 34-position amp connector
* 6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
* 6 x Ignition Outputs
* 2 x Dedicated Engine Position inputs with extensive trigger type support
* 2 x Digital Pulsed Inputs
* 5 x Digital Pulsed Outputs
* 2 x Analogue Voltage Inputs
* 3 x Dedicated Inputs: throttle position, coolant temperature and air temperature)
* Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29 psi)
* Up to 45 channels of Input and Output (I/O) expansion (via CAN)
* USB Laptop Communication (Windows)
* On-board data logging
* NSP Calibration Software—intuitive and easy to use
Part Type
Throttle Assist
Specifications
- Product Attributes - Brand
- Haltech
- Product Attributes - Manufacturer's Part Number
- HT-150601
- Product Attributes - Part Type
- Engine Management Systems
- Product Attributes - Product Line
- HalTech Elite 750 ECU with Plug and Pin Set
- Product Attributes - UPC
- 9356450011822
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Boost Control
- Yes
- Product Attributes - Traction Control
- No
- Product Attributes - High Impedence Injectors
- Up to 6
- Product Attributes - Low Impedence Injectors
- Up to 6
- Product Attributes - Coils
- Up to 6
- Product Attributes - Digital Inputs
- 2
- Product Attributes - Analog Inputs
- 5
- Product Attributes - VR/Mag Inputs
- Up to 2
- Product Attributes - Wideband Controller
- No
- Product Attributes - CANBUS Enabled
- Yes
- Product Attributes - CANBUS Networks
- 1
- Product Attributes - Knock Control
- No
- Product Attributes - Drive-By-Wire Capable
- No
- Product Attributes - VVT Control
- Yes
- Product Attributes - VVT Channels
- 1
- Product Attributes - Nitrous Control
- Yes
- Product Attributes - Launch Control
- Yes
- Product Attributes - Engine Protection
- Yes
- Product Attributes - Flex Fuel Compatible
- Yes
- Product Attributes - Multi-fuel Capable
- Yes
- Product Attributes - Data Logger
- Yes
- Product Attributes - Oxygen Sensor Included
- No
- Product Attributes - Display Included
- No
- Product Attributes - Handheld Controller Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Haltech |
|---|---|
| StreetFX SKU | halHT-150601 |
| SFX Item ID | 4401420 |
| Supplier Item Code | 4401420 |
| Manufacturer SKU | HT-150601 |
| Manufacturer UPC | 9356450011822 |
| Alternative References | HTH-HT-150601 |
