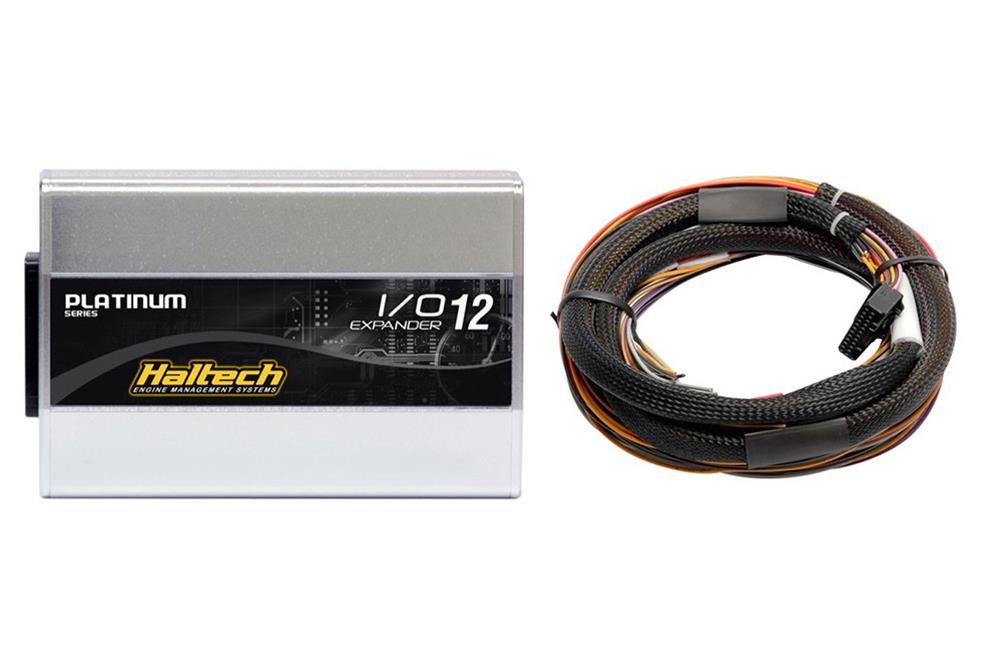

Haltech IO 12 Expander Box B CAN Based 12 Channel w/Flying Lead Harness
Haltech IO 12 Expander Box B CAN Based 12 Channel w/Flying Lead Harness
A$1,055.76
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
HalTech Input/Output 12 expanders are CAN devices that increase the number of available analog and digital inputs, as well as digital outputs. They are ideal for additional pressure, temperature, and flex fuel sensors that can be used for engine protection or general monitoring of your engine's vital data. I/O expanders integrate with all HalTech Platinum, Elite, and Nexus Series ECUs and VCUs. Increase the functionality of your ECU with HalTech I/O expanders.
Select the HalTech I/O 12 expander (Box A or B) suitable for your ECU. They are available in different options: Expander with 12 in. (300mm) CAN cable DTM 4- to 8-pin Tyco, expander with cable and matching 24-pin TYCO plug and pins or expander with cable and matching 8 ft. (2.5m) flying lead harness.
Features:
* Four Digital Pulsed Outputs (DPO)
* Four Digital Pulsed Inputs (DPI)
* Four Analog Voltage Inputs (AVI)
* Two expanders can be combined for up to 24 additional channels (subject to ECU compatibility). Functions available depend on ECU used.
Part Type
Data Acquisition Module
Specifications
- Product Attributes - Brand
- Haltech
- Product Attributes - Manufacturer's Part Number
- HT-059905
- Product Attributes - Part Type
- Data Acquisition Components
- Product Attributes - Product Line
- HalTech Input/Output 12 Expanders
- Product Attributes - UPC
- 9356450004558
- Product Attributes - Data Acquisition Component Type
- CAN expansion module
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Box B, Includes IO 12 Expander with matching flying lead harness, 12 in. Elite CAN cable DTM-4 to 8 pin Black Tyco.
Reference Information
| Brand Name/s | Haltech |
|---|---|
| StreetFX SKU | halHT-059905 |
| SFX Item ID | 4401192 |
| Supplier Item Code | 4401192 |
| Manufacturer SKU | HT-059905 |
| Manufacturer UPC | 9356450004558 |
| Alternative References | HTH-HT-059905 |
