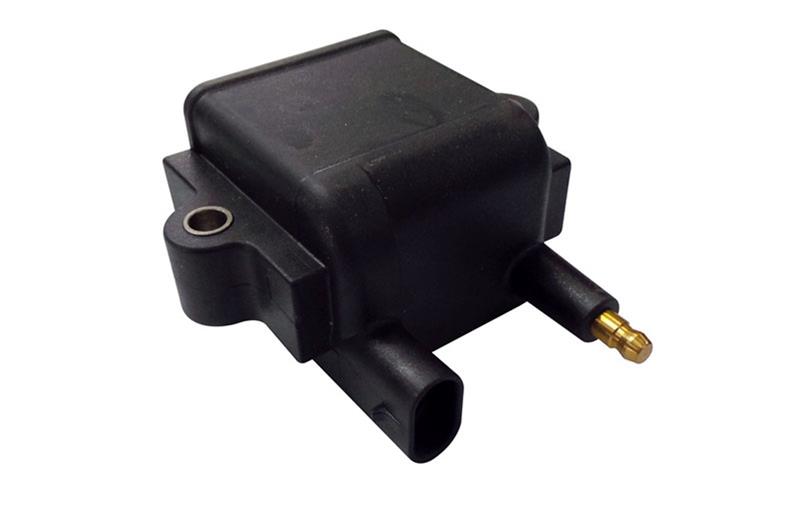

Haltech CDI Coil (Incl Plug & Pins)

SKU: HALHT-020132

Ignition Coils

HAL Coils...

Haltech

Haltech CDI Coil (Incl Plug & Pins)

SKU: HALHT-020132

Ignition Coils

HAL Coils...

LOW STOCK! Est Ship 3-5 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

HalTech High Output CDI ignition coils are inductive 'smart coils' capable of producing extremely high spark energy (103mJ +), making them ideal for many high-horsepower applications. The coil-near-plug form factor allows them to be remotely mounted away from the cylinder head to promote lower operating temperatures of the coil, improving longevity and performance. These coils are ideally suited for a wide variety of applications, ranging from moderate powered endurance applications through 3,000+ hp blown alcohol motors. They're the ideal combination of high spark energy and long spark duration.

Additional details:

* Massive spark energy, up to 103 mJ
* Incredibly long spark duration, up to 2.9mS
* Up to 40kV output voltage, without using a CDI
* Deliver CDI-like spark energy—no CDI module needed
* Can be mounted almost anywhere
* Weather and shock-proof design
* Can be mounted directly to the engine
* Suits HalTech range of HPI high power igniters

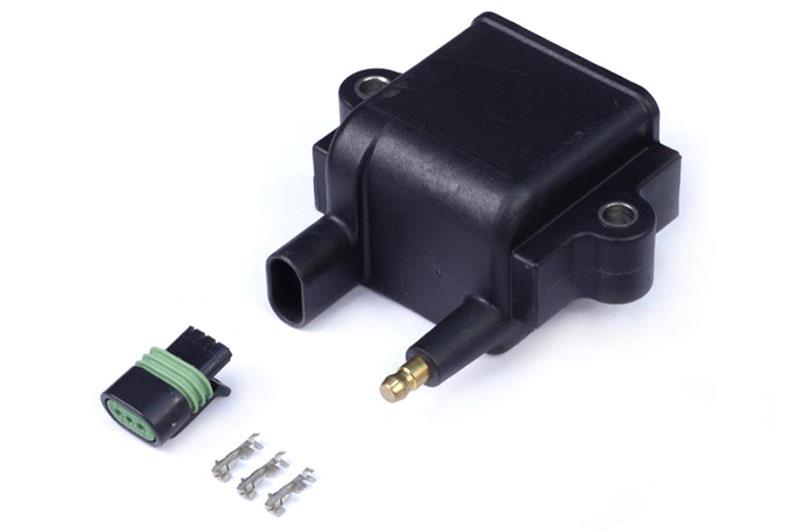

* What's In the box:
--- One high output CDI coil
--- Matching Delphi plug and pins

Part Type

Ignition Coil Assembly

Data: v4.2 - Upd: 2026-10-13 15:15:13

Specifications

Product Attributes - Brand: Haltech
Product Attributes - Manufacturer's Part Number: HT-020132
Product Attributes - Part Type: Ignition Coils
Product Attributes - Product Line: HalTech High Output CDI Coils
Product Attributes - UPC: 9356450001687
Product Attributes - Coil Style: Coil pack
Product Attributes - Coil Wire Attachment: Male/HEI
Product Attributes - Coil Color: Black
Product Attributes - Spark Duration: 2.0 mS
Product Attributes - Mounting Bracket Included: No
Product Attributes - Coil Wire Included: No
Product Attributes - Ballast Resistor Included: No
Product Attributes - Coil Shape: Square
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Includes terminals and connector.

Reference Information

Brand Name/s	Haltech
StreetFX SKU	halHT-020132
SFX Item ID	4401087
Supplier Item Code	4401087
Manufacturer SKU	HT-020132
Manufacturer UPC	9356450001687
Alternative References	HTH-HT-020132
