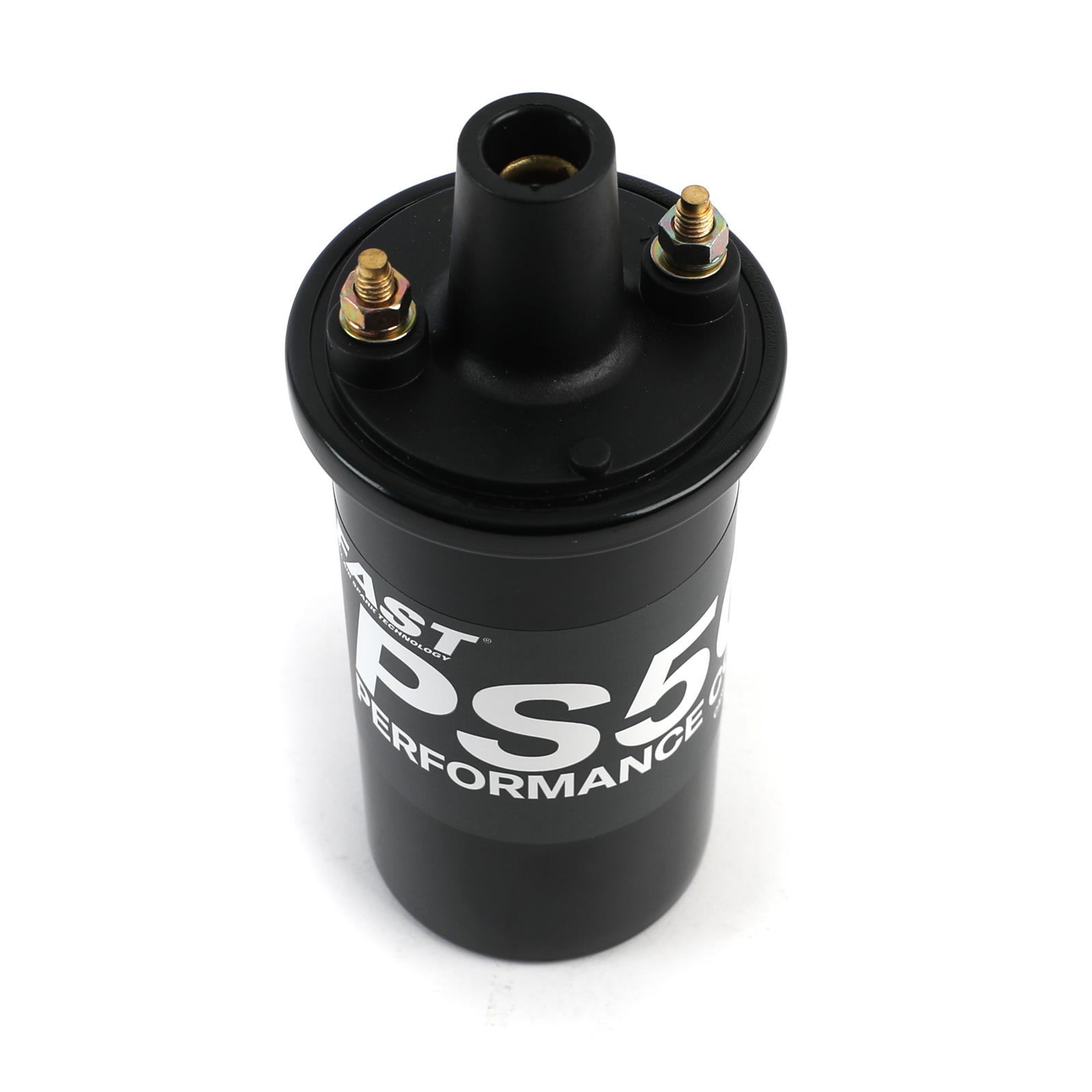

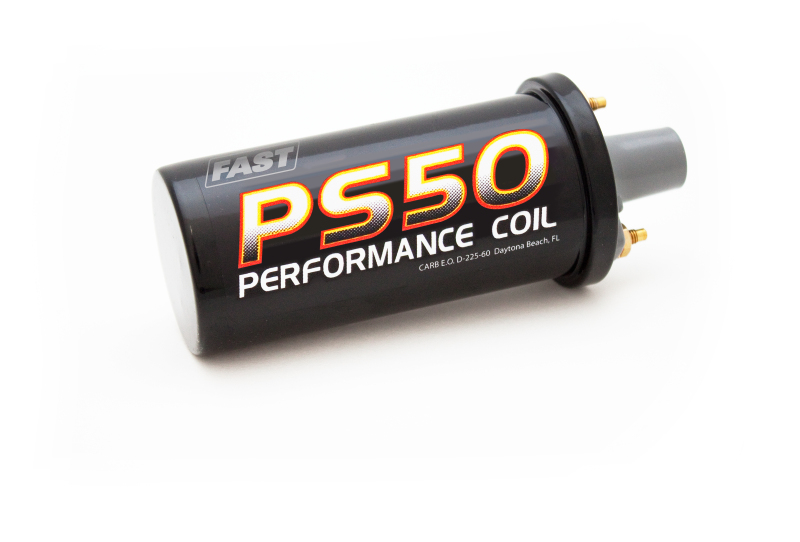

FAST Coil PS50 Performance Canister - Black
FAST Coil PS50 Performance Canister - Black
A$160.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals.
Part Type
Ignition Coil
Specifications
- Product Attributes - Brand
- FAST
- Product Attributes - Manufacturer's Part Number
- 730-0050
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- FAST PS50 Ignition Coils
- Product Attributes - UPC
- 021174041484
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.400 ohms
- Product Attributes - Coil Internal Construction
- Oil-filled
- Product Attributes - Coil Wire Attachment
- Female/Socket
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 47,000 V
- Product Attributes - Turns Ratio
- 54:1
- Product Attributes - Secondary Resistance
- 3.80K ohms
- Product Attributes - Inductance
- 5.30 mH
- Product Attributes - Peak Current
- 160 mA
- Product Attributes - Spark Duration
- 385 uS
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Round
- Product Attributes - Diameter (in.)
- 2.125 in.
- Product Attributes - Height (in.)
- 5.750 in.
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Fast |
|---|---|
| StreetFX SKU | fst730-0050 |
| SFX Item ID | 4084473 |
| Supplier Item Code | 4084473 |
| Manufacturer SKU | 730-0050 |
| Manufacturer UPC | 21174041484 |
| Alternative References | PS50 |
