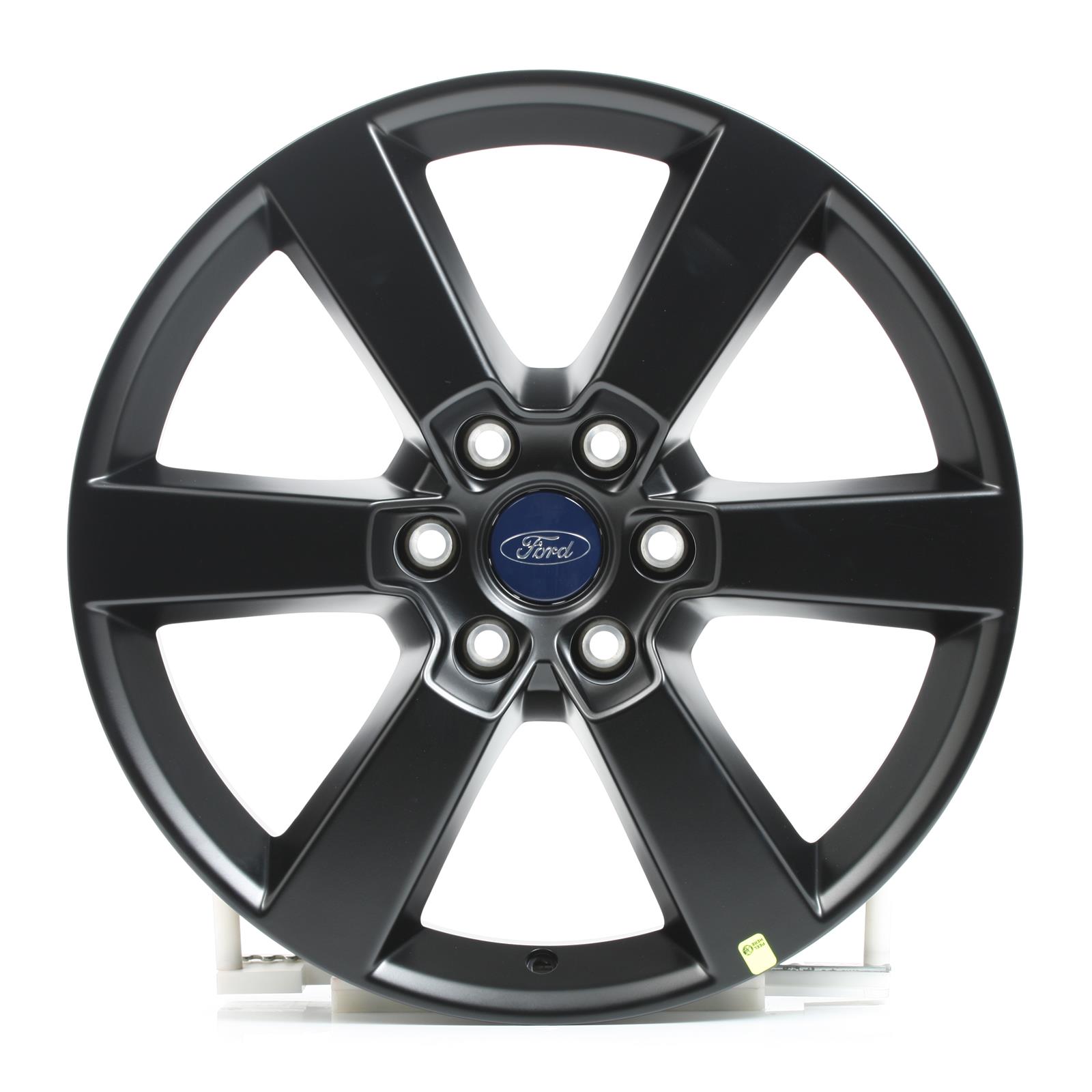

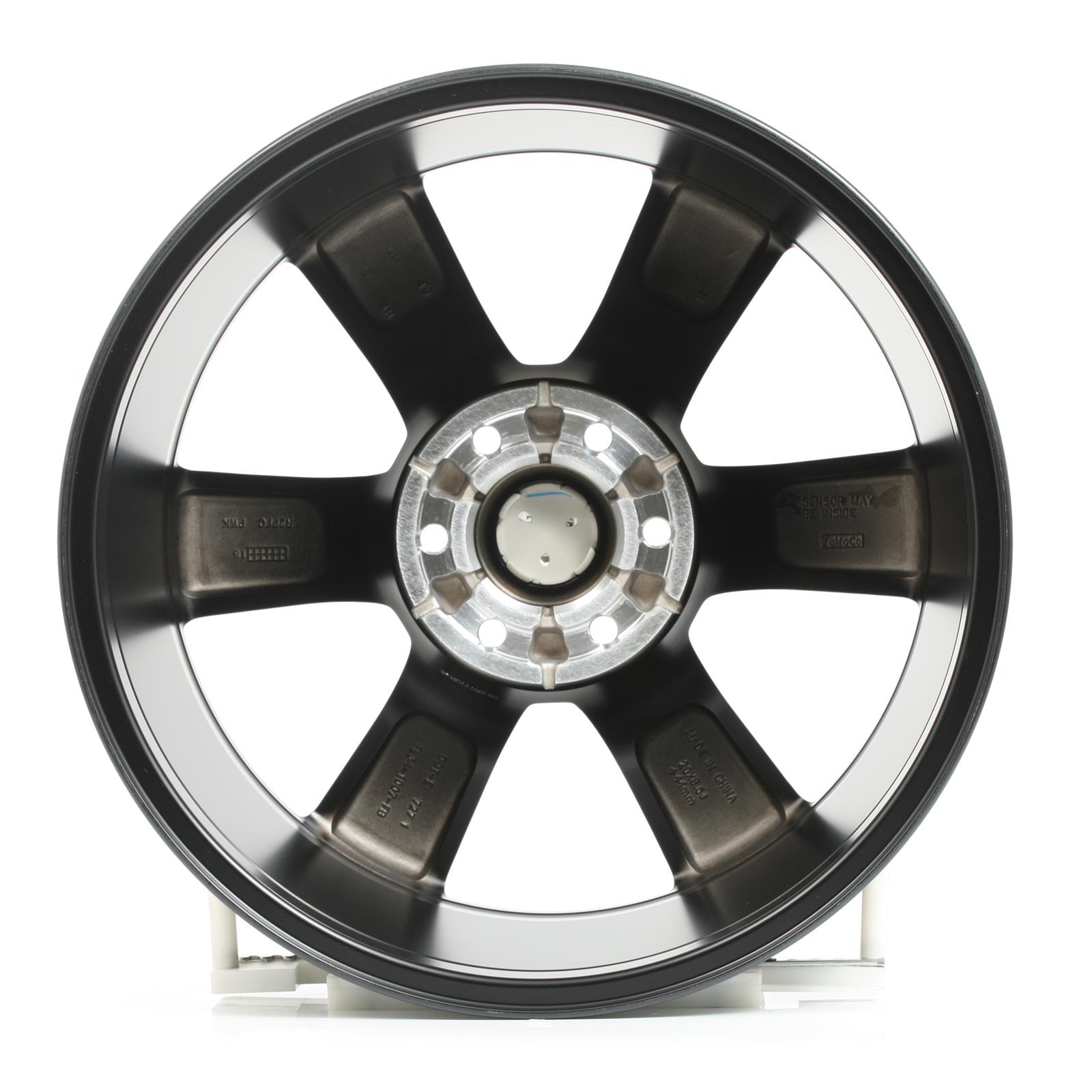

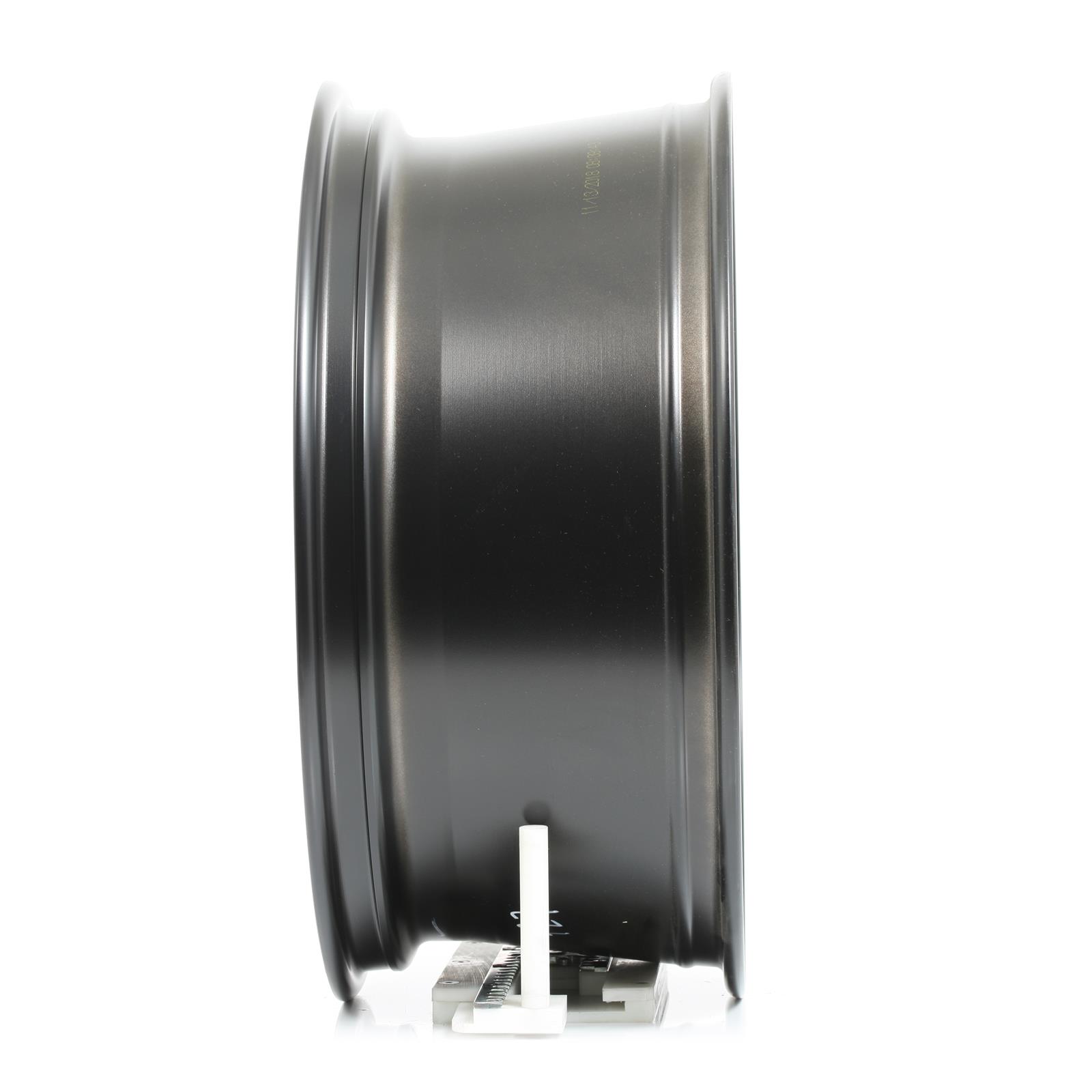

Ford Racing 15-17 F-150 20in x 8.5in Six Spoke Wheel - Matte Black
Ford Racing 15-17 F-150 20in x 8.5in Six Spoke Wheel - Matte Black
A$874.57
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FRPP uses the Society of Automotive Engineers (SAE) and American Society for Testing and Materials (ASTM) Standars: SAE J175 and J328 for impact and fatigue testing and ASTM B368 for chrom testing. These standards define a series of tests that ensure the safety and finish of a wheel. THESE TESTS ARE THE MINIMUM STANDARD USED TO DEFINE THE ENDURANCE OF FRPP WHEELS. Impact Testing: This test simulates a curb impact on the side of a tire/wheel assembly. During testing, a tire/wheel assembly is mounted at a 13-degree angle to a test fixture by the hub. A weight is dropped from 9 inches onto the assembly at the tire/wheel intersection. The mass of the weight is determined by a formula, using the vehicle weight. Dynamic Cornering Fatigue Testing: This test simulates lateral loads applied to a wheel by the vehicle. During testing, a wheel is clamped to a fixture by the front face and a constant bending moment is applied through the hub. A wheel of new design will run a minimum of 1,000,000 cycles before approved. The load applied is determined by a formula, using the vehicle weight. Dynamic Radial Fatigue Testing: This test simulates axial loads applied to a wheel by the vehicle. During testing, a tire/wheel assembly is mounted to an axle by the hub. A large drum drives the assembly while a load is applied perpendicular to the tire patch. A wheel of new design will run a minimum of 5,000,000 cycles. The load applied is determined by a formula, using the vehicle weight. Chrome Quality Testing: Copper-accelerated acetic acid-salt spray, commonly known as CASS testing, is the standard method used to test the corrosive performance of copper/nickel/chromium-plated wheels. The test is performed in a sealed chamber with a highly acetic spray directed onto the wheel for a predetermined amount of time, usually 66 hours.
Product Overview
FRPP uses the Society of Automotive Engineers (SAE) and American Society for Testing and Materials (ASTM) Standars: SAE J175 and J328 for impact and fatigue testing and ASTM B368 for chrom testing. These standards define a series of tests that ensure the safety and finish of a wheel. THESE TESTS ARE THE MINIMUM STANDARD USED TO DEFINE THE ENDURANCE OF FRPP WHEELS. Impact Testing: This test simulates a curb impact on the side of a tire/wheel assembly. During testing, a tire/wheel assembly is mounted at a 13-degree angle to a test fixture by the hub. A weight is dropped from 9 inches onto the assembly at the tire/wheel intersection. The mass of the weight is determined by a formula, using the vehicle weight. Dynamic Cornering Fatigue Testing: This test simulates lateral loads applied to a wheel by the vehicle. During testing, a wheel is clamped to a fixture by the front face and a constant bending moment is applied through the hub. A wheel of new design will run a minimum of 1,000,000 cycles before approved. The load applied is determined by a formula, using the vehicle weight. Dynamic Radial Fatigue Testing: This test simulates axial loads applied to a wheel by the vehicle. During testing, a tire/wheel assembly is mounted to an axle by the hub. A large drum drives the assembly while a load is applied perpendicular to the tire patch. A wheel of new design will run a minimum of 5,000,000 cycles. The load applied is determined by a formula, using the vehicle weight. Chrome Quality Testing: Copper-accelerated acetic acid-salt spray, commonly known as CASS testing, is the standard method used to test the corrosive performance of copper/nickel/chromium-plated wheels. The test is performed in a sealed chamber with a highly acetic spray directed onto the wheel for a predetermined amount of time, usually 66 hours.
Features and Benefits
- Matte Black Finish
- Clear Coated To OEM Standards
- Valve Stem TPMS Compatible
- Use w/TPMS Sensor/Activation Tool M1180-B
- 20 x 8.5 in. Wide
- 6 Lug 136mm Bolt Circle
- 44mm Offset
- 160mm Backspacing
Product Details
| Back Spacing: | 6.300 in. |
|---|---|
| Bolt Pattern: | 6x135mm |
| Description: | Wheel |
| Finish: | Black |
| Part Number: | frpM-1007-P2085MB |
| Position: | N/A |
| Prop 65 Yes/No: | No |
| Title: | Ford Performance - 2015-2020 F-150 20" X 8.5" Six Spoke Matte Black Wheel - M-1007-P2085MB |
| WARNING CA Proposition 65: | No |
| Wheel Size: | 20x8.5 |
Part Type
20i x 8.5 6-Spoke Wheel 2015-2020 F150
Features
- 160mm Backspacing
- 20 x 8.5 in. Wide
- 44mm Offset
- 6 Lug 136mm Bolt Circle
- Clear Coated To OEM Standards
- Matte Black Finish
- Use w/TPMS Sensor/Activation Tool M1180-B
- Valve Stem TPMS Compatible
Specifications
- Product Attributes - Brand
- Ford Performance Parts
- Product Attributes - Manufacturer's Part Number
- M-1007-P2085MB
- Product Attributes - Part Type
- Wheels
- Product Attributes - Product Line
- Ford Performance Parts F-150 Six-Spoke Matte Black Wheels
- Product Attributes - UPC
- 756122002964
- Product Attributes - Wheel Diameter
- 20 in.
- Product Attributes - Wheel Width (in.)
- 8.50
- Product Attributes - Wheel Size
- 20x8.5
- Product Attributes - Wheel Bolt Pattern (application)
- 6 x 135mm
- Product Attributes - Wheel Material
- Cast aluminum
- Product Attributes - Wheel Face Color
- Black
- Product Attributes - Wheel Face Finish
- Matte/Satin
- Product Attributes - Wheel Barrel/Lip Color
- Black
- Product Attributes - Wheel Barrel/Lip Finish
- Matte/Satin
- Product Attributes - Manufacturers Wheel Series
- Ford Racing F-150 Wheels
- Product Attributes - Backspacing (in.)
- 6.30
- Product Attributes - Offset
- +44.00mm
- Product Attributes - Wheel Construction
- 1-piece
- Product Attributes - TPMS Sensor Compatible
- Yes
- Product Attributes - Beadlock Type
- None
- Product Attributes - Lug Nut/Bolt Seat Style
- Conical seat - 60 degree
- Product Attributes - Hub Centric Ring Compatible
- No
- Product Attributes - Center Bore Diameter (in.)
- 3.43
- Product Attributes - Center Bore Diameter (mm)
- 87.10
- Product Attributes - Center Cap Included
- Yes
- Product Attributes - Lug Nuts Included
- No
- Product Attributes - Small Diameter Lug Nuts Required
- No
- Product Attributes - Valve Stems Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Designed for Dually Truck
- No
Reference Information
| Brand Name/s | Ford Racing |
|---|---|
| StreetFX SKU | frpM-1007-P2085MB |
| SFX Item ID | 4303508 |
| Supplier Item Code | 4303508 |
| Manufacturer SKU | M-1007-P2085MB |
| Manufacturer UPC | 756122002964 |
| Alternative References | fms-m1007p2085mb, FRDM1007-P2085MB, F-150, 20in, 8.5in |
