Description

FOX Performance Series shocks contain the latest in shock technology to transform the performance of your Jeep. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Product Overview

Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. Tuned specifically for your vehicle’s application._x000D_ _x000D_ Consistent and fade-resistant performance due to high-quality materials: aluminum bodies, race-developed main piston, and a true internal floating piston (IFP) to separate gas and oil._x000D_ _x000D_ Built-to-last, torture-tested and race-proven to give a lifetime of great rides. FOX products are built from aluminum, dissipating heat four times better than conventional materials. All FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Features and Benefits

• Packed With 35 Years Of Race Winning Technology
• Includes Aluminum Reservoir Clamp
• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components
• IFP Separates Oil From High-Pressure Nitrogen Gas
• FOX Racing Oil Developed For Ultimate Performance
• Large Heavy-Duty Hard Chrome 5/8 Inch Shaft
• Hour Glass Bushings Allow Increased Articulation

Product Details

Year	Make
Body Diameter (in):	2.0
Body Material:	Aluminum
Bottom Mount (P/N):	213-27-002-B
Bottom Mount:	ES3
California Proposition 65:	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length:	15.850 in.
Color:	Aluminum
Compressed Length (in):	15.90

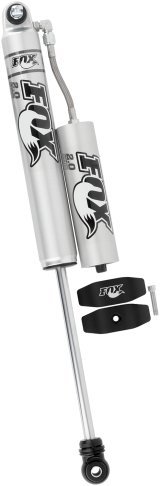

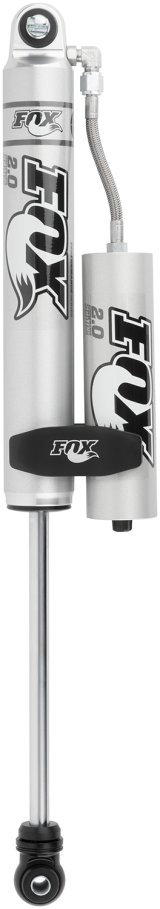

Description:	PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK
Extended Length (in):	26.02
Extended Length:	25.950 in.
FOX CATALOG:	TRUCK
Label Name:	07-ON Jeep JK Rear, PS, 2.0, R/R, 10.1", 2.5-4" Lift
Part Number:	fox985-24-036
Prop 65 Y/N:	Y
Reservoir Type:	Remote
Series:	Performance
Shock Stroke:	10.100 in.
Size:	2 in.
Title:	PERFORMANCE SERIES 2.0 SMOOTH BODY RESERVOIR SHOCK
Top Mount (P/N):	213-82-003
Top Mount:	BP4
Travel (in):	10.12
Type:	Smooth Body
WARNING CA Proposition 65 Message:	! Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING CA Proposition 65:	Yes

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	jksJSPEC100KFR	JKS 07-18 Jeep JK 4Dr 3.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2352, 1x jksJSPEC2350)
	jksJSPEC101KFR	JKS 07-18 Jeep JK 2Dr 3.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2352, 1x jksJSPEC2351)
	jksJSPEC102KFR	JKS 07-18 Jeep JK 4Dr 2.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2352, 1x jksJSPEC2250)
	jksJSPEC103KFR	JKS 07-18 Jeep JK 2Dr 2.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2352, 1x jksJSPEC2251)
	jksJSPEC104KFR	JKS 07-18 Jeep JK 4Dr RHD 3.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2350, 1x jksJSPEC2359)
	jksJSPEC105KFR	JKS 07-18 Jeep JK 2Dr RHD 3.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2351, 1x jksJSPEC2359)
	jksJSPEC106KFR	JKS 07-18 Jeep JK 4Dr RHD 2.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2250, 1x jksJSPEC2359)
	jksJSPEC107KFR	JKS 07-18 Jeep JK 2Dr RHD 2.5in JSPEC System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2251, 1x jksJSPEC2359)
	jksJSPEC108KFR	JKS 07-18 Jeep JK 4Dr 3.5in J Kontrol System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2450, 1x jksJSPEC2350, 1x jksJSPEC2353)
	jksJSPEC109KFR	JKS 07-18 Jeep JK 2Dr 3.5in J Kontrol System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2450, 1x jksJSPEC2351, 1x jksJSPEC2353)
	jksJSPEC113KFR	JKS 07-18 Jeep JK 4Dr 3.5in J-Konnect Lift System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2350, 1x jksJSPEC2353, 1x jksJSPEC2451)
	jksJSPEC114KFR	JKS 07-18 Jeep JK 2Dr 3.5in J-Konnect Lift System - FOX Remote Resi (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2351, 1x jksJSPEC2353, 1x jksJSPEC2451)
	jksJSPEC149KFR	JKS 07-18 Jeep JK J-Krawl 4Dr 2.5in System w/ Fox 2.0 RR (2x fox985-24-039, 1x fox985-24-036, 1x jksJSPEC2250, 1x jksJSPEC2354, 1x jksJKS1610, 1x jksJKS1660, 1x jksJKS1615, 1x jksJKS1665)
	jksJSPEC150KFR	JKS 07-18 Jeep JK J-Krawl 2Dr 2.5in System w/ Fox 2.0 RR (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2251, 1x jksJSPEC2354, 1x jksJKS1610, 1x jksJKS1660, 1x jksJKS1615, 1x jksJKS1665)
	jksJSPEC151KFR	JKS 07-18 Jeep JK J-Krawl 4Dr 3.5in System w/ Fox 2.0 RR (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2350, 1x jksJSPEC2354, 1x jksJKS1610, 1x jksJKS1660, 1x jksJKS1615, 1x jksJKS1665)
	jksJSPEC152KFR	JKS 07-18 Jeep JK J-Krawl 2Dr 3.5in System w/ Fox 2.0 RR (2x fox985-24-039, 2x fox985-24-036, 1x jksJSPEC2351, 1x jksJSPEC2354, 1x jksJKS1610, 1x jksJKS1660, 1x jksJKS1615, 1x jksJKS1665)

Data: v4.2 - Upd: 2026-10-11 03:50:41

Features

Specifications

Product Attributes - UPC

714686859172

Product Attributes - Brand

Fox Shox

Product Attributes - Notes

Top mount bolt span is 3.736 inches. Bottom mount hole size is 0.506 inches. Fits 2007-2011 Jeep JK rear shock from a 2.5-4.0 in. lift.

Product Attributes - Quantity

Sold individually.

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Ride Height

Custom

Product Attributes - Upper Mount

T-bar

Product Attributes - Product Line

Fox Racing Shox 2.0 Performance Series Reservoir Smooth Body Shocks

Product Attributes - Boot Included

No

Product Attributes - Bushing Color

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Bushing Material

Nitrile rubber

Product Attributes - Adjustable Valving

No

Product Attributes - Body Diameter (in.)

2.000

Product Attributes - Extended Length (in.)

25.95

Product Attributes - Collapsed Length (in.)

15.85

Product Attributes - Manufacturer's Part Number

985-24-036
