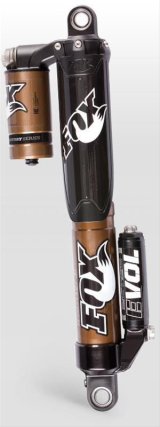

Fox Racing Shox Float 3 Evol RC2 Shocks 535-9426 Shocks, RC2, Double Adjustable, Front, for use on Honda®, Suzuki, Pair
Fox Racing Shox Float 3 Evol RC2 Shocks 535-9426 Shocks, RC2, Double Adjustable, Front, for use on Honda®, Suzuki, Pair
A$4,026.87
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
Fox Racing Shox offers Float 3 Evol RC2 shocks for a variety of ATV applications. Super-lightweight and easily adjustable, these air shocks are further enhanced with the extra volume (EVOL) air chamber—which regulates spring rate in the final portion of the stroke and controls the bottom-out characteristics of the shocks. Forget about heavy springs; lighter is faster, and these shocks offer a huge range of adjustments, enabling you to set them up for any track or terrain. The custom-valved, adjustable dual rate air spring and externally adjustable rebound let you quickly and easily tune your suspension.
Additional features:
* EVOL air technology
* High-flow velocity-sensitive damping
* Chrome silicone negative spring
* Samurai Sealing System (SSS)
* Kashima Coat
* Aerospace-grade PTFE-lined spherical bearings
* Wide-range rebound adjustment
* Anodized internal floating piston and bearing housing
* 6061-T6 aluminum body, sleeves, and reservoirs
* External rebound adjustment
* High-flow compression adjuster
* Fully rebuildable and serviceable
Part Type
Powersports Shocks
Specifications
- Product Attributes - Brand
- Fox Shox
- Product Attributes - Manufacturer's Part Number
- 535-9426
- Product Attributes - Part Type
- Powersports Shocks
- Product Attributes - Product Line
- Fox Racing Shox Float 3 Evol RC2 Shocks
- Product Attributes - UPC
- 00711745591851
- Product Attributes - Powersports Shock Position
- Front
- Product Attributes - Powersports Shock Type
- Double-adjustable
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Bronze
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Low Speed Compression Adjustable
- Yes
- Product Attributes - High Speed Compression Adjustable
- Yes
- Product Attributes - Rebound Adjustable
- Yes
- Product Attributes - High Flow Valving
- Yes
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- Spherical bearing/PTFE
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Internal Design
- Air
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Reservoir Included
- Yes
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Spring Preload Adjustable
- No
- Product Attributes - Shock Linkage Included
- No
- Product Attributes - Shock Linkage Bearings Included
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Fox |
|---|---|
| StreetFX SKU | fox535-9426 |
| SFX Item ID | 4910508 |
| Supplier Item Code | 4910508 |
| Manufacturer SKU | 535-9426 |
| Manufacturer UPC | 711745591851 |
| Alternative References | FXX-830-24-047, RC2 |
