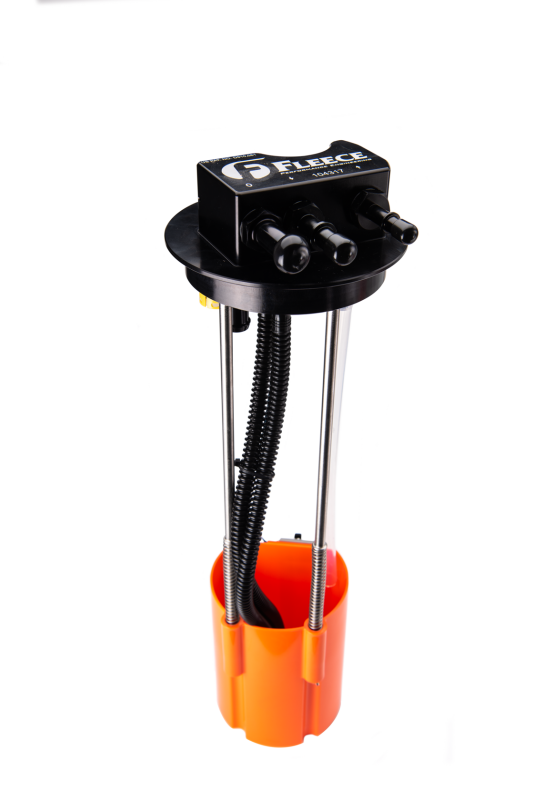

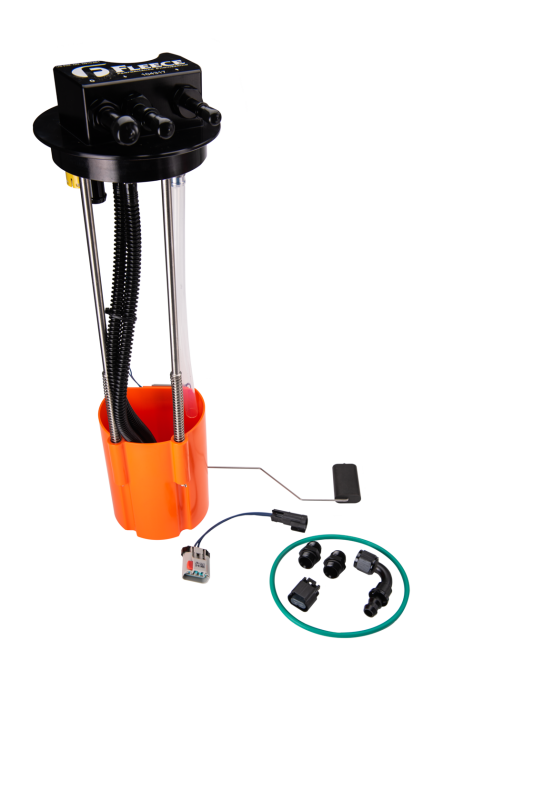

Fleece Performance 11-16 GM Duramax Short Bed SureFlo Performance Sending Unit

SKU: FPEFPE-SF-GM-1116-SB

Gauge Sending Units

FPE SureFlo Sending Units...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

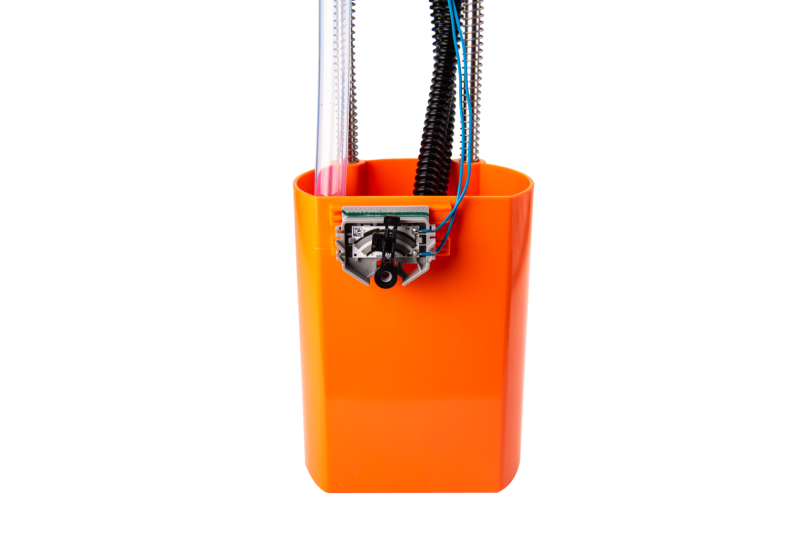

PROBLEM: If you are running an aftermarket pump that is mounted external of the fuel tank, you will need to install a draw straw or drill your fuel tank to accommodate a sump. Each of these has some pretty significant drawbacks including the 1/4 tank issues that result in cavitation of the pump when you draw air into the fuel system. SOLUTION: SureFlo is designed to work with externally mounted aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded 1/4 tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in, even at the lowest of fuel levels. SureFlo sending units are a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank. SureFlo is not recommended for use with aftermarket lift pumps that exceed a 200 GPH rating. SureFlo features include: OEM style fitment that requires no tank cutting or drilling New fuel level electronics and fuel float Heavy duty billet aluminum cap Universal -8 AN ports for professional plumbing of a custom fuel setup New O-ring or flange seal 8 to 3/4'-16 straight male fitting w/ O-ring

Part Type

Fuel Tank Sending Unit

Data: v4.2 - Upd: 2026-10-13 23:15:19

Features

8 to 3/4'-16 straight male fitting w/ O-ring

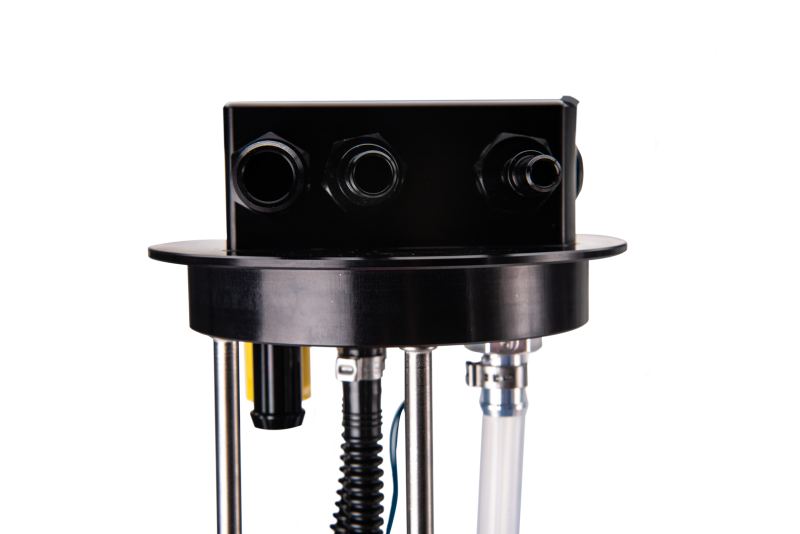

Heavy duty billet aluminum cap
New fuel level electronics and fuel float
New O-ring or flange seal
OEM style fitment
Universal -8 AN ports for professional plumbing of a custom fuel setup

Specifications

Product Attributes - Brand: Fleece Performance
Product Attributes - Manufacturer's Part Number: FPE-SF-GM-1116-SB
Product Attributes - Part Type: Gauge Sending Units
Product Attributes - Product Line: Fleece Performance SureFlo Performance Sending Units
Product Attributes - UPC: 670875717497
Product Attributes - Gauge Type: Fuel level
Product Attributes - Sending Unit: Electrical
Product Attributes - Sender Attachment Style: Plug-in
Product Attributes - Feed Line Diameter: -8 AN
Product Attributes - Return Line Diameter: -8 AN
Product Attributes - Thread Adapter Fittings Included: No
Product Attributes - Quantity: Sold individually.

Reference Information

Brand Name/s	Fleece Performance
StreetFX SKU	fpeFPE-SF-GM-1116-SB
SFX Item ID	4228351
Supplier Item Code	4228351
Manufacturer SKU	FPE-SF-GM-1116-SB
Manufacturer UPC	670875717497
Alternative References	fle-s0384, FLCFPE-SF-GM-1116-SB
