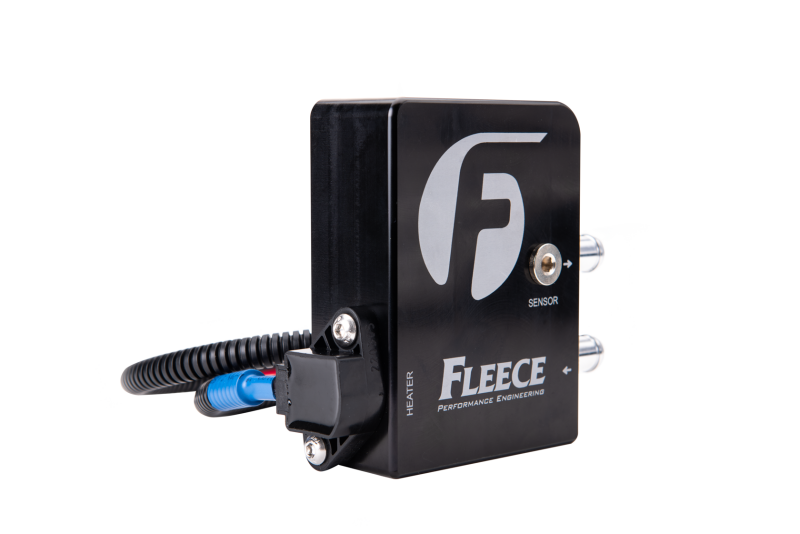

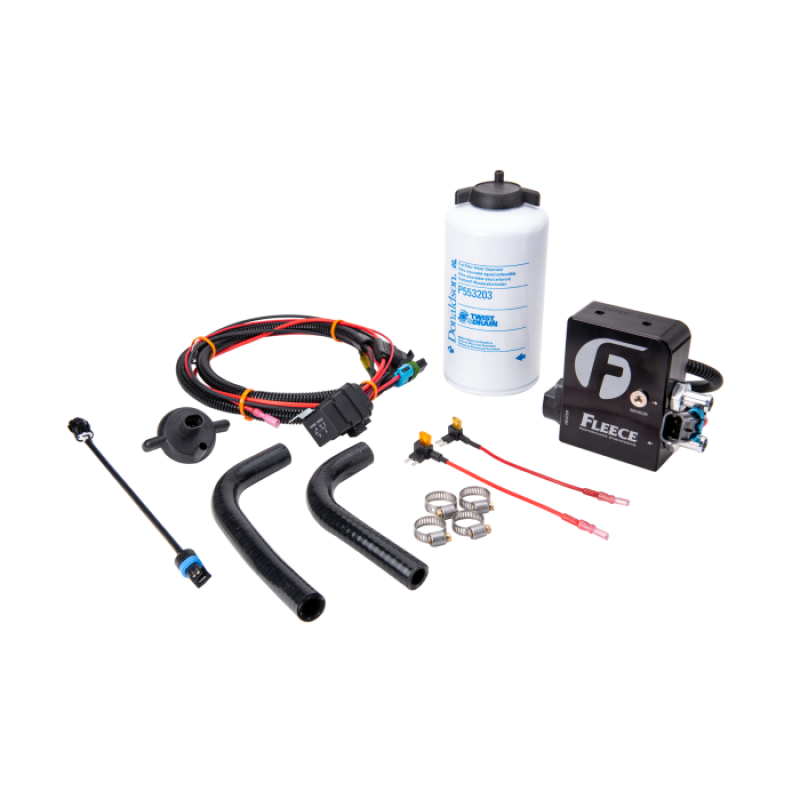

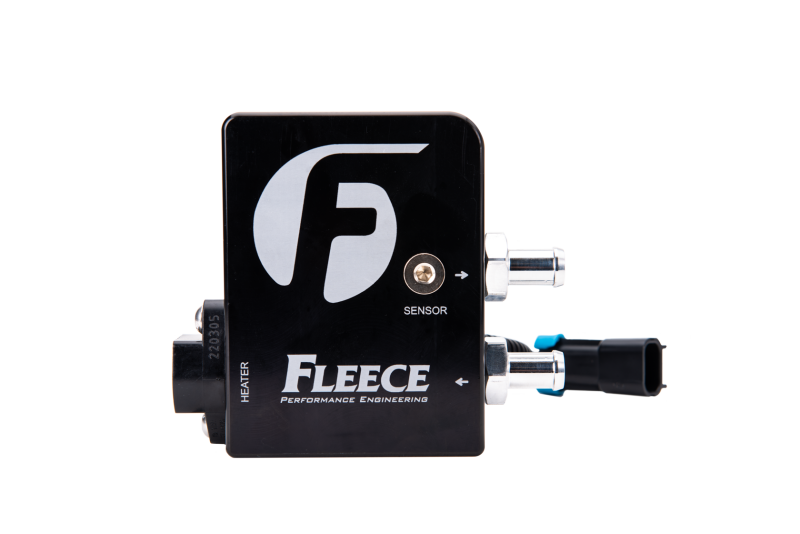

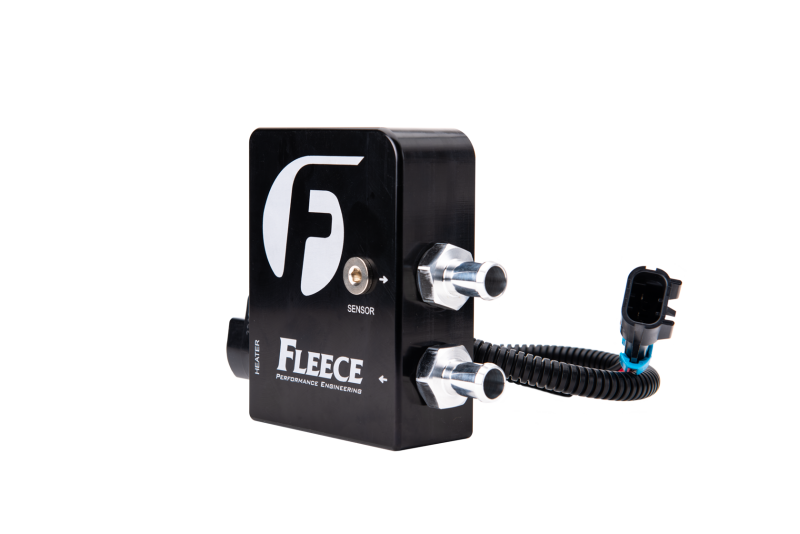

Introducing our all-new full featured auxiliary fuel filter kit for the 2011-2016 LML 6.6L Duramax! This kit replaces the factory fuel filter housing with a new filter base, integral high-flow fuel heater, Water-In-Fuel (WIF) sensor, and Donaldson spin-on canister style filter. The filter base eliminates the factory fuel primer bulb and is intended for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame mounted pump. Problem: The LML Duramax was not originally equipped with a fuel heater, making it prone to fuel gelling in cold temperatures. Solution: Our updated fuel filter base mounts in the factory location, providing for a direct factory replacement and the peace of mind to tackle the coldest of days with a high-flow fuel heater. Kit includes: Fuel filter base with integral fuel heater and fittings Donaldson 3 micron fuel filter and water separator Pre-formed hose and hose clamps Wiring harness and fuse taps Water-In-Fuel (WIF) sensor and adaptation harness Fuel heater specifications: Temperature switching points: ON: 28.4F +/-5.4F, OFF: 48.2F +/- 5.4F At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element Application Notes: For 2011-2016 6.6L Duramax only This filter base eliminates the factory fuel primer bulb and is intended ONLY for use with a positive pressure lift pump such as our PowerFlo lift pump or alternative frame mounted pump.

• Donaldson 3 micron fuel filter and water separator
• Fuel filter base with integral fuel heater and fittings
• Pre-formed hose and hose clamps
• Water-In-Fuel (WIF) sensor and adaptation harness
• Wiring harness and fuse taps
