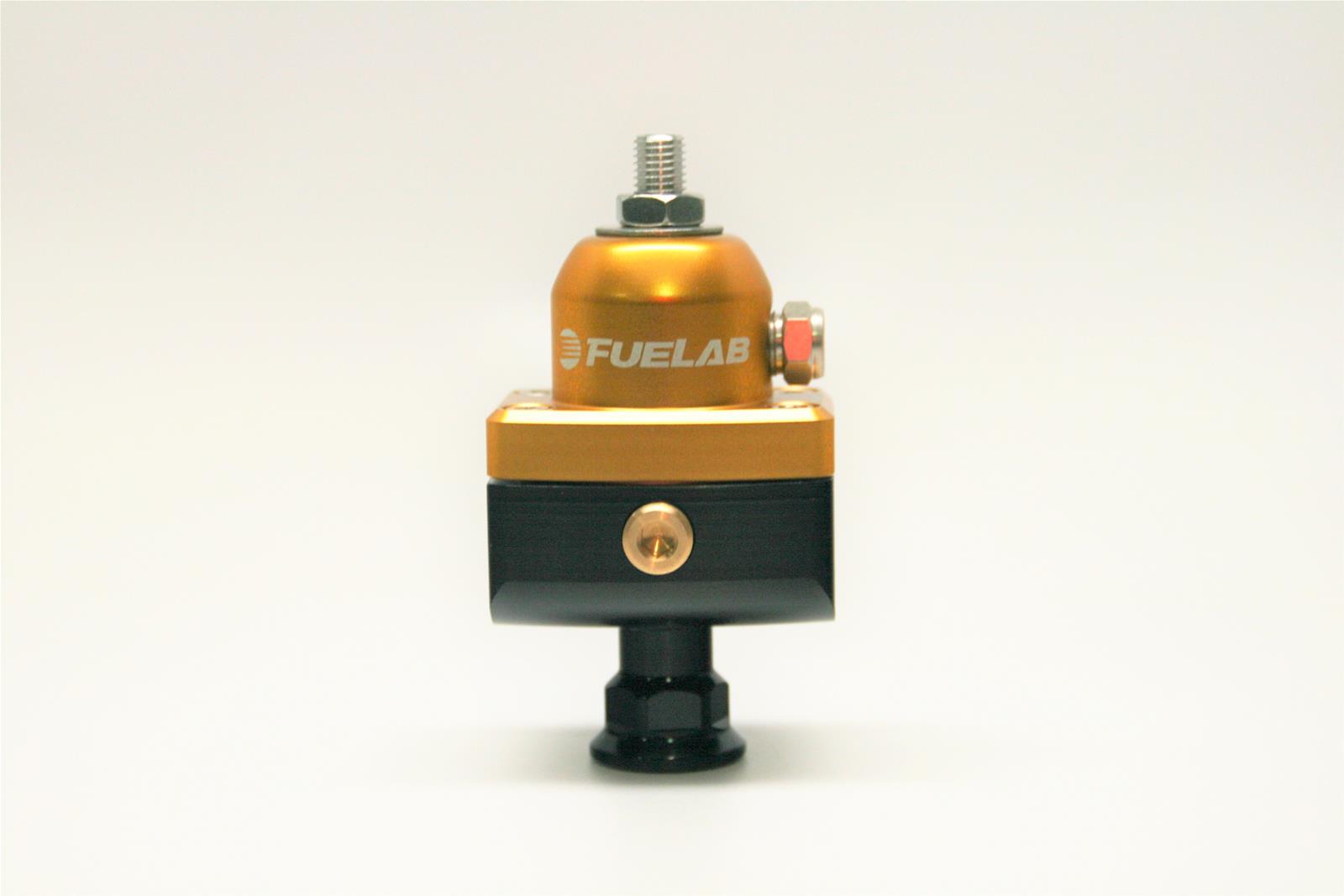

Fuelab 575 High Pressure Adjustable Mini FPR Blocking 25-65 PSI (1) -6AN In (2) -6AN Out - Gold
Fuelab 575 High Pressure Adjustable Mini FPR Blocking 25-65 PSI (1) -6AN In (2) -6AN Out - Gold
A$435.00
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Fuelab, FUELAB FUEL SYSTEMS StreetFX SKU flb57504-5 SFX Item ID 4221574 Accounting SKU flb-57504-5 Manufacturer SKU 57504-5 Manufacturer UPC 00845096014896 Alternative References FUE-57504-5
Fuelab 575 High Pressure Adjustable Mini FPR Blocking 25-65 PSI (1) -6AN In (2) -6AN Out - Gold
Additional Information
Universal HIGH PRESSURE Adjustable Fuel Pressure Regulator, Blocking Style, Mini, 25-65 psi, (1) -6AN Inlet, (2) -6AN Outlets
Application Summary
Universal
Part Type
Fuel Pressure Regulator
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Installation Instructions |
|
| 2. | Technical Drawing |
|
| 3. | Catalog |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Application Summary
Universal
Part Type
Fuel Pressure Regulator
Specifications
Fuel Pressure Regulator, 575 Series Mini, Inline, Non-return Style, 25-65 psi, Billet Aluminum, Gold Anodized
FUELAB 575 Series mini fuel pressure regulators offer all of the great benefits of the 555 Series regulators, but are smaller and 50 percent lighter! They feature an advanced poppet design for smooth regulating capability and have a no-creep soft seat that is methanol and E85 compatible. These mini regulators are made from billet aluminum and are anodized for maximum protection. The 575 Series also includes a versatile mounting bracket with stainless steel hardware and 1/8 in. NPT gauge port with plug for external fuel pressure gauge.
| Product Attributes | |
|---|---|
| Brand | FUELAB |
| Manufacturer's Part Number | 57504-5 |
| Part Type | Fuel Pressure Regulators |
| Product Line | FUELAB 575 Series Mini Fuel Pressure Regulators |
| UPC | 845096014896 |
| Regulator Pressure (psi) | 25-65 |
| Regulator Style | Non-return |
| Regulator Location | Inline |
| Boost/Vacuum Reference Port | Yes |
| Gauge Port | Yes |
| Inlet Quantity | 1 |
| Regulator Inlet Size | -6 AN |
| Inlet Attachment | Female straight cut O-ring |
| Outlet Quantity | 2 |
| Regulator Outlet Size | -6 AN |
| Outlet Attachment | Female straight cut O-ring |
| Fittings Included | No |
| Regulator Material | Aluminum |
| Regulator Color | Gold |
| Rebuildable | Yes |
| Mounting Bracket Included | Yes |
| Remanufactured | No |
| Quantity | Sold individually. |
Reference Information
| Brand Name/s | Fuelab |
|---|---|
| StreetFX SKU | flb57504-5 |
| SFX Item ID | 4221574 |
| Supplier Item Code | 4221574 |
| Manufacturer SKU | 57504-5 |
| Manufacturer UPC | 845096014896 |
| Alternative References | FUE-57504-5, -6AN |
Brochures
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
Detailed Compatibility
| Application Data | |
|---|---|
| Universal | Yes |
| Fuel Type | ALCOHOL |
| Regulator Usage | Multi-port injection |
| Universal | Yes |
| Fuel Type | DIESEL |
| Regulator Usage | Multi-port injection |
| Universal | Yes |
| Fuel Type | FLEX |
| Regulator Usage | Multi-port injection |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
