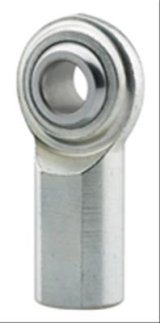

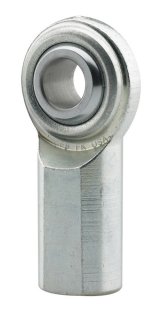

FK CM/CF Series Rod Ends CF5 End, Series, 5/16 in.-24, Female Threads, 2-piece, Low carbon Steel, 0.313 in. Bore, Each
FK CM/CF Series Rod Ends CF5 End, Series, 5/16 in.-24, Female Threads, 2-piece, Low carbon Steel, 0.313 in. Bore, Each
A$14.40
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
FK CM/CF Series rod ends are economical replacements featuring 2-piece, metal-to-metal construction. Their bodies are made using low-carbon steel that's zinc plated and chromate treated; and their balls are made of 52100 hard chrome plated steel. These high-quality rod ends are often used in street rod applications without high-impact or load requirements. Order the size and thread options needed for your application.
Part Type
Rod End 5/16 x 10-32 RH Female
Specifications
- Product Attributes - Brand
- FK Rod Ends
- Product Attributes - Manufacturer's Part Number
- CF5
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- FK CM/CF Series Rod Ends
- Product Attributes - UPC
- 800199090505
- Product Attributes - Rod End Thread Size
- 5/16 in.-24
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 0.313 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 1.250 in.
- Product Attributes - Rod End Head Diameter
- 0.875 in.
- Product Attributes - Rod End Head Width
- 0.312 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.875 in.
- Product Attributes - Heat-Treated
- No
- Product Attributes - Rod End Ball Width
- 0.437 in.
- Product Attributes - Rod End Misalign Angle
- 22 degrees
- Product Attributes - Rod End Static Load Capacity
- 3,600 lbs.
- Product Attributes - Rod End Material
- Low carbon steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | FK Rod Ends |
|---|---|
| StreetFX SKU | fkbCF5 |
| SFX Item ID | 5101543 |
| Supplier Item Code | 5101543 |
| Manufacturer SKU | CF5 |
| Manufacturer UPC | 800199090505 |
| Alternative References | in.-24, 2-piece |
