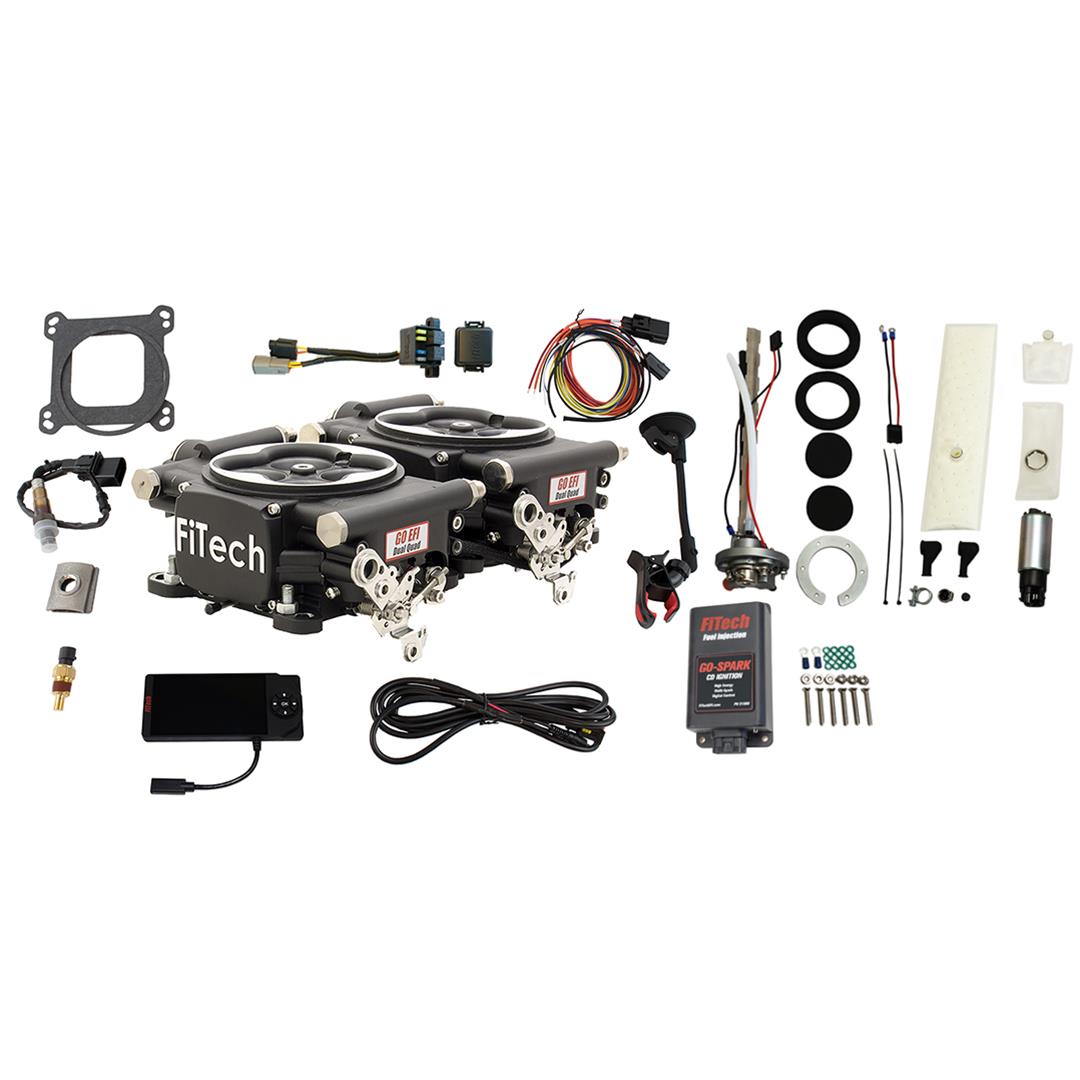

FiTech Go EFI 2x4 625 HP System/Go Spark Fuel Injection Master Kits 96562 Matte Black System With Kit
FiTech Go EFI 2x4 625 HP System/Go Spark Fuel Injection Master Kits 96562 Matte Black System With Kit
A$4,744.17
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FiTech Go EFI 2x4 625 hp system/Go-Spark fuel injection master kits are inclusive EFI kits with fuel delivery solutions, plus an upgrade to high-powered sparks for improved combustion and power output. In these master kits, FiTech mates their 2x4 TBIs with either a Go Fuel in-tank or fuel cell pump module, or Go EFI in-line pump kit to provide everything needed to convert your carbureted vehicle to EFI. And going a step further, the Go-Spark CDI ignition will elevate the spark for even more improved performance. Choose the master kit with your preferred fuel delivery solution.
Go EFI 2x4 625 hp system lets everyone know you mean business with a pair of 4-barrels crowned atop your engine! The 2x4 is supplied with two throttle bodies, one with the brains and integral ECU, the other with the brawn. Both bodies feature four injectors and will support up to 625 horsepower (naturally aspirated). The system is supplied with two throttle bodies, handheld controller, cable and windshield mount, throttle body vehicle side harness, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty information. The throttle bodies are available in two finishes.
Go-Spark produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. At higher rpm, the CD technology continues to deliver full energy sparks through racing rpm to ensure complete combustion of the fuel mixture. Designed for 4-, 6-, and 8-cylinder engines equipped with a distributor, Go-Spark accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors.
Fuel delivery options:
* Go Fuel universal in-tank pump modules—255 or 340 lph—can be used on tanks with a depth of 6 to 15 in. A feed line, vent, and return are machined into the module for easy high-pressure line connections. Gaskets, terminals, and clamps are included.
* Go Fuel universal in-tank regulated pump module—255 lph or 340 lph—single line system with a depth of 6.5 to 15 in. Pump has -6 AN pressure port and a 4-Bar (58 psi) regulator and suitable for most EFI-ready tanks
* Go Fuel single pump fuel cell module—returnless--340 lph--billet top assembly is machined with a 2 in. filler assembly, as well as an internal regulator to maintain 58 psi. The module is machined to fit fuel cells with a 12-bolt flange or can be installed on any tank with the supplied hardware.
* Go EFI inline pump kit—255 lph external pump suitable to support engines producing up to 600 (non-aspirated) hp. Supplied with 40 ft. of high-pressure fuel hose, two fuel filters, including a serviceable 10-micron filter, fittings, mounts, and clamps.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 96562
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Go EFI 2x4 625 HP System/Go Spark Fuel Injection Master Kits
- Product Attributes - UPC
- 812061039864
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Dual 4-Barrel Throttle Bodies (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 625
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, return
- Product Attributes - Ignition System Included
- Ignition box
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- Dual 4-barrel square bore
- Product Attributes - Venturi Quantity
- 8
- Product Attributes - Venturi Diameter (mm)
- 44.00mm
- Product Attributes - Airflow Rate (cfm)
- 1,700 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 36 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif96562 |
| SFX Item ID | 5178840 |
| Supplier Item Code | 5178840 |
| Manufacturer SKU | 96562 |
| Manufacturer UPC | 812061039864 |
| Alternative References | 2x4 |
