Fitech Fuel Injection

FiTech Easy Street 600 HP EFI System/Go-Spark Fuel Injection Master Kits 96505 Gold System With Kit

SKU: FIF96505

Fuel Injection Systems
FiTech Easy Street 600 HP EFI System/Go-Spark Fuel Injection Master Kits 96505 Gold System With Kit

Fitech Fuel Injection

FiTech Easy Street 600 HP EFI System/Go-Spark Fuel Injection Master Kits 96505 Gold System With Kit

SKU: FIF96505

Fuel Injection Systems
A$3,025.45
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

FiTech Easy Street 600 hp EFI system/Go-Spark fuel injection master kits deliver an electronic fuel injection kit with a fuel delivery solution. Each master kit pairs the classic gold appeal and modern performance of FiTech's Easy Street 600 hp throttle body with one of several inline or in-tank fuel delivery solutions, providing everything you need to convert your carbureted vehicle to EFI—all with one part number. Plus, these kits also provide upgraded spark performance for improved combustion and power output. Choose the FiTech Easy Street master kit with your preferred fuel delivery system.

Easy Street TBIs look like factory carburetors, but that's where the similarities end. The pre-programmed assembly bolts right in place on a square-bore intake manifold and requires only a minimum of inputs to ¬rev up. It accepts the tachometer signal from the coil negative, an HEI distributor, or from a CD ignition box for simple installation. A fast reacting wideband O2 sensor is supplied to monitor the fuel burn signaling the self-learning technology of the ECU on adjustments to the mixture, resulting in smooth performance from idle to high rpm.

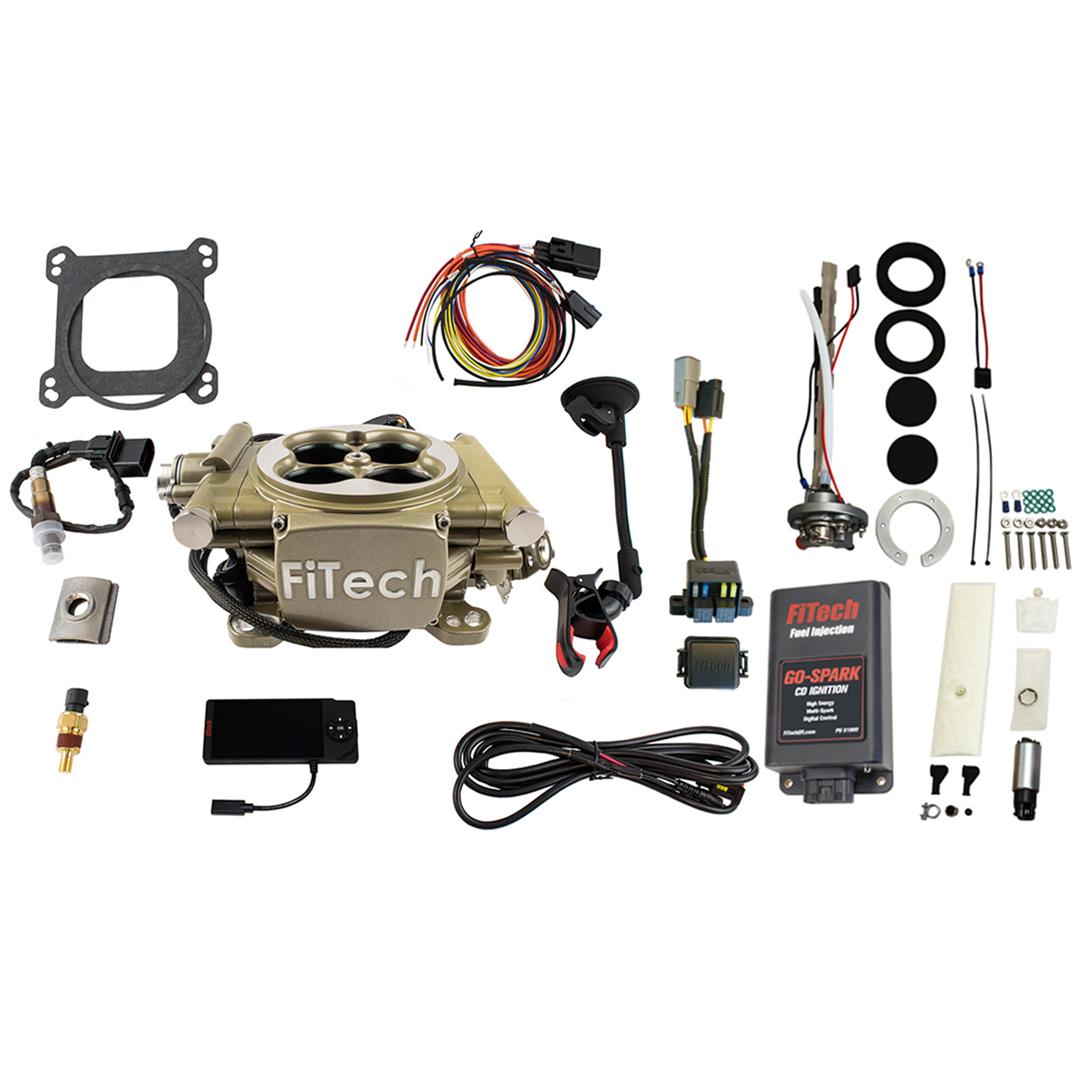

FiTech Easy Street is supplied with:

* Handheld controller, cable and windshield mount, throttle body vehicle side harness, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info

Go-Spark CD ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. Designed for engines equipped with a distributor, it accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors. A separate 12 V square wave tach output can be used to trigger the EFI system and/or a tachometer.

Fuel delivery options:

* Go Fuel universal in-tank pump modules—340 lph—can be used on tanks with a depth of 6 to 15 in. A feed line, vent, and return are machined into the module for easy high-pressure line connections. Gaskets, terminals, and clamps are included.
* Go Fuel universal in-tank regulated pump module—255 lph or 340 lph—single line system with a depth of 6.5 to 15 in. Pump has -6 AN pressure port and a 4-Bar (58 psi) regulator and suitable for most EFI-ready tanks
* Go EFI inline pump kit—255 lph external pump suitable to support engines producing up to 600 (naturally aspirated) hp. Supplied with 40 ft. of high-pressure fuel hose, two fuel filters, including a serviceable 10-micron filter, fittings, mounts, and clamps.

Part Type

Fuel Injection Systems

Data: v4.2 - Upd: 2026-10-14 08:57:21

Specifications

Product Attributes - Brand
FiTech Fuel Injection
Product Attributes - Manufacturer's Part Number
96505
Product Attributes - Part Type
Fuel Injection Systems
Product Attributes - Product Line
FiTech Easy Street 600 HP EFI System/Go-Spark Fuel Injection Master Kits
Product Attributes - UPC
812061039819
Product Attributes - Fuel Injection Style
Throttle body
Product Attributes - Fuel Injection System Type
Single 4-Barrel Throttle Body (4150 Flange)
Product Attributes - Maximum Horsepower with Gas
600
Product Attributes - Timing Control Compatible
No
Product Attributes - ECM Included
Yes
Product Attributes - Self Tuning
Yes
Product Attributes - User Tunable
Yes
Product Attributes - Fuel System Included
In-tank fuel pump module, return
Product Attributes - Ignition System Included
Ignition box
Product Attributes - Power Distribution Included
None
Product Attributes - User Interface Included
4.5 in. display
Product Attributes - EGR
No
Product Attributes - Transmission Controller Included
No
Product Attributes - Metering Style
Speed density
Product Attributes - Multi-Port Fuel Rails Included
No
Product Attributes - Throttle Body Included
Yes
Product Attributes - Throttle Body Mounting Flange
4-barrel square bore
Product Attributes - Venturi Quantity
4
Product Attributes - Venturi Diameter (mm)
44.00mm
Product Attributes - Airflow Rate (cfm)
850 cfm
Product Attributes - Throttle Body Material
Cast aluminum
Product Attributes - Throttle Body Color
Gold
Product Attributes - Injectors Included
Yes
Product Attributes - Injector Size (lbs/hr)
80 lbs./hr.
Product Attributes - Calibration Module Included
Yes
Product Attributes - Wiring Harness Included
Yes
Product Attributes - Oxygen Sensor Included
Yes
Product Attributes - Fuel Pressure Regulator Included
Yes
Product Attributes - MAP Sensor Included
Yes
Product Attributes - IAT Sensor Included
Yes
Product Attributes - TPS Sensor Included
Yes
Product Attributes - IAC Motor Included
Yes
Product Attributes - Quantity
Sold as a kit.
Product Attributes - Notes
Fuel injection system includes: 255 lph in-tank regulated pump, CDI ignition.

Reference Information

Brand Name/s Fitech Fuel Injection
StreetFX SKU fif96505
SFX Item ID 5178764
Supplier Item Code 5178764
Manufacturer SKU 96505
Manufacturer UPC 812061039819

Compatibility

Application Data
  • UniversalYes
    Fuel TypeALCOHOL
  • UniversalYes
    Fuel TypeFLEX
    Application NotesE85 requires 30 percent more fuel to equal the same power level, confirm your EFI system is capable of flowing the extra E85 to reach horsepower goals.
  • UniversalYes
    Fuel TypeGAS
  • UniversalYes
    Fuel TypeMETHANOL
