FiTech's Ultra Ram EFI 800 hp regulated in-tank pump/Go-Spark fuel injection master kits feature their outstanding Ultra Ram with aggressive looking sheet metal intake manifold along with an in-tank fuel delivery system. Also included in these packages is FiTech Go-Spark CD ignition for high-powered sparks that improve combustion and power output. Designed for the do-it-yourself hot rodder to the professional EFI tuner, these kits are ready to go with everything you need to convert your carbureted engine to top-of-the-line EFI FiTech self-learning technology.

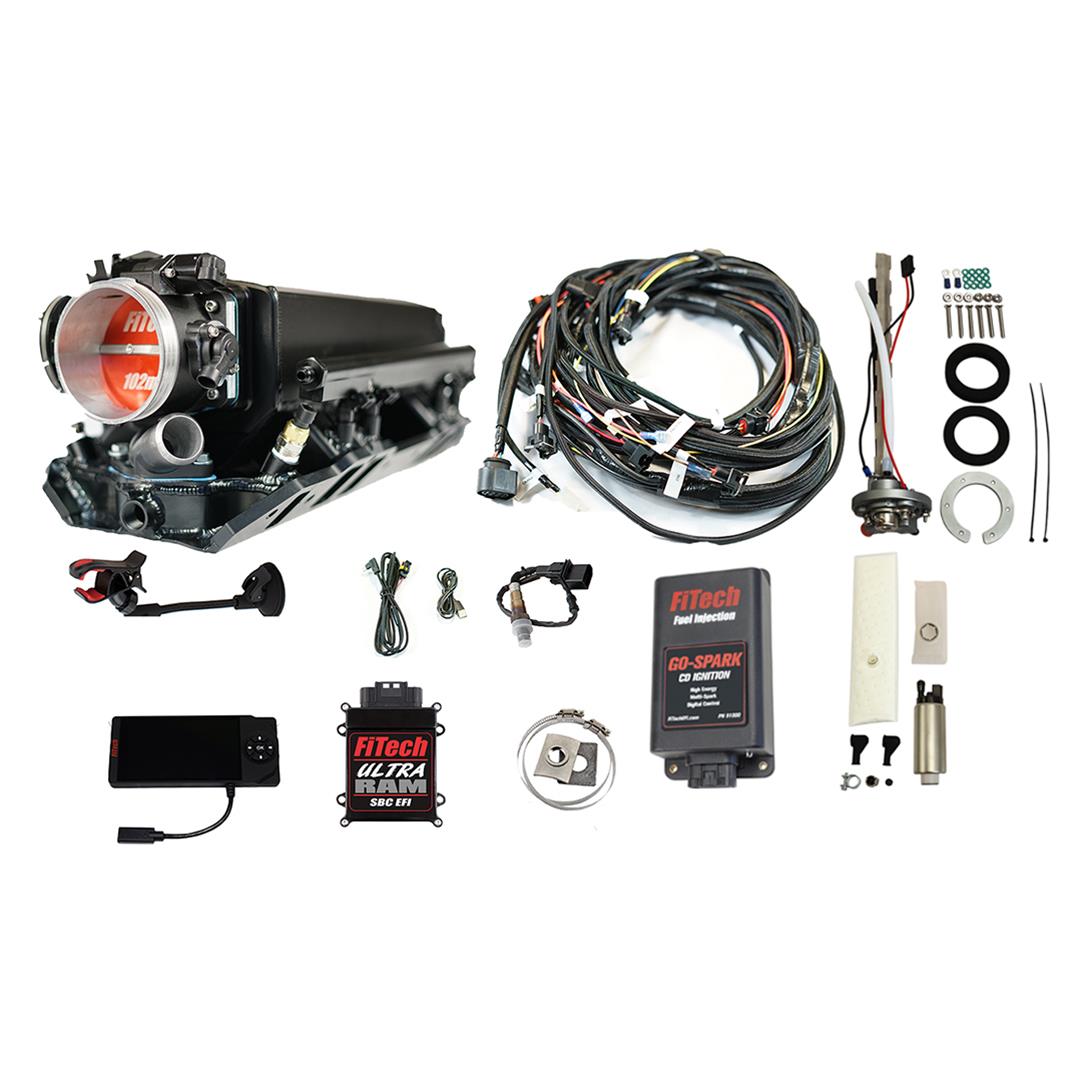

These Ultra Ram EFI systems will support up to 800 hp and come out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 102mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.

For fuel delivery, FiTech Ultra Ram master kits include a Go Fuel in-tank 340 lph pump assembly. It offers a simplified approach to fuel delivery for fuel injected engines with a single line system, and has a depth of 6 1/2 to 15 in., making it suitable for most EFI-ready tanks. It has a -6 AN pressure port, a 4 bar (58 psi) regulator, and a low-profile design.

Go-Spark CD ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. Designed for 4-, 6- and 8-cylinder engines equipped with a distributor, it accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors. A separate 12 V square wave tach output can be used to trigger the EFI system and/or a tachometer.
