FiTech Go EFI Classic 650 HP System In-Tank Pump/Regulator/Go-Spark Fuel Injection Master Kits 96121 Black With Kit
FiTech Go EFI Classic 650 HP System In-Tank Pump/Regulator/Go-Spark Fuel Injection Master Kits 96121 Black With Kit
A$3,807.19
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
If you prefer the restored or classic hot rod look, FiTech's Go EFI Classic Series should be your choice. You get the performance benefits of modern fuel injection, with the looks of a vintage carburetor--without the flooding, vapor lock, and cold start issues. And FiTech's master kits will also provide a fuel delivery option, allowing you to take your setup from carburetor to EFI all with one part number.

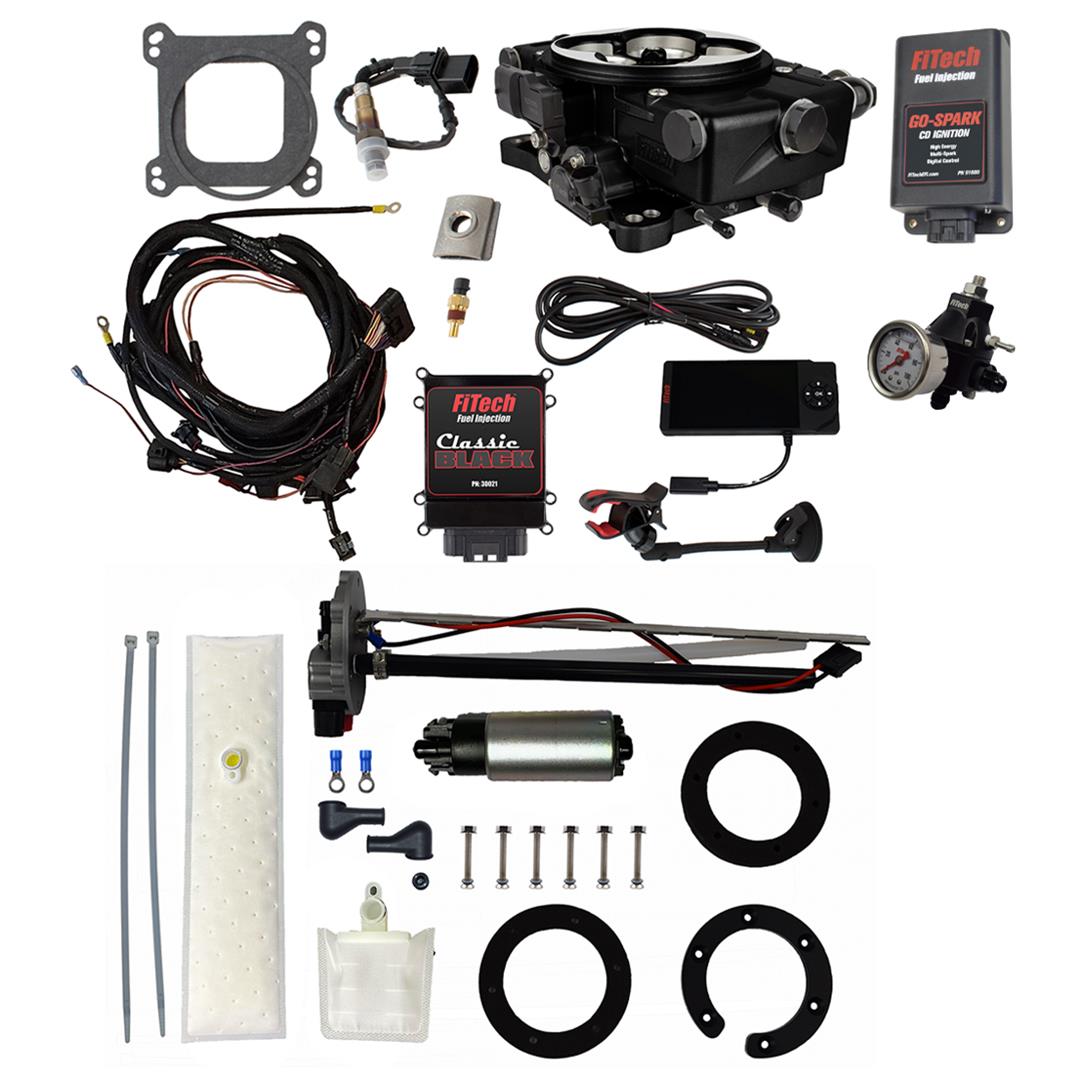

FiTech Go EFI Classic 650 hp system in-tank/regulator/Go-Spark fuel injection master kits package a gold or black Classic throttle body with an in-tank pump module, a Tight Fit regulator with gauge, and a Go-Spark CDI ignition for high-powered sparks that improve combustion and power output. Choose your preferred throttle body finish and fuel delivery system.
Features:
* Go EFI Classic throttle body features FiTech's advanced self-tuning fuel metering technology and will support engines rated up to 650 hp. Thanks to the dual bolt pattern, the throttle body will easily bolt onto most intake manifolds and throttle linkages. The ECU of the Classic Series is compact and easy to mount out of sight to maintain a restored engine compartment, but you'll notice the fuel injection benefits every time you turn the key!
* Go Fuel Tight Fit single output regulator can be adjusted from 30 to 70 psi, will support up to 1,000 hp, and is crafted from billet aluminum with -6 ORB ports along with a vacuum/boost port and includes gauge.
* Go-Spark CDI ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. At higher rpm, the CD technology continues to deliver full energy sparks through racing rpm to ensure complete combustion of the fuel mixture. Designed for 4-, 6-, and 8-cylinder engines equipped with a distributor, Go-Spark accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors.
Fuel delivery options:
* Choose either a 255 lph or 340 lph in-tank pump module. Both pumps can be used on tanks with a depth of 6 to 15 in., and each has a billet top assembly designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. The vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection. Gaskets, terminals, and clamps are included.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 96121
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Go EFI Classic 650 HP System In-Tank Pump/Regulator/Go-Spark Fuel Injection Master Kits
- Product Attributes - UPC
- 810128300063
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 650
- Product Attributes - Timing Control Compatible
- No
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, return
- Product Attributes - Ignition System Included
- Ignition box
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Venturi Diameter (mm)
- 44.00mm
- Product Attributes - Airflow Rate (cfm)
- 950 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 80 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fuel injection system includes: in tank fuel pump 600 hp module, CDI ignition, regulator with pressure gauge.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif96121 |
| SFX Item ID | 5178837 |
| Supplier Item Code | 5178837 |
| Manufacturer SKU | 96121 |
| Manufacturer UPC | 810128300063 |
