FiTech Ultra Ram EFI 800 HP Force Fuel/Go-Spark Fuel Injection Master Kits 93532 Chevy Big Block Rectangle Port System With Kit
FiTech Ultra Ram EFI 800 HP Force Fuel/Go-Spark Fuel Injection Master Kits 93532 Chevy Big Block Rectangle Port System With Kit
A$5,259.53
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FiTech's Ultra Ram EFI 800 hp Force Fuel/Go-Spark fuel injection master kits feature their outstanding Ultra Ram with aggressive looking sheet metal intake manifold along with a Force Fuel delivery system. Also included in these packages is a FiTech Go-Spark CD ignition for high-powered sparks that improve combustion and power output. Designed for the do-it-yourself hot rodder to the professional EFI tuner, these kits are ready to go with everything you need to convert your carbureted engine to top-of-the-line EFI FiTech self-learning technology.

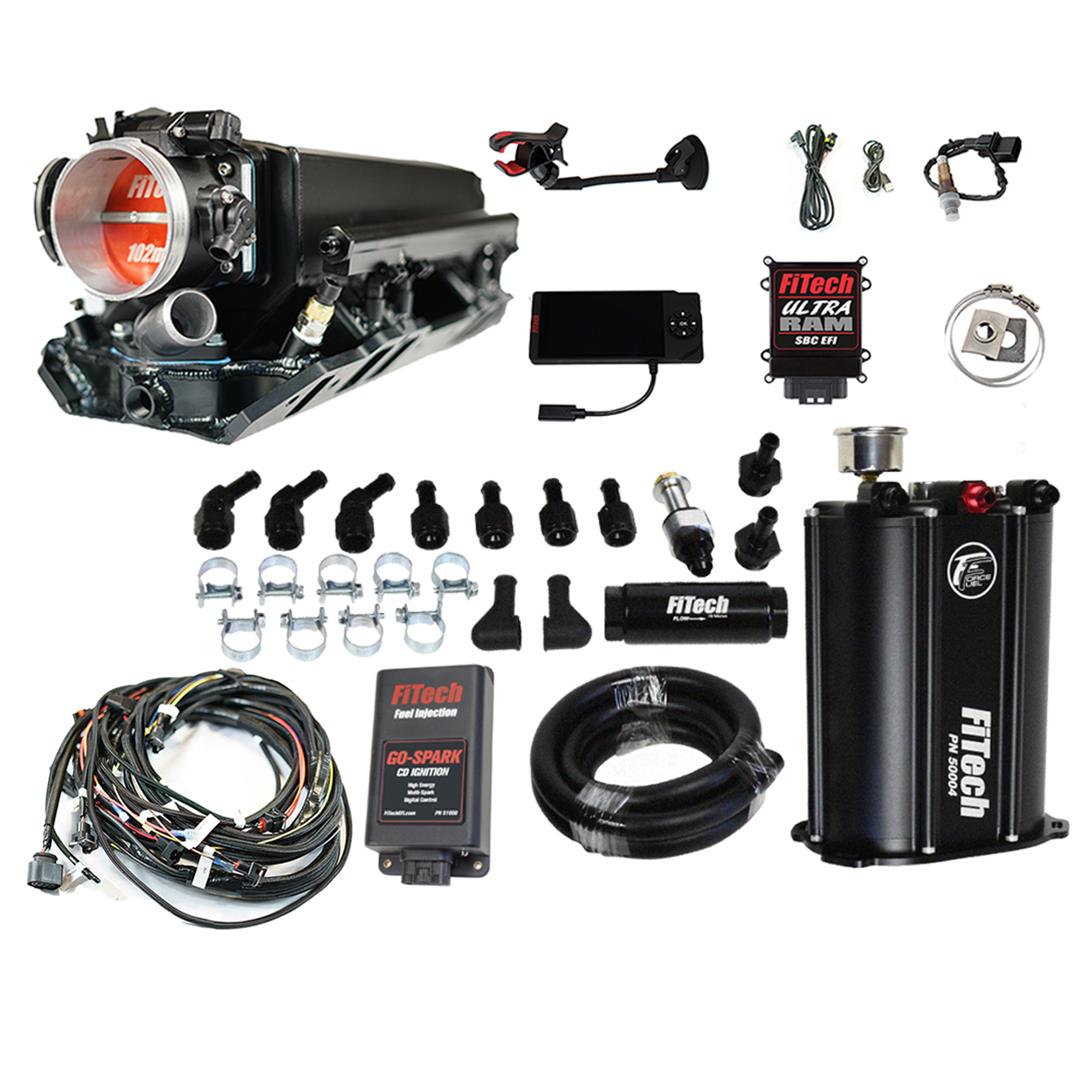

The Ultra Ram EFI system will support up to 800 hp and comes out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to ¬rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 102mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.
For fuel delivery, these FiTech Ultra Ram master kits include a 340 lph Force Fuel system with large 1/2 gallon reservoir to eliminate fuel starvation and an internal regulator that keeps pressure at a consistent 58 psi. To ensure clean fuel to your injectors, a serviceable 10-micron fuel filter is supplied, along with high-pressure fuel hose, AN fittings, return line fitting bung, and liquid-filled gauge.
Go-Spark CD ignition produces a series of multiple sparks below 2,500 rpm to improve starting, idle quality, and throttle response. Designed for 4-, 6- and 8-cylinder engines equipped with a distributor, it accepts the trigger signal from an HEI, amplifier, points, or 2-wire non-magnetic pickup distributors. A separate 12 V square wave tach output can be used to trigger the EFI system and/or a tachometer.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 93532
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Ultra Ram EFI 800 HP Force Fuel/Go-Spark Fuel Injection Master Kits
- Product Attributes - UPC
- 810128300315
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Fuel Injection System Type
- Multi-port Throttle Body
- Product Attributes - Maximum Horsepower with Gas
- 800
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- Surge tank
- Product Attributes - Ignition System Included
- Ignition box
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - Intake Color
- Black
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- GM LS2 4-bolt
- Product Attributes - Venturi Quantity
- 1
- Product Attributes - Venturi Diameter (mm)
- 102.00mm
- Product Attributes - Airflow Rate (cfm)
- 1,450 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 55 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fuel injection system includes: Force Fuel system, CDI ignition.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif93532 |
| SFX Item ID | 5178165 |
| Supplier Item Code | 5178165 |
| Manufacturer SKU | 93532 |
| Manufacturer UPC | 810128300315 |
