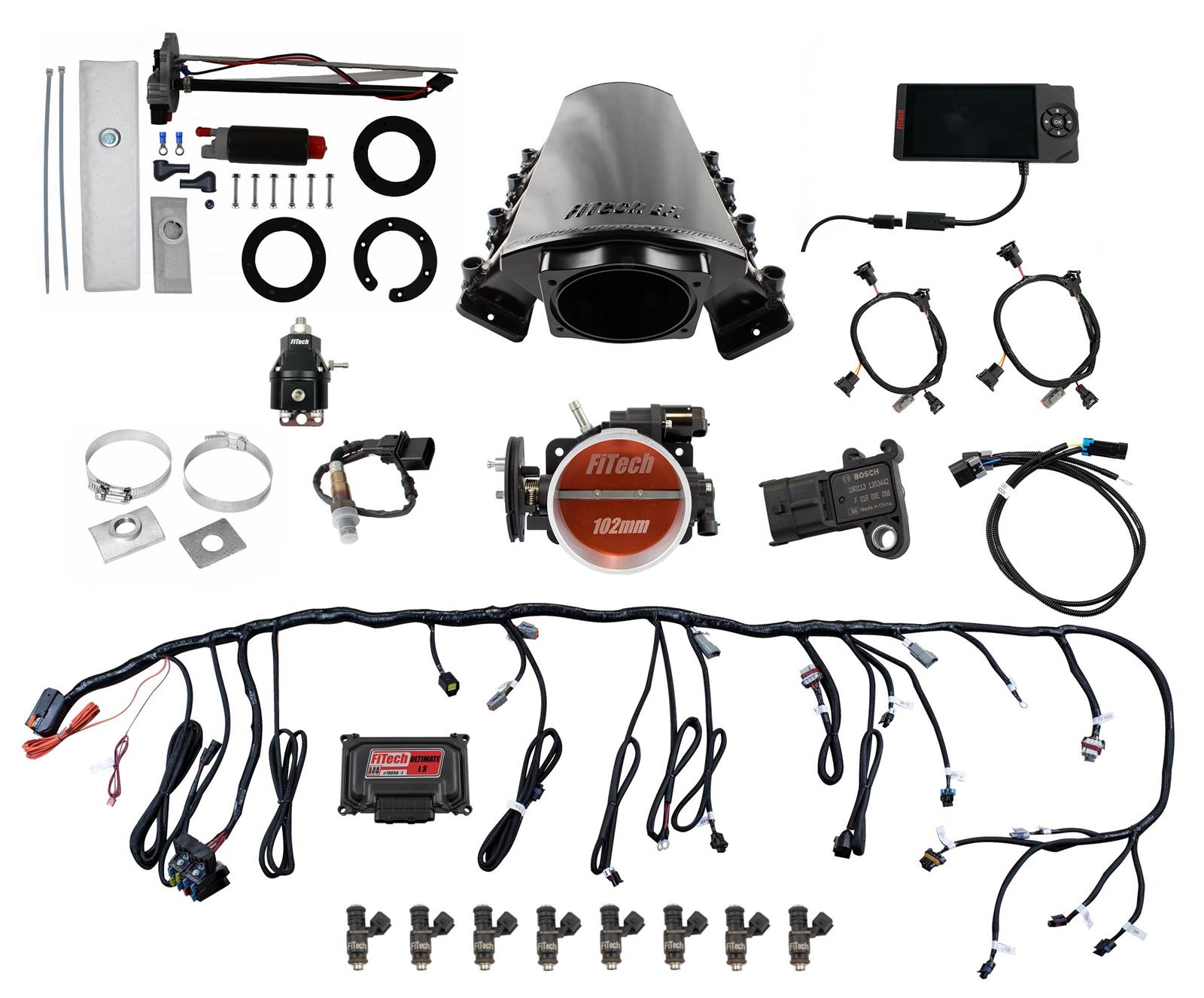

FiTech Ultimate LS EFI 750 HP Fuel Injection Systems with Go In-Tank Module 76217 System, LS, HP, Multi-port, LS7 Square Port Heads, Force Fuel, Fuel, Kit
FiTech Ultimate LS EFI 750 HP Fuel Injection Systems with Go In-Tank Module 76217 System, LS, HP, Multi-port, LS7 Square Port Heads, Force Fuel, Fuel, Kit
A$5,038.14
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
FiTech Ultimate LS EFI 750 hp fuel injection systems with Go Fuel in-tank module combines incredible engineering and construction for top-of-the-line performance. FiTech fabricated many billet aluminum parts for their Ultimate LS EFI 750 hp systems, including a 102mm throttle body, high-volume fuel rails, and a 1,500 to 6,500 rpm powerband intake manifold. They combine sequential spark and fuel control with 55 lbs./hr. injectors, a plug-and-play wiring harness, and a color touch screen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly.
The Go Fuel in-tank module universal billet assembly can be used on tanks with a depth of 6 to 15 inches. The billet aluminum was designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. The vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection.
Additional Ultimate LS features:
* Optional GM transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 in. of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touch screen hand-held controller with data log features
* Suction cup mounting bracket
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- FiTech Fuel Injection
- Product Attributes - Manufacturer's Part Number
- 76217
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- FiTech Ultimate LS EFI 750 HP Fuel Injection Systems with Go Fuel In-Tank Module
- Product Attributes - UPC
- 812061033978
- Product Attributes - Fuel Injection Style
- Multi-port
- Product Attributes - Fuel Injection System Type
- Multi-port Throttle Body
- Product Attributes - Maximum Horsepower with Gas
- 750
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- In-tank fuel pump module, return
- Product Attributes - Fuel Pump Flow Rating (lph)
- 340
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 4.5 in. display
- Product Attributes - EGR
- Yes
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density (Map-N) or speed throttle (Alpha-N)
- Product Attributes - Intake Material
- Aluminum
- Product Attributes - Intake Color
- Black
- Product Attributes - Engine Block Deck Height
- Standard deck
- Product Attributes - Multi-Port Fuel Rails Included
- Yes
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Venturi Quantity
- 1
- Product Attributes - Venturi Diameter (mm)
- 102.00mm
- Product Attributes - Airflow Rate (cfm)
- 1,000 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Black
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 55 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Fitech Fuel Injection |
|---|---|
| StreetFX SKU | fif76217 |
| SFX Item ID | 5178276 |
| Supplier Item Code | 5178276 |
| Manufacturer SKU | 76217 |
| Manufacturer UPC | 812061033978 |
| Alternative References | LS7 |
