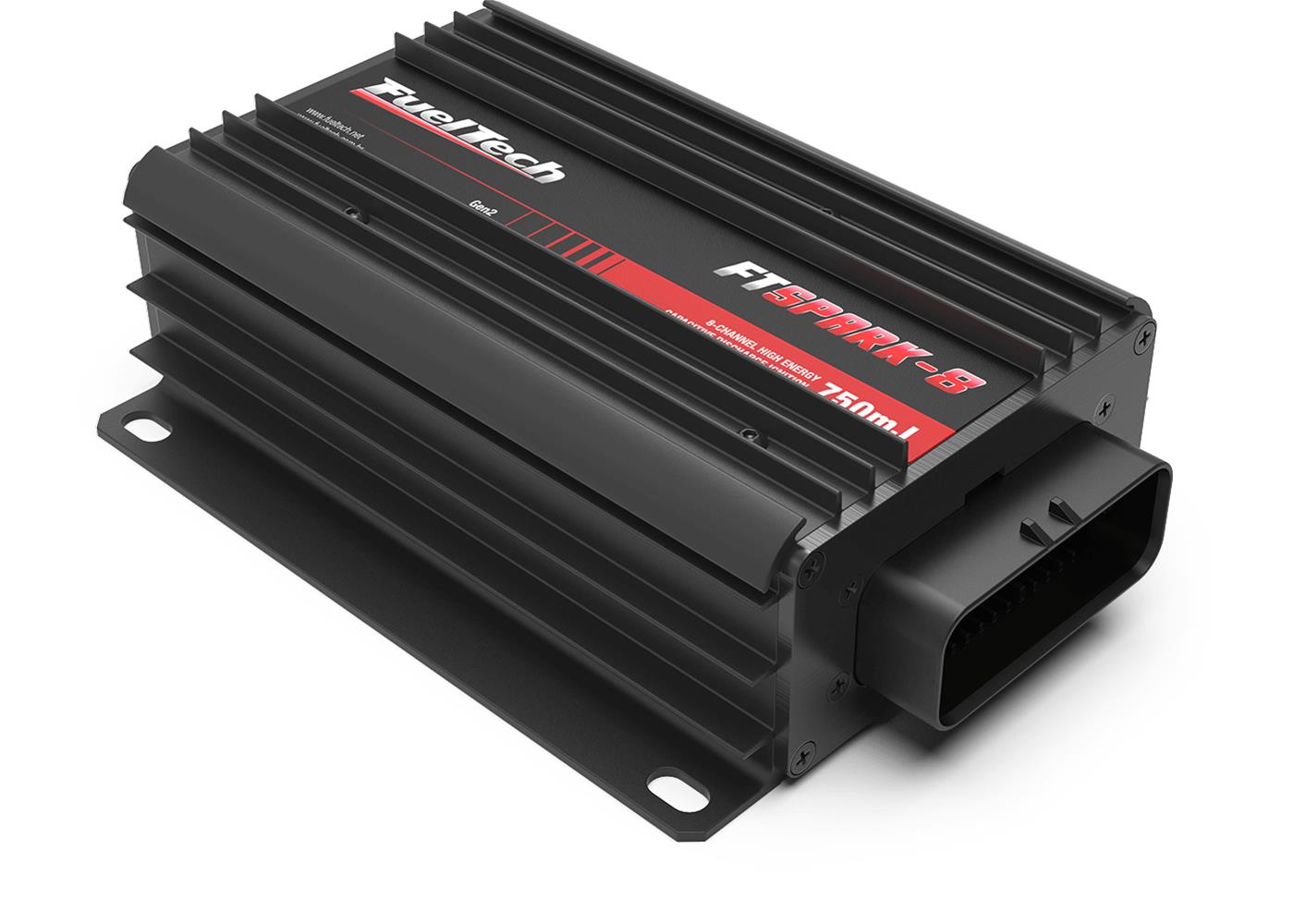

FuelTech FTSPARK GEN II Ignition System 5022007546 Boxes, FTSPARK-8 Gen II, CDI Ignition, Without Harness, Black, 40 amps at 10,000 RPM, 14-26V, Each
FuelTech FTSPARK GEN II Ignition System 5022007546 Boxes, FTSPARK-8 Gen II, CDI Ignition, Without Harness, Black, 40 amps at 10,000 RPM, 14-26V, Each
A$4,860.32
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
The FuelTech FTSPARK GEN II is an extremely high-energy Capacitive Discharge Ignition (CDI) system designed to meet the highest spark requirements for racing. It's developed for high-horsepower combinations and test-proven on 5,000+ horsepower engines! Compatible with any ECU on the market, this system is able to generate a spark with up to 750mJ (mJ=mili Joules) of energy—and is capable of firing the spark with 140 amps of current in the coil primary. With these features, FTSPARK generates a spark with approximately 5x more energy and 10x more current compared to a SparkPRO, ensuring a burn in any condition, especially in extremely rich air/fuel ratios. Models are available for 4-, 6-, or 8-coil applications.
Technical description:
* Programmable energy via CAN or digital input to adjust the energy level; - 475 V in the primary of the coil, which helps to prevent interference in the system
* 140 amps of current in the primary of the coil with Racing CDI FuelTech coil for FTSPARK 750mJ
* CAN communication with FuelTech PowerFT ECUs for diagnostic and datalogging
* Automotive connector with gold-plated terminals
* Serial bus (1 wire) allows the use of only one ECU output that triggers all ignition outputs (only with PowerFT)
* Anodized aluminum and plastic case
* Maximum working temperature: approximately 212 degrees F
* Supply voltage for full power: 14-26 V. Minimum voltage for starting 8 V
* Maximum operating frequency: 670 Hz
* Compatible with other ECUs on the market. Check compatibility of your ECU with FuelTech tech support
Contents of package:
* One FTSPARK (GEN II750mJ or EXTREME) module
* Installation and operation manual
* Mounting hardware kit (4 rubber mounts, 8 washers and 8 nuts)
Part Type
FTSPARK-8 CDI Ignition System w/o Harness
Specifications
- Product Attributes - Brand
- FuelTech
- Product Attributes - Manufacturer's Part Number
- 5022007546
- Product Attributes - Part Type
- Ignition Boxes
- Product Attributes - Product Line
- FuelTech FTSPARK GEN II Ignition System
- Product Attributes - UPC
- 7908074005170
- Product Attributes - Ignition Box Output
- Capacitive discharge
- Product Attributes - Circuitry
- Digital
- Product Attributes - Rev Limiter
- Yes
- Product Attributes - Timing Retard
- One-stage
- Product Attributes - Data Acquisition
- Yes
- Product Attributes - CD Voltage Output to Coil
- 475 V
- Product Attributes - Current Draw
- 40 amps at 10,000 rpm
- Product Attributes - Spark Output (millijoules)
- 750 mJ
- Product Attributes - Minimum Operating Voltage
- 14 V
- Product Attributes - Maximum Operating Voltage
- 26 V
- Product Attributes - Length (in.)
- 4.920 in.
- Product Attributes - Height (in.)
- 6.000 in.
- Product Attributes - Width (in.)
- 1.900 in.
- Product Attributes - Ignition Box Color
- Black
- Product Attributes - Coil Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Warranty
- 1-year
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with eight ignition coils.
Reference Information
| Brand Name/s | Fueltech |
|---|---|
| StreetFX SKU | fch5022007546 |
| SFX Item ID | 5159691 |
| Supplier Item Code | 5159691 |
| Manufacturer SKU | 5022007546 |
| Manufacturer UPC | 7908074005170 |
| Alternative References | FTH5022007546, FTSPARK-8, 14-26V |
