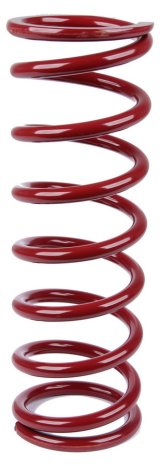

Eibach ERS 15.00 in. Length x 5.00 in. OD Conventional Rear Spring
Eibach ERS 15.00 in. Length x 5.00 in. OD Conventional Rear Spring
A$193.51
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Renowned for our extensive catalog of over 1,500 precision engineered race springs. Eibach race springs offer unparalled customization and performance optimization across a wide spectrum of racing applications. From shocks to pull-bars we offer a wide range of springs solutions to fine tune the handling dynamics of your race car.
Product Overview
A properly tuned spring system provides the muscle needed to transform the power derived from the engine of a racing car to the track through optimum adhesion. Suspension tuning is a precise balance. On one hand, the spring system should be soft enough to compensate for road irregularities assuring permanent road contact, while on the on the other hand the spring system must be firm enough to reduce the body roll, squat, and dive of the vehicle during cornering, acceleration and braking.
For optimum balance, Eibach has developed our world famous ERS double spring system. By combining more than 700 different single spring components, the suspension engineer or weekend enthusiast can create nearly unlimited combinations. Our ERS double-spring system is unsurpassed in performance and flexibility.
The ERS systems relies on a Main and Tender spring concept that provides a softer initial rate when both springs are compressed together, then delivers the desired firmer ending rate once the tender spring closes completely. The Main spring has a linear-rate characteristic and determines the final rate of the system. The Tender springs are available in a variety of linear-rate as well as progressive-rate characteristics and determine the initial rate of the system.
A Helper spring is used to prevent the Main spring from becoming loose in the spring seat when the wheel is at full droop. The Helper spring, unlike the Tender spring, has very little spring rate, and therefore has no effect on the suspension characteristics of the vehicle. Up to 50mm of spring-to-perch gap can be covered with the use of a Helper spring.
Connecting Plates are used to connect Main and Tender springs. Eibach offers both inside and outside diameter connection plates depending upon the dimension and function of the specific damper utilized.
* Uncountable individual combination possibilities to create from standard spring components ex stock
* High spring travel (deflection) and therefore high end loads at short mounting lengths
* Block resistance
* Surface treated through shot-peening
* High dynamic durability (component longevity)
* Precise tolerances
* High quality corrosion protection by phosphating and epoxy coating
* Individual protective packaging
* Easy identification (imprinted with Part no.-indicates spring rate and physical dimensions)
Product Details
| Block Height: | 3.86in |
|---|---|
| Color: | Red |
| Description: | Single Spring |
| Finish: | Powder Coated |
| ID: | 5.00in |
| Length: | 15.00in |
| Load @ Block Height: | 1,670lbs |
| Maximum Outside Diameter: | 5 |
| Part Number: | eib1500.500.0150 |
| Rate: | 150lbs/in |
| Spring Rate: | 150 |
| Travel: | 11.14in |
Part Type
Coil Spring
Features
- Each Spring Individually Tested and Rated
- Lowest Side Loads with Load Center Ideally Located Relative to the Spring Axis
- Maximum Travel in Combination with Smallest Block Heights
- Precision Tolerances - The Tightest in the Industry
- Ultra Lightweight for Reduced Unsprung Mass
Specifications
- Product Attributes - UPC
- 803050217530
- Product Attributes - Brand
- Eibach
- Product Attributes - Notes
- Block height: 4.210 inch, load at block height: 1,618 pounds, and travel is 10.790 inch.
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Racing Springs
- Product Attributes - Spring Type
- Coil
- Product Attributes - Product Line
- Eibach Conventional Rear Coil Springs
- Product Attributes - Spring Finish
- Red
- Product Attributes - For Street Use
- No
- Product Attributes - Bushings Included
- No
- Product Attributes - Spring Positioning
- Rear
- Product Attributes - Spring Rate (lbs/in.)
- 150 lbs./in.
- Product Attributes - Progressive Rate Spring
- No
- Product Attributes - Coil Spring Height (in.)
- 15.00 in.
- Product Attributes - Coil Spring Diameter (in.)
- 5.00 in.
- Product Attributes - Manufacturer's Part Number
- 1500.500.0150
Reference Information
| Brand Name/s | Eibach |
|---|---|
| StreetFX SKU | eib1500.500.0150 |
| SFX Item ID | 4420202 |
| Supplier Item Code | 4420202 |
| Manufacturer SKU | 1500.500.0150 |
| Manufacturer UPC | 803050217530 |
